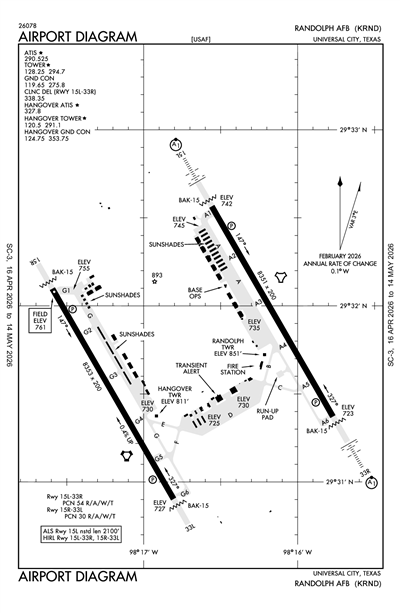

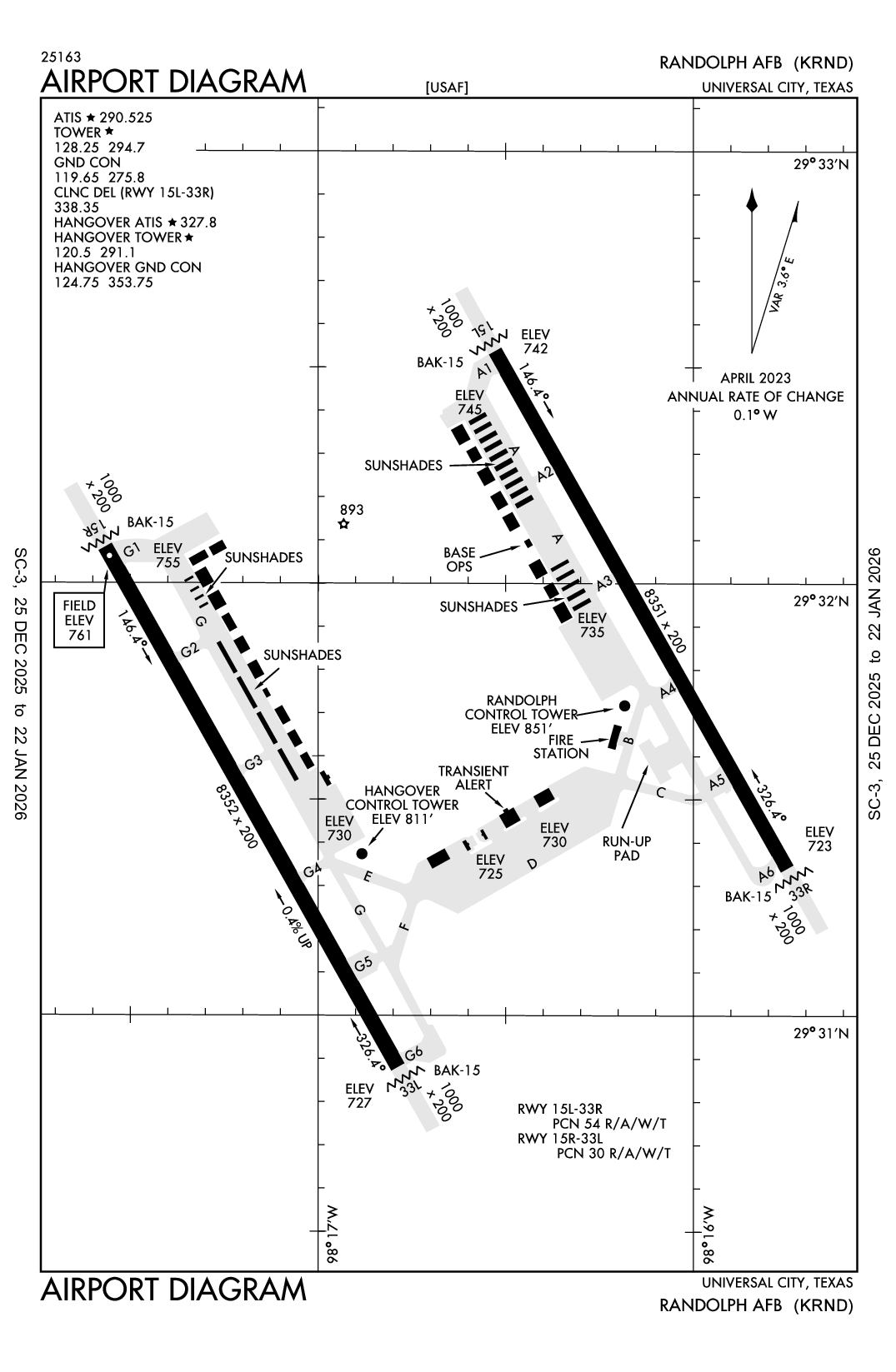

RANDOLPH AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRND
ICAO KRNDIATA RNDLocal RND
RANDOLPH AFB
PrivatePVT

13 miles NE of UNIVERSAL CITY, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 31' 44"N 98° 16' 41"W
Elevation
761' MSL
Pattern Alt
1761' MSL
Mag Variation
4°E
Declination
5°E
Fuel
None Listed
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
5/14/26-6/11/26
KRND VFR
12:55 PM CDT
Scattered 20,000'
Scattered 17,000'
Few 15,000'
10sm
85°F
67°F
29.92"Hg
140° 10kts
Gusts 19kts
AO2 SLP124 T02960193 10296 20217 57011
METAR KRND 151755Z AUTO 14010G19KT 10SM FEW150 SCT170 SCT200 30/19 A2992 RMK AO2 SLP124 T02960193 10296 20217 57011
+ Add Your Business

KRND FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Ground

HANGOVER GROUND 119.65
MON-FRI 1300-0100Z++, CLSD WEEKEND & FEDERAL HOL.
HANGOVER GROUND 124.75
MON-FRI 1300-0100Z++, CLSD WEEKEND & FEDERAL HOL. - HANGOVER TWR

Tower

HANGOVER TOWER 120.5
MON-FRI 1300-0100Z++, CLSD WEEKEND & FEDERAL HOL. - HANGOVER TWR, FREQ 120.5/291.1 FOR TFC CTL RWY 15R-33L WHEN STUDENT TRNG IN PROGRESS.
HANGOVER TOWER 128.25
MON-FRI 1300-0100Z++, CLSD WEEKEND & FEDERAL HOL., FREQ 128.25/294.7 FOR TFC CTL RWY 15R-33L WHEN STUDENT TRNG IN PROGRESS.

Arrival

CRVZA RNAV STAR 125.7
DNKIN RNAV STAR 125.1
POPPO RNAV STAR 125.1
SAT REQUEST BAZ ATIS, 119.325, ADDED TO THIS STAR.
QERVO RNAV STAR 127.1
SAT REQUEST BAZ ATIS, 119.325, ADDED TO THIS STAR.

Approach

SAN ANTONIO APPROACH 124.45

Departure

SAN ANTONIO DEPARTURE 127.1

Emergency

Emergency 121.5

Terminal Area Forecast

KRND
Fri, 5/15 11:00 AM CDT
Fri, 5/15 11:00 AM CDT - Sat, 5/16 5:00 PM CDT
VFR
11:00 AM CDT - 1:00 PM CDT
Broken 20,000'
Scattered 15,000'
Scattered 2,000'
6sm
29.91"Hg
170° 10kts
Gusts 15kts
VFR
Becoming 1:00 PM CDT - 12:00 AM CDT
Broken 20,000'
Scattered 15,000'
Few 3,000'
6sm
29.82"Hg
160° 15kts
Gusts 25kts
MVFR
Becoming 12:00 AM CDT - 9:00 AM CDT
Broken 1,000'
6sm
29.88"Hg
150° 12kts
MVFR
Becoming 9:00 AM CDT - 12:00 PM CDT
Overcast 2,500'
Broken 1,800'
Few 1,000'
6sm
29.88"Hg
170° 10kts
VFR
Becoming 12:00 PM CDT - 5:00 PM CDT
Broken 17,000'
Scattered 2,500'
Few 1,800'
6sm
29.76"Hg
170° 12kts
Gusts 22kts
TAF KRND 151600Z 1516/1622 17010G15KT 9999 SCT020 SCT150 BKN200 QNH2990INS
   BECMG 1518/1519 16015G25KT 9999 FEW030 SCT150 BKN200 QNH2982INS
   BECMG 1605/1606 15012KT 9999 BKN010 QNH2987INS
   BECMG 1614/1615 17010KT 9999 FEW010 BKN018 OVC025 QNH2988INS
   BECMG 1617/1618 17012G22KT 9999 FEW018 SCT025 BKN170 QNH2977INS TX33/1522Z TN21/1612Z LAST NO AMDS AFT 1600 NEXT 1718
KRND
EffectiveExpiresCategoryNOTAM
Military
5/17/26
2000Z
5/17/26
2200Z
AerodromeAERODROME HOURS OF SERVICE AND CLASS D AIRSPACE ACTIVE
5/15/26
1148Z
5/18/26
1148Z
M0200/26 NOTAMC M0194/26
5/15/26
1148Z
5/18/26
1148Z
M0199/26 NOTAMC M0192/26
5/14/26
2200Z
5/17/26
2200Z
M0198/26 NOTAMC M0155/26
5/13/26
1651Z
7/9/26
2359Z
RunwayRWY 15R/33L LENGTH IS 8352'
5/13/26
1649Z
5/16/26
1649Z
M0196/26 NOTAMC M0087/26
5/12/26
1740Z
5/30/26
2359Z
Taxiway!KRND M0195/26 RND TWY A1 HOLD SIGN NOT LGTD 2605121740-2605302359
4/30/26
1100Z
6/1/26
2359Z
CRANE LOCATED 2.6 NM BEFORE RWY 15L THRESHOLD, 6113 FT LEFT OF CENTERLINE, 125 FT AGL/939 FT MSL. (29°35'19.72"N/98°17'2.89"W)
4/27/26
1630Z
7/24/26
2359Z
Apron!KRND M0158/26 RND APRON EAST RAMP WORK IN PROGRESS CONST ROW 16-21 CLOSED 2604271630-2607242359
4/20/26
1235Z
7/17/26
1600Z
OBST LIGHT (2) OUT OF SERVICE PARKING ROW 09
4/20/26
1233Z
7/17/26
1600Z
OBST LIGHT (1) OUT OF SERVICE PARKING ROW 04
Yes
MON-FRI 1300-0100Z++
CLSD WEEKEND & FEDERAL HOL.
U.S. AIR FORCE
RANDOLPH AFB
UNIVERSITY CITY, TX 78148
COMMANDING OFFICER
RANDOLPH AFB
UNIVERSITY CITY, TX 78148
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
RND
Sunset to Sunrise
--
N/A
N/A
No
No
Hangar
No
Minor
None
None
High & Low Pressure
Cargo Handling

Runway 15L/33R

8351 ft. x 200 ft.

CONC
NONE
HIGH
54/R/A/W/T
--
--
--
--
  Runway 15L Runway 33R
True Heading 150°330°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 29° 32' 34"N 29° 31' 22"N
Longitude 98° 16' 33"W 98° 15' 46"W
Elevation 742' 723'
Threshold Crossing Height 46 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 15R/33L

8352 ft. x 200 ft.

PEM
NONE
HIGH
30/R/A/W/T
--
--
--
--
  Runway 15R Runway 33L
True Heading 150°330°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition GOOD GOOD
Latitude 29° 32' 06"N 29° 30' 54"N
Longitude 98° 17' 36"W 98° 16' 48"W
Elevation 761' 727'
Threshold Crossing Height 46 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-12BEARING STRENGTH RWY 15L/33R: ST175 SBTT593 TRT585.
A110-13BEARING STRENGTH RWY 15R/33L: ST175 DDT392.
A110-17SERVICE-LGT: RWY 15L AND RWY 33R ILS AND PAPI GS ARE NOT COINCIDENTAL.
A110-18JASU: 3(MC-2A) (GTC-85) 9(ESSEX B809) 6(SGNC)
A110-2CAUTION: DURG VMC DEP ACFT MUST REMAIN BLO 1300 FT RY 15R/33L; 2100 FT RY CAUTION - DUR VMC DEP ACFT MUST REMAIN BLW 1300' RWY 15R-33L, 2100' RWY 15L-33R TIL PAST DEP END TO ENSURE SEPARATION FR VFR OVERHEAD TFC PAT UNLESS OTHERWISE CLEARED BY ATC.
A110-20FLUID: SP PRESAIR LHOX LOX.
A110-21OIL: O-133-148-156 SOAP-NOT AVBL WKEND.
A110-22RSTD: PPR 48 HR PN RQR, CTC BASE OPS DSN 487-2943, C210-652-2943, AFLD MGR DSN 487-8160/8166, C210-652-8160/8166, PAX TERMINAL, DSN 487-5287, C210-652-5287.
A110-23RSTD: ACFT MUST ADHERE TO PPR ARR BLOCK +/- 30 MIN OF SKED LDG.
A110-24RSTD: EXP RADAR VECTOR FOR ILS OR VFR STR-IN APCH AND FULL STOP LDG DUR STU TRNG.
A110-28MISC: ACFT WITH CODE 7 AND ABV CTC PTD WITH BLOCK TIME 60 MILES PRIOR LDG.
A110-30NS ABTMT: DEP AND ARR ACFT WILL USE MIN PWR SETTINGS CONSISTENT WITH ACFT FLT MANUALS AND COMPLY WITH ALL ATC INSTR.
A110-32SERVICE-LGT: ALS RWY 15L NSTD LEN 2100'.
A110-34MISC: FLEET SVC AVBL 48 HR ADVANCE NTC. NO GLYCOL AVBL.
A110-37BASH PH II IN EFF 1 MAR-31 MAY & 1 AUG-30 NOV, EXP HVY MIGRATION. YR ROUND BIRD ACT HIGHEST IN EARY-MID MORNING AND AFTER 2230Z++ DAILY.
A110-39RSTD: RECOMMEND ALL WIDE BODY ACFT TAXI WITH INBOARD ENG ONLY ON TWYS A, D AND G.
A110-40MISC: FLEET SVC UNAVBL.
A110-42SERVICE-FUEL: A++.
A110-43MILITARY SERVICE TRAN ALERT: DE-ICING UNAVBL. TRAN ACFT MUST USE FLW-ME TO PARK.
A110-44SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-45MISC: RWY COND CODE (RWYCC) NOT RPTD.
A110-46RSTD: ARFF, USAF CORE SET 1, NFPA CAT 1-4.
A110-47MISC: AIRFIELD MGMT DOES NOT HAVE ABILITY TO STORE COMSEC. JBSA COMD POST AT FT. SAM HOUSTON (FSH) IS DESIGNATED AS THE STORAGE DEPOSITORY POC FOR TSNT CLASSIFIED DCMTS/MTRL UP TO AND INCLG SECRET. MUST BE SMALL ENOUGH TO FIT THRU 2 IN SLOT. FOR TRNSPN TO JBSA COMD POST, BLDG 143, FSH, CTC RANDOLPH VEH DISPATCH AT DSN 487-3477 OR C210-652-3477. FOR ADNL INFO ON STORAGE FAC, CTC JBSA COMD POST AT DSN 473-9363 OR C210-221-9363.
A17-M1CLSD WEEKEND & FEDERAL HOL.
A31-15R/33LFIRST 1000 FT RWY 15R & FIRST 2500 FT RWY 33L CONC; MIDDLE 4852 FT ASPH.
E147TPA: RWY 15L/33R 2600 FT AGL OVERHEAD, RWY 15R-33L 1800 FT AGL.
E60-15L_MA-1ABAK-15 CHAG (250' OVRN).
E60-15R_MA-1ABAK-15 CHAG (250' OVRN).
E60-33L_MA-1ABAK-15 CHAG (250' OVRN).
E60-33R_MA-1ABAK-15 CHAG (250' OVRN).
RANDOLPH AFB (ICAO: KRND, IATA: RND) is a private airport located in UNIVERSAL CITY, TX, US.
