FREDERICK DOUGLASS/GREATER ROCHESTER INTL - Airport Diagram

KROC

ICAO KROCIATA ROCLocal ROC

FREDERICK DOUGLASS/GREATER ROCHESTER INTL

PublicPUB

3 miles SW of ROCHESTER, NY, US

View on Map

Status

Operational

Coordinates

43° 07' 09"N 77° 40' 19"W

Elevation

559' MSL

Pattern Alt

1400' MSL

Mag Variation

11°W

Declination

12°W

Fuel

JET A, 100LL, JP-8

FSS

BUFFALO (BUF)

Sectional

DETROIT

ARTCC

CLEVELAND (ZOB)

Data Effective

7/9/26-8/6/26

KROC VFR

9:54 PM EDT RAW

Few 25,000'
Few 9,000'

Viz

10sm

Temp

74°F

Dew

49°F

Pres

30.09"Hg

Wind

240° 8kts

RMK

AO2 SLP190 T02330094 $

METAR KROC 140154Z 24008KT 10SM FEW090 FEW250 23/09 A3009 RMK AO2 SLP190 T02330094 $

Add Your Business

KROC FBOs

Avflight Rochester

UNICOM: 122.775

Phone: (585) 235-9040

0 Reviews (Read | Sign In To Write)

Avfuel

As of 7/7	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.45	6.85	7.01

Fuel Notes

Prices include tax

USAirports Flight Support

UNICOM: 122.85

Phone: (585) 328-2280

Other: (585) 527-6835

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 7/7	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.01	6.81	6.81

Fuel Notes

Prices include tax
Prist available upon request.

Fuel Hours

Fuel available 24/7

Volume Discounts

Fuel discounts available based on volume. CAA competitive pricing.

Your Information

Business

Weather and Advisory

ATIS	124.825
ASOS	124.825
(585) 205-7835

Common

UNICOM

122.95

Clearance

ROCHESTER CLEARANCE DELIVERY

118.8

Ground

ROCHESTER GROUND

121.7

Tower

ROCHESTER TOWER

118.3

Approach

ROCHESTER APPROACH	119.55
Initial Contact - 330-160
ROCHESTER APPROACH	123.7
161-329

Departure

ROCHESTER DEPARTURE	119.55
Initial Contact - 330-160
ROCHESTER DEPARTURE	123.7
161-329
ROCHESTER DEPARTURE	127.325
Secondary

Flight Service

Flight Service	122.6
(BUF)

Emergency

121.5

Other

CLASS C	119.55
330-160
CLASS C	123.7
161-329

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

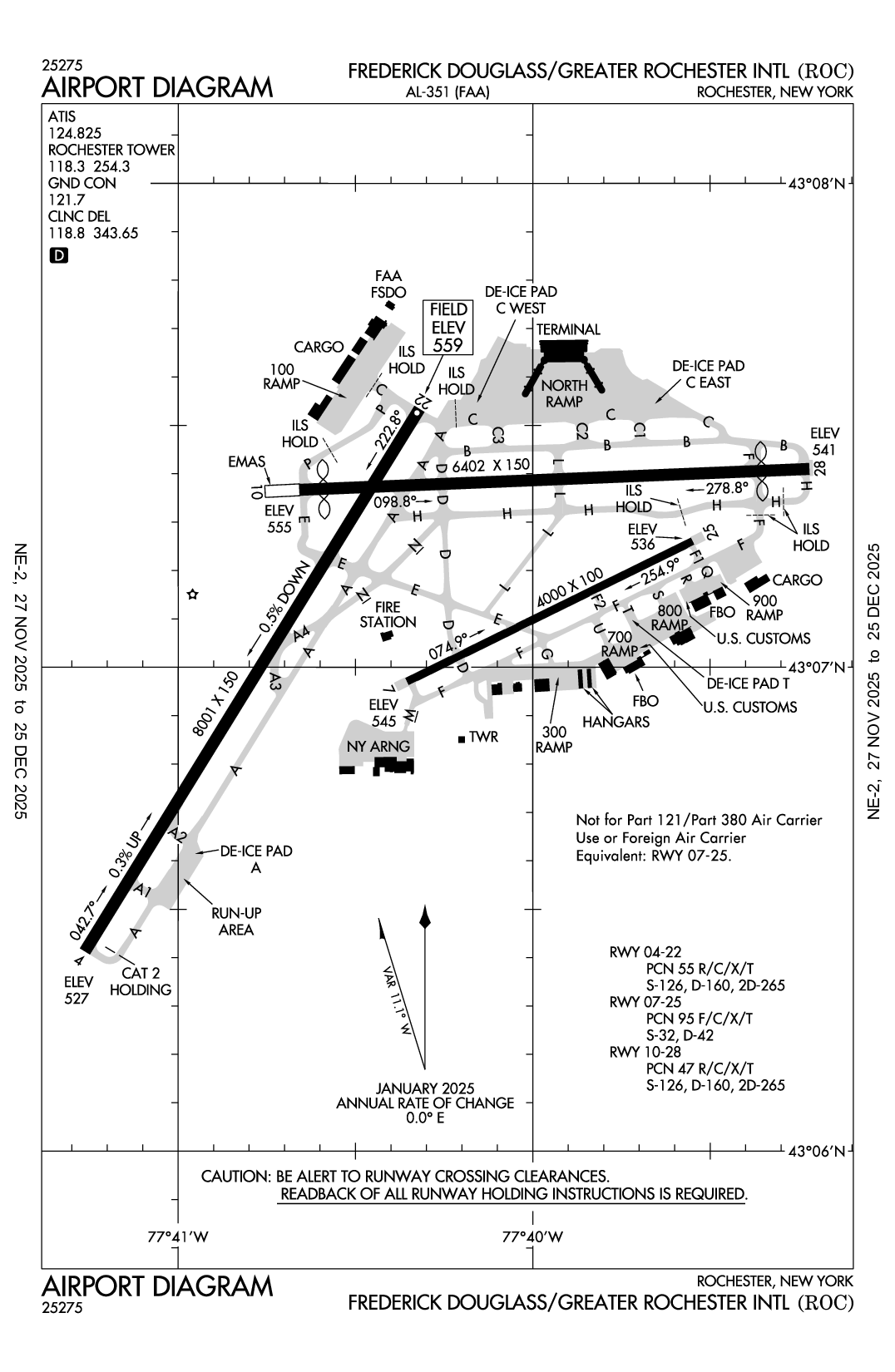

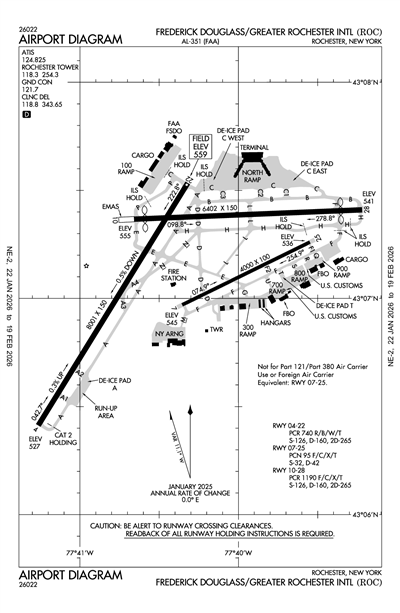

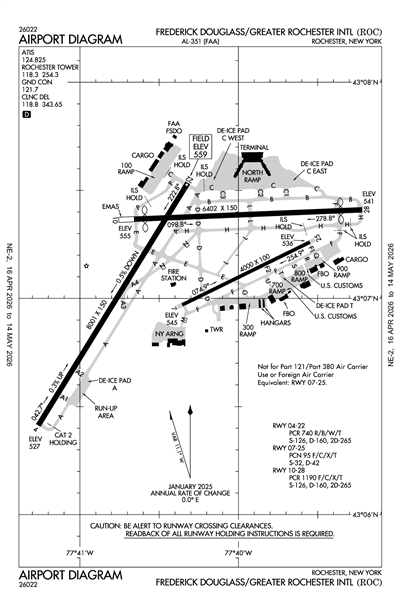

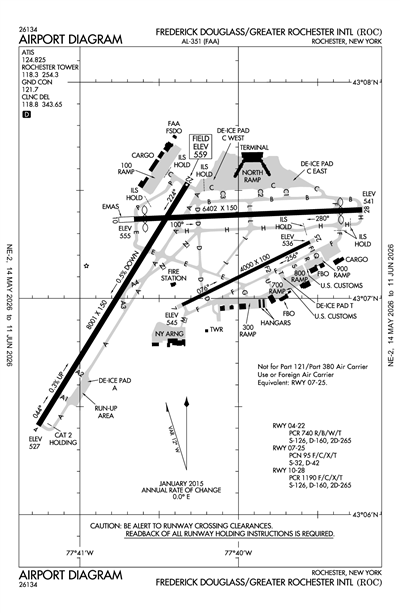

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

XEROX EIGHT

Instrument Approach

Terminal Area Forecast

KROC

RAW

Reported

Mon, 7/13 7:22 PM EDT

Valid

Mon, 7/13 8:00 PM EDT - Tue, 7/14 8:00 PM EDT

VFR

8:00 PM EDT - 7:00 AM EDT

Sky Clear

Viz

6sm

Wind

230° 8kts

VFR

7:00 AM EDT - 12:00 PM EDT

Sky Clear

Viz

6sm

Wind

240° 10kts

Gusts 17kts

VFR

12:00 PM EDT - 8:00 PM EDT

Sky Clear

Viz

6sm

Wind

250° 14kts

Gusts 27kts

TAF KROC 132322Z 1400/1424 23008KT P6SM SKC
FM141100 24010G17KT P6SM SKC
FM141600 25014G27KT P6SM SKC

KROC

Effective	Expires	Category	NOTAM
Domestic
7/14/26 1130Z	7/14/26 2000Z		!ROC 07/114 ROC NAV ILS RWY 22 U/S 2607141130-2607142000
7/14/26 1130Z	7/14/26 2000Z		!ROC 07/113 ROC NAV ILS RWY 04 U/S 2607141130-2607142000
7/14/26 1130Z	7/14/26 2000Z		!ROC 07/112 ROC NAV ILS RWY 28 U/S 2607141130-2607142000
7/10/26 1200Z	8/10/26 2000Z		!ROC 07/094 ROC OBST TOWER LGT (ASR 1228965) 430702.20N0773924.00W (0.7NM E ROC) 620.1FT (95.1FT AGL) U/S 2607101200-2608102000
7/9/26 0513Z	8/12/26 2300Z		!ROC 07/092 ROC TWY E BTN APCH END RWY 10 AND TWY A WIP CONST LGTD AND BARRICADED 2607090513-2608122300
7/9/26 0408Z	8/12/26 2300Z		!ROC 07/088 ROC TWY E BTN APCH END RWY 10 AND TWY A CLSD 2607090408-2608122300
7/1/26 1049Z	8/11/26 2300Z	Runway	!ROC 07/013 ROC RWY 04/22 SAFETY AREA WIP ADJ 2607011049-2608112300
6/28/26 0127Z	9/25/26 2359Z		!ROC 06/313 ROC OBST TOWER LGT (ASR UNKNOWN) 425936.50N0770830.70W (9.5NM NE IUA) 763.4FT (196.4FT AGL) U/S 2606280127-2609252359
6/23/26 1420Z	8/7/26 1419Z		!ROC 06/257 ROC OBST TOWER LGT (ASR 1002817) 430538.20N0773637.10W (3.1NM ESE ROC) 823.2FT (283.1FT AGL) U/S 2606231420-2608071419
6/2/26 0400Z	7/31/26 0900Z	Runway	!ROC 05/285 ROC RWY 04/22 CLSD TUE WED THU FRI MON 0400-0900 2606020400-2607310900
5/29/26 1731Z	9/30/26 2359Z		!ROC 05/289 ROC OBST TOWER LGT (ASR 1003957) 430600.00N0773424.00W (4.4NM ESE ROC) 692.3FT (203.4FT AGL) U/S 2605291731-2609302359
5/29/26 1730Z	9/30/26 2359Z		!ROC 05/288 ROC OBST TOWER LGT (ASR 1003956) 430602.00N0773424.00W (4.4NM ESE ROC) 692.3FT (203.4FT AGL) U/S 2605291730-2609302359
5/29/26 1729Z	9/30/26 2359Z		!ROC 05/287 ROC OBST TOWER LGT (ASR 1003955) 430602.00N0773420.00W (4.5NM ESE ROC) 692.3FT (203.4FT AGL) U/S 2605291729-2609302359
5/29/26 1728Z	9/30/26 2359Z		!ROC 05/286 ROC OBST TOWER LGT (ASR 1003954) 430600.00N0773420.00W (4.5NM ESE ROC) 692.3FT (203.4FT AGL) U/S 2605291728-2609302359

ATC Tower

Yes

Attendance

ALL

Owner

COUNTY OF MONROE
COUNTY OFFICE BLDG
ROCHESTER, NY 14614
Phone: 585-753-7020

Manager

ANDREW MOORE
1200 BROOKS AVE
ROCHESTER, NY 14624
Phone: 585-753-7056

FSS

BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF

NOTAM

ROC

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 04/22

Dimensions

8001 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

126,000lbs

Double Wheel

160,000lbs

Double Tandem

265,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	32°	212°
Traffic Pattern	Left	Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	43° 06' 25"N	43° 07' 32"N
Longitude	77° 41' 16"W	77° 40' 19"W
Elevation	527'	559'
Threshold Crossing Height	72 ft. AGL	67 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	ALSF2	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights

Runway 07/25

Dimensions

4000 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

95/F/C/X/T

Single Wheel

32,000lbs

Double Wheel

42,000lbs

Double Tandem

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	64°	244°
Traffic Pattern	Right	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	43° 06' 58"N	43° 07' 16"N
Longitude	77° 40' 21"W	77° 39' 33"W
Elevation	545'	536'
Threshold Crossing Height	--	40 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 10/28

Dimensions

6402 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

126,000lbs

Double Wheel

160,000lbs

Double Tandem

265,000lbs

Dual Dbl Tand

	Runway 10	Runway 28
True Heading	88°	268°
Traffic Pattern	Right	Left
Markings	NPI	PIR
Markings Condition	GOOD	GOOD
Latitude	43° 07' 22"N	43° 07' 25"N
Longitude	77° 40' 39"W	77° 39' 13"W
Elevation	555'	541'
Threshold Crossing Height	53 ft. AGL	57 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes

A110-1	NO PRACTICE APCHS OR MAINT ENG RUN-UPS BTN 2300-0600.
A110-10	MULTIPLE UNSHIELDED LGTS IN FINAL APCH AREA RY 28.
A110-12	TWY "A2" CLSD TO HEAVY ACFT.
A110-15	TWY "F" FROM TWY "F1" TO RY 07 CLSD TO ACFT W/WINGSPAN GREATER THAN 100 FT.
A110-16	PAPI RWY 22; PAPI RWY 10, RWY 25 AND RWY 28 OPERATE 24 HRS.
A110-17	TERMINAL RAMP IS UNCONTROLLED. DO NOT CALL FOR PUSH/POWER BACK. ADVISE GROUND CONTROL WHEN READY TO TAXI FOR DEPARTURE.
A110-4	BE ALERT DURG LNDG/TKOF RYS 25 & 28 - THLDS IN CLOSE PROXIMITY TO EACH OTHER.
A110-5	BIRDS; DEER & COYOTE ON & INVOF ARPT.
A110-9	80 FT OBST LGTD TWR 1250 FT WEST OF RY 04/22 CNTRLN 1000 FT SOUTH OF EXTDD CNTRLN RY 10/28.
A30-07/25	RWY 07/25 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-04/22	PCR VALUE: 740/R/B/W/T
A39-10/28	PCR VALUE: 1190/F/C/X/T
A48-07	RY 07 REIL CONTROLLED BY ATCT BUT NOT MONITORED.
A48-10	RY 10 REIL CONTROLLED BY ATCT BUT NOT MONITORED.
A48-25	RY 25 REIL CONTROLLED BY ATCT BUT NOT MONITORED.
A57-10	RWY 10 APCH RATIO 26:1 TO DSPLCD THLD.
A57-28	RWY 28 APCH RATIO 26:1 TO DSPLCD THLD.
A70-J8	FOR DOD ACFT.
E111	ARPT EXISTED PRIOR TO 1959
E147	TPA: 841 FT AGL SINGL ENG, 1441 FT AGL MULT ENG/TURBOPROP/JET.
E60-28_EMAS	ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 368 FT IN LENGTH BY 160 FT IN WIDTH LCTD AT THE DER 28.
E79	FLIGHT NOTIFICATION SERVICE (ADCUS ) AVAILABLE.

FREDERICK DOUGLASS/GREATER ROCHESTER INTL (ICAO: KROC, IATA: ROC) is a public airport located in ROCHESTER, NY, US.
