KRPH
ICAO KRPHIATA RPHLocal RPH
GRAHAM MUNI
PublicPUB

2 miles E of GRAHAM, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 06' 39"N 98° 33' 17"W
Elevation
1123' MSL
Pattern Alt
2123' MSL
Mag Variation
4°E
Declination
7°E
Fuel
JET A (FSII), 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
5/14/26-6/11/26
KRPH VFR
9:15 PM CDT
Clear
10sm
81°F
58°F
29.80"Hg
VRB° 6kts
AO2 T02730147
METAR KRPH 150215Z AUTO VRB06KT 10SM CLR 27/15 A2980 RMK AO2 T02730147
+ Add Your Business

KRPH FBOs

Promote Listing
Graham Municipal Airport
UNICOM: 122.975
Phone: (940) 549-6150
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/5
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.89 5.99
Full Serve 6.49
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.025
(940) 521-0685

Common

CTAF 122.975
MIRL RWY 03/21 SS-SR PRESET TO LOW, TO INCR INTST ACTVT - CTAF.
UNICOM 122.975

Center

FORT WORTH CENTER 127.0
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 127.0/360.6 (MINERAL WELLS RCAG).

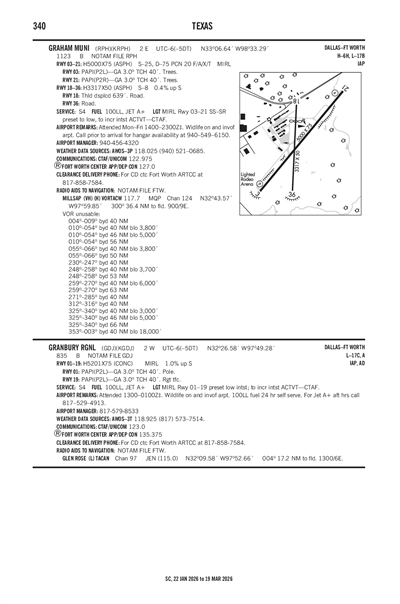

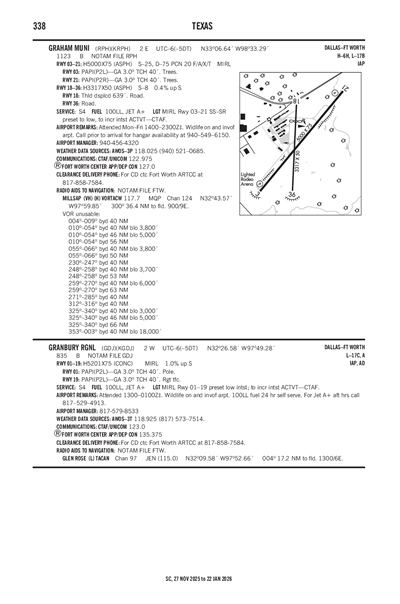

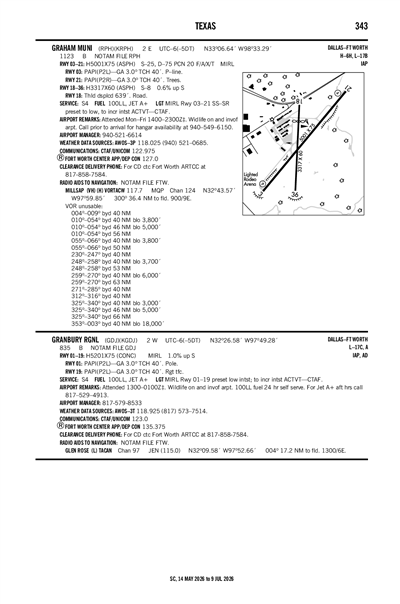

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSPS (52nm)
Thu, 5/14 6:21 PM CDT
Thu, 5/14 7:00 PM CDT - Fri, 5/15 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 PM CDT
Scattered 25,000'
6sm
170° 18kts
Gusts 26kts
VFR
10:00 PM CDT - 8:00 AM CDT
Broken 25,000'
Scattered 15,000'
6sm
170° 14kts
Gusts 22kts
VFR
8:00 AM CDT - 7:00 PM CDT
Broken 25,000'
Scattered 15,000'
6sm
180° 22kts
Gusts 30kts
TAF KSPS 142321Z 1500/1524 17018G26KT P6SM SCT250
   FM150300 17014G22KT P6SM SCT150 BKN250 WS020/21045KT
   FM151300 18022G30KT P6SM SCT150 BKN250
KRPH
EffectiveExpiresCategoryNOTAM
Domestic
5/15/26
1200Z
5/17/26
0100Z
Runway!RPH 05/008 RPH RWY 21 RIGHT TFC PATTERN DLY 1200-0100 2605151200-2605170100
5/14/26
2045Z
5/15/26
0100Z
Runway!RPH 05/009 RPH RWY 21 RIGHT TFC PATTERN 2605142045-2605150100
5/14/26
1400Z
5/17/26
0300Z
!RPH 05/007 RPH AIRSPACE AEROBATIC ACFT WI AN AREA DEFINED AS 1NM RADIUS OF RPH SFC-4500FT AGL DLY 1400-0300 2605141400-2605170300
5/9/26
2322Z
8/10/26
2359Z
!RPH 05/005 RPH OBST TOWER LGT (ASR 1052445) 330710.00N0983513.00W (1.7NM WNW RPH) 1319.2FT (219.2FT AGL) U/S 2605092322-2608102359
5/7/26
1408Z
5/15/26
2200Z
!RPH 05/002 RPH SVC AUTOMATED WX BCST SYSTEM 118.025 U/S 2605071408-2605152200
4/11/26
2314Z
5/26/26
2313Z
!RPH 04/002 RPH OBST TOWER LGT (ASR 1035877) 330737.00N0983536.00W (2.2NM WNW RPH) 1260.2FT (205.1FT AGL) U/S 2604112314-2605262313
3/17/26
1843Z
12/31/29
2300Z
Runway!RPH 03/003 RPH RWY 21 PAPI U/S 2603171843-2912312300
2/19/26
2028Z
12/31/26
2359Z
Runway!RPH 02/006 RPH RWY 18/36 NOW 3317FT X 50FT 2602192028-2612312359
1/3/26
1611Z
1/1/28
2359Z
Runway!RPH 01/002 RPH RWY 03 DECLARED DIST: TORA 4200FT TODA 4200FT ASDA 4200FT LDA 4200FT. 2601031611-2801012359
1/3/26
1611Z
1/1/28
2359Z
Runway!RPH 01/001 RPH RWY 21 THR DISPLACED 800FT MARKING NOT STD. DECLARED DIST: TORA 4200FT TODA 4200FT ASDA 4200FT LDA 4200FT 2601031611-2801012359
10/28/25
2212Z
12/31/26
1159Z
!RPH 10/011 RPH TWY ALL SFC MARKINGS FADED 2510282212-2612311159
FDC
12/20/25
0119Z
!FDC 5/2156 RPH IAP GRAHAM MUNI, GRAHAM, TX.
RNAV (GPS) RWY 21, ORIG-A...
LNAV MDA NA.
2512200119-2608012355EST
8/22/25
1541Z
!FDC 5/1880 RPH ODP GRAHAM MUNI, GRAHAM, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKEOFF MINIMUMS RWY 3, PROCEDURE NA. ALL OTHER DATA REMAINS AS PUBLISHED. 2508221541-2708221541EST
No
MON-FRI 0800-1700
CITY OF GRAHAM
612 ELM ST
GRAHAM, TX 76450
Phone: 940-521-6614
ERIC GARRETTY
1810 4TH STREET
GRAHAM, TX 76450
Phone: 940-521-6614
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
RPH
--
MIRL RWY 03/21 SS-SR PRESET TO LOW, TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
None

Runway 03/21

5001 ft. x 75 ft.
ASPH
Good
NONE
MED
20/F/A/X/T
25,000lbs
75,000lbs
--
--
  Runway 03 Runway 21
True Heading 40°220°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 06' 21"N 33° 06' 59"N
Longitude 98° 33' 35"W 98° 32' 57"W
Elevation 1,113' 1,114'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

3317 ft. x 60 ft.
ASPH
Fair
NONE


8,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 183°3°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 33° 06' 54"N 33° 06' 21"N
Longitude 98° 33' 18"W 98° 33' 20"W
Elevation 1,104' 1,123'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF ARPT.
A110-2FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A14CITY/ARPT MGR 940-549-3324
A57-18OBSTN CNTRLN SLOPE 37:1 TO DTHR.
A58-1819 FT RD, 62 FT DSTC, 7 FT FENCE 0 FT DSTC.
A58-2132 FT TREE, 190 FT DSTC, 230 FT R.
A81-APTMIRL RWY 03/21 SS-SR PRESET TO LOW, TO INCR INTST ACTVT - CTAF.
GRAHAM MUNI (ICAO: KRPH, IATA: RPH) is a public airport located in GRAHAM, TX, US.
