iFlightPlanner



...

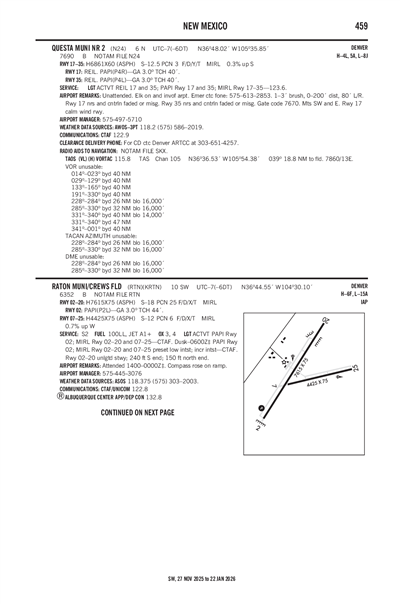

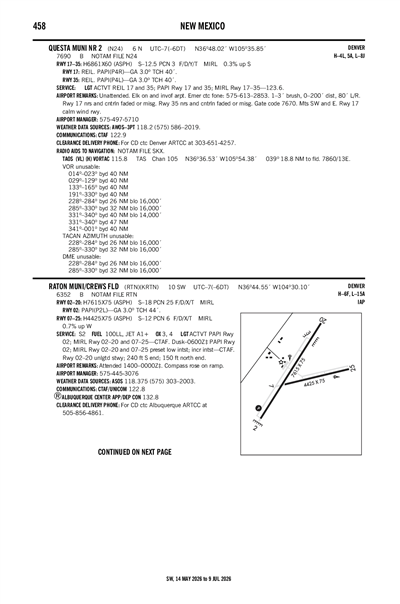

RATON MUNI/CREWS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRTN
ICAO KRTNIATA RTNLocal RTN
RATON MUNI/CREWS FLD
PublicPUB

10 miles SW of RATON, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 44' 33"N 104° 30' 06"W
Elevation
6352' MSL
Pattern Alt
7352' MSL
Mag Variation
7°E
Declination
10°E
Fuel
JET A-1+, 100LL
FSS
ALBUQUERQUE (ABQ)
Sectional
DENVER
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
4/16/26-5/14/26
KRTN VFR
2:53 PM MDT
Clear
10sm
69°F
4°F
29.81"Hg
230° 9kts
Gusts 26kts
AO2 PK WND 21026/2047 WSHFT 2011 SLP042 T02061156 56025
METAR KRTN 242053Z AUTO 23009G26KT 10SM CLR 21/M16 A2981 RMK AO2 PK WND 21026/2047 WSHFT 2011 SLP042 T02061156 56025
+ Add Your Business

KRTN FBOs

X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 118.375
(575) 303-2003

Common

CTAF 122.8
ACTVT PAPI RWY 02; MIRL RWY 02/20 & 07/25 - CTAF. DUSK-2300 PAPI RWY 02; MIRL RWY 02/20 & 07/25 PRESET LOW INTST; INCR INTST - CTAF.
UNICOM 122.8

Center

ALBUQUERQUE CENTER 132.8
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC ON FREQS 132.8/346.35 (RATON RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KALS (78nm)
Fri, 4/24 11:20 AM MDT
Fri, 4/24 12:00 PM MDT - Sat, 4/25 12:00 PM MDT
VFR
12:00 PM MDT - 2:00 PM MDT
Sky Clear
6sm
180° 7kts
VFR
2:00 PM MDT - 8:00 PM MDT
Scattered 20,000'
Scattered 16,000'
6sm
250° 15kts
Gusts 28kts
VFR
8:00 PM MDT - 11:00 PM MDT
Broken 20,000'
Scattered 10,000'
6sm
260° 10kts
VFR
11:00 PM MDT - 12:00 PM MDT
Scattered 20,000'
Few 10,000'
6sm
200° 8kts
TAF KALS 241720Z 2418/2518 18007KT P6SM SKC
   FM242000 25015G28KT P6SM SCT160 SCT200
   FM250200 26010KT P6SM SCT100 BKN200
   FM250500 20008KT P6SM FEW100 SCT200
KRTN
EffectiveExpiresCategoryNOTAM
Domestic
4/19/26
0156Z
5/3/26
2359Z
!RTN 04/007 RTN OBST TOWER LGT (ASR 1007707) 365312.00N1042637.00W (9.1NM NNE RTN) 6752.6FT (202.8FT AGL) U/S 2604190156-2605032359
No
0700-1700
CITY OF RATON
BOX 19
RATON, NM 87740
Phone: 575-445-9551
DUSTY LONGWILL
HCR 62 BOX 19
RATON, NM 87740
Phone: 575-445-3076
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
RTN
--
ACTVT PAPI RWY 02; MIRL RWY 02/20 & 07/25 - CTAF. DUSK-2300 PAPI RWY 02; MIRL RWY 02/20 & 07/25 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
High & Low Pressure
None
None

Runway 02/20

7615 ft. x 75 ft.
ASPH
Excellent
NONE
MED
25/F/D/X/T
18,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 34°214°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 44' 03"N 36° 45' 05"N
Longitude 104° 30' 40"W 104° 29' 48"W
Elevation 6,332' 6,349'
Threshold Crossing Height 44 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 07/25

4425 ft. x 75 ft.
ASPH
Good
NONE
MED
6/F/D/X/T
12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 78°258°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 36° 44' 26"N 36° 44' 35"N
Longitude 104° 30' 19"W 104° 29' 26"W
Elevation 6,342' 6,310'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2RWY 02/20 UNLGTD STWY; 240 FT S END; 150 FT NORTH END.
A110-5COMPASS ROSE ON RAMP.
A110-6FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A16575-707-2225.
A75-HCALL 575-445-3076 FOR AVBLTY.
A81-APTACTVT PAPI RWY 02; MIRL RWY 02/20 & 07/25 - CTAF. DUSK-2300 PAPI RWY 02; MIRL RWY 02/20 & 07/25 PRESET LOW INTST; INCR INTST - CTAF.
RATON MUNI/CREWS FLD (ICAO: KRTN, IATA: RTN) is a public airport located in RATON, NM, US.
