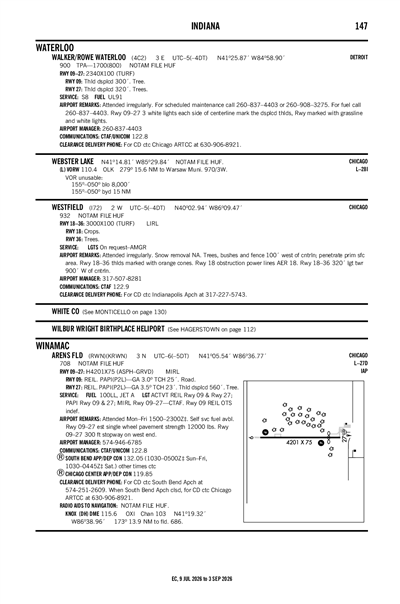

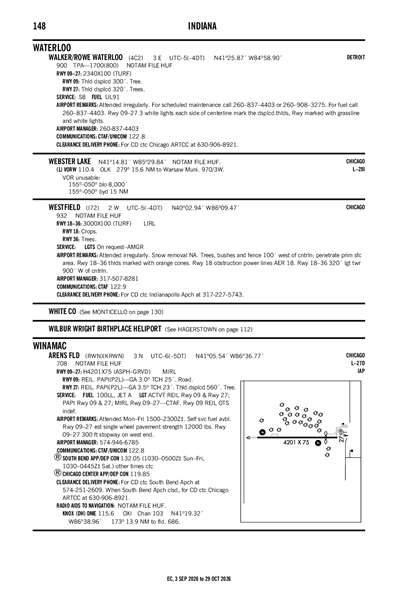

ARENS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRWN
ICAO KRWNLocal RWN
ARENS FLD
PublicPUB

3 miles N of WINAMAC, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 05' 32"N 86° 36' 46"W
Elevation
708' MSL
Pattern Alt
1708' MSL
Mag Variation
5°W
Declination
3°W
Fuel
JET A, 100LL
FSS
TERRE HAUTE (HUF)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
6/11/26-7/9/26
KOXI (14nm) VFR
2:35 PM CDT
Broken 11,000'
Scattered 8,000'
10sm
73°F
64°F
30.04"Hg
120° 4kts
AO2
METAR KOXI 241935Z AUTO 12004KT 10SM SCT080 BKN110 23/18 A3004 RMK AO2
+ Add Your Business

KRWN FBOs

Promote Listing
Arens Field
UNICOM: 122.8
Phone: (574) 946-6785
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.55 4.25
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
UNICOM 122.8

Approach

SOUTH BEND APPROACH 132.05

Departure

SOUTH BEND DEPARTURE 132.05

Center

SOUTH BEND CENTER 119.85
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQS 119.85/307.375 (FORT WAYNE RCAG); WHEN SOUTH BEND APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGUS (34nm)
Wed, 6/24 9:00 AM EDT
Wed, 6/24 9:00 AM EDT - Thu, 6/25 3:00 PM EDT
VFR
9:00 AM EDT - 4:00 PM EDT
Scattered 25,000'
Scattered 14,000'
Few 6,000'
6sm
29.97"Hg
230° 9kts
VFR
Becoming 4:00 PM EDT - 9:00 PM EDT
Showers in vicinity
Overcast 22,000'
Broken 12,000'
Scattered 5,000'
6sm
29.94"Hg
230° 12kts
Gusts 18kts
VFR
Becoming 9:00 PM EDT - 4:00 AM EDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 9,000'
Broken 5,000'
Scattered 2,500'
6sm
29.94"Hg
230° 7kts
MVFR
Temporary 11:00 PM EDT - 3:00 AM EDT
Light Thunderstorm and Rain
Overcast 5,000'
Broken 2,500'
Scattered 1,500'
4.97sm
250° 15kts
Gusts 25kts
MVFR
Becoming 4:00 AM EDT - 11:00 AM EDT
Overcast 2,500'
Broken 1,800'
6sm
29.94"Hg
250° 10kts
VFR
Becoming 11:00 AM EDT - 3:00 PM EDT
Broken 20,000'
Broken 4,000'
Scattered 2,000'
6sm
29.94"Hg
270° 10kts
Gusts 15kts
TAF KGUS 241300Z 2413/2519 23009KT 9999 FEW060 SCT140 SCT250 QNH2997INS
   BECMG 2420/2421 23012G18KT 9999 VCSH SCT050 BKN120 OVC220 QNH2994INS
   BECMG 2501/2502 23007KT 9999 -SHRA VCTS SCT025CB BKN050 OVC090 QNH2993INS
   TEMPO 2503/2507 25015G25KT 8000 -TSRA SCT015 BKN025CB OVC050
   BECMG 2508/2509 25010KT 9999 NSW BKN018 OVC025 QNH2993INS
   BECMG 2515/2516 27010G15KT 9999 SCT020 BKN040 BKN200 QNH2995INS TX27/2420Z TN17/2413Z
KRWN
EffectiveExpiresCategoryNOTAM
Domestic
6/22/26
1100Z
6/28/26
0300Z
!HUF 06/595 RWN AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 410254N0863712W (3.5NM S RWN) SFC-1200FT AGL DLY 1100-0300 2606221100-2606280300
6/18/26
0332Z
8/2/26
0331Z
!HUF 06/515 RWN OBST TOWER LGT (ASR 1332254) 410741.56N0863600.96W (2.2NM NNE RWN) 968FT (259FT AGL) U/S 2606180332-2608020331
6/7/26
0148Z
9/5/26
0148Z
!HUF 06/136 RWN OBST TOWER LGT (ASR 1062741) 410557.00N0865402.00W (13.0NM W RWN) 1000.0FT (315.0FT AGL) U/S 2606070148-2609050148
No
MON-FRI 0900-1700
WINAMAC-PULASKI CO BOAC
2595N. US 35
WINAMAC, IN 46996
Phone: 574-946-6785
DARYN WILDER
2595 N. US 35
WINAMAC, IN 46996
Phone: 574-946-6785
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

4201 ft. x 75 ft.
ASPH
Good
GRVD
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 05' 32"N 41° 05' 32"N
Longitude 86° 37' 14"W 86° 36' 19"W
Elevation 706' 707'
Threshold Crossing Height 25 ft. AGL 23 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC SOUTH BEND APCH AT 574-251-2609. WHEN SOUTH BEND APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-OWNERJIM MCDANIEL.
A31-09/27300 FT STWY ON WEST END.
A35-09/27EST SINGLE WHEEL PAVEMENT STRENGTH 12000 LBS.
A48-09REIL OTS INDEFLY.
A57-0935:1 CLEARANCE SLOPE TO DISPLACED THRESHOLD
A58-094 FT FENCE 200 FT N.
A70-ASELF SERVICE.
A81-APTACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
ARENS FLD (ICAO: KRWN, IATA: RWN) is a public airport located in WINAMAC, IN, US.
