iFlightPlanner



...

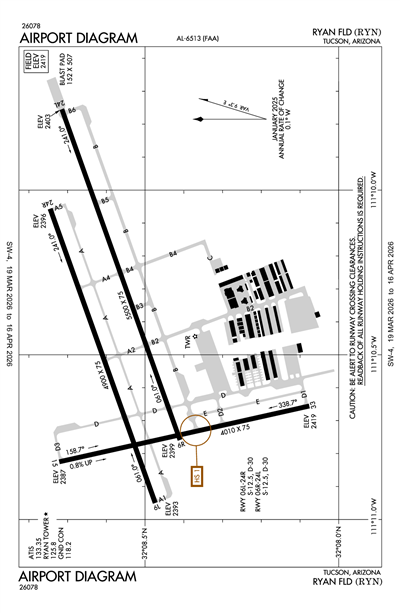

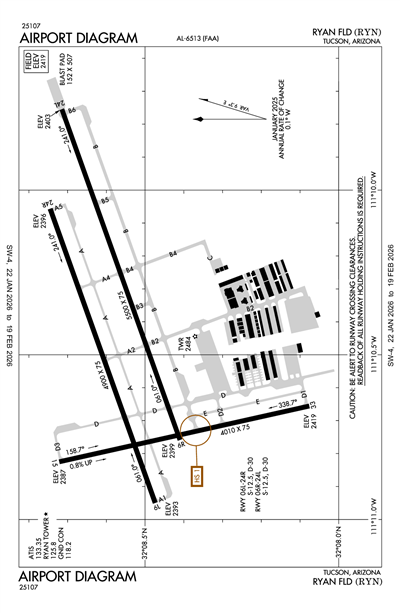

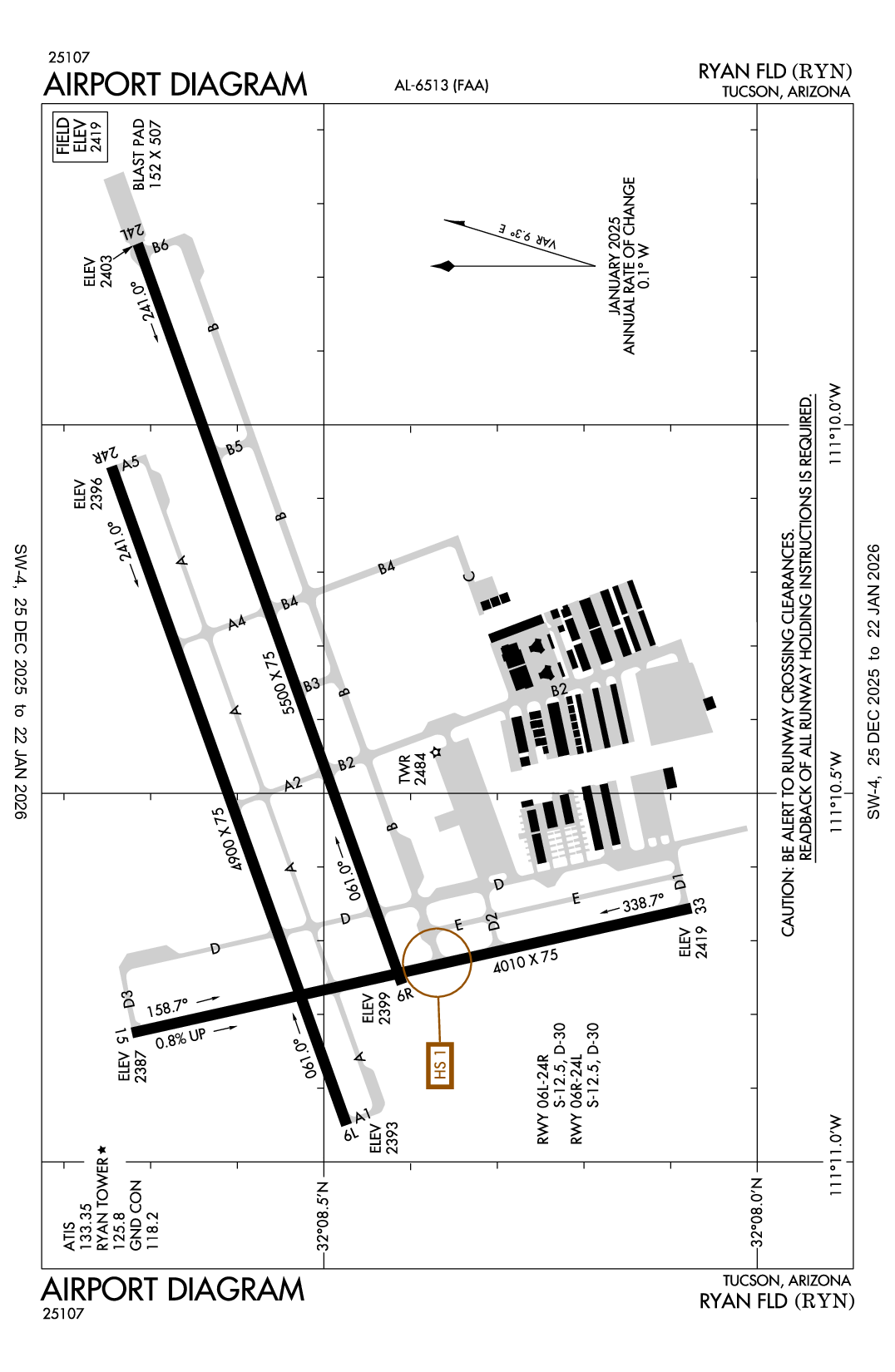

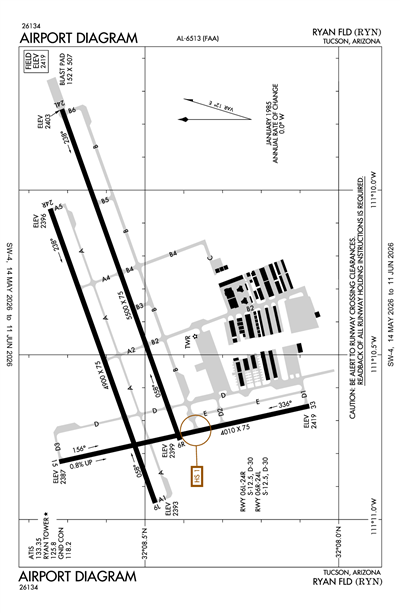

RYAN FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRYN
ICAO KRYNLocal RYN
RYAN FLD
PublicPUB

10 miles SW of TUCSON, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 08' 32"N 111° 10' 28"W
Elevation
2419' MSL
Pattern Alt
3219' MSL
Mag Variation
9°E
Declination
12°E
Fuel
JET A, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
8/6/26-9/3/26
KRYN VFR
8:45 AM MST
Clear
10sm
86°F
61°F
30.02"Hg
Calm
METAR KRYN 231545Z 00000KT 10SM CLR 30/16 A3002
+ Add Your Business

KRYN FBOs

Promote Listing
Velocity Air
UNICOM: 118.2
Phone: (520) 434-0440
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 8/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.45
Full Serve 8.45 7.95 7.95
Fuel Notes
Prices include tax
Jet A with Prist available upon request.
Fuel Hours
100 LL Self Serve Pumps open 24/7
Full Serve 100 LL and Jet A with Prist option 8AM to 4PM
After hours available with $150 call out fee
Volume Discounts
FBO Fee waived with minimum 100 Gallons of Jet A

KRYN Aircraft Service & Maintenance

Promote Listing
Sonora Avionics dba Southwest Avionics
Phone: (520) 977-6431
Fax: (520) 883-9257
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 133.35
(520) 578-0269
AWOS-3 (520) 578-0269

Common

CTAF 125.8
WHEN ATCT CLSD ACTVT PAPI RWY 06R, 06L, & 24R; VASI RWY 24L; MIRL RWY 06R/24L & 15/33 - CTAF.

Ground

RYAN GROUND 118.2
0600-2000

Tower

RYAN TOWER 125.8
0600-2000, TWR FREQ WILL BE 125.8 FOR ALL RWYS EXC RWY 06L/24R WHEN STATED ON THE ATIS.
RYAN TOWER 120.35
0600-2000, Secondary

Approach

TUCSON APPROACH 128.5

Departure

TUCSON DEPARTURE 128.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KTUS (11nm)
Sun, 8/23 4:20 AM MST
Sun, 8/23 5:00 AM MST - Mon, 8/24 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Few 11,000'
6sm
160° 6kts
VFR
11:00 AM MST - 3:00 PM MST
Scattered 12,000'
6sm
320° 7kts
VFR
3:00 PM MST - 7:00 PM MST
Showers in vicinity
Broken 20,000'
Scattered 12,000'
6sm
260° 8kts
VFR
7:00 PM MST - 11:00 PM MST
Scattered 12,000'
6sm
220° 7kts
VFR
11:00 PM MST - 5:00 AM MST
Scattered 12,000'
6sm
160° 5kts
TAF KTUS 231120Z 2312/2412 16006KT P6SM FEW110
   FM231800 32007KT P6SM SCT120
   FM232200 26008KT P6SM VCSH SCT120 BKN200
   FM240200 22007KT P6SM SCT120
   FM240600 16005KT P6SM SCT120
KRYN
EffectiveExpiresCategoryNOTAM
Domestic
8/22/26
1349Z
9/2/26
1500Z
Runway!PRC 08/225 RYN RWY 24R HLDG PSN SIGN AT RWY 15/33 SE SIDE LGT U/S 2608221349-2609021500
7/30/26
0524Z
8/26/26
1500Z
!PRC 07/295 RYN AD AP WINDCONE FOR RWY 33 LGT U/S 2607300524-2608261500
7/30/26
0523Z
8/26/26
1500Z
!PRC 07/294 RYN TWY B3 HLDG PSN SIGN SOUTHWEST SIDE FOR RWY 06R/24L LGT U/S 2607300523-2608261500
4/10/26
1142Z
!PRC 04/108 RYN NAV ILS RWY 06R OM U/S 2604101142-2712172111EST
4/10/26
0008Z
!PRC 04/102 RYN NAV RBJ NDB U/S 2604100008-2612162300EST
9/14/22
2024Z
12/31/27
1800Z
Runway!PRC 09/106 RYN RWY 06L RWY END ID LGT U/S 2209142024-2712311800
FDC
8/17/26
1832Z
!FDC 6/5771 RYN IAP RYAN FLD, TUCSON, AZ.
ILS OR LOC RWY 6R, AMDT 5E...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RBJ NDB OUT OF SERVICE. 2608171832-2703291832EST
Yes
M-F 0800-1700
SAT 0800-1700
CITY OF TUCSON ARPT AUTHORITY
7250 S. TUCSON BLVD. SUITE 300
TUCSON, AZ 85756
Phone: 520-573-8100
DANETTE BEWLEY
7250 S. TUCSON BLVD, SUITE 300
TUCSON, AZ 85756
Phone: 520-573-8100
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
WHEN ATCT CLSD ACTVT PAPI RWY 06R, 06L, & 24R; VASI RWY 24L; MIRL RWY 06R/24L & 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 06L/24R

4900 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
30,000lbs
--
--
  Runway 06L Runway 24R
True Heading 70°250°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 08' 28"N 32° 08' 45"N
Longitude 111° 10' 57"W 111° 10' 03"W
Elevation 2,393' 2,396'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 06R/24L

5500 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
30,000lbs
--
--
  Runway 06R Runway 24L
True Heading 70°250°
Traffic Pattern Right
Markings PIR BSC
Markings Condition GOOD GOOD
Latitude 32° 08' 25"N 32° 08' 43"N
Longitude 111° 10' 45"W 111° 09' 45"W
Elevation 2,399' 2,403'
Threshold Crossing Height 53 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

4010 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 15 Runway 33
True Heading 168°348°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 08' 43"N 32° 08' 05"N
Longitude 111° 10' 49"W 111° 10' 40"W
Elevation 2,387' 2,419'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No
A110-1RWY 06L & 06R CALM WIND RWY; AFTN WIND MAY FAVOR RWY 24L & 24R.
A110-4USE LNDG LGTS IN PAT.
A110-7FOR CD WHEN ATCT IS CLSD CTC TUCSON APCH AT 520-829-6121.
A16520-245-5766; 520-573-8188/8179/8108.
A30-06L/24RCLSD WHEN ATCT CLSD.
A30A-06RFQT ILS PRACTICE APCHS.
A43-24RPAPI UNUSBL BYD 4.9 NM.
A70-100LLSELF SVC H24 WITH CREDIT CARD.
A70-A0800-1700; AFT HR SVC FEE - 520-744-7474.
A81-APTWHEN ATCT CLSD ACTVT PAPI RWY 06R, 06L, & 24R; VASI RWY 24L; MIRL RWY 06R/24L & 15/33 - CTAF.
RYAN FLD (ICAO: KRYN, IATA: RYN) is a public airport located in TUCSON, AZ, US.
