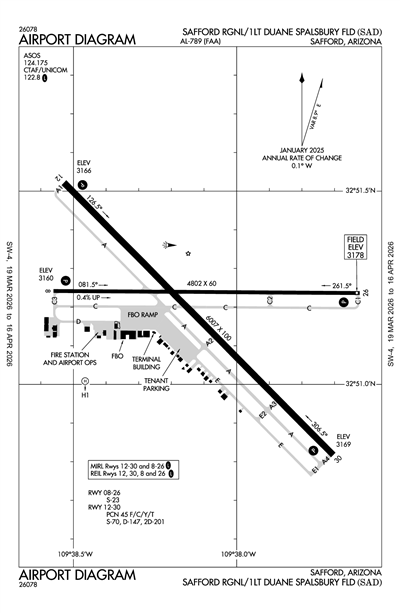

SAFFORD RGNL/1LT DUANE SPALSBURY FLD - Airport Diagram

KSAD

ICAO KSADIATA SADLocal SAD

SAFFORD RGNL/1LT DUANE SPALSBURY FLD

PublicPUB

3 miles E of SAFFORD, AZ, US

View on Map

Status

Operational

Coordinates

32° 51' 12"N 109° 38' 06"W

Elevation

3178' MSL

Pattern Alt

4178' MSL

Mag Variation

9°E

Declination

12°E

Fuel

JET A (FSII), 100LL

FSS

PRESCOTT (PRC)

Sectional

PHOENIX

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

10/1/26-10/29/26

KSAD VFR

8:51 PM MST RAW

Few 8,500'

Viz

10sm

Temp

70°F

Dew

51°F

Pres

30.12"Hg

Wind

160° 5kts

RMK

AO2 SLP159 T02110106

METAR KSAD 030351Z AUTO 16005KT 10SM FEW085 21/11 A3012 RMK AO2 SLP159 T02110106

Add Your Business

KSAD FBOs

Promote Listing

Spalsbury Aviation

UNICOM: 122.8

0 Reviews (Read | Sign In To Write)

Avfuel

As of 9/11	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.34
Full Serve	6.84	6.29	6.39

Fuel Notes

Prices include tax
Self Serve 100LL is available 24/7.

Volume Discounts

AvFuel Contract Pricing, and AEG Fuel Available. Military Bulk Discount Available.

KSAD Aircraft Service & Maintenance

Promote Listing

Ponderosa Aviation

UNICOM: 122.8

Phone: (928) 428-7820

Fax: (928) 428-7824

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ASOS	124.175
(928) 235-2373

Common

CTAF	122.8
ACTVT REIL RWY 08, 12, 26 & 30; PAPI RWY 08, 12, 26, & 30; MIRL RWY 08/26 & RWY 12/30 - CTAF.
UNICOM	122.8

Center

ALBUQUERQUE CENTER	134.45
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 134.45/327.15 (SILVER CITY RCAG).

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

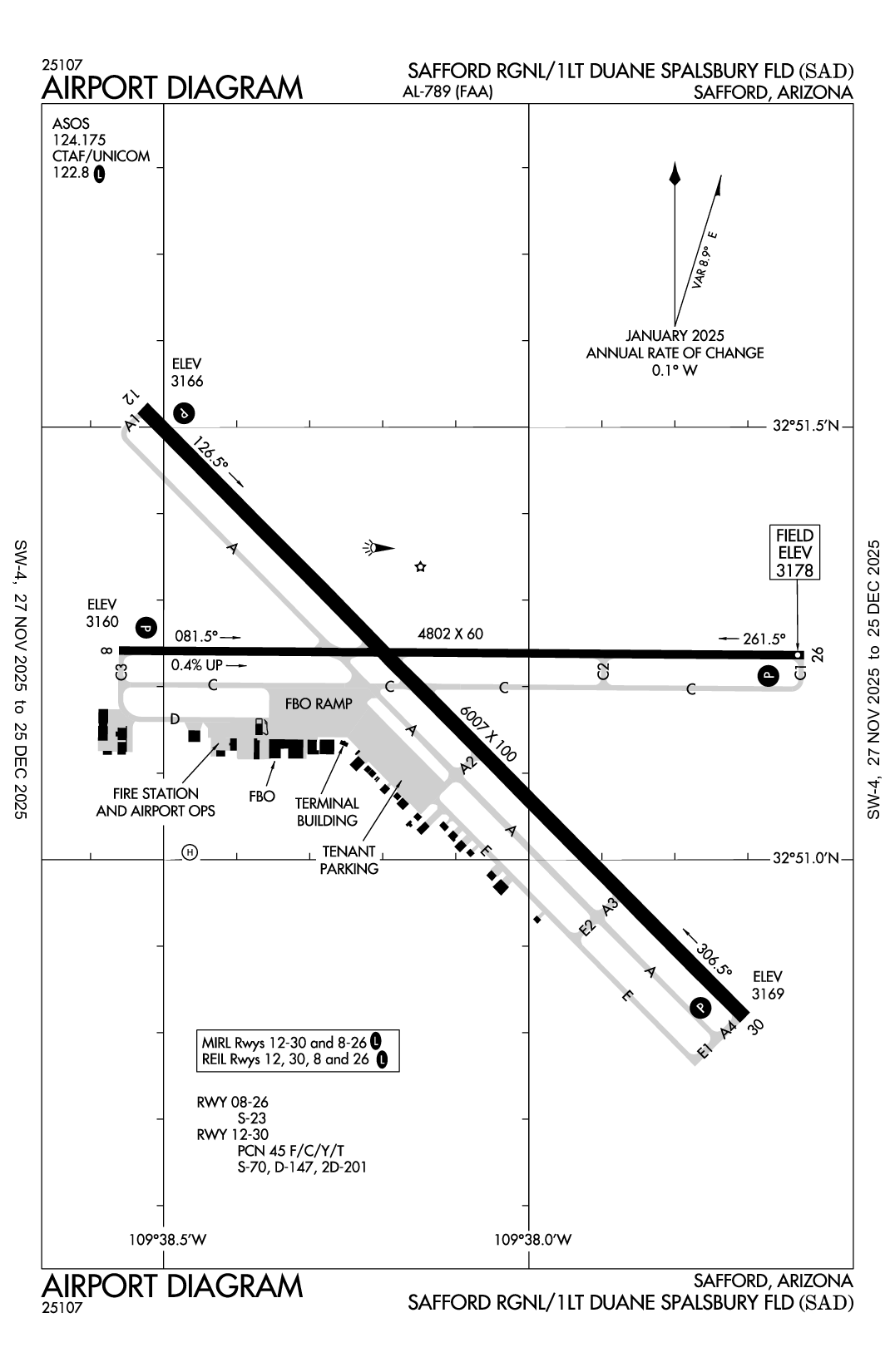

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

SAFFORD ONE (OBSTACLE) (RNAV)

Instrument Approach

Terminal Area Forecast

KDMA (76nm)

RAW

Reported

Fri, 10/2 8:00 PM MST

Valid

Fri, 10/2 8:00 PM MST - Sun, 10/4 2:00 AM MST

VFR

8:00 PM MST - 9:00 AM MST

Sky Clear

Viz

6sm

Pres

30.03"Hg

Wind

070° 10kts

Gusts 20kts

Turbulence

Light Turbulence: 9,000 - 9,000'

VFR

Becoming 9:00 AM MST - 6:00 PM MST

Sky Clear

Viz

6sm

Pres

29.94"Hg

Wind

080° 10kts

Gusts 20kts

VFR

Temporary 10:00 AM MST - 6:00 PM MST

No Clouds

Viz

N/A

Wind

050° 20kts

Gusts 30kts

Turbulence

Moderate, Clear Air, Occasional: 9,000 - 12,000'
Moderate, Clear Air, Occasional: 9,000 - 9,000'

VFR

Becoming 6:00 PM MST - 2:00 AM MST

Sky Clear

Viz

6sm

Pres

30.00"Hg

Wind

060° 12kts

Gusts 18kts

TAF KDMA 030300Z 0303/0409 07010G20KT 9999 SKC 510009 QNH3002INS
   BECMG 0316/0317 08010G20KT 9999 SKC QNH2995INS
   TEMPO 0317/0401 05020G30KT 520009 520903
   BECMG 0401/0402 06012G18KT 9999 SKC QNH2999INS TX32/0320Z TN22/0313Z

KSAD

Effective	Category	NOTAM
Domestic
4/17/26 1537Z	Runway	!SAD 04/003 SAD RWY 30 PAPI U/S 2604171537-2610192111EST
12/23/25 2318Z		!SAD 12/006 SAD AD AP ARFF INDEX B UNCHANGED EXC 2HR PPR 928-432-4237 2512232318-PERM

ATC Tower

Attendance

MON-SAT 0700-1800
AFT HR; CALL OUT FEE - 928-432-4237.

Owner

CITY OF SAFFORD
717 MAIN ST
SAFFORD, AZ 85546
Phone: 928-432-4000

Manager

CAMERON ATKINS
4428 E AVIATION WAY
SAFFORD, AZ 85546
Phone: 928-432-4235

FSS

PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF

NOTAM

SAD

Light Schedule

Lights

ACTVT REIL RWY 08, 12, 26 & 30; PAPI RWY 08, 12, 26, & 30; MIRL RWY 08/26 & RWY 12/30 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 08/26

Dimensions

4802 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

23,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	90°	270°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	32° 51' 15"N	32° 51' 14"N
Longitude	109° 38' 34"W	109° 37' 37"W
Elevation	3,160'	3,178'
Threshold Crossing Height	43 ft. AGL	37 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

Runway 12/30

Dimensions

6007 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

45/F/C/Y/T

Single Wheel

70,000lbs

Double Wheel

147,000lbs

Double Tandem

201,000lbs

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	135°	315°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	32° 51' 31"N	32° 50' 49"N
Longitude	109° 38' 32"W	109° 37' 42"W
Elevation	3,166'	3,169'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

Runway H1

Dimensions

72 ft. x 72 ft.

Surface Type

Surface Cond

CONC

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	Not Listed	Not Listed
Traffic Pattern
Markings
Markings Condition
Latitude	32° 51' 01"N	N/A
Longitude	109° 38' 28"W	N/A
Elevation	3,158'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	MIL ACT INVOF ARPT.
A110-4	FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A110-6	LNDG FEE OVR 4000 LB MTOW; MIL/GOV/CHARITY WAIVED OR WITH FUEL PURCHASE.
A16	EMERG - 928-432-4237
A17-H1	AFT HR; CALL OUT FEE - 928-432-4237.
A26	ARFF INDEX B.
A70-100LL	H24 WITH CREDIT CARD.
A75-H	PPR.
A81-APT	ACTVT REIL RWY 08, 12, 26 & 30; PAPI RWY 08, 12, 26, & 30; MIRL RWY 08/26 & RWY 12/30 - CTAF.
E111	ESTABD PRIOR TO 5/15/59.

SAFFORD RGNL/1LT DUANE SPALSBURY FLD (ICAO: KSAD, IATA: SAD) is a public airport located in SAFFORD, AZ, US.
