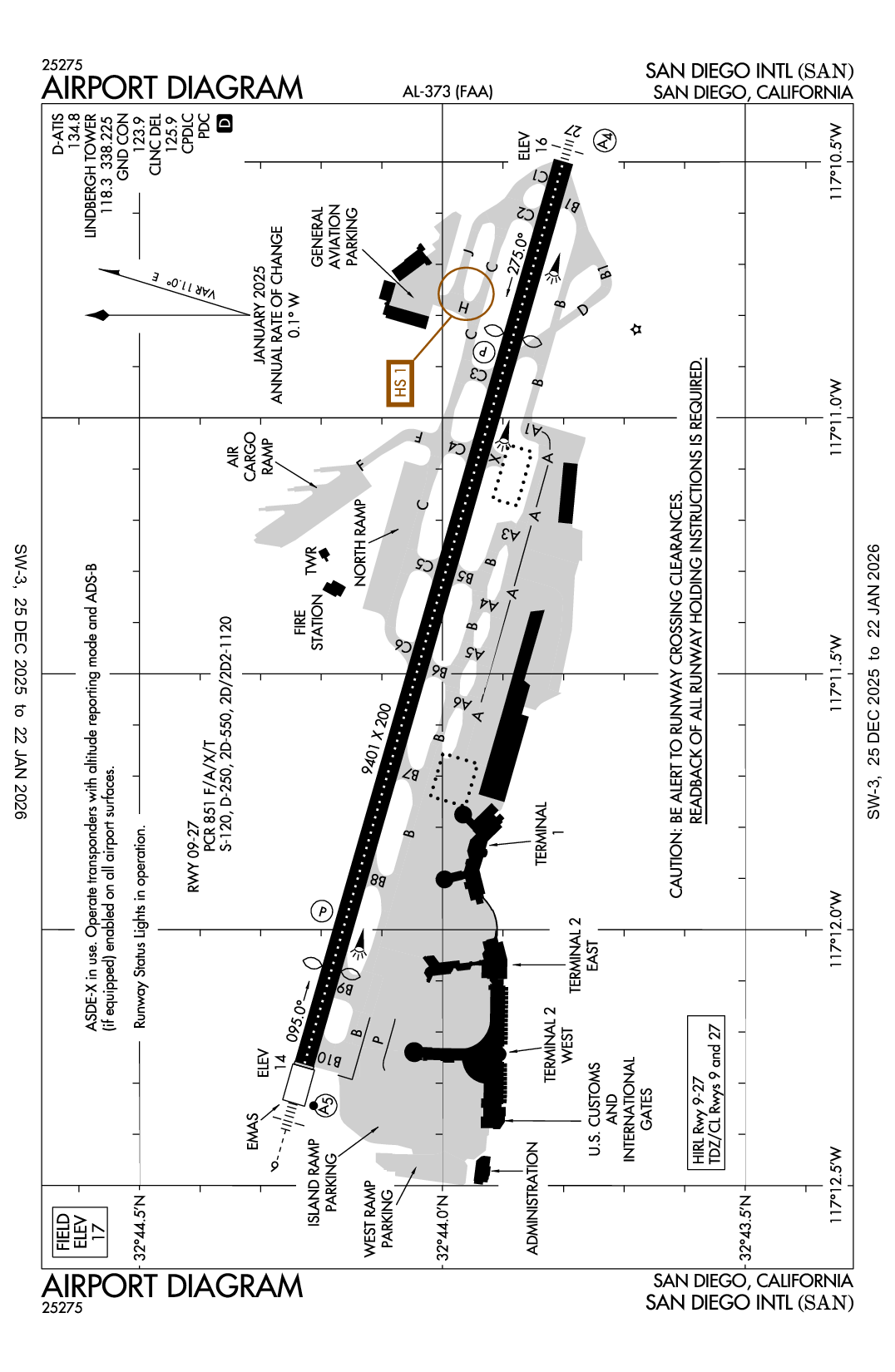

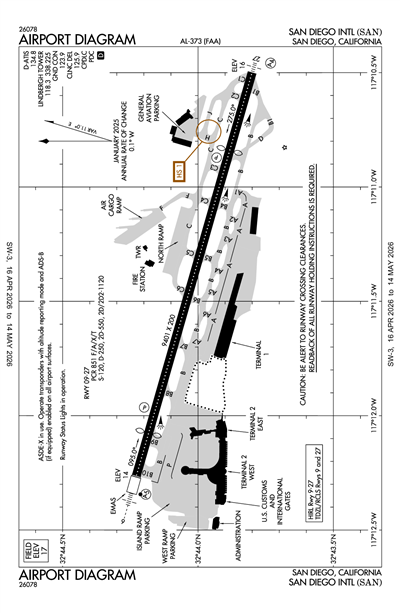

SAN DIEGO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSAN
ICAO KSANIATA SANLocal SAN
SAN DIEGO INTL
PublicPUB

2 miles W of SAN DIEGO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 44' 01"N 117° 11' 23"W
Elevation
17' MSL
Pattern Alt
1017' MSL
Mag Variation
11°E
Declination
11°E
Fuel
JET A, 100LL
FSS
SAN DIEGO (SAN)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
7/9/26-8/6/26
KSAN VFR
8:51 PM PDT
Scattered 25,000'
Few 1,100'
10sm
71°F
66°F
29.93"Hg
300° 6kts
AO2 SLP135 T02170189 $
METAR KSAN 150351Z 30006KT 10SM FEW011 SCT250 22/19 A2993 RMK AO2 SLP135 T02170189 $
+ Add Your Business

KSAN FBOs

Promote Listing
Signature Aviation
UNICOM: 129.975
Phone: (619) 298-7704
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 7/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.18 11.10 9.91
Fuel Notes
Prices include tax

KSAN Other Aviation Services

Promote Listing
Viasat Inc.
Phone: (760) 476-2200
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 134.8
(619) 298-0997
ASOS (619) 607-3429

Clearance

Clearance Delivery 125.9

Ground

LINDBERGH GROUND 123.9
Ramp Control 129.775

Tower

LINDBERGH TOWER 118.3

Arrival

BARET STAR 124.35
COMIX STAR 125.3
LUCKI STAR 124.35
PLYYA STAR 128.1
TOPGN STAR 124.35

Approach

SOCAL APPROACH 119.6
WEST
SOCAL APPROACH 124.35
EAST

Departure

CLSSY DP 119.6
CWARD DP 119.6
ECHHO DP 124.35
EAST
ECHHO DP 125.3
WEST
FALCC DP 124.35
EAST
FALCC DP 125.3
WEST
MMOTO DP 124.35
EAST
MMOTO DP 125.3
WEST
PADRZ DP 119.6
POGGI DP 125.15
SAYOW DP 124.35
SOCAL DEPARTURE 119.6
WEST
SOCAL DEPARTURE 124.35
EAST
ZZOOO DP 125.15

Flight Service

Flight Service 122.2
COMMUNICATIONS PRVDD BY SAN DIEGO RADIO ON FREQ 122.2 (MONTGOMERY RCO).
Flight Service 122.2
(ANB), COMMUNICATIONS PRVDD BY SAN DIEGO RADIO ON FREQ 122.2 (MONTGOMERY RCO).

Other

CLASS B 124.35
062-109 SAN 14,000 FT & BLW
CLASS B 125.3
294-332 SAN 7,000 FT-15,000 FT

Terminal Area Forecast

KSAN
Tue, 7/14 7:41 PM PDT
Tue, 7/14 8:00 PM PDT - Wed, 7/15 11:00 PM PDT
VFR
8:00 PM PDT - 4:00 AM PDT
Few 1,000'
6sm
VRB° 4kts
IFR
4:00 AM PDT - 9:00 AM PDT
Broken 700'
6sm
VRB° 3kts
VFR
9:00 AM PDT - 12:00 PM PDT
Few 1,000'
6sm
270° 5kts
VFR
12:00 PM PDT - 7:00 PM PDT
Scattered 20,000'
6sm
290° 9kts
VFR
7:00 PM PDT - 11:00 PM PDT
Scattered 12,000'
Few 700'
6sm
VRB° 4kts
TAF KSAN 150241Z 1503/1606 VRB04KT P6SM FEW010
   FM151100 VRB03KT P6SM BKN007
   FM151600 27005KT P6SM FEW010
   FM151900 29009KT P6SM SCT200
   FM160200 VRB04KT P6SM FEW007 SCT120
KSAN
EffectiveExpiresCategoryNOTAM
Domestic
7/20/26
0800Z
7/20/26
1300Z
!SAN 07/056 SAN AD AP CLSD 2607200800-2607201300
7/19/26
0800Z
7/19/26
1200Z
!SAN 07/057 SAN AD AP CLSD 2607190800-2607191200
7/15/26
0700Z
7/15/26
1300Z
!SAN 07/034 SAN SVC SMR U/S 2607150700-2607151300
7/14/26
0700Z
7/14/26
1300Z
!SAN 07/035 SAN AD AP RWY STATUS LGT SYSTEM U/S 2607140700-2607141300
7/13/26
1855Z
10/13/26
2359Z
!SAN 07/051 SAN OBST TOWER LGT (ASN 2013-AWP-3923-OE) 324618N1171103W (2.3NM NE SAN) 358FT (131FT AGL) U/S 2607131855-2610132359
7/9/26
1114Z
Runway!SAN 07/033 SAN RWY 09 PAPI U/S 2607091114-2607152359EST
7/3/26
0800Z
7/24/26
1300Z
!SAN 07/010 SAN TWY A BTN TWY A4 AND TWY A5 CLSD FRI MON TUE WED THU 0800-1300 2607030800-2607241300
6/22/26
2202Z
7/28/26
0701Z
!SAN 06/082 SAN OBST CRANE (ASN 2025-AWP-4526-NRA) 324356N1171146W (0.3NM WSW SAN) 158FT (140FT AGL) FLAGGED AND LGTD 2606222202-2607280701
5/27/26
1955Z
6/1/27
0700Z
!SAN 05/124 SAN APRON TXL M CLSD TO ACFT WINGSPAN MORE THAN 118FT AND TAIL HGT MORE THAN 45FT 2605271955-2706010700
5/27/26
1954Z
6/1/27
0700Z
!SAN 05/123 SAN APRON TXL K CLSD TO ACFT WINGSPAN MORE THAN 118FT AND TAIL HGT MORE THAN 45FT 2605271954-2706010700
5/27/26
1953Z
6/1/27
0700Z
!SAN 05/122 SAN APRON TXL L CLSD TO ACFT WINGSPAN MORE THAN 118FT AND TAIL HGT MORE THAN 45FT 2605271953-2706010700
5/15/26
2359Z
9/9/26
0659Z
!SAN 05/054 SAN AIRSPACE NUMEROUS UAS WI AN AREA DEFINED AS .25NM RADIUS OF 324605N1171327W (2.5NM NW SAN) SFC-660FT AGL DLY 2359-0659 2605152359-2609090659
5/13/26
1921Z
7/29/26
1700Z
!SAN 05/066 SAN OBST TOWER LGT (ASR 1026319) 324452.10N1170931.60W (1.8NM ENE SAN) 450.5FT (158.1FT AGL) U/S 2605131921-2607291700
3/25/26
1743Z
5/1/28
1300Z
!SAN 03/106 SAN TWY A WEST OF TWY A7 CLSD 2603251743-2805011300
3/18/26
1300Z
10/1/26
0800Z
!SAN 03/071 SAN AD AP CLSD TO NON SKED TRANSIENT GA ACFT EXC PPR 619-298-7704 2603181300-2610010800
1/1/26
1500Z
1/1/27
0200Z
!SAN 12/161 SAN AIRSPACE SEE MZB 12/145 UAS 2601011500-2701010200
10/3/25
2300Z
10/2/26
0700Z
!SAN 10/020 SAN APRON TXL K BTN TXL L AND TWY A CL LGT U/S 2510032300-2610020700
FDC
7/13/26
1500Z
8/7/26
1203Z
!FDC 6/5002 SAN SID SAN DIEGO INTL, SAN DIEGO, CA.
FALCC ONE DEPARTURE...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
JLI VORTAC OUT OF SERVICE. 2607131500-2608071203EST
7/13/26
1500Z
8/7/26
1203Z
!FDC 6/4997 SAN SID SAN DIEGO INTL, SAN DIEGO, CA.
BORDER SEVEN DEPARTURE...
RWY 9 - DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
JULIAN TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
JLI VORTAC OUT OF SERVICE. 2607131500-2608071203EST
6/26/26
1804Z
!FDC 6/0995 SAN IAP SAN DIEGO INTL, SAN DIEGO, CA.
ILS Z OR LOC Z RWY 9, ORIG-A...
RNAV (GPS) RWY 9, AMDT 1B...
RNAV (GPS) Y RWY 27, AMDT 4A...
CIRCLING CAT C MDA 840/HAA 823. BUILDING 537 MSL 2.4NM SW OF SAN AIRPORT (06-252836).
2606261804-2610301804EST
6/24/26
1408Z
!FDC 6/0339 SAN IAP SAN DIEGO INTL, SAN DIEGO, CA.
RNAV (RNP) Z RWY 27, AMDT 1...
RNP .30 DA 871/HAT 854 ALL CATS. TEMPORARY CRANE 518 MSL 1.3 NM NE OF RWY 27 (2024-AWP-12463-OE). TEMP CRANE 542 MSL, 1.1NM E OF RWY 27 (2025-AWP-10833-OE)..
2606241408-2611301408EST
6/24/26
1407Z
!FDC 6/0335 SAN IAP SAN DIEGO INTL, SAN DIEGO, CA.
RNAV (GPS) Y RWY 27, AMDT 4A...
LNAV MDA 860/HAT 843 ALL CATS, VIS CATS C/D 2. CIRCLING CAT A MDA 860/HAA 843, CAT B MDA 900/HAA 883, CATS C/D MDA 1040/HAA 1023, VIS CAT C 3. TEMP CRANE 542 MSL, 1.1NM E OF RWY 27 (2025-AWP-10833-OE). TEMPORARY CRANE 530 MSL 5460 FT NE OF RWY 27 2023-AWP-19080-OE).
TEMPORARY CRANE 576 MSL 5450 FT NE OF RWY 27(2023-AWP-19079-OE).
TEMPORARY CRANE 518 MSL 1.3 NM E OF RWY 27 (2024-AWP-12463-OE).
2606241407-2610301407EST
6/24/26
1407Z
!FDC 6/0334 SAN IAP SAN DIEGO INTL, SAN DIEGO, CA.
RNAV (GPS) RWY 9, AMDT 1B...
LPV DA 325/HAT 308,ALL CATS.
CIRCLING CAT B MDA 900/HAA 883, CATS C/D MDA 1040/HAA 1023, VIS CAT C 3. TEMP CRANE 542 MSL, 1.85NM E OF KSAN AIRPORT (2025-AWP-10833-OE).
TEMPORARY CRANE 530 MSL 2.3NM E OF RWY 9 2023-AWP-19080-OE).
TEMPORARY CRANE 576 MSL 2.2NM E OF RWY 9 (2023-AWP-19079-OE).
2606241407-2610231406EST
6/24/26
1406Z
!FDC 6/0328 SAN IAP SAN DIEGO INTL, SAN DIEGO, CA.
ILS Z OR LOC Z RWY 9, ORIG-A...
LOC RWY 27, AMDT 6A...
CIRCLING CAT B MDA 900/HAA 883, CATS C/D MDA 1040/HAA 1023, VIS CAT C 3. TEMP CRANE 542 MSL, 1.85NM E OF KSAN AIRPORT (2025-AWP-10833-OE)..
2606241406-2611301406EST
6/24/26
1404Z
!FDC 6/0324 SAN IAP SAN DIEGO INTL, SAN DIEGO, CA.
ILS Z OR LOC Z RWY 9, ORIG-A...
# MISSED APPROACH REQUIRES MINIMUM CLIMB GRADIENT OF 340 FEET PER NM TO 3800; IF UNABLE TO MEET CLIMB GRADIENT, SEE ILS Y OR LOC Y RWY 9. TEMPORARY CRANE 576 MSL 2.2NM E OF RWY 9 (2023-AWP-19079-OE).
2606241404-2610301404EST
6/24/26
1403Z
!FDC 6/0322 SAN IAP SAN DIEGO INTL, SAN DIEGO, CA.
ILS Y OR LOC Y RWY 9, AMDT 2B...
# MISSED APPROACH REQUIRES MINIMUM CLIMB GRADIENT OF 275 FEET PER NM TO 4000.
TEMPORARY CRANE 576 MSL 2.2NM E OF RWY 9 (2023-AWP-19079-OE).
2606241403-2610301403EST
6/9/26
2239Z
!FDC 6/6984 SAN ODP SAN DIEGO INTL, SAN DIEGO, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 9A...
TAKE-OFF MINIMUMS: RWY 9: 600 1-3/4 OR STANDARD WITH MINIMUM CLIMB OF 290 FT/NM TO 900. TEMPORARY CRANE, 1.3NM FROM DER, 2500FT LEFT OF CENTERLINE, 230 AGL/518 MSL (2024-AWP-12463-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2606092239-2608282239EST
5/28/26
1724Z
!FDC 6/3737 SAN ODP SAN DIEGO INTL, SAN DIEGO, CA.
DIVERSE VECTOR AREA (RADAR VECTORS) AMDT 1 ...
RWY 27, HEADINGS AS ASSIGNED BY ATC; REQUIRES MINIMUM CLIMB OF 369 FT/NM TO 800. ALL OTHER DATA REMAINS AS PUBLISHED 2605281724-2805281724EST
5/28/26
1714Z
!FDC 6/3735 SAN SID SAN DIEGO INTL, SAN DIEGO, CA.
PADRZ TWO DEPARTURE (RNAV)...
TAKE-OFF MINIMUMS: RWY 27: 400-2 1/2 OR STANDARD WITH MINIMUM CLIMB 369 FT/NM TO 3000.
ALL OTHER DATA REMAINS AS PUBLISHED. 2605281714-2805281714EST
5/28/26
1714Z
!FDC 6/3733 SAN SID SAN DIEGO INTL, SAN DIEGO, CA.
PEBLE SIX DEPARTURE...
TAKE-OFF MINIMUMS: RWY 27: 400-2 1/2 OR STANDARD WITH MINIMUM CLIMB 369 FT/NM TO 500.
ALL OTHER DATA REMAINS AS PUBLISHED. 2605281714-2805281714EST
5/28/26
1714Z
!FDC 6/3732 SAN SID SAN DIEGO INTL, SAN DIEGO, CA.
BORDER SEVEN DEPARTURE...
FALCC ONE DEPARTURE...
TAKE-OFF MINIMUMS: RWY 27: 400-2 1/2 OR STANDARD WITH MINIMUM CLIMB 369 FT/NM TO 400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2605281714-2805281714EST
11/20/25
2116Z
!FDC 5/0121 SAN SID SAN DIEGO INTL, SAN DIEGO, CA.
BORDER SEVEN DEPARTURE...
ECHHO TWO DEPARTURE (RNAV)...
FALCC ONE DEPARTURE...
MMOTO TWO DEPARTURE (RNAV)...
SAYOW TWO DEPARTURE (RNAV)...
TAKE-OFF MINIMUMS RWY 09: 400 AND 1 WITH MINIMUM CLIMB OF 687 FT/NM TO 1900 OR STANDARD WITH A MINIMUM CLIMB OF 766 FT/NM TO 1900.
ALL OTHER DATA REMAINS AS PUBLISHED. 2511202116-2710312113EST
Yes
ALL
SAN DIEGO CNTY REG ARPT AUTHORITY
2417 MCCAIN ROAD
SAN DIEGO, CA 92101
Phone: 619-400-2710
KIMBERLY BECKER
PO BOX 82776
SAN DIEGO, CA 92138
Phone: 619-400-2710
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
SAN
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Minor
Minor
None
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Aircraft Rental
Annual Surveying

Runway 09/27

9401 ft. x 200 ft.
ASPH CONC
Excellent
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 09 Runway 27
True Heading 106°286°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 44' 14"N 32° 43' 48"N
Longitude 117° 12' 16"W 117° 10' 30"W
Elevation 14' 16'
Threshold Crossing Height 76 ft. AGL 66 ft. AGL
Visual Glide Path Angle 3.3° 3.5°
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALS
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-16TO REDUCE JET BLAST IMPACT AT N END OF TWY F ACFT WILL NOT START ENG UNTIL 800 FT FM N END OF TWY F; ABEAM THE SECOND PARKING PAD.
A110-19ULTRALIGHT ACFT PROHIBITED ON AP.
A110-20747 AND LARGER ACFT ARE PROHIBITED FM MAKING INTERSECTION TKOFS.
A110-26INTERMITTENT PRESENCE OF BIRDS ON AND INVOF OF ARPT.
A110-3TERRAIN & BLDGS TO 500' MSL N & E WITHIN 1 1/2 MI.
A110-30CROSS-BLEED ENGINE STARTS PERMITTED ONLY ON PARALLEL TWY WITH ACFT ALIGNED ON TWY CNTRLN.
A110-31OUTBOARD ENGINES OF FOUR-ENGINE ACFT ARE TO BE KEPT AT IDLE POWER FOR ALL GND MANEUVERING.
A110-37PILOTS REQUIRED TO CTC ATCT GROUND CONTROLLER PRIOR TO PUSHBACK, TOW OUT AND TAXI FOR TRAFFIC ADVISORIES.
A110-38MILITARY ACFT ON OFFICIAL BUSINESS ONLY CONTACT ARPT OPS AT 619-400-2710 FOR PPR.
A110-4PRACTICE APPROACHES AND TGL PROHIBITED.
A110-40TWY C EDGE LGTS OTS INDEFLY.
A110-42ACFT CROSSING RY 09/27 ON TWY C6, HOLD SHORT OF TWY C6 FACING WEST ON TWY C, PARALLEL TO RY.
A110-43DUE TO PAEW ON RY 09-27, 30 MINUTE PPR 0830-1230Z FOR ALL LANDINGS AND DEPARTURES CALL 619-400-2710.
A110-4430 MIN PPR (619-400-2710) FOR ACFT WITH OVER 171 FT WINGSPAN.
A110-45IN THE EVENT OF A DIVERSION OR IRREGULAR OPERATIONS EVENTS, ACFT OPERATORS CONTACT THE APT DUTY MGR (619) 400-2710 FOR PPR DUE TO LIMITATIONS ASSOCIATED WITH HANDLING DIVERTED FLTS. LIMITATIONS INCLUDE RESTRICTED GATE SPACE, CUSTOMS SERVICES AS WELL AS ACFT SERVICING & PARKING.
A110-50TAXIING ACFT ARE PROHIBITED FROM PASSING TO THE SOUTH OF ACFT LCTD ON TWY B INTO ALLEY LCTD BTWN GATES 7 AND 14.
A110-51TAXIING ACFT SHALL FOLLOW LEAD-IN LINES UNTIL THE NOSE WHEEL OF THE ACFT HAS ENTERED THE NON-MOVEMENT AREA OF THE ALLEY.
A110-52FOR ACCESS TO/FR TERMINAL 2: GATES 23, 25, 27, 29, 31, 33-51 AND THE ISLAND AND WEST RON PRKG RAMPS, CTC RAMP CTL ON 129.775 SRY 131.975 FR 0600-2400. FR 0000-0600 CTC GROUND CTL ON 123.9.
A110-53TWY A RSTRD TO ACFT WITH WINGSPANS MORE THAN 118 FT AND TAIL HGT MORE THAN 45 FT.
A110-56RWY STATUS LGTS IN OPN.
A110-58DEP CURFEW IN EFCT. DEPS PROHIBITED 2330-0630. SGFNT FINES. MED FLTS EXEMPT WITH FORM. NOISE OFC 619-400-2660.
A110-59ARPT CLSD TO UNSKED TSNT GA ACFT EXC PPR 619-298-7704.
A110-60ACFT EXITING RWY 9 AT TWY D AND TURNING RIGHT ONTO TWY BRAVO ARE LTD TO A MAX WINGSPAN OF 136 FT (B757-300W EQUIVALENT).
A110-61PPR FOR TSNT GA ACFT.
A14ATIF SAEED
A39-09/27PCR VALUE: 851/F/A/X/T
A43-27PAPI UNUSBL BYD 5 DEG L & R OF CNTLN.
A49-27MALS RWY 27 THR TO 1400'.
A57-09APCH RATIO 44:1 TO DSPLCD THR.
A57-27RY 27 TREE 364' ABV RY END 6800' FM RY END & 1050' R OF RY CNTRLN; APCH 19:1 TO DSPLCD THR.
A58-27+40' LGT POLE 110' FROM RWY END 260' RIGHT.
E60-27_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 315 FT IN LENGTH BY 218 FT IN WIDTH LCTD AT DER 27.
SAN DIEGO INTL (ICAO: KSAN, IATA: SAN) is a public airport located in SAN DIEGO, CA, US.
