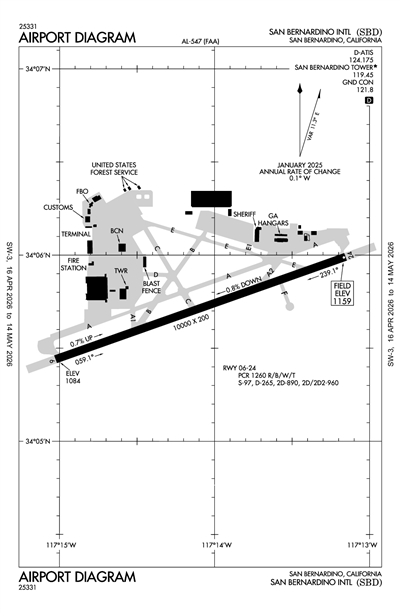

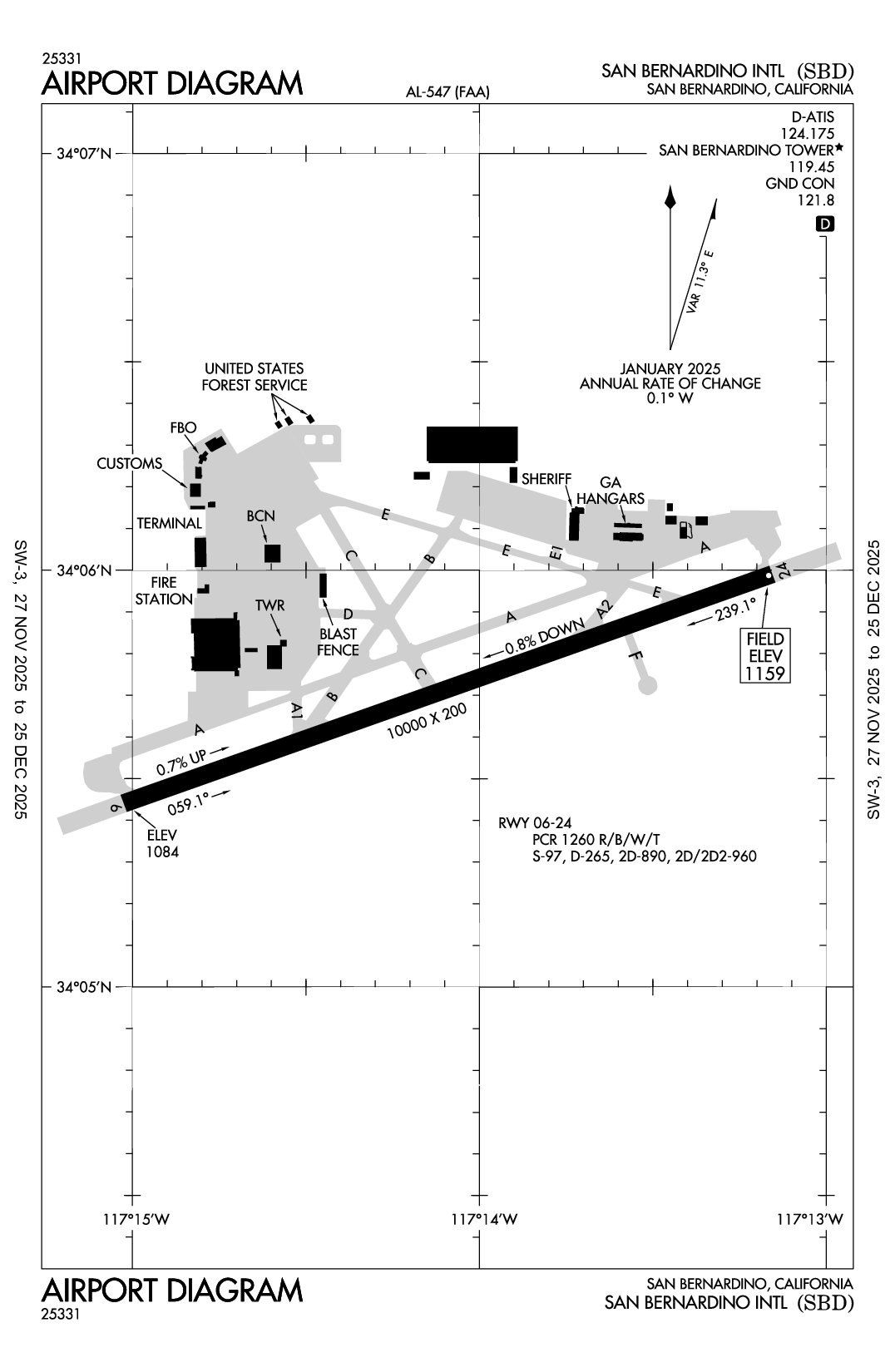

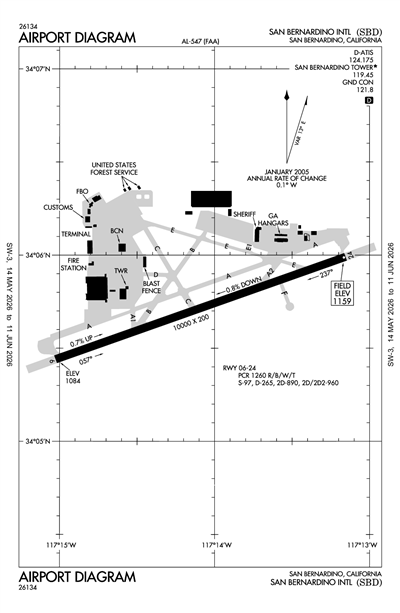

SAN BERNARDINO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSBD
SAN BERNARDINO INTL
PublicPUB

2 miles SE of SAN BERNARDINO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 05' 43"N 117° 14' 06"W
1159' MSL
1959' MSL
13E
Jet A, 100LL
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
4/18/24-5/16/24
KSBD VFR
11:51 AM PDT
Haze
Overcast 3,300'
Scattered 2,400'
6sm
63°F
48°F
30.03"Hg
Calm
KSBD 231851Z 00000KT 6SM HZ SCT024 OVC033 17/09 A3003
List Your Business

KSBD FBOs, Flight Schools and Ground Support

Promote Listing
Luxivair
Freq: 122.975
Phone: (909) 382-6068
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/9
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.80
Full Serve 6.50 5.55 5.60

KSBD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSBD Hotels

No hotels are listed for this airport.

KSBD Restaurants

No restaurants are listed for this airport.

KSBD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 119.45

ATIS

ATIS
 124.175

Ground

GND/P
 121.8

Tower

LCL/P
 119.45

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KSBD
Tue, 4/23 10:58 AM PDT
Tue, 4/23 11:00 AM PDT - Wed, 4/24 11:00 AM PDT
MVFR
11:00 AM PDT - 1:00 PM PDT
Haze
Broken 1,500'
Scattered 1,000'
5sm
VRB° 4kts
VFR
1:00 PM PDT - 10:00 PM PDT
Few 1,500'
6sm
250° 10kts
MVFR
10:00 PM PDT - 11:00 AM PDT
Broken 1,900'
6sm
250° 5kts
KSBD 231758Z 2318/2418 VRB04KT 5SM HZ SCT010 BKN015
   FM232000 25010KT P6SM FEW015
   FM240500 25005KT P6SM BKN019
KSBD
Domestic
4/18/240532Z !SBD 04/018 SBD OBST TOWER LGT (ASR UNKNOWN) 340550.64N1172201.20W (6.6NM W SBD) 1324FT (122FT AGL) U/S 2404180532-2406020606
4/6/240849Z !SBD 04/004 SBD OBST TOWER LGT (ASR 1031401) 340536.00N1171802.00W (3.3NM W SBD) 1234.9FT (214.9FT AGL) U/S 2404060849-2405210848
2/11/241600Z !SBD 02/023 SBD OBST CRANE (ASN UNKNOWN) 340441N1171432W (1.7NM S SBD) 1187FT (86FT AGL) FLAGGED AND LGTD 2402111600-2406302359
FDC
2/29/241701Z !FDC 4/1310 SBD ODP SAN BERNARDINO INTL, SAN BERNARDINO, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF MINIMUMS: RWY 6, CAT A, B, STANDARD WITH A MINIMUM CLIMB OF 340FT PER NM TO 3700. CAT C, D, STANDARD WITH A MINIMUM CLIMB OF 480FT PER NM TO 4600. RWY 24, STANDARD WITH A MINIMUM CLIMB OF 412 FT PER NM TO 3100. ALL OTHER DATA REMAINS AS PUBLISHED. 2402291701-2602281701EST
Yes
MON-SUN 0700-2100
SAN BERNARDINO INTL AIRPORT AUTH
1601 E 3RD STREET
SAN BERNARDINO, CA 92408
Phone: 909-382-4100
MARK GIBBS
1601 EAST 3RD STREET
SAN BERNARDINO, CA 92408
Phone: 909-382-4100
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
SBD
--
WHEN ATCT CLSD HIRL PRESET LOW INTST, TO INCREASE INTST AND ACTVT REILS RYS 06 & 24 ACTVT - CTAF. PAPI RYS 06 AND RY 24 OPER CONTINUOUSLY.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
23
5
6
23
0
0
Major
Major
None
High Pressure
Air Freight
Avionics
Cargo Handling

Runway 06/24

10000 ft. x 200 ft.
CONC
Excellent
GRVD
HIGH
86 /R/B/W/T
97,000lbs
265,000lbs
890,000lbs
960,000lbs
  Runway 06 Runway 24
True Heading 70°250°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 05' 27"N 34° 05' 60"N
Longitude 117° 15' 02"W 117° 13' 10"W
Elevation 1,084' 1,159'
Threshold Crossing Height 52 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-12RY 06/24 STRENGTH RATED FOR THE A380 AT 1,300,000 LBS.
A110-13PERIODIC LIVE FIREFIGHTING TRAINING PRODUCING SMOKE AND LIGHT EMMISIONS APPROX 6,000 FT NE OF RY 6 THLD.
A110-14ATCT NON VISIBLE AREA ON TWY ALPHA 425 FT WEST OF TWY ALPHA 1.
A110-15AFTER HOURS GENERAL AVIATION ACCESS AND FUEL AVBL WITH PPR CALL FIXED BASE OPERATORS AT 909-382-6068.
A110-16AIRFIELD SFC COND NOT MNT BTN THE HRS 2000-0500.
A110-17TWY A, A1, E, ACFT WINGSPAN MORE THAN 171 FT USE INBOARD ENGS DRG TAX.
A110-18FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-19REDLANDS ARPT (REI) 4.5 NM EAST TPA 2500 MSL CTAF/AUNICOM 123.05. AEROBATIC AREA 6.2 NM EAST 3500-7000 MSL. RMN VIGILANT TO SEE AND AVOID.
A110-2HIGH TERRAIN N AND E OF APT.
A110-3RY 06 DESIGNATED CALM WIND RY.
A110-6FIRE FIGHTING ACFT CTC US FOREST SVC TANKER BASE ON GND FREQ 123.975.
SAN BERNARDINO INTL (ICAO: KSBD, IATA: SBD) is a public airport located in SAN BERNARDINO, CA.
