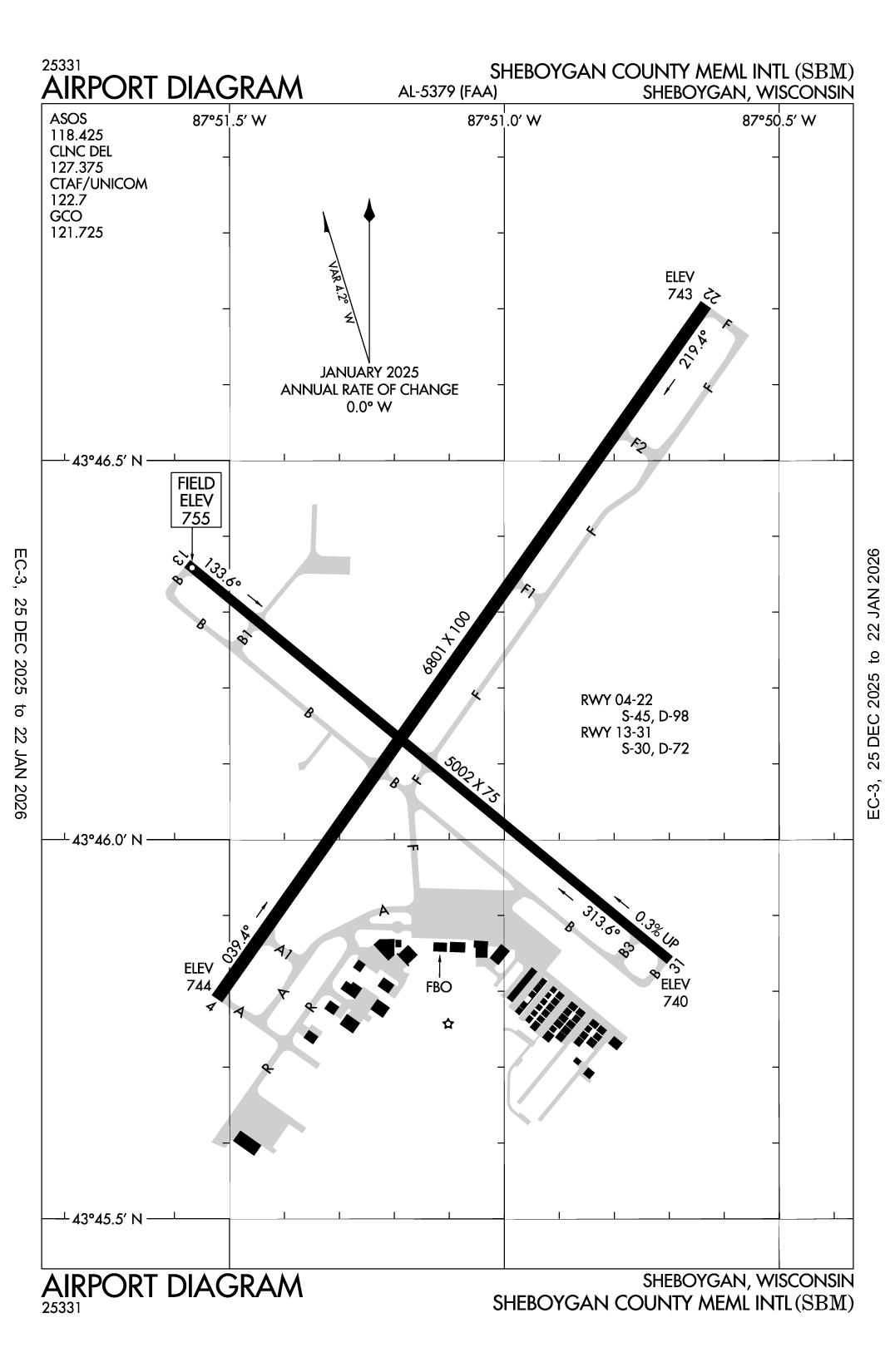

SHEBOYGAN COUNTY MEML INTL - Airport Diagram

KSBM

ICAO KSBMIATA SBMLocal SBM

SHEBOYGAN COUNTY MEML INTL

PublicPUB

3 miles NW of SHEBOYGAN, WI, US

View on Map

Status

Operational

Coordinates

43° 46' 11"N 87° 51' 06"W

Elevation

755' MSL

Pattern Alt

1755' MSL

Mag Variation

4°W

Declination

2°W

Fuel

JET A, JET A (FSII), 100LL

FSS

GREEN BAY (GRB)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

10/29/26-11/26/26

KSBM VFR

6:53 AM CST RAW

Clear

Viz

10sm

Temp

35°F

Dew

29°F

Pres

29.93"Hg

Wind

340° 17kts

Gusts 22kts

RMK

AO2 SLP139 T00171017

METAR KSBM 121253Z AUTO 34017G22KT 10SM CLR 02/M02 A2993 RMK AO2 SLP139 T00171017

Add Your Business

KSBM FBOs

Promote Listing

Lake Breeze Aviation

UNICOM: 122.7

Phone: (920) 459-6413

0 Reviews (Read | Sign In To Write)

Titan

As of 11/10	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	7.10
Full Serve	7.40	7.49	7.57

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ASOS	118.425
(920) 467-0744

Common

CTAF	122.7
ACTVT MALSR RWY 22; REIL RWY 04; PAPI RWY 04 & 22 - CTAF. HIRL RWY 04/22 & MIRL RWY 13/31 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT - CTAF. PAPI RWY 13 & 31 OPRS CONSLY.
UNICOM	122.7

Clearance

Clearance Delivery

127.375

Approach

MILWAUKEE APPROACH

127.375

Departure

MILWAUKEE DEPARTURE

127.375

Flight Service

Ground Communication Outlet	121.725
GCO AVBL ON FREQ 121.725 THRU FLT SVCS.

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSBM

RAW

Reported

Thu, 11/12 5:34 AM CST

Valid

Thu, 11/12 6:00 AM CST - Fri, 11/13 6:00 AM CST

VFR

6:00 AM CST - 8:00 AM CST

Broken 7,000'
Few 2,500'

Viz

6sm

Wind

350° 15kts

Gusts 25kts

VFR

8:00 AM CST - 10:00 AM CST

Light Rain

No Clouds

Viz

N/A

Wind

Calm

MVFR

8:00 AM CST - 10:00 AM CST

Overcast 7,000'
Broken 2,900'

Viz

6sm

Wind

350° 17kts

Gusts 28kts

MVFR

10:00 AM CST - 3:00 PM CST

Broken 2,500'

Viz

6sm

Wind

360° 20kts

Gusts 31kts

VFR

3:00 PM CST - 7:00 PM CST

Broken 3,500'
Scattered 2,700'

Viz

6sm

Wind

350° 15kts

Gusts 25kts

VFR

7:00 PM CST - 6:00 AM CST

Broken 4,500'
Scattered 2,500'

Viz

6sm

Wind

340° 11kts

Gusts 20kts

TAF KSBM 121134Z 1212/1312 35015G25KT P6SM FEW025 BKN070
   FM121400 35017G28KT P6SM BKN029 OVC070
   PROB30 1214/1216 -RA
   FM121600 36020G31KT P6SM BKN025
   FM122100 35015G25KT P6SM SCT027 BKN035
   FM130100 34011G20KT P6SM SCT025 BKN045

KSBM

Effective	Expires	NOTAM
Domestic
11/1/26 2035Z	12/1/26 2359Z	!SBM 11/001 SBM OBST TOWER LGT (ASR 1050095) 434435.00N0880338.00W (9.2NM W SBM) 1489.8FT (319.9FT AGL) U/S 2611012035-2612012359
10/29/26 0420Z	11/12/26 2359Z	!SBM 10/015 SBM OBST TOWER LGT (ASR 1045631) 434323.00N0880352.00W (9.6NM WSW SBM) 1509.8FT (304.8FT AGL) U/S 2610290420-2611122359
FDC
10/9/26 2007Z		!FDC 6/8720 SBM IAP SHEBOYGAN COUNTY MEML INTL, SHEBOYGAN, WI. RNAV (GPS) RWY 22, AMDT 4A... ADD PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 49.4). 2610092007-2810050901EST

ATC Tower

Attendance

DAWN-DUSK
AFT HRS CALL 920-459-6413.

Owner

SHEBOYGAN COUNTY
N6193 RESOURCE DRIVE
SHEBOYGAN FALLS, WI 53085
Phone: 920-467-2978

Manager

MATTHEW GRENOBLE
N6193 RESOURCE DR.
SHEBOYGAN FALLS, WI 53085
Phone: 920-467-2978

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

SBM

Light Schedule

Lights

ACTVT MALSR RWY 22; REIL RWY 04; PAPI RWY 04 & 22 - CTAF. HIRL RWY 04/22 & MIRL RWY 13/31 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT - CTAF. PAPI RWY 13 & 31 OPRS CONSLY.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 04/22

Dimensions

6801 ft. x 100 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

45,000lbs

Double Wheel

98,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	35°	215°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	43° 45' 47"N	43° 46' 42"N
Longitude	87° 51' 31"W	87° 50' 38"W
Elevation	744'	743'
Threshold Crossing Height	52 ft. AGL	49 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes

Runway 13/31

Dimensions

5002 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

72,000lbs

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	129°	309°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	43° 46' 22"N	43° 45' 50"N
Longitude	87° 51' 35"W	87° 50' 42"W
Elevation	755'	740'
Threshold Crossing Height	34 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-2	ULTRALIGHT ACTVTY ON & IN VCNTY OF ARPT.
A110-3	WATERFOWL & DEER ON & INVOF ARPT.
A110-5	GCO AVBL ON FREQ 121.725 THRU FLT SVCS.
A110-6	US CUST AND BDR PROTECTION, PPR US CSTMS SVC MON-FRI 1100 - 1900 AND OTR HOURS AVBL O/R, CALL 920-335-2225.
A17-H2	AFT HRS CALL 920-459-6413.
A43-31	UNUSBL BYD 4 DEGS RIGHT OF CNTRLN.
A70-100LL	24 HR FUEL AVBL WITH CREDIT CARD.
A81-APT	ACTVT MALSR RWY 22; REIL RWY 04; PAPI RWY 04 & 22 - CTAF. HIRL RWY 04/22 & MIRL RWY 13/31 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT - CTAF. PAPI RWY 13 & 31 OPRS CONSLY.

SHEBOYGAN COUNTY MEML INTL (ICAO: KSBM, IATA: SBM) is a public airport located in SHEBOYGAN, WI, US.
