SHEBOYGAN COUNTY MEML INTL - Airport Diagram

KSBM

ICAO KSBMIATA SBMLocal SBM

SHEBOYGAN COUNTY MEML INTL

PublicPUB

3 miles NW of SHEBOYGAN, WI, US

View on Map

Status

Operational

Coordinates

43° 46' 11"N 87° 51' 06"W

Elevation

755' MSL

Pattern Alt

1755' MSL

Mag Variation

4°W

Declination

2°W

Fuel

JET A (FSII), 100LL

FSS

GREEN BAY (GRB)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

8/6/26-9/3/26

KSBM VFR

5:53 PM CDT RAW

Clear

Viz

10sm

Temp

78°F

Dew

68°F

Pres

29.94"Hg

Wind

160° 5kts

RMK

AO2 SLP135 T02560200

METAR KSBM 102253Z AUTO 16005KT 10SM CLR 26/20 A2994 RMK AO2 SLP135 T02560200

Add Your Business

KSBM FBOs

Promote Listing

Lake Breeze Aviation

UNICOM: 122.7

Phone: (920) 459-6413

0 Reviews (Read | Sign In To Write)

Titan

As of 7/21	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.66
Full Serve	6.96	6.70	6.75

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ASOS	118.425
(920) 467-0744

Common

CTAF	122.7
ACTVT MALSR RWY 22; REIL RWY 04; PAPI RWY 04 & 22 - CTAF. HIRL RWY 04/22 & MIRL RWY 13/31 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT - CTAF. PAPI RWY 13 & 31 OPRS CONSLY.
UNICOM	122.7

Clearance

Clearance Delivery

127.375

Approach

MILWAUKEE APPROACH

127.375

Departure

MILWAUKEE DEPARTURE

127.375

Flight Service

Ground Communication Outlet	121.725
GCO AVBL ON FREQ 121.725 THRU FLT SVCS.

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

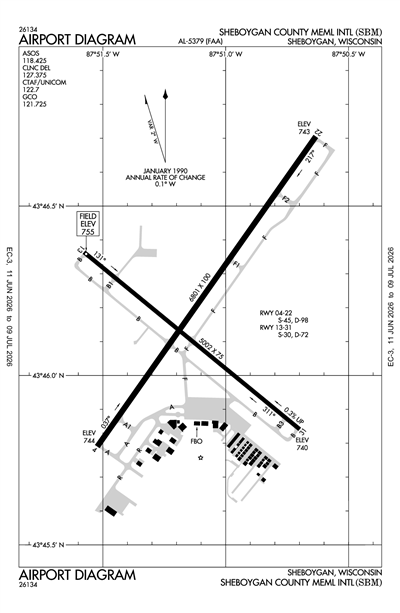

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSBM

RAW

Reported

Mon, 8/10 12:30 PM CDT

Valid

Mon, 8/10 1:00 PM CDT - Tue, 8/11 1:00 PM CDT

VFR

1:00 PM CDT - 11:00 PM CDT

Scattered 16,000'

Viz

6sm

Wind

VRB° 3kts

MVFR

11:00 PM CDT - 4:00 AM CDT

Mist

Scattered 6,000'

Viz

5sm

Wind

Calm

VFR

4:00 AM CDT - 1:00 PM CDT

Broken 12,000'

Viz

6sm

Wind

VRB° 3kts

IFR

9:00 AM CDT - 1:00 PM CDT

Light Showers and Rain

Overcast 2,500'

Viz

2sm

Wind

Calm

TAF KSBM 101730Z 1018/1118 VRB03KT P6SM SCT160
   FM110400 00000KT 5SM BR SCT060
   FM110900 VRB03KT P6SM BKN120
   PROB30 1114/1118 2SM -SHRA OVC025

KSBM

Effective	Expires	NOTAM
Domestic
7/22/26 1901Z	9/22/26 1900Z	!SBM 07/019 SBM OBST TOWER LGT (ASR 1214518) 434906.00N0874604.90W (4.7NM NE SBM) 842.8FT (169.9FT AGL) U/S 2607221901-2609221900
5/28/26 1100Z	10/15/26 2200Z	!SBM 05/010 SBM AD AP ALL SFC WIP GRASS CUTTING DLY 1100-2200 2605281100-2610152200

ATC Tower

Attendance

DAWN-DUSK

Owner

SHEBOYGAN COUNTY
N6193 RESOURCE DRIVE
SHEBOYGAN FALLS, WI 53085
Phone: 920-467-2978

Manager

MATTHEW GRENOBLE
N6193 RESOURCE DR.
SHEBOYGAN FALLS, WI 53085
Phone: 920-467-2978

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

SBM

Light Schedule

Lights

ACTVT MALSR RWY 22; REIL RWY 04; PAPI RWY 04 & 22 - CTAF. HIRL RWY 04/22 & MIRL RWY 13/31 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT - CTAF. PAPI RWY 13 & 31 OPRS CONSLY.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 04/22

Dimensions

6801 ft. x 100 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

45,000lbs

Double Wheel

98,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	35°	215°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	43° 45' 47"N	43° 46' 42"N
Longitude	87° 51' 31"W	87° 50' 38"W
Elevation	744'	743'
Threshold Crossing Height	52 ft. AGL	49 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes

Runway 13/31

Dimensions

5002 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

72,000lbs

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	129°	309°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	43° 46' 22"N	43° 45' 50"N
Longitude	87° 51' 35"W	87° 50' 42"W
Elevation	755'	740'
Threshold Crossing Height	34 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-2	ULTRALIGHT ACTVTY ON & IN VCNTY OF ARPT.
A110-3	WATERFOWL & DEER ON & INVOF ARPT.
A110-5	GCO AVBL ON FREQ 121.725 THRU FLT SVCS.
A110-6	US CUST AND BDR PROTECTION, PPR US CSTMS SVC MON-FRI 1100 - 1900 CALL 920-335-2225.
A43-31	UNUSBL BYD 4 DEGS RIGHT OF CNTRLN.
A70-100LL	24 HR FUEL AVBL WITH CREDIT CARD.
A81-APT	ACTVT MALSR RWY 22; REIL RWY 04; PAPI RWY 04 & 22 - CTAF. HIRL RWY 04/22 & MIRL RWY 13/31 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT - CTAF. PAPI RWY 13 & 31 OPRS CONSLY.

SHEBOYGAN COUNTY MEML INTL (ICAO: KSBM, IATA: SBM) is a public airport located in SHEBOYGAN, WI, US.
