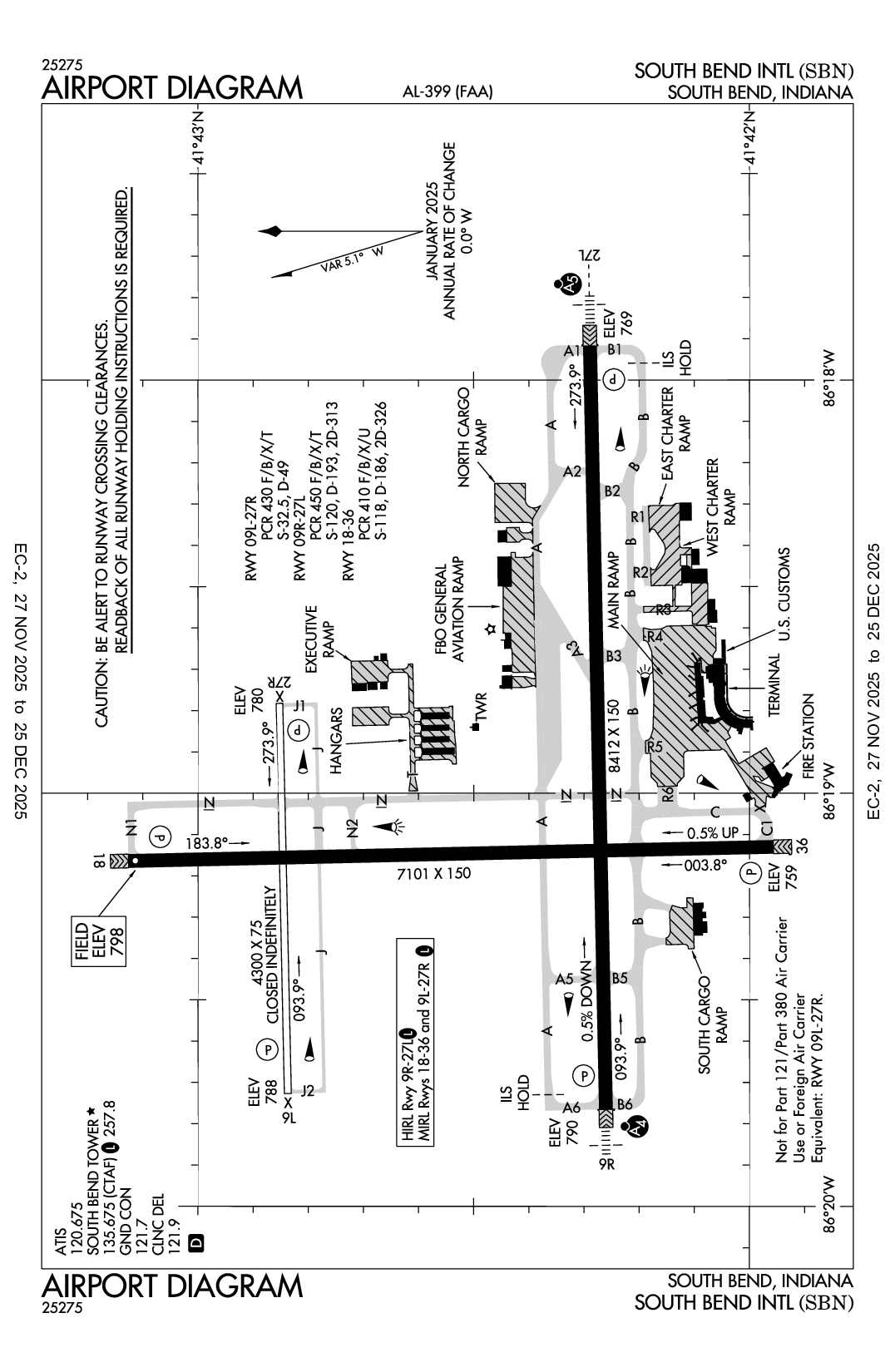

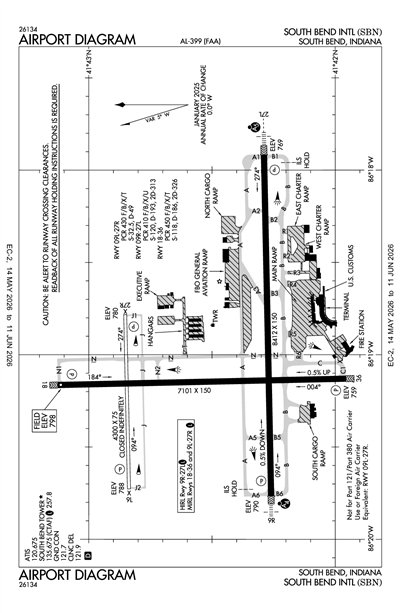

SOUTH BEND INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSBN
SOUTH BEND INTL
PublicPUB

3 miles NW of SOUTH BEND, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 42' 30"N 86° 19' 02"W
798' MSL
1798' MSL
05W
Jet A, 100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
4/18/24-5/16/24
KSBN VFR
12:54 PM EDT
Clear
10sm
60°F
36°F
30.13"Hg
140° 14kts
Gusts 24kts
AO2 PK WND 12028/1624 SLP206 T01560022
KSBN 261654Z 14014G24KT 10SM CLR 16/02 A3013 RMK AO2 PK WND 12028/1624 SLP206 T01560022
List Your Business

KSBN FBOs, Flight Schools and Ground Support

View Profile
Visit Website
Send Message
Corporate Wings
Freq: 131.7
Phone: (574) 282-4200
No Rating Available
0 Reviews (Read | Sign In To Write)
Aircraft Ground Service, Car Rental, Catering, Courtesy Car, Crew Car(s), Fuel Retailer, GPU/Power Cart, Ground Transportation, Hangar Sales/Leasing, Internet Access, Limo, Oxygen Service, Passenger Terminal/Lounge, Pilot Lounge, Public Telephone, Restrooms, Shuttle, Taxi, Transient Hangars, Transient Parking
Phillips 66
As of 4/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.25 6.48 6.58
Promote Listing
Atlantic Aviation
Freq: 122.95
Phone: (574) 233-8285
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/2
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.50 6.89

KSBN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSBN Hotels

No hotels are listed for this airport.

KSBN Restaurants

No restaurants are listed for this airport.

KSBN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 135.675

ATIS

ATIS
 120.675

ASOS

ASOS
574-251-2652
 120.675

Approach/Departure

APCH/P DEP/P
100-269
 132.05
APCH/P DEP/P IC
270-099
 118.55
APCH/S DEP/S
100-269
 124.1

Clearance Delivery

CD/P
 121.9

Ground

GND/P
 121.7

Tower

LCL/P
 135.675

Other

CLASS C
270-099
 118.55
CLASS C
100-269
 132.05
CLASS C/S
100-269
 124.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSBN
Fri, 4/26 7:20 AM EDT
Fri, 4/26 8:00 AM EDT - Sat, 4/27 8:00 AM EDT
VFR
8:00 AM EDT - 9:00 AM EDT
Sky Clear
6sm
110° 8kts
VFR
9:00 AM EDT - 5:00 PM EDT
Scattered 25,000'
6sm
130° 14kts
Gusts 23kts
VFR
5:00 PM EDT - 8:00 PM EDT
Showers in vicinity
Broken 5,000'
6sm
140° 15kts
Gusts 25kts
MVFR
8:00 PM EDT - 6:00 AM EDT
Light Thunderstorm and Rain
Overcast 1,500'
4sm
150° 15kts
Gusts 27kts
IFR
Temporary 11:00 PM EDT - 3:00 AM EDT
Overcast 800'
N/A
Calm
MVFR
6:00 AM EDT - 8:00 AM EDT
Light Rain
Overcast 1,500'
5sm
190° 15kts
Gusts 20kts
KSBN 261120Z 2612/2712 11008KT P6SM SKC
   FM261300 13014G23KT P6SM SCT250
   FM262100 14015G25KT P6SM VCSH BKN050
   FM270000 15015G27KT 4SM -TSRA OVC015CB
   TEMPO 2703/2707 OVC008CB
   FM271000 19015G20KT 5SM -RA OVC015
KSBN
Domestic
4/26/241538Z !SBN 04/057 SBN NAV ILS RWY 09R NOT MNT 2404261538-2405032000EST
4/25/242052Z !SBN 04/055 SBN TWY N BTN TWY B AND RWY 09R/27L CLSD 2404252052-2404262100
4/4/241856Z !SBN 04/006 SBN OBST BLDG LGT (ASN 2023-AGL-3169-OE) 413827N0861722W (4.2NM SSE SBN) 1047FT (282FT AGL) U/S 2404041856-2405022359
3/27/241455Z !SBN 03/058 SBN TWY J, J1, J2 CLSD 2403271455-2406032200
3/19/241618Z !SBN 03/046 SBN RWY 09L/27R CLSD 2403191618-2406032200
3/18/241000Z !SBN 03/030 SBN APRON GA MAINT RAMP CLSD TO ACFT WINGSPAN MORE THAN 100FT 2403181000-2410012200
3/18/241000Z !SBN 03/027 SBN TWY B BTN TWY B2 AND EAST CHARTER RAMP NONMOVEMENT AREA 2403181000-2409302200
3/18/241000Z !SBN 03/026 SBN APRON CUSTOMS RAMP NOW SOUTH GA MAINT APRON 2403181000-2410012200
3/18/241000Z !SBN 03/025 SBN APRON MAIN RAMP BTN GATE 8 AND SOUTH GA MAINT RAMP CLSD 2403181000-2410012200
3/18/241000Z !SBN 03/024 SBN TWY B BTN TWY R5 AND EAST CHARTER RAMP CLSD 2403181000-2410012200
3/18/241000Z !SBN 03/023 SBN APRON MAIN RAMP WIP CONST ADJ LGTD AND BARRICADED
2403181000-2410012200
2/19/242200Z !SBN 02/061 SBN TWY A4 CLSD 2402192200-2405190001
FDC
9/7/231302Z !FDC 3/6837 SBN IAP SOUTH BEND INTL, SOUTH BEND, IN.
ILS RWY 27L (SA CAT I - II), AMDT 36B ...
PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2309071302-2509071302EST
Yes
ALL
ST JOSEPH COUNTY ARPT AUTHORITY
4477 PROGRESS DRIVE
SOUTH BEND, IN 46628
Phone: 574-282-4590
MICHAEL A. DAIGLE
4477 PROGRESS DRIVE
SOUTH BEND, IN 46628
Phone: 574-282-4590
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
SBN
--
WHEN ATCT CLSD; ACTVT & INCR INTST MALSF RWY 09R; MALSR RWY 27L; HIRL RWY 09R/27L; MIRL RWY 18/36; TWY EXC TWY J, J1, J2 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
37
17
5
1
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09L/27R

4300 ft. x 75 ft.
ASPH
Good
NONE
MED
10 /F/B/X/T
32,000lbs
49,000lbs
--
--
  Runway 09L Runway 27R
True Heading 89°269°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 42' 50"N 41° 42' 51"N
Longitude 86° 19' 44"W 86° 18' 47"W
Elevation 788' 780'
Threshold Crossing Height 44 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09R/27L

8412 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
49 /F/B/X/T
120,000lbs
193,000lbs
313,000lbs
--
  Runway 09R Runway 27L
True Heading 89°269°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 42' 16"N 41° 42' 17"N
Longitude 86° 19' 46"W 86° 17' 55"W
Elevation 790' 769'
Threshold Crossing Height 56 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

7101 ft. x 150 ft.
ASPH
Good
GRVD
MED
47 /F/B/X/T
118,000lbs
186,000lbs
326,000lbs
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 43' 08"N 41° 41' 57"N
Longitude 86° 19' 10"W 86° 19' 08"W
Elevation 798' 759'
Threshold Crossing Height 52 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BIRDS ON & INVOF ARPT.
A110-11TWY J, J1 & J2 CLSD WHEN TWR CLSD.
A110-12FOR FUEL & SVCS - 122.95 OR 131.7.
A110-15FOR CD CTC SOUTH BEND APCH AT 574-251-2609. WHEN SOUTH BEND APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-16ACR RAMP RSTRD TO SKED COML & WINGSPAN GTR THAN 100 FT; ALL OTR 24 HR PPR.
A110-17INDEX C AVAILABLE UPON REQ
A110-4TWYS J, J1, J2 & T NOT AVBL TO ACR OPS WITH MORE THAN 9 PAX SEATS OR UNSKED ACR AT LEAST 31 PAX SEATS.
A110-5LINE OF SIGHT BTN RWY INTS RSTRD.
A110-7TWY B BTN B1 & B2 RSTRD TO ACFT NO LRGR THAN B757 OR WINGSPAN LRGR THAN 125 FT.
SOUTH BEND INTL (ICAO: KSBN, IATA: SBN) is a public airport located in SOUTH BEND, IN.
