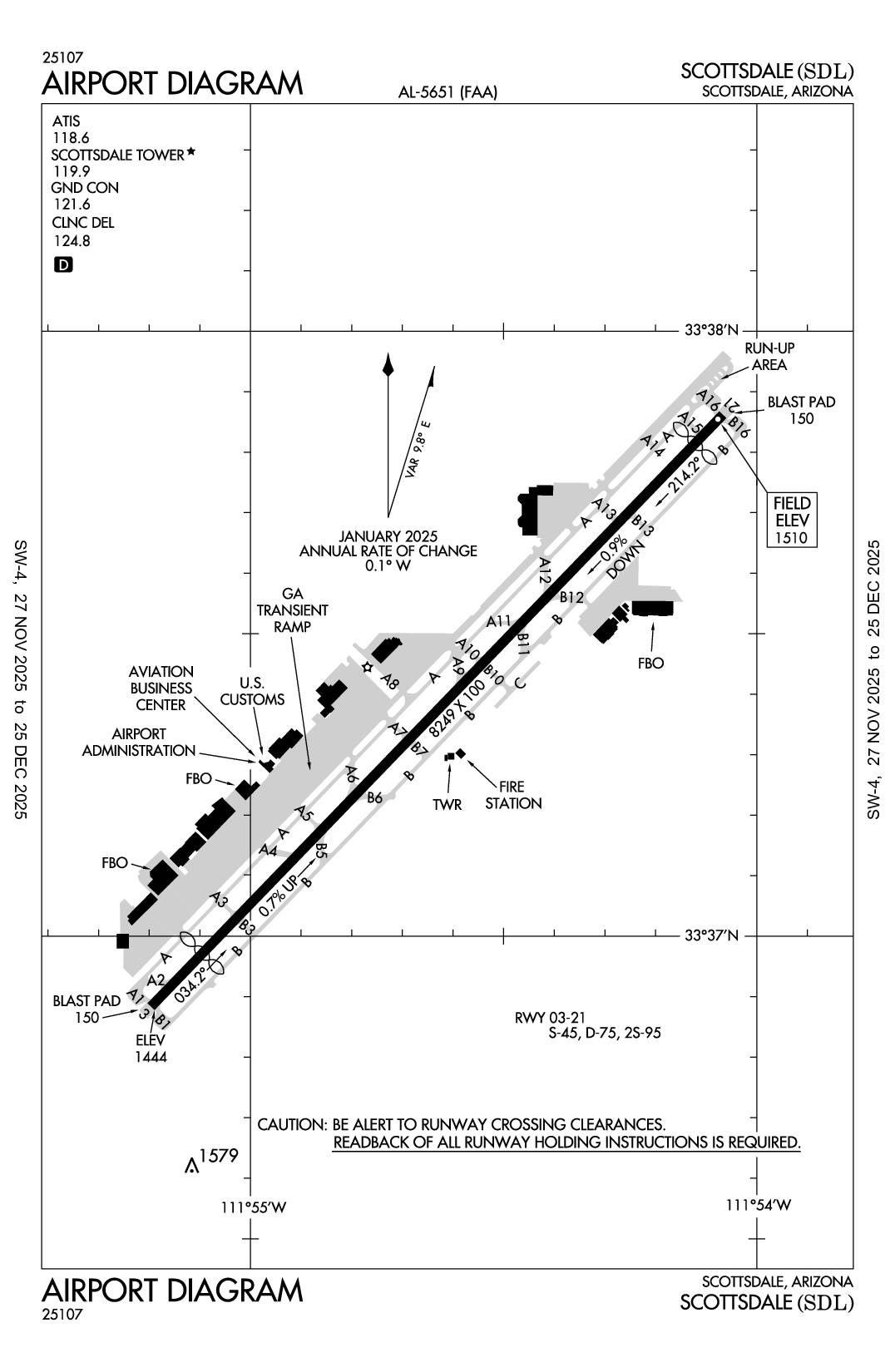

SCOTTSDALE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSDL
ICAO KSDLIATA SCFLocal SDL
SCOTTSDALE
PublicPUB

9 miles N of SCOTTSDALE, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 37' 22"N 111° 54' 38"W
Elevation
1510' MSL
Pattern Alt
2510' MSL
Mag Variation
10°E
Declination
12°E
Fuel
JET A-1+, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
7/9/26-8/6/26
KSDL MVFR
11:53 AM MST
Haze
No Clouds
5sm
97°F
62°F
29.88"Hg
VRB° 4kts
AO2 SLP086 T03610167
METAR KSDL 041853Z COR VRB04KT 5SM HZ 36/17 A2988 RMK AO2 SLP086 T03610167
+ Add Your Business

KSDL FBOs

Promote Listing
Signature Aviation
UNICOM: 131.175
Phone: (480) 951-2525
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 8/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.10 9.26
Fuel Notes
Prices include tax
Promote Listing
Atlantic Aviation
UNICOM: 129.7
Phone: (480) 948-2400 x2
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 7/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.70 9.72
Fuel Notes
Prices include tax

KSDL Aircraft Service & Maintenance

Promote Listing
Apex Heli-Support
Phone: (480) 228-4156
No Rating Available
0 Reviews (Read | Sign In To Write)

KSDL Other Businesses

Promote Listing
American Flyers
Phone: (480) 939-3997
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 118.6
ASOS (480) 483-3049, ASOS BCSTS ON SDL ATIS FREQ (118.6) WHEN SDL ATCT IS CLSD.

Common

CTAF 119.9
WHEN ATCT CLSD ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.

Clearance

Clearance Delivery 124.8

Ground

SCOTTSDALE GROUND 121.6
0600-2100

Tower

SCOTTSDALE TOWER 119.9
0600-2100

Arrival

BLYTHE STAR 124.1
DSERT STAR 120.7
SUNSS STAR 124.1

Approach

PHOENIX APPROACH 120.7

Departure

PHOENIX DEPARTURE 120.7

Operations

Operations 125.5

Flight Service

Flight Service 122.2
(PRC), COMMUNICATIONS PRVDD BY PRESCOTT RADIO ON FREQ 122.2 (PHOENIX RCO).

Terminal Area Forecast

KSDL
Tue, 8/4 12:18 PM MST
Tue, 8/4 12:00 PM MST - Wed, 8/5 11:00 AM MST
MVFR
12:00 PM MST - 2:00 PM MST
Haze
Broken 25,000'
Few 15,000'
5sm
VRB° 4kts
VFR
2:00 PM MST - 8:00 PM MST
Scattered 25,000'
Few 15,000'
6sm
260° 11kts
Gusts 19kts
VFR
8:00 PM MST - 1:00 AM MST
Scattered 15,000'
Few 12,000'
6sm
230° 8kts
VFR
1:00 AM MST - 3:00 AM MST
Broken 15,000'
Few 10,000'
6sm
150° 14kts
Gusts 22kts
MVFR
Temporary 1:00 AM MST - 3:00 AM MST
Haze
No Clouds
5sm
150° 18kts
Gusts 26kts
VFR
3:00 AM MST - 11:00 AM MST
Broken 15,000'
Few 10,000'
6sm
VRB° 5kts
TAF KSDL 041918Z 0419/0518 VRB04KT 5SM HZ FEW150 BKN250
   FM042100 26011G19KT P6SM FEW150 SCT250
   FM050300 23008KT P6SM FEW120 SCT150
   FM050800 15014G22KT P6SM FEW100 BKN150
   TEMPO 0508/0510 15018G26KT 5SM HZ
   FM051000 VRB05KT P6SM FEW100 BKN150
KSDL
EffectiveExpiresCategoryNOTAM
Domestic
6/5/26
1200Z
12/4/26
2359Z
!SDL 05/023 SDL OBST CRANE (ASN 2025-AWP-17075-OE) 333934N1115522W (2.3NM NNW SDL) 1792FT (175FT AGL) FLAGGED AND LGTD DLY 1200-2359 2606051200-2612042359
5/29/26
1200Z
8/31/26
2359Z
!SDL 05/022 SDL OBST CRANE (ASN 2026-AWP-2302-OE) 333935N1115518W (2.3NM NNW SDL) 1797FT (190FT AGL) FLAGGED, NOT LGTD DLY 1200-2359 2605291200-2608312359
FDC
8/6/26
1300Z
!FDC 6/1301 SDL ODP SCOTTSDALE, SCOTTSDALE, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 9...
MARICOPA ONE DEPARTURE...
ADD TAKEOFF OBSTACLE NOTE: RWY 3, TEMPORARY CRANE, 4652FT FROM DER, 806FT LEFT OF CENTERLINE, 100FT AGL/1660FT MSL (2025-AWP-18225-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2608061300-2703151909EST
8/5/26
1700Z
!FDC 6/1619 SDL SID SCOTTSDALE, SCOTTSDALE, AZ.
SCOTTSDALE SEVEN DEPARTURE...
BLYTHE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BLH VORTAC OUT OF SERVICE. 2608051700-2608121511EST
8/5/26
1630Z
8/12/26
1536Z
!FDC 6/1685 SDL SID SCOTTSDALE, SCOTTSDALE, AZ.
JONHH TWO DEPARTURE...
BEATTY TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BTY VORTAC OUT OF SERVICE. 2608051630-2608121536EST
8/5/26
1530Z
8/12/26
1505Z
!FDC 6/1581 SDL SID SCOTTSDALE, SCOTTSDALE, AZ.
SCOTTSDALE SEVEN DEPARTURE...
GILA BEND TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GBN VORTAC OUT OF SERVICE. 2608051530-2608121505EST
8/4/26
1301Z
!FDC 6/1517 SDL IAP SCOTTSDALE, SCOTTSDALE, AZ.
RNAV (GPS)-D, AMDT 1A...
RNAV (GPS)-E, AMDT 1A...
CIRCLING CATS A/B MDA 2260/HAA 750.
TEMPORARY CRANE 1750 MSL 3380 FT NE OF SDL AIRPORT (2023-AWP-19217-OE). TEMP CRANE 1778 MSL 1.1NM N OF RWY 21 (2024-AWP-13226-OE). TEMP CRANE 1810 MSL 1.36NM NW OF RWY 21 (2025-AWP-7362-OE). TEMP CRANE 1851 MSL 1.7NM NW OF RWY 21 (2025-AWP-2685-OE). TEMPORARY CRANE 1765 MSL 1.4NM NW OF SDL AIRPORT (2026-AWP-3824-OE). TEMP CRANE 1795 MSL 2.0 NE OF KSDL AIRPORT (2025-AWP-3319-OE).
2608041301-2703161301EST
5/22/26
1311Z
!FDC 6/2445 SDL IAP SCOTTSDALE, SCOTTSDALE, AZ.
RNAV (RNP) RWY 21, ORIG-B...
RNP 0.16 DA 2080/HAT 573 CATS A/B/C. TEMPORARY CRANE 1778 MSL 1.1NM N OF RWY 21 (2024-AWP-13226-OE).
2605221311-2701011311EST
2/20/26
1609Z
!FDC 6/7545 SDL IAP SCOTTSDALE, SCOTTSDALE, AZ.
RNAV (RNP) Y RWY 3, ORIG-B...
RNAV (RNP) Z RWY 3, ORIG-A...
RNP 0.30 DA 1923/ HAT 453 ALL CATS. TEMPORARY CRANE 1620 MSL 863FT N OF RWY 3 (2019-AWP-3962-NRA), TEMPORARY CRANE 1715 MSL 3762FT NW OF RWY 3 (2023-AWP-18227-OE).
2602201609-2610021609EST
Yes
ALL
CITY OF SCOTTSDALE
3939 CIVIC CENTER PLAZA
SCOTTSDALE, AZ 85251
Phone: 480-312-2321
RICK WIELEBSKI
15000 N AIRPORT DR, SUITE 100
SCOTTSDALE, AZ 85260
Phone: 480-312-8475
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
SDL
--
WHEN ATCT CLSD ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

8249 ft. x 100 ft.
ASPH
Good
NONE
MED

45,000lbs
75,000lbs
--
--
  Runway 03 Runway 21
True Heading 44°224°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 36' 53"N 33° 37' 52"N
Longitude 111° 55' 12"W 111° 54' 04"W
Elevation 1,444' 1,510'
Threshold Crossing Height 59 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-17MIL ARR 24 HR PPR - 480-312-8478.
A110-19VOLUNTARY NOISE ABATEMENT CURFEW 2200-0600; NOISE SENSITIVE AREA ALL QUADS; NOISE ABATEMENT - 480-312-8478.
A110-2WILDLIFE INVOF RWY.
A110-21FOR CD WHEN ATCT CLSD, CTC PHOENIX APCH AT 602-306-2565.
A110-22ALL OPS WITH WINGSPAN GTR THAN 100 FT TIP TO TIP NA.
A110-8MAINT RUNUP NA 2200-0700.
A16480-312-7735
A24TSNT FEE FOR ACFT 12500 LB OR GREATER BASED ON MAX CERT RAMP WEIGHT; TSNT OVERNIGHT PARKING FEE.
A30-03/21MIDFIELD DEP & STOP & GO LNDG NA. TGL NA 2130-0600. RWY 03 CALM WIND RWY.
A31-03/21150 FT BLAST PAD BOTH ENDS.
A36-03/21CERT MAX TKOF WGT 75001 - 100000 LB OPRG ABV 75000 LB PPR - 480-312-8478.
A57-03APCH SLOPE 50:1 AT DTHR.
A57-21APCH SLOPE 39:1 AT DTHR.
A81-APTWHEN ATCT CLSD ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
E147TPA PROP 990 FT; JET 1490 FT; HELICOPTER 490 FT AGL.
E80ACUSTOMS SVC AVBL 1600Z TO 0200Z; USER FEE MUST BE PREPAID ONLINE PRIOR TO ARR.
SCOTTSDALE (ICAO: KSDL, IATA: SDL) is a public airport located in SCOTTSDALE, AZ, US.
