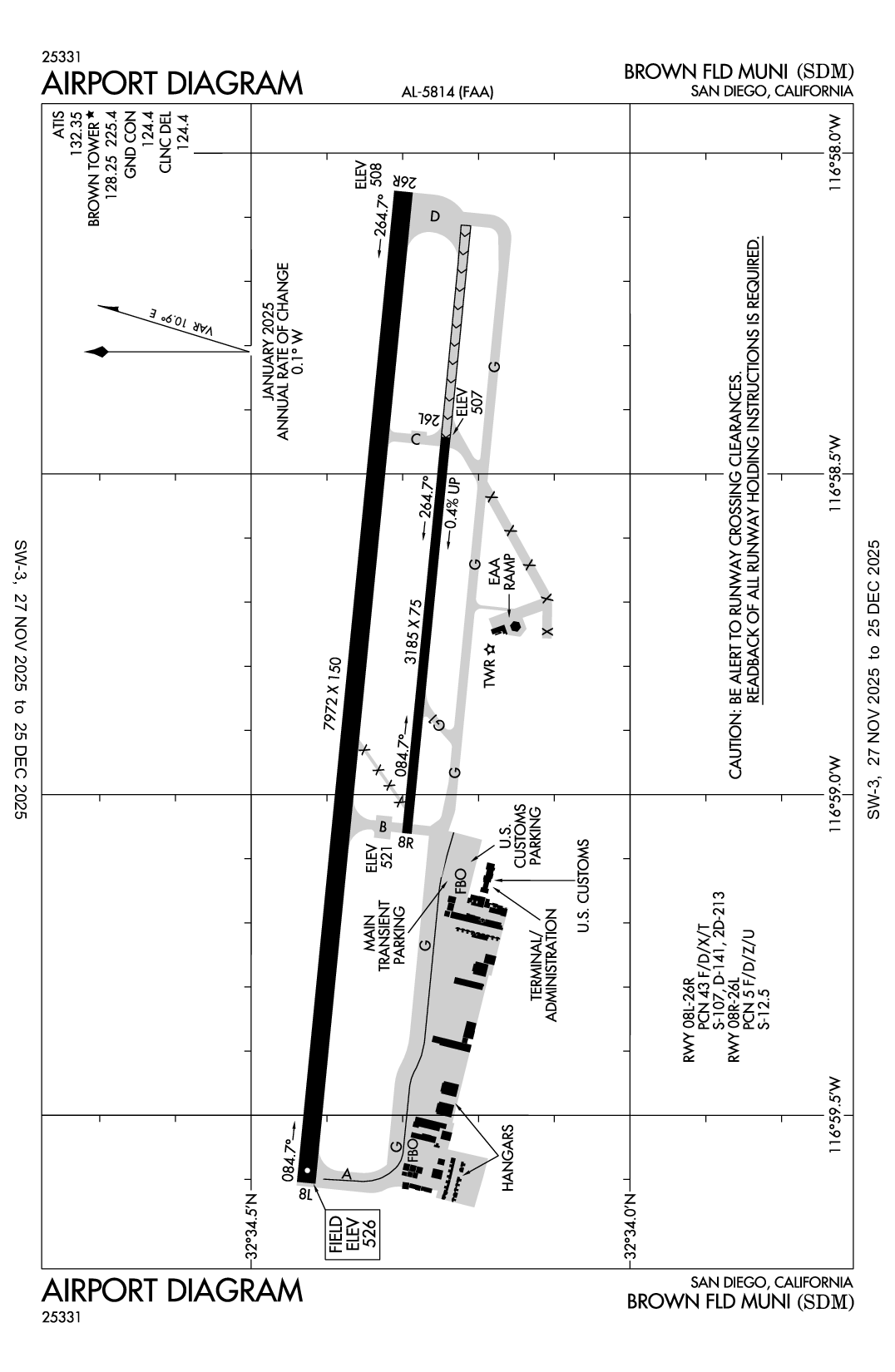

BROWN FLD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSDM
BROWN FLD MUNI
PublicPUB

13 miles SE of SAN DIEGO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 34' 20"N 116° 58' 49"W
526' MSL
1526' MSL
14E
Jet A, Jet A+, 100LL
SAN DIEGO (SAN)
LOS ANGELES
LOS ANGELES (ZLA)
4/18/24-5/16/24
KSDM MVFR
1:53 AM PDT
Overcast 1,900'
10sm
57°F
48°F
30.06"Hg
Calm
AO2 SLP176 T01390089 51001
KSDM 240853Z AUTO 10SM OVC019 14/09 A3006 RMK AO2 SLP176 T01390089 51001
List Your Business

KSDM FBOs, Flight Schools and Ground Support

Promote Listing
Air Center San Diego
Freq: 122.95
Phone: (619) 671-9222
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.99
Full Serve 6.49 5.99
Promote Listing
First Flight Corporation
Freq: 122.95
Phone: (619) 661-6522
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.46
Full Serve 4.99 4.99

KSDM Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSDM Hotels

No hotels are listed for this airport.

KSDM Restaurants

No restaurants are listed for this airport.

KSDM Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 128.25

ATIS

ATIS
619-661-0152
 132.35

ASOS

ASOS
619-661-8297
 132.35

Clearance Delivery

CD/P
 124.4

Ground

GND/P
 124.4

Tower

LCL/P
 128.25

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

MMTJ
Tue, 4/23 10:33 PM PDT
Tue, 4/23 11:00 PM PDT - Wed, 4/24 11:00 PM PDT
MVFR
11:00 PM PDT - 1:00 AM PDT
Overcast 2,000'
6sm
250° 5kts
MVFR
1:00 AM PDT - 7:00 AM PDT
Haze
Overcast 1,200'
4sm
Calm
IFR
7:00 AM PDT - 8:00 AM PDT
Mist
Broken 500'
2sm
300° 5kts
MVFR
8:00 AM PDT - 9:00 AM PDT
Haze
Scattered 1,500'
4sm
270° 5kts
MVFR
9:00 AM PDT - 11:00 AM PDT
Haze
Broken 20,000'
Scattered 2,000'
5sm
260° 5kts
VFR
11:00 AM PDT - 5:00 PM PDT
Sky Clear
6sm
260° 5kts
MVFR
5:00 PM PDT - 11:00 PM PDT
Broken 2,000'
6sm
270° 10kts
TAF MMTJ 240533Z 2406/2506 25005KT P6SM OVC020 TX20/2421Z TN11/2412Z
   FM240800 00000KT 4SM HZ OVC012
   FM241400 30005KT 2SM BR BKN005
   FM241500 27005KT 4SM HZ SCT015
   FM241600 26005KT 5SM HZ SCT020 BKN200
   FM241800 26005KT P6SM SKC
   FM250000 27010KT P6SM BKN020
KSDM
Domestic
4/22/241640Z !SDM 04/037 SDM AD AP ABN U/S 2404221640-2405311000
4/22/240000Z !SDM 04/030 SDM AIRSPACE SEE PGY 04/029 UAS DLY 0000-2359
2404220000-2405042359
4/12/241500Z !SDM 04/014 SDM AIRSPACE PJE WI AN AREA DEFINED AS .5NM RADIUS OF SDM SFC-11000FT DLY 1500-0300 2404121500-2405030300
3/25/241344Z !SDM 03/031 SDM AIRSPACE SEE PGY 03/030 UAS DLY SR-SS
2403251344-2411100050
3/19/241118Z !SDM 03/022 SDM OBST TOWER LGT (ASR 1319818) 323401.48N1165751.17W (0.9NM ESE SDM) 562FT (70FT AGL) U/S 2403191118-2405081700
1/9/242136Z !SDM 01/005 SDM TWY G BTN TWY C AND TWY D CLSD TO FIXED WING ACFT MORE THAN 100000LB 2401092136-2407092359
11/29/231430Z !SDM 11/034 SDM AIRSPACE SEE PGY 11/032 UAS DLY SR-SS
2311291430-2411100050
11/29/231430Z !SDM 11/033 SDM AIRSPACE SEE PGY 11/031 UAS DLY SR-SS
2311291430-2411100050
11/29/231400Z !SDM 11/042 SDM AIRSPACE SEE PGY 11/035 UAS DLY 1400-0800
2311291400-2411100800
11/29/231400Z !SDM 11/041 SDM AIRSPACE SEE PGY 11/019 UAS DLY 1400-0800
2311291400-2411100800
11/29/231400Z !SDM 11/038 SDM AIRSPACE SEE PGY 11/037 UAS DLY 1400-0800
2311291400-2411100800
11/29/231400Z !SDM 11/036 SDM AIRSPACE SEE PGY 11/035 UAS DLY 1400-0800
2311291400-2411100800
11/29/231400Z !SDM 11/030 SDM AIRSPACE SEE PGY 11/028 UAS DLY 1400-0800
2311291400-2411100800
11/29/231400Z !SDM 11/029 SDM AIRSPACE SEE PGY 11/019 UAS DLY 1400-0800
2311291400-2411100800
FDC
4/24/241400Z !FDC 4/3504 SDM IAP BROWN FLD MUNI, SAN DIEGO, CA.
RNAV (GPS) RWY 8L, AMDT 1D...
CIRCLING CAT B MDA 1100/HAA 574. TEMPORARY CRANE 750 MSL 1.8NM E OF RWY 26R (2023-AWP-14177-OE).
2404241400-2405091400EST
4/19/241615Z !FDC 4/3067 SDM IAP BROWN FLD MUNI, SAN DIEGO, CA.
VOR OR TACAN-A, ORIG-A...
VOR PORTION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PGY TACAN OUT OF SERVICE. 2404191615-2405191615EST
4/4/241329Z !FDC 4/6744 SDM SID BROWN FIELD MUNI, San Diego, CA.
PADRZ TWO DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
OCN VORTAC OUT OF SERVICE. 2404041329-2406121329EST
Yes
0900-1700
CITY OF SAN DIEGO
1424 CONTINENTAL ST
SAN DIEGO, CA 92154
Phone: 619-424-0455
ANDY SCHWARTZ
1424 CONTINENTAL ST
SAN DIEGO, CA 92154
Phone: 619-424-0456
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
SDM
--
ACTVT REIL RWY 08L, PAPI RWY 08L & RWY 26R, HIRL RWY 08L/26R, AND MIRL RWY 08R/26L - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
127
17
7
8
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales

Runway 08L/26R

7972 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH
43 /F/D/X/T
107,000lbs
141,000lbs
213,000lbs
--
  Runway 08L Runway 26R
True Heading 96°276°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 34' 26"N 32° 34' 18"N
Longitude 116° 59' 36"W 116° 58' 04"W
Elevation 526' 508'
Threshold Crossing Height 52 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 08R/26L

3185 ft. x 75 ft.
ASPH
Good
NONE
MED
5 /F/D/Z/U
12,000lbs
--
--
--
  Runway 08R Runway 26L
True Heading 96°276°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 34' 18"N 32° 34' 15"N
Longitude 116° 59' 04"W 116° 58' 27"W
Elevation 521' 507'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BE ALERT TO ARPT BDRY ONE MILE NORTH FM MEXICAN/USA INTL BORDER.
A110-15PARA JUMPING ON AIRPORT AND 3 MILES EAST.
A110-16BE ALERT TO HIGH TERRAIN 3,566 FT. MSL SIX MILES EAST OF AIRPORT.
A110-17BE ALERT WHEN DEPARTING ON RY 08L AT NIGHT DUE TO RISING TERRAIN TO THE EAST.
A110-18NOISE SENSITIVE AREAS APPROX 1 MILE WEST OF AIRPORT, 1/2 MILE NORTHWEST, AND 2 MILES NORTH.
A110-19TWY G WEST OF TWY B RESTRICTED TO AIRCRAFT WITH WINGSPANS OF 133 FT OR LESS.
A110-20AVOID DCT OVERFLIGHT OF PIO PICO ENERGY CENTER BLO 2000 FT AGL, 3 NM EAST OF AP.
A110-21FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-4NO ENGINE OPNS ON RAMPS EXCEPT AS NECESSARY FOR ARRIVALS/DEPARTURES.
BROWN FLD MUNI (ICAO: KSDM, IATA: SDM) is a public airport located in SAN DIEGO, CA.
