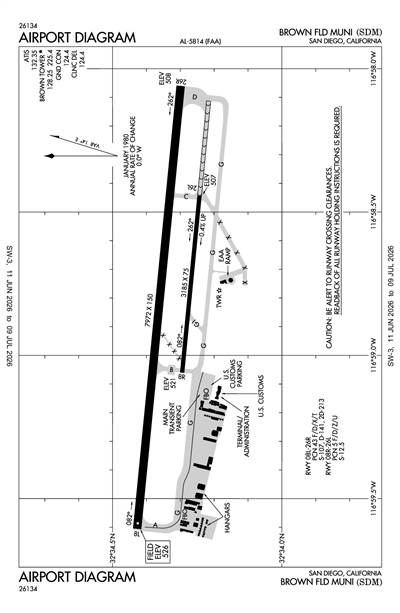

BROWN FLD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSDM
ICAO KSDMIATA SDMLocal SDM
BROWN FLD MUNI
PublicPUB

13 miles SE of SAN DIEGO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 34' 20"N 116° 58' 49"W
Elevation
526' MSL
Pattern Alt
1526' MSL
Mag Variation
11°E
Declination
14°E
Fuel
JET A, JET A (FSII), 100LL
FSS
SAN DIEGO (SAN)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
8/6/26-9/3/26
KSDM IFR
11:53 PM PDT
Overcast 900'
10sm
71°F
67°F
29.99"Hg
Calm
AO2 SLP148 T02170194 $
METAR KSDM 110653Z AUTO 00000KT 10SM OVC009 22/19 A2999 RMK AO2 SLP148 T02170194 $
+ Add Your Business

KSDM FBOs

Promote Listing
Air Center San Diego
UNICOM: 122.95
Phone: (619) 671-9222
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 8/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.47 7.99 8.07
Fuel Notes
Prices include tax
Promote Listing
First Flight Corporation
UNICOM: 122.95
Phone: (619) 661-6522
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 8/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.78
Full Serve 5.20 5.20
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 132.35
(619) 661-0152
ASOS 132.35
(619) 333-1055

Common

CTAF 128.25
ACTVT REIL RWY 08L, PAPI RWY 08L & RWY 26R, HIRL RWY 08L/26R, AND MIRL RWY 08R/26L - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 124.4

Ground

BROWN GROUND 124.4
0800-2000

Tower

BROWN TOWER 128.25
0800-2000

Arrival

CHASR STAR 124.35

Approach

SOCAL APPROACH 124.35

Departure

CWARD DP 119.6
PADRZ DP 119.6
SOCAL DEPARTURE 125.15

Other

CLASS B 124.35
062-109 SAN 14,000 FT & BLW

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

MMTJ
Mon, 8/10 11:50 PM PDT
Mon, 8/10 11:00 PM PDT - Tue, 8/11 11:00 PM PDT
IFR
11:00 PM PDT - 1:00 AM PDT
Overcast 900'
6sm
240° 5kts
IFR
Becoming 1:00 AM PDT - 9:00 AM PDT
Haze
Overcast 700'
5sm
240° 5kts
IFR
Temporary 4:00 AM PDT - 8:00 AM PDT
Mist and Haze
Overcast 500'
2sm
Calm
VFR
9:00 AM PDT - 9:00 PM PDT
Scattered 10,000'
6sm
300° 10kts
VFR
Becoming 9:00 PM PDT - 11:00 PM PDT
Broken 25,000'
Scattered 1,500'
6sm
300° 5kts
TAF COR MMTJ 110650Z 1106/1206 24005KT P6SM OVC009 TX28/1122Z TN20/1112Z
   BECMG 1108/1110 5SM HZ OVC007
   TEMPO 1111/1115 2SM BR HZ OVC005
   FM111600 30010KT P6SM SCT100
   BECMG 1204/1205 30005KT SCT015 BKN250
KSDM
EffectiveExpiresCategoryNOTAM
Domestic
8/3/26
1527Z
8/28/26
1900Z
!SDM 08/004 SDM APRON CUSTOMS APN SOUTH OF TWY G WIP IRREGULAR SFC 2608031527-2608281900
8/2/26
0736Z
10/31/26
0736Z
!SDM 08/002 SDM OBST TOWER LGT (ASR 1028970) 323434.20N1170655.40W (6.9NM W SDM) 103.0FT (86.9FT AGL) U/S 2608020736-2610310736
7/24/26
2206Z
10/24/26
2359Z
!SDM 07/034 PGY AIRSPACE UAS WI AN AREA DEFINED AS 323256N1170219W (3.6NM SW SDM) TO 323339N1165400W (4.2NM ESE SDM) TO 323559N1165400W (4NM E SDM) TO 323614N1165041W (7.5NM ENE SDM) TO 323336N1164928W (8.4NM ESE SDM) TO 323302N1165630W (2.6NM SE SDM) TO 323303N1165902W (2.6NM SE SDM) TO 323242N1170044W (2.5NM SW SDM) TO 323236N1170150W (2.5NM S SDM) TO POINT OF ORIGIN SFC-1200FT AGL 2607242206-2610242359
3/11/26
1717Z
1/21/27
2200Z
!SDM 03/011 SDM TWY G EAST OF TWY C CLSD TO ACFT MORE THAN 100000LB 2603111717-2701212200
2/14/26
0800Z
8/15/26
0659Z
!SDM 02/007 SDM AIRSPACE SEE FDC 6/4160 ZLA 99.7 SECURITY 2602140800-2608150659
FDC
8/11/26
1500Z
8/17/26
2100Z
!FDC 6/3501 SDM SID BROWN FLD MUNI, SAN DIEGO, CA.
PADRZ TWO DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
OCN VORTAC OUT OF SERVICE. 2608111500-2608172100EST
Yes
0900-1700
CITY OF SAN DIEGO
1424 CONTINENTAL ST
SAN DIEGO, CA 92154
Phone: 619-424-0455
ANDY SCHWARTZ
1424 CONTINENTAL ST
SAN DIEGO, CA 92154
Phone: 619-424-0456
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
SDM
--
ACTVT REIL RWY 08L, PAPI RWY 08L & RWY 26R, HIRL RWY 08L/26R, AND MIRL RWY 08R/26L - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales

Runway 08L/26R

7972 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH
43/F/D/X/T
107,000lbs
141,000lbs
213,000lbs
--
  Runway 08L Runway 26R
True Heading 96°276°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 34' 26"N 32° 34' 18"N
Longitude 116° 59' 36"W 116° 58' 04"W
Elevation 526' 508'
Threshold Crossing Height 52 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 08R/26L

3185 ft. x 75 ft.
ASPH
Good
NONE
MED
5/F/D/Z/U
12,000lbs
--
--
--
  Runway 08R Runway 26L
True Heading 96°276°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 34' 18"N 32° 34' 15"N
Longitude 116° 59' 04"W 116° 58' 27"W
Elevation 521' 507'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BE ALERT TO ARPT BDRY ONE MILE NORTH FM MEXICAN/USA INTL BORDER.
A110-15PARA JUMPING ON AIRPORT AND 3 MILES EAST.
A110-16BE ALERT TO HIGH TERRAIN 3,566 FT. MSL SIX MILES EAST OF AIRPORT.
A110-17BE ALERT WHEN DEPARTING ON RY 08L AT NIGHT DUE TO RISING TERRAIN TO THE EAST.
A110-18NOISE SENSITIVE AREAS APPROX 1 MILE WEST OF AIRPORT, 1/2 MILE NORTHWEST, AND 2 MILES NORTH.
A110-19TWY G WEST OF TWY B RESTRICTED TO AIRCRAFT WITH WINGSPANS OF 133 FT OR LESS.
A110-20AVOID DCT OVERFLIGHT OF PIO PICO ENERGY CENTER BLO 2000 FT AGL, 3 NM EAST OF AP.
A110-21FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-4NO ENGINE OPNS ON RAMPS EXCEPT AS NECESSARY FOR ARRIVALS/DEPARTURES.
A35-08R/26LOPERATOR PERMITS ONLY 12500 LBS.
A43-26RRWY 26R PAPI UNUSABLE BYD 3 NM.
A70-A+FOR JET FUEL AFT HRS CALL FBO AT 619-671-9222; FEE FOR CALLOUT. MIL FUEL AVBL BY CALLING 619-671-9222.
A81-APTACTVT REIL RWY 08L, PAPI RWY 08L & RWY 26R, HIRL RWY 08L/26R, AND MIRL RWY 08R/26L - CTAF.
E147<TPA: RWY 8L-26R 1000'AGL; 8R-26L 600'AGL.
BROWN FLD MUNI (ICAO: KSDM, IATA: SDM) is a public airport located in SAN DIEGO, CA, US.
