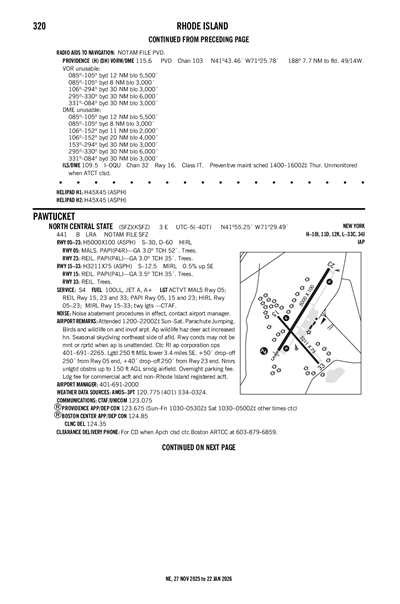

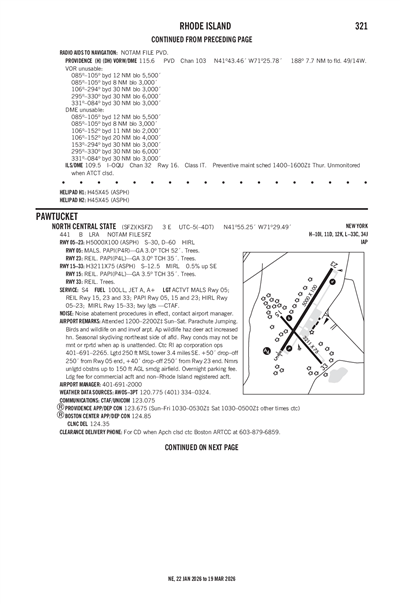

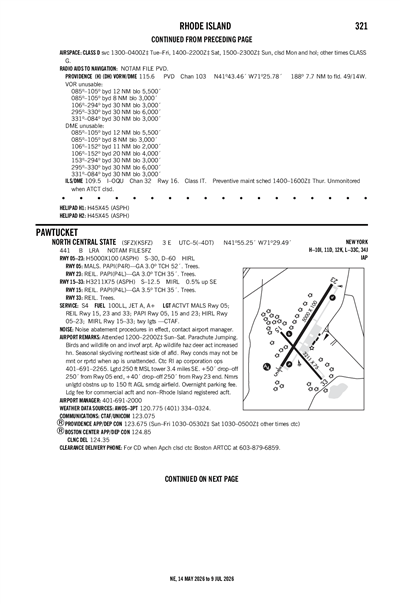

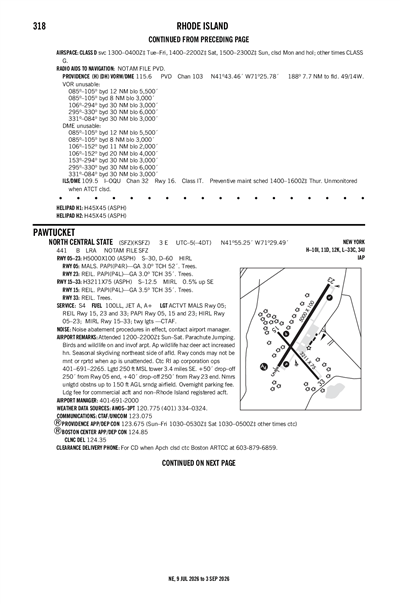

NORTH CENTRAL STATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSFZ
ICAO KSFZIATA SFZLocal SFZ
NORTH CENTRAL STATE
PublicPUB

3 miles E of PAWTUCKET, RI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 55' 15"N 71° 29' 29"W
Elevation
441' MSL
Pattern Alt
1441' MSL
Mag Variation
14°W
Declination
15°W
Fuel
JET A, JET A (FSII), 100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
9/3/26-10/1/26
KSFZ VFR
3:56 PM EDT
Few 4,600'
10sm
74°F
58°F
30.13"Hg
170° 6kts
AO2 SLP202 T02330144 $
METAR KSFZ 121956Z AUTO 17006KT 10SM FEW046 23/14 A3013 RMK AO2 SLP202 T02330144 $
+ Add Your Business

KSFZ FBOs

Promote Listing
FlightLevel Aviation
UNICOM: 123.075
Phone: (401) 333-8503
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 9/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.13 9.94 1.04
Fuel Notes
Prices include tax
Prist (FSII) available upon request for $0.10 per gal.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 120.775
(401) 334-0324

Common

CTAF 123.075
ACTVT MALS RWY 05; REIL RWY 23, 15 & 33; PAPI RWY 05, 15 & 23; HIRL RWY 05/23; MIRL RWY 15/33; TWY LGTS - CTAF.
UNICOM 123.075

Clearance

Clearance Delivery 124.35

Arrival

WIPOR STAR 123.675

Approach

PROVIDENCE APPROACH 123.675

Departure

PROVIDENCE DEPARTURE 123.675

Center

PROVIDENCE CENTER 124.85
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 124.85/307.9 (WOODSTOCK RCAG) WHEN PROVIDENCE APCH CTL CLSD.

Terminal Area Forecast

KPVD (12nm)
Sat, 9/12 1:58 PM EDT
Sat, 9/12 2:00 PM EDT - Sun, 9/13 2:00 PM EDT
VFR
2:00 PM EDT - 6:00 PM EDT
Few 25,000'
6sm
150° 10kts
VFR
6:00 PM EDT - 5:00 AM EDT
Scattered 15,000'
6sm
180° 5kts
MVFR
Temporary 5:00 AM EDT - 8:00 AM EDT
Light Showers and Rain
Overcast 1,500'
4sm
Calm
VFR
5:00 AM EDT - 8:00 AM EDT
Broken 4,500'
6sm
160° 5kts
IFR
8:00 AM EDT - 2:00 PM EDT
Showers and Rain
Overcast 800'
3sm
140° 7kts
IFR
11:00 AM EDT - 2:00 PM EDT
Thunderstorm and Rain
Overcast 800'
3sm
Calm
TAF KPVD 121758Z 1218/1318 15010KT P6SM FEW250
   FM122200 18005KT P6SM SCT150
   FM130900 16005KT P6SM BKN045
   TEMPO 1309/1312 4SM -SHRA OVC015
   FM131200 14007KT 3SM SHRA OVC008
   PROB30 1315/1318 3SM TSRA OVC008CB
KSFZ
EffectiveExpiresCategoryNOTAM
Domestic
8/12/26
1756Z
!SFZ 08/013 SFZ OBST TREE (ASN UNKNOWN) 415444N0712957W (.3NM SW APCH END RWY 05)
449.108FT (72FT AGL) NOT LGTD 2608121756-PERM
8/12/26
1744Z
!SFZ 08/012 SFZ OBST TREE (ASN UNKNOWN) 415442N0712954W (.32NM SSW APCH END RWY 05)
467.562FT (72FT AGL) NOT LGTD 2608121744-PERM
8/12/26
1735Z
!SFZ 08/011 SFZ OBST TREE (ASN UNKNOWN) 415443N0712957W (0.3NM SW APCH END RWY 05)
451.745FT (32.945FT AGL) NOT LGTD 2608121735-PERM
8/12/26
1715Z
!SFZ 08/010 SFZ OBST TREE (ASN UNKNOWN) 415442N0712955W (.32NM SSW APCH END RWY 05)
462.575FT (43.775FT AGL) NOT LGTD 2608121715-PERM
8/4/26
1936Z
10/31/26
2359Z
!SFZ 08/005 SFZ OBST TOWER LGT (ASR 1226731) 415417.00N0712355.30W (4.2NM ESE SFZ) 360.9FT (308.4FT AGL) U/S 2608041936-2610312359
7/11/26
0505Z
10/1/26
2359Z
!SFZ 07/013 SFZ OBST TOWER LGT (ASR 1022070) 415611.30N0712742.20W (1.6NM NE SFZ) 586.0FT (270.0FT AGL) U/S 2607110505-2610012359
7/1/26
2052Z
!SFZ 07/002 SFZ NAV ILS RWY 05 LOC U/S 2607012052-2609252359EST
3/19/26
1318Z
9/19/26
1600Z
Runway!SFZ 03/032 SFZ RWY 15/33 REDL NOT STD 2603191318-2609191600
3/19/26
1317Z
9/19/26
1600Z
Runway!SFZ 03/031 SFZ RWY 05/23 REDL NOT STD 2603191317-2609191600
1/8/26
1309Z
11/30/26
2359Z
!SFZ 01/018 SFZ TWY ALL SAFETY AREA IRREGULAR SFC RUTS 2601081309-2611302359
FDC
4/4/25
1353Z
!FDC 5/2304 SFZ IAP NORTH CENTRAL STATE, PAWTUCKET, RI.
LOC RWY 5, AMDT 7C...
S-5 MDA 1080/HAT 651 ALL CATS, VIS CATS A/B 3/4, CAT C 1 5/8. CIRCLING CMDA 1080/639 HAA, VIS CATS A/B 1, CAT C 1 7/8. ESULE FIX MINIMUMS: S-5 MDA 1060 MDA/631 HAT ALL CATS, VIS CATS A/B 3/4, CAT C 1 1/2.
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PVD ALTIMETER SETTING AND INCREASE ALL MDAS 100 FEET AND ESULE FIX MINIMUMS VIS CAT C 1/4 SM, AND S-LOC 05 VIS CAT B/C 1/4 SM, AND CIRCLING VIS CAT B/C/C 1/4 SM.
ALTERNATE MISSED APPROACH HOLDING AT FOSTY NA.
2504041353-2704041353EST
No
SUN-SAT 0700-1700
STATE OF RHODE ISLAND
RHODE ISLAND AIRPORT CORP 2000 POST RD
WARWICK, RI 02886
Phone: 401-691-2000
IFTIKHAR AHMAD
RHODE ISLAND AIRPORT CORP 2000 POST RD
WARWICK, RI 02886
Phone: 401-691-2000
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
SFZ
--
ACTVT MALS RWY 05; REIL RWY 23, 15 & 33; PAPI RWY 05, 15 & 23; HIRL RWY 05/23; MIRL RWY 15/33; TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Glider Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales

Runway 05/23

5000 ft. x 100 ft.
ASPH
Good
NONE
HIGH

30,000lbs
60,000lbs
--
--
  Runway 05 Runway 23
True Heading 32°212°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 54' 60"N 41° 55' 42"N
Longitude 71° 29' 45"W 71° 29' 10"W
Elevation 419' 419'
Threshold Crossing Height 52 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

3211 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 140°320°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 55' 17"N 41° 54' 53"N
Longitude 71° 29' 45"W 71° 29' 18"W
Elevation 426' 440'
Threshold Crossing Height 35 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-11RWY CONDS MAY NOT BE MNT OR RPRTD WHEN AP IS UNATNDD. CTC RI AP CORPORATION OPS AT 401-691-2265.
A110-12FOR CD WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A110-13AP WILDLIFE HAZ DEER ACT INCREASED HN.
A110-14NMRS UNLGTD OBSTNS UP TO 150 FT AGL SRNDG AIRFIELD.
A110-15BIRDS & WILDLIFE ON & INVOF ARPT.
A110-2LGTD 250 FT MSL TWR 3-2/5 MI SE.
A110-6OVNGT PRKG FEE.
A110-7+50 FT DROPOFF 250 FT FM RWY 05 END, +40 FT DROPOFF 250 FT FM RWY 23 END.
A110-8SEASONAL SKYDIVING NE SIDE OF AIRFIELD.
A110-9NOISE ABATEMENT PROCS IN EFCT, CTC AMGR.
A24LDG FEE FOR COML ACFT & NON-RHODE ISLAND REGISTERED ACFT.
A58-05+10 FT TREES 150 FT FM THR, 180 FT L; +10 FT TREES 120 FT FM THR, 180 FT R.
A58-23+15 FT TREES 170 FT FM THR, 90 FT R; +10 FT TREES 120 FT FM THR, 150 FT L.
A81-APTACTVT MALS RWY 05; REIL RWY 23, 15 & 33; PAPI RWY 05, 15 & 23; HIRL RWY 05/23; MIRL RWY 15/33; TWY LGTS - CTAF.
E111EXISTED PRIOR TO 1959.
NORTH CENTRAL STATE (ICAO: KSFZ, IATA: SFZ) is a public airport located in PAWTUCKET, RI, US.
