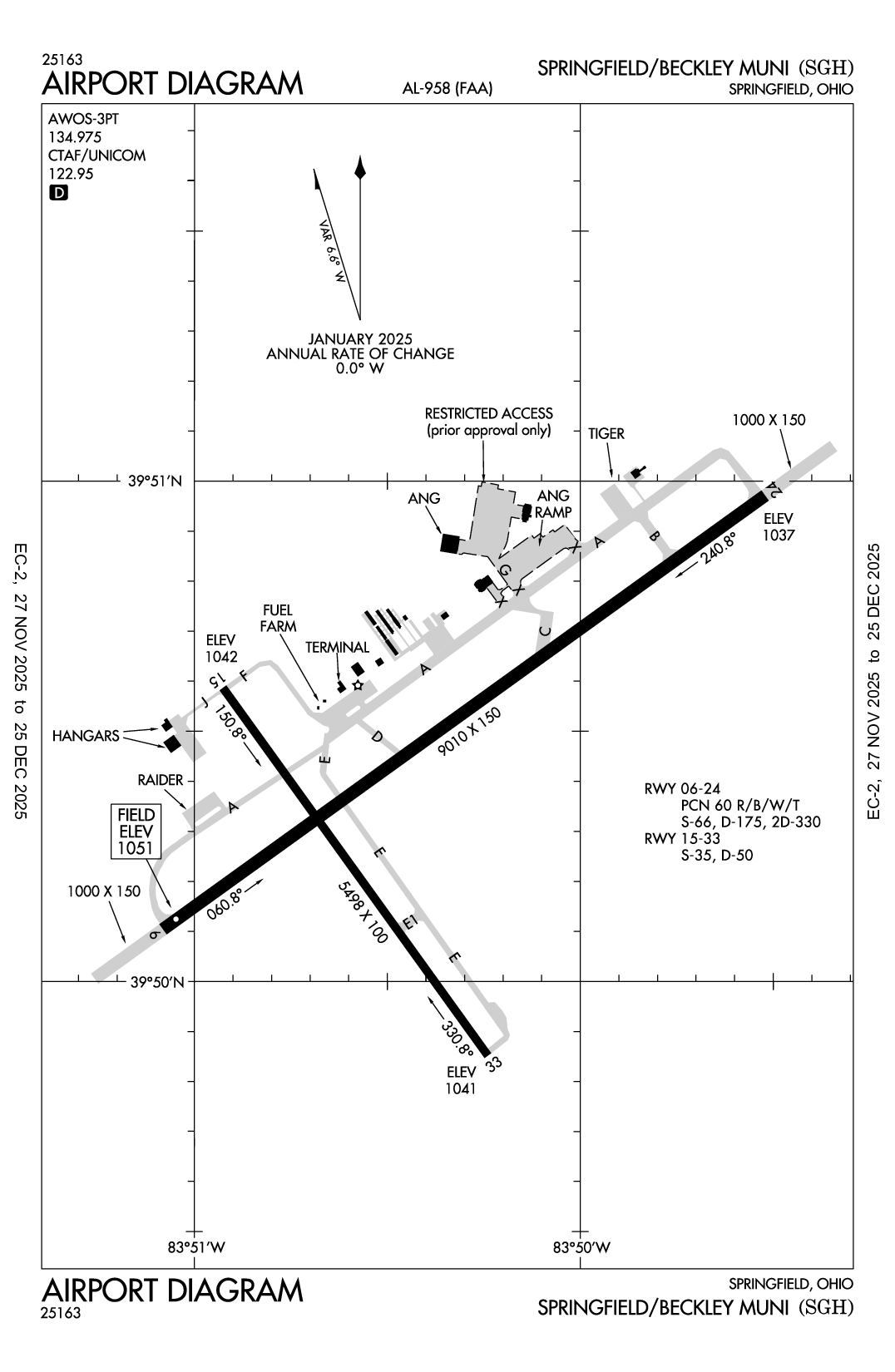

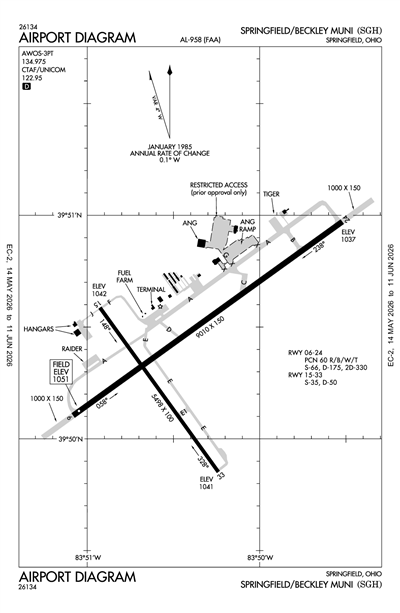

SPRINGFIELD/BECKLEY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSGH
ICAO KSGHIATA SGHLocal SGH
SPRINGFIELD/BECKLEY MUNI
PublicPUB

5 miles SSW of SPRINGFIELD, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 50' 25"N 83° 50' 25"W
Elevation
1051' MSL
Pattern Alt
2100' MSL
Mag Variation
7°W
Declination
4°W
Fuel
JET A (FSII), 100LL
FSS
DAYTON (DAY)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
5/14/26-6/11/26
KFFO (9nm) VFR
2:55 AM EDT
Clear
10sm
50°F
45°F
30.03"Hg
Calm
AO2 SLP172 T00980072
METAR KFFO 150655Z AUTO 00000KT 10SM CLR 10/07 A3003 RMK AO2 SLP172 T00980072
+ Add Your Business

KSGH FBOs

Promote Listing
Springfield-Beckley Municipal Airport
UNICOM: 122.95
Phone: (937) 323-5804
Other: (937) 325-6108
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 4/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.68 7.93
Full Serve 6.78 8.03
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 134.975
(937) 324-4532, (COMM_DECOMM_DATE) AWSS.

Common

CTAF 122.95
ACTVT WIND CONE; SSALR RWY 24; REIL RWY 06, 15, & 33; HIRL RWY 06/24; MIRL RWY 15/33 - CTAF. PAPI RWY 06, 24, 15, & 33 OPR CONSLY.
UNICOM 122.95

Arrival

DANEI STAR 134.45

Approach

COLUMBUS APPROACH 118.85

Departure

COLUMBUS DEPARTURE 118.85

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KFFO (9nm)
Thu, 5/14 11:00 PM EDT
Thu, 5/14 11:00 PM EDT - Sat, 5/16 5:00 AM EDT
VFR
11:00 PM EDT - 12:00 PM EDT
Few 25,000'
6sm
30.03"Hg
VRB° 3kts
VFR
Becoming 12:00 PM EDT - 4:00 PM EDT
Showers in vicinity
Broken 22,000'
Broken 11,000'
Few 6,000'
6sm
30.00"Hg
200° 9kts
VFR
Temporary 1:00 PM EDT - 4:00 PM EDT
Light Showers and Rain
Overcast 9,000'
Broken 6,000'
5.59sm
220° 10kts
Gusts 15kts
VFR
Becoming 4:00 PM EDT - 5:00 AM EDT
Broken 5,500'
6sm
30.00"Hg
210° 6kts
TAF KFFO 150300Z 1503/1609 VRB03KT 9999 FEW250 QNH3003INS WND 21006KT AFT 1515
   BECMG 1516/1517 20009KT 9999 VCSH FEW060 BKN110 BKN220 QNH2999INS
   TEMPO 1517/1520 22010G15KT 9000 -SHRA BKN060 OVC090
   BECMG 1520/1521 21006KT 9999 NSW BKN055 QNH2999INS WND 18006KT AFT 1600 TX21/1519Z TN06/1510Z
KSGH
EffectiveExpiresCategoryNOTAM
Domestic
5/7/26
1200Z
6/26/26
2000Z
!SGH 05/005 SGH AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF SGH SFC-300FT AGL DLY 1200-2000 2605071200-2606262000
5/6/26
1901Z
!SGH 05/006 SGH SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2605061901-2605282359EST
4/3/26
0248Z
5/18/26
0247Z
!SGH 04/002 SGH OBST TOWER LGT (ASN 2024-AGL-10477-OE) 394728N0834909W (3.1NM SSE SGH) 1260FT (255FT AGL) U/S 2604030248-2605180247
3/13/26
2230Z
5/29/26
2000Z
!SGH 03/008 SGH TWY C CLSD 2603132230-2605292000
FDC
5/11/26
1313Z
6/4/26
1313Z
!FDC 6/9280 SGH IAP SPRINGFIELD/BECKLEY MUNI, SPRINGFIELD, OH.
RNAV (GPS) RWY 33, ORIG...
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WRIGHT-PATTERSON AFB ALTIMETER SETTING AND INCREASE LPV DA TO 1403 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAVVNAV
DA TO 1404 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE ALL MDAS 60 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM. BARO-VNAV AND VDP NA WHEN USING WRIGHT-PATTERSON AFB ALTIMETER SETTING.
AWOS OUT OF SERVICE.
2605111313-2606041313EST
5/11/26
1313Z
6/4/26
1313Z
!FDC 6/9279 SGH IAP SPRINGFIELD/BECKLEY MUNI, SPRINGFIELD, OH.
RNAV (GPS) RWY 24, ORIG-B...
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WRIGHT-PATTERSON AFB ALTIMETER SETTING AND INCREASE LPV DA TO 1302 FEET; INCREASE LNAV/VNAV DA TO 1452 FEET AND ALL
VISIBLITIES 1/8 SM. INCREASE ALL MDAS 60 FEET AND LNAV VISIBILITY CAT C AND D 1/4SM.
BARO-VNAV AND VDP NA WHEN USING WRIGHT-PATTERSON AFB ALTIMETER SETTING.
FOR INOPERATIVE ALS, WHEN USING WRIGHT-PATTERSON AFB ALTIMETER SETTING, INCREASE LNAV/VNAV ALL CATS VISIBLITY TO 1/18 SM, INCREASE LNAV CATS C AND D VISIBILITY TO 1 3/8 SM.
AWOS OUT OF SERVICE.
2605111313-2606041313EST
5/11/26
1313Z
6/4/26
1313Z
!FDC 6/9278 SGH IAP SPRINGFIELD/BECKLEY MUNI, SPRINGFIELD, OH.
RNAV (GPS) RWY 15, ORIG-A...
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WRIGHT-PATTERSON AFB ALTIMETER SETTING AND INCREASE LPV DA TO 1352 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAVVNAV DA
TO 1391 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE ALL MDAS 60 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM.
BARO-VNAV AND VDP NA WHEN USING WRIGHT-PATTERSON AFB ALTIMETER SETTING.
AWOS OUT OF SERVICE.
2605111313-2606041313EST
5/11/26
1313Z
6/4/26
1313Z
!FDC 6/9277 SGH IAP SPRINGFIELD/BECKLEY MUNI, SPRINGFIELD, OH.
RNAV (GPS) RWY 6, ORIG-A...
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WRIGHT-PATTERSON AFB ALTIMETER SETTING AND INCREASE LPV DA TO 1408 FEET AND ALL VISIBILITIES 1/8 SM. INCREASE LNAVVNAV DA
TO 1483 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL MDAS 60 FEET.
BARO-VNAV AND VDP NA WHEN USING WRIGHT-PATTERSON AFB ALTIMETER SETTING.
AWOS OUT OF SERVICE.
2605111313-2606041313EST
6/25/25
1949Z
!FDC 5/8996 SGH IAP SPRINGFIELD/BECKLEY MUNI, SPRINGFIELD, OH.
RNAV (GPS) RWY 15, ORIG-A...
RNAV (GPS) RWY 33, ORIG...
PROCEDURE NA AT NIGHT.
2506251949-2706251949EST
No
MON-FRI 0730-1600
CITY OF SPRINGFIELD
76 E HIGH ST
SPRINGFIELD, OH 45502
Phone: 937-325-6108
DRAKE HUFFMAN
1251 W BLEE RD
SPRINGFIELD, OH 45502
Phone: 937-325-6108
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
SGH
--
ACTVT WIND CONE; SSALR RWY 24; REIL RWY 06, 15, & 33; HIRL RWY 06/24; MIRL RWY 15/33 - CTAF. PAPI RWY 06, 24, 15, & 33 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
High Pressure
Avionics
Pilot Instruction
Aircraft Sales

Runway 06/24

9010 ft. x 150 ft.
ASPH CONC
Fair
GRVD
HIGH
60/R/B/W/T
66,000lbs
175,000lbs
330,000lbs
--
  Runway 06 Runway 24
True Heading 54°234°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 50' 06"N 39° 50' 58"N
Longitude 83° 51' 05"W 83° 49' 31"W
Elevation 1,051' 1,037'
Threshold Crossing Height 45 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

5498 ft. x 100 ft.
ASPH
Excellent
NONE
MED

35,000lbs
50,000lbs
--
--
  Runway 15 Runway 33
True Heading 144°324°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 50' 35"N 39° 49' 51"N
Longitude 83° 50' 56"W 83° 50' 14"W
Elevation 1,042' 1,041'
Threshold Crossing Height 36 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-18NOISE ABATEMENT: AVOID OVERFLYING YELLOW SPRINGS 2 NM SW BLW 4000 FT.
A110-22AVOID OVERFLYING ANG RAMP.
A110-26FOR CD CTC COLUMBUS APCH AT 614-338-8537.
A110-6OCNL DEER, BIRDS, & OTR WILDLIFE ON & INVOF ARPT.
A110-9HVY BIRD ACT DRG FALL & WINTER MONTHS.
A14SGH.FBO@SPRINGFIELDOHIO.GOV.
A16OR 937-323-5804.
A30A-24CALM WIND RWY.
A33-06/24_SURFNE 980 FT CONC, SW 1200 FT CONC, 6830 FT ASPH BTN.
A43-15PAPI UNUSBL BYD 9 DEGS RIGHT OF CNTRLN.
A49-24ALS UNMON INDEFLY.
A75-HPRIOR CDN RQRD.
A81-APTACTVT WIND CONE; SSALR RWY 24; REIL RWY 06, 15, & 33; HIRL RWY 06/24; MIRL RWY 15/33 - CTAF. PAPI RWY 06, 24, 15, & 33 OPR CONSLY.
E147OHD TPA 1549 FT AGL.
SPRINGFIELD/BECKLEY MUNI (ICAO: KSGH, IATA: SGH) is a public airport located in SPRINGFIELD, OH, US.
