SOUTH ST PAUL MUNI/RICHARD E FLEMING FLD - Airport Diagram

KSGS

ICAO KSGSLocal SGS

SOUTH ST PAUL MUNI/RICHARD E FLEMING FLD

PublicPUB

2 miles S of SOUTH ST PAUL, MN, US

View on Map

Status

Operational

Coordinates

44° 51' 26"N 93° 01' 58"W

Elevation

821' MSL

Pattern Alt

1721' MSL

Mag Variation

0°

Declination

0°

Fuel

JET A, 100LL, UL94

FSS

PRINCETON (PNM)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

8/6/26-9/3/26

KSGS VFR

7:15 AM CDT RAW

Scattered 12,000'

Viz

10sm

Temp

72°F

Dew

65°F

Pres

29.93"Hg

Wind

Calm

RMK

AO2 T02230184

METAR KSGS 131215Z AUTO 00000KT 10SM SCT120 22/18 A2993 RMK AO2 T02230184

Add Your Business

KSGS FBOs

South St. Paul Municipal Airport

UNICOM: 122.7

Phone: (651) 554-3350

Other: (651) 485-7442

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 8/4	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.69		5.39
Full Serve

Fuel Notes

Prices include tax
JET A is premixed with Prist (FSII).

KSGS Aircraft Service & Maintenance

Promote Listing

Wipaire Inc.

Phone: (651) 209-7173

Fax: (651) 457-7858

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

AWOS-3	119.425
(651) 457-8120

Common

CTAF	122.7
ACTVT REIL RWY 34; ACTVT OR INCR INTST PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF. MIRL RWY 16/34 PRESET LOW INTST.
UNICOM	122.7

Clearance

Clearance Delivery

118.2

Approach

MINNEAPOLIS APPROACH

121.2

Departure

MINNEAPOLIS DEPARTURE

121.2

FAA A/FD Pages

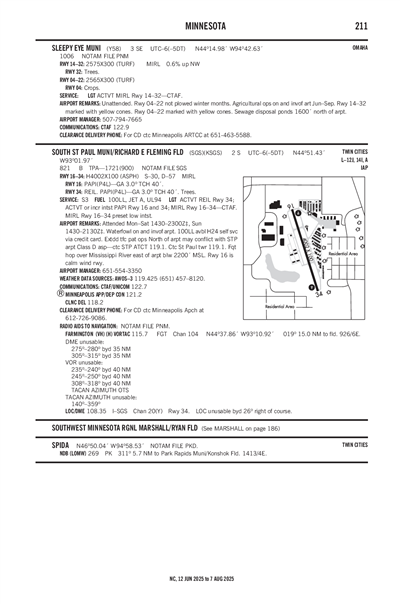

FAA A/FD Page

Airport Diagrams

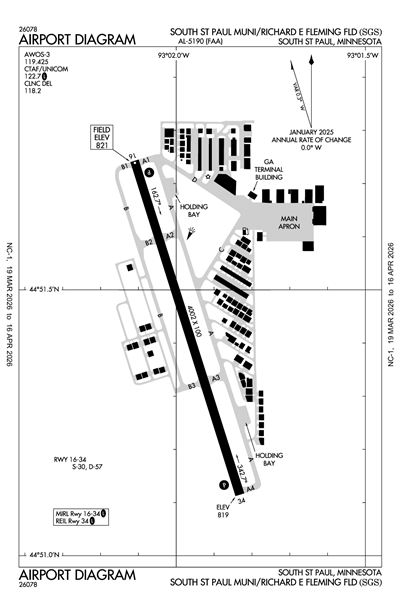

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMSP (9nm)

RAW

Reported

Thu, 8/13 6:37 AM CDT

Valid

Thu, 8/13 7:00 AM CDT - Fri, 8/14 1:00 PM CDT

VFR

Temporary 7:00 AM CDT - 9:00 AM CDT

Light Showers and Rain

No Clouds

Viz

6sm

Wind

Calm

VFR

7:00 AM CDT - 11:00 AM CDT

Broken 8,000'
Few 5,000'

Viz

6sm

Wind

090° 5kts

VFR

11:00 AM CDT - 9:00 PM CDT

Broken 8,000'

Viz

6sm

Wind

100° 8kts

VFR

9:00 PM CDT - 10:00 AM CDT

Scattered 25,000'

Viz

6sm

Wind

080° 6kts

VFR

10:00 AM CDT - 1:00 PM CDT

Broken 25,000'

Viz

6sm

Wind

110° 12kts

Gusts 20kts

TAF KMSP 131137Z 1312/1418 09005KT P6SM FEW050 BKN080
   TEMPO 1312/1314 6SM -SHRA
   FM131600 10008KT P6SM BKN080
   FM140200 08006KT P6SM SCT250
   FM141500 11012G20KT P6SM BKN250

KSGS

Effective	Expires	NOTAM
Domestic
8/10/26 1130Z	8/14/26 2000Z	!SGS 08/002 SGS AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM RADIUS OF 445213N0930126W (0.9NM NNE SGS) SFC-200FT AGL MON-FRI 1130-2000 2608101130-2608142000
8/10/26 1130Z	8/14/26 2000Z	!SGS 08/001 SGS AIRSPACE UAS WI AN AREA DEFINED AS 445355N0930804W (3.8NM SW STP) TO 445352N0930447W (2.4NM SSW STP) TO 445138N0930458W (2.1NM W SGS) TO 445129N0930810W (3.9NM ESE MSP) TO POINT OF ORIGIN SFC-200FT AGL MON-FRI 1130-2000 2608101130-2608142000

ATC Tower

Attendance

MON-SAT 0830-1700
SUN 0830-1530

Owner

CITY OF SOUTH SAINT PAUL
125 3RD AVE N
SOUTH SAINT PAUL, MN 55075
Phone: 651-450-3200

Manager

ANDREW WALL
1725 HENRY AVE
SOUTH SAINT PAUL, MN 55075
Phone: 651-554-3350

FSS

PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF

NOTAM

SGS

Light Schedule

Lights

ACTVT REIL RWY 34; ACTVT OR INCR INTST PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF. MIRL RWY 16/34 PRESET LOW INTST.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Avionics
Beaching Gear
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 16/34

Dimensions

4002 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

57,000lbs

Double Tandem

Dual Dbl Tand

	Runway 16	Runway 34
True Heading	162°	342°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	44° 51' 45"N	44° 51' 07"N
Longitude	93° 02' 07"W	93° 01' 50"W
Elevation	821'	819'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights		Yes

A110-1	EXTDD TFC PAT OPS NORTH OF ARPT MAY CONFLICT WITH STP ARPT CLASS D ASP - CTC STP ATCT 119.1.
A110-2	FQT HOP OVR MISSISSIPPI RIVER EAST OF ARPT BLW 2200 FT MSL.
A110-3	WATERFOWL ON & INVOF ARPT.
A110-4	FOR CD CTC MINNEAPOLIS APCH AT 612-713-4016.
A30A-16	CALM WIND RWY.
A70-100LL	FUEL AVBL H24 SELF SVC VIA CREDIT CARD.
A81-APT	ACTVT REIL RWY 34; ACTVT OR INCR INTST PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF. MIRL RWY 16/34 PRESET LOW INTST.

SOUTH ST PAUL MUNI/RICHARD E FLEMING FLD (ICAO: KSGS, IATA: SGS) is a public airport located in SOUTH ST PAUL, MN, US.
