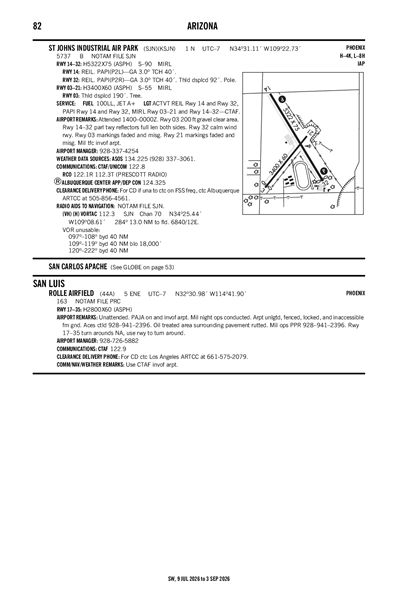

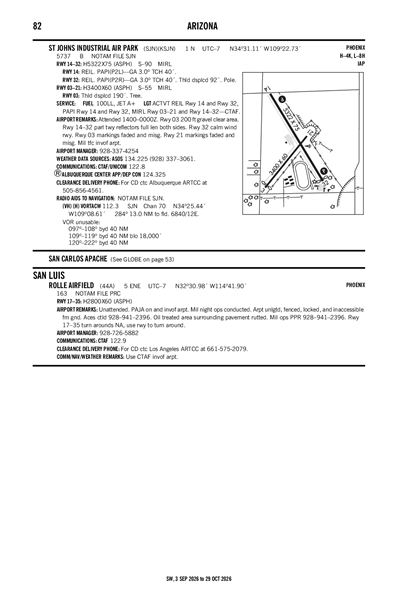

ST JOHNS INDUSTRIAL AIR PARK - Airport Diagram

KSJN

ICAO KSJNIATA SJNLocal SJN

ST JOHNS INDUSTRIAL AIR PARK

PublicPUB

1 miles N of ST JOHNS, AZ, US

View on Map

Status

Operational

Coordinates

34° 31' 07"N 109° 22' 43"W

Elevation

5737' MSL

Pattern Alt

6737' MSL

Mag Variation

9°E

Declination

12°E

Fuel

JET A (FSII), 100LL

FSS

PRESCOTT (PRC)

Sectional

PHOENIX

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

6/11/26-7/9/26

KSJN VFR

5:54 AM MST RAW

Clear

Viz

10sm

Temp

72°F

Dew

39°F

Pres

30.06"Hg

Wind

240° 11kts

RMK

AO2 SLP063 T02220039

METAR KSJN 171254Z AUTO 24011KT 10SM CLR 22/04 A3006 RMK AO2 SLP063 T02220039

Add Your Business

KSJN FBOs

Promote Listing

St. Johns Industrial Air Park

UNICOM: 122.8

Phone: (928) 337-4254

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 6/16	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	5.40	4.64

Fuel Notes

Prices include tax
Assistance is available for self-serve 100LL and JET A.

Your Information

Business

Weather and Advisory

ASOS	134.225
(928) 337-3061

Common

CTAF	122.8
ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 03/21 & 14/32 - CTAF.
UNICOM	122.8

Center

ALBUQUERQUE CENTER	124.325
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 124.325/288.25 (ZUNI RCAG).

Flight Service

Flight Service	122.1
(PRC)

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGUP (66nm)

RAW

Reported

Wed, 6/17 5:36 AM MDT

Valid

Wed, 6/17 6:00 AM MDT - Thu, 6/18 6:00 AM MDT

VFR

6:00 AM MDT - 9:00 AM MDT

Sky Clear

Viz

6sm

Wind

VRB° 6kts

VFR

9:00 AM MDT - 11:00 AM MDT

Sky Clear

Viz

6sm

Wind

250° 11kts

VFR

11:00 AM MDT - 2:00 PM MDT

Sky Clear

Viz

6sm

Wind

260° 14kts

Gusts 24kts

VFR

2:00 PM MDT - 8:00 PM MDT

Few 20,000'

Viz

6sm

Wind

280° 20kts

Gusts 30kts

VFR

8:00 PM MDT - 2:00 AM MDT

Scattered 20,000'

Viz

6sm

Wind

250° 15kts

Gusts 25kts

VFR

2:00 AM MDT - 6:00 AM MDT

Broken 20,000'
Few 12,000'

Viz

6sm

Wind

220° 11kts

TAF KGUP 171136Z 1712/1812 VRB06KT P6SM SKC WS012/30030KT
   FM171500 25011KT P6SM SKC
   FM171700 26014G24KT P6SM SKC
   FM172000 28020G30KT P6SM FEW200
   FM180200 25015G25KT P6SM SCT200
   FM180800 22011KT P6SM FEW120 BKN200

KSJN

Effective	Expires	Category	NOTAM
Domestic
6/9/26 0625Z	8/2/26 0600Z		!SJN 06/001 SJN OBST STACK LGT (ASN UNKNOWN) 343433N1091620W (6.3NM ENE SJN) 6193FT (400FT AGL) U/S 2606090625-2608020600
5/26/26 1123Z	7/11/26 0600Z		!SJN 05/005 SJN OBST STACK LGT (ASN UNKNOWN) 343439N1091619W (6.35NM NE SJN) 6293FT (500FT AGL) U/S 2605261123-2607110600
3/25/26 1545Z		Runway	!SJN 03/007 SJN RWY 14 RWY END ID LGT U/S 2603251545-2609282111EST

ATC Tower

Attendance

0700-1700

Owner

CITY OF ST. JOHNS
P.O. BOX 455
ST. JOHNS, AZ 85936
Phone: 928-337-4517

Manager

GARY LISTON
P.O. BOX 455
ST. JOHNS, AZ 85936
Phone: 928-337-4254

FSS

PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF

NOTAM

SJN

Light Schedule

Lights

ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 03/21 & 14/32 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 03/21

Dimensions

3400 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

55,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	37°	217°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	POOR	POOR
Latitude	34° 30' 46"N	34° 31' 12"N
Longitude	109° 22' 59"W	109° 22' 35"W
Elevation	5,727'	5,735'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 14/32

Dimensions

5322 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

90,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	148°	328°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	POOR	POOR
Latitude	34° 31' 34"N	34° 30' 49"N
Longitude	109° 22' 58"W	109° 22' 24"W
Elevation	5,734'	5,736'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2R
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-1	MIL TFC INVOF ARPT.
A110-4	RWY 14/32 PARL TWY REFLECTORS FULL LEN BOTH SIDES.
A110-6	FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A16	EMERG - 928-245-0391
A30-14/32	RWY 32 CALM WIND RWY.
A30A-03	200 FT GRAVEL CLEAR AREA.
A42-03_COND	FADED & MISG.
A42-21_COND	FADED & MISG.
A57-03	APCH RATIO 10:1 TO DTHR; 58 FT TREE 630 FT FM RWY END 50 FT L OF CNTRLN.
A57-32	APCH RATIO 27:1 AT DTHR.
A58-21	5 FT DIRT PILE 100 FT FM THR 85 FT R OF CNTRLN.
A58-32	0-12 FT FENCE 0-200 FT FM THR 135-150 FT R OF CNTRLN. +10 FT ROAD 0-150 FT FM RWY END ACRS THR.
A75-H	AVBL - AMGR.
A81-APT	ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 03/21 & 14/32 - CTAF.

ST JOHNS INDUSTRIAL AIR PARK (ICAO: KSJN, IATA: SJN) is a public airport located in ST JOHNS, AZ, US.
