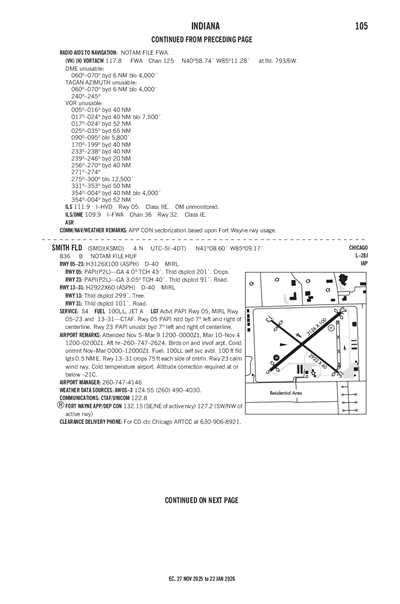

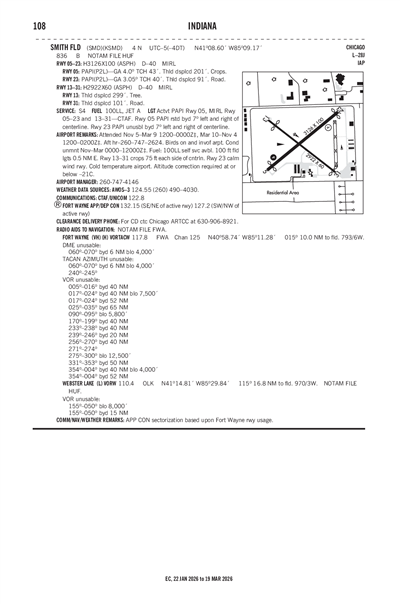

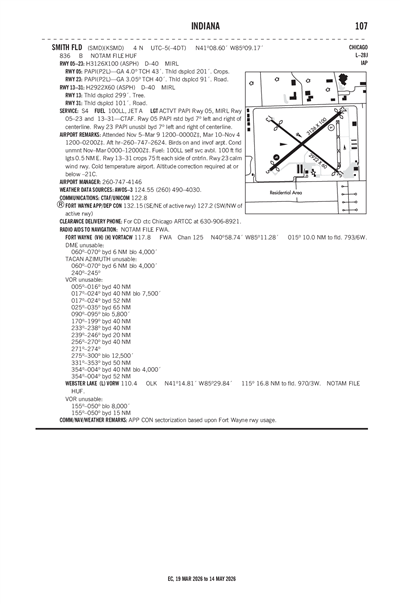

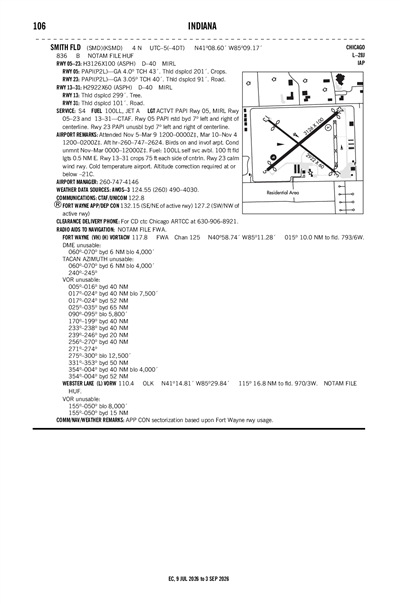

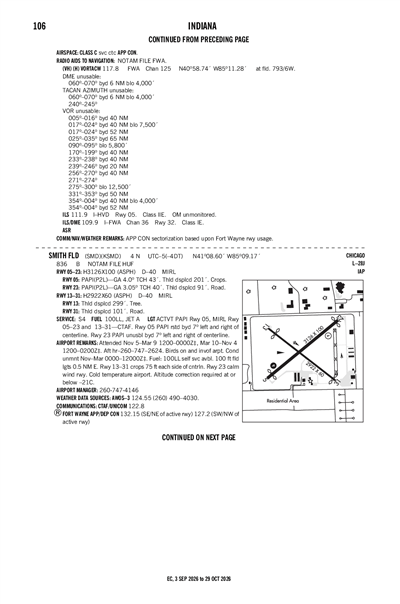

SMITH FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSMD
ICAO KSMDIATA SMDLocal SMD
SMITH FLD
PublicPUB

4 miles N of FORT WAYNE, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 08' 36"N 85° 09' 10"W
Elevation
836' MSL
Pattern Alt
1836' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A, 100LL
FSS
TERRE HAUTE (HUF)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
6/11/26-7/9/26
KSMD VFR
3:35 PM EDT
Overcast 7,000'
10sm
77°F
54°F
30.08"Hg
290° 6kts
A01
METAR KSMD 241935Z AUTO 29006KT 10SM OVC070 25/12 A3008 RMK A01
+ Add Your Business

KSMD FBOs

Promote Listing
Smith Field Aero Center
UNICOM: 122.8
Phone: (260) 489-5518
Other: (260) 489-8020
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.24 5.00
Full Serve 6.49 5.25
Fuel Notes
Prices include tax

KSMD Aircraft Service & Maintenance

Promote Listing
Sweet Aviation
UNICOM: 122.8
Phone: (260) 267-5505
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 124.55
(260) 490-4030

Common

CTAF 122.8
ACTVT PAPI RWY 05; MIRL RWY 05/23 & 13/31 - CTAF.
UNICOM 122.8

Approach

FORT WAYNE APPROACH 127.2
Initial Contact - SW/NW OF ACTIVE RWY
FORT WAYNE APPROACH 132.15
SE/NE OF ACTIVE RWY

Departure

FORT WAYNE DEPARTURE 127.2
Initial Contact - SW/NW OF ACTIVE RWY
FORT WAYNE DEPARTURE 132.15
SE/NE OF ACTIVE RWY

Terminal Area Forecast

KFWA (11nm)
Wed, 6/24 1:20 PM EDT
Wed, 6/24 2:00 PM EDT - Thu, 6/25 2:00 PM EDT
VFR
2:00 PM EDT - 4:00 PM EDT
Scattered 22,000'
Scattered 5,000'
6sm
240° 5kts
VFR
4:00 PM EDT - 1:00 AM EDT
Showers in vicinity
Broken 5,000'
6sm
200° 7kts
VFR
Temporary 9:00 PM EDT - 1:00 AM EDT
Light Showers and Rain
Overcast 3,500'
6sm
Calm
VFR
1:00 AM EDT - 8:00 AM EDT
Showers in vicinity
Overcast 5,000'
6sm
210° 7kts
VFR
8:00 AM EDT - 1:00 PM EDT
Broken 6,000'
6sm
240° 8kts
VFR
1:00 PM EDT - 2:00 PM EDT
Broken 13,000'
6sm
260° 10kts
TAF KFWA 241720Z 2418/2518 24005KT P6SM SCT050 SCT220
   FM242000 20007KT P6SM VCSH BKN050
   TEMPO 2501/2505 6SM -SHRA OVC035
   FM250500 21007KT P6SM VCSH OVC050
   FM251200 24008KT P6SM BKN060
   FM251700 26010KT P6SM BKN130
KSMD
EffectiveExpiresCategoryNOTAM
Domestic
6/22/26
1100Z
6/25/26
2230Z
!HUF 06/501 SMD OBST CRANE (ASN UNKNOWN) 410951N0851014W (1.25NM NW APCH END RWY 13)
UNKNOWN (120FT AGL) FLAGGED AND LGTD DLY 1100-2230 2606221100-2606252230
6/22/26
1100Z
6/25/26
2230Z
!HUF 06/500 SMD OBST CRANE (ASN UNKNOWN) 410954N0855101W (1.25NM NW APCH END RWY 13)
UNKNOWN (120FT AGL) FLAGGED AND LGTD DLY 1100-2230 2606221100-2606252230
6/22/26
1100Z
6/25/26
2230Z
!HUF 06/499 SMD OBST CRANE (ASN UNKNOWN) 410941N0851014W (1.25NM NW APCH END RWY 13)
UNKNOWN (120FT AGL) FLAGGED AND LGTD DLY 1100-2230 2606221100-2606252230
6/22/26
1100Z
6/25/26
2230Z
!HUF 06/498 SMD OBST CRANE (ASN UNKNOWN) 410944N0851028W (1.25NM NW APCH END RWY 13)
UNKNOWN (120FT AGL) FLAGGED AND LGTD DLY 1100-2230 2606221100-2606252230
6/9/26
2112Z
9/7/26
2112Z
!HUF 06/195 SMD OBST TOWER LGT (ASR 1028122) 410405.00N0850153.00W (7.1NM SE SMD) 1060.7FT (301.8FT AGL) U/S 2606092112-2609072112
5/10/26
1445Z
!HUF 05/207 SMD TWY H CLSD 2605101445-PERM
No
5 NOV-9 MAR 0700-1900
10 MAR-4 NOV 0700-2100
AFT HR - 260-747-2624.
FT WAYNE ALLEN CO APT ATHRTY
3801 W FERGUSON ROAD-RM 209
FT WAYNE, IN 46809
Phone: 260-747-4146
SCOTT D. HINDERMAN, A.A.E.
3801 WEST FERGUSON ROAD, STE. 209
FORT WAYNE, IN 46809
Phone: 260-747-4146
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT PAPI RWY 05; MIRL RWY 05/23 & 13/31 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 05/23

3126 ft. x 100 ft.
ASPH
Good
NONE
MED

--
40,000lbs
--
--
  Runway 05 Runway 23
True Heading 51°231°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 08' 27"N 41° 08' 47"N
Longitude 85° 09' 26"W 85° 08' 54"W
Elevation 827' 828'
Threshold Crossing Height 43 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 3.05°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

2922 ft. x 60 ft.
ASPH
Excellent
NONE
MED

--
40,000lbs
--
--
  Runway 13 Runway 31
True Heading 128°308°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 08' 44"N 41° 08' 26"N
Longitude 85° 09' 25"W 85° 08' 55"W
Elevation 832' 825'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10COND UNMNT NOV-MAR 1900-0700.
A110-11COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -21C.
A110-3100 FT FLD LGTS 0.5 NM E.
A110-6BIRDS ON & INVOF ARPT.
A110-9FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A17-M1AFT HR - 260-747-2624.
A30-05/23RWY 23 CALM WIND RWY.
A30-13/3175 FT CROPS EACH SIDE OF CNTRLN.
A43-05PAPI RSTRD BYD 7 DEGS LEFT & RIGHT OF CNTRLN.
A43-23PAPI UNUSBL BYD 7 DEGS LEFT & RIGHT OF CNTRLN.
A57-13APCH RATIO 24:1 AT DTHR.
A58-0510 FT CROPS 65 FT FM RWY END & 90 FT E & 115 FT W.
A58-1310 FT CROPS 60 FT FM RWY END
A58-2315 FT ROAD 185 FT FM RWY END 175 FT R.
A58-3115 FT ROAD 215 FT FM RWY END 185 FT L.
A70-100LLSELF SVC AVBL.
A81-APTACTVT PAPI RWY 05; MIRL RWY 05/23 & 13/31 - CTAF.
E111EXISTED PRIOR TO 1959.
SMITH FLD (ICAO: KSMD, IATA: SMD) is a public airport located in FORT WAYNE, IN, US.
