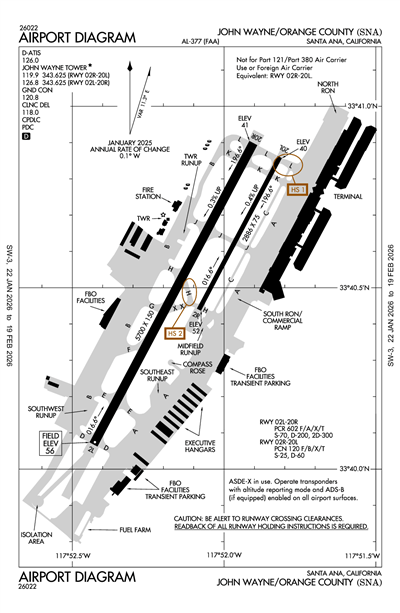

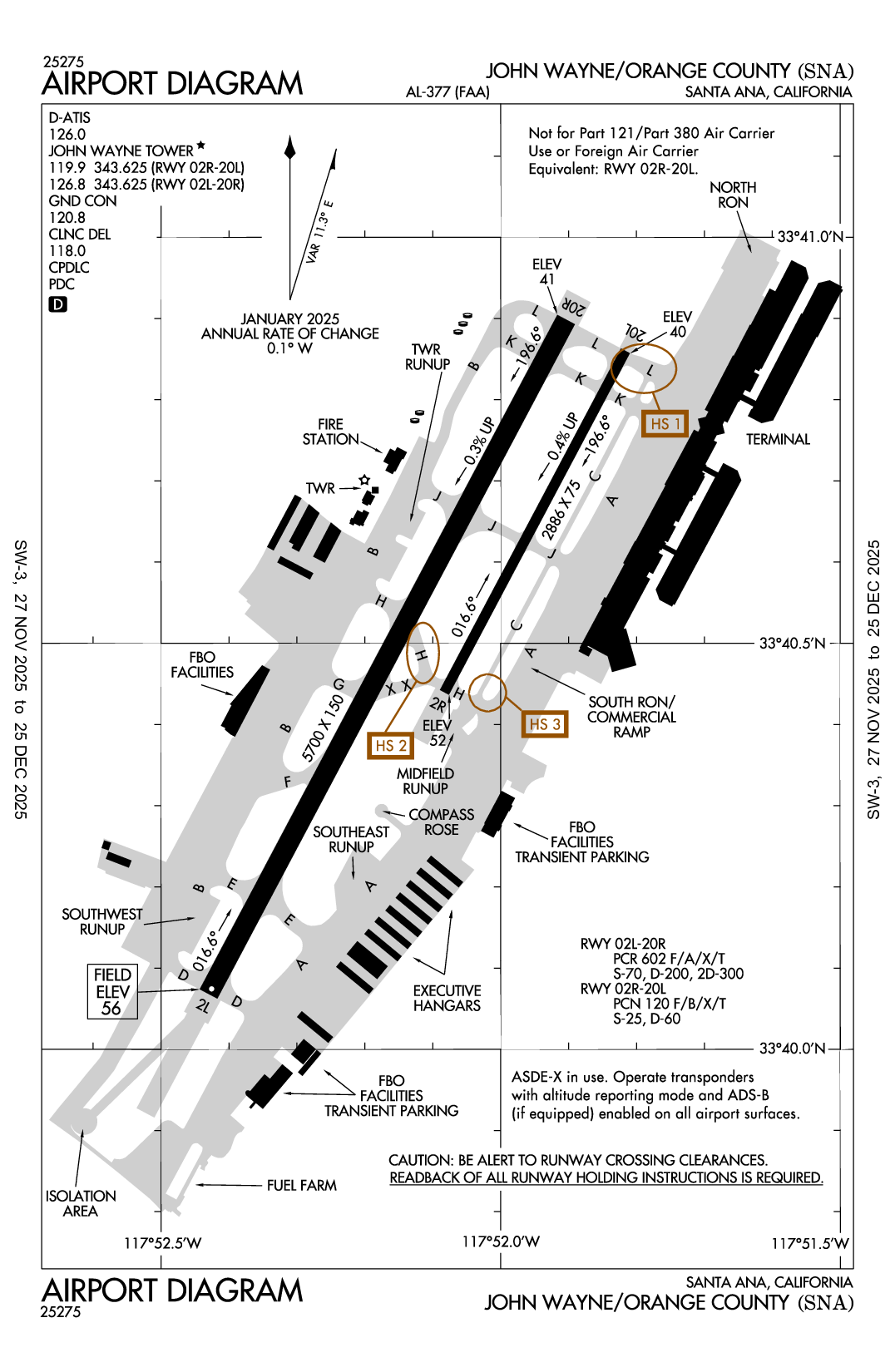

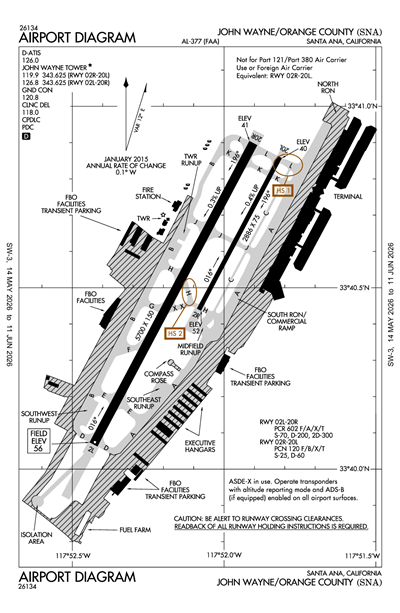

JOHN WAYNE/ORANGE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSNA
ICAO KSNAIATA SNALocal SNA
JOHN WAYNE/ORANGE COUNTY
PublicPUB

4 miles S of SANTA ANA, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 40' 32"N 117° 52' 06"W
Elevation
56' MSL
Pattern Alt
1056' MSL
Mag Variation
11°E
Declination
12°E
Fuel
JET A, 100LL
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
8/6/26-9/3/26
KSNA VFR
6:53 AM PDT
Scattered 700'
8sm
71°F
69°F
29.89"Hg
Calm
AO2 SLP119 T02170206
METAR KSNA 231353Z 00000KT 8SM SCT007 22/21 A2989 RMK AO2 SLP119 T02170206
+ Add Your Business

KSNA FBOs

Promote Listing
Clay Lacy Aviation
UNICOM: 131.375
Phone: (714) 888-8000
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 8/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.63 7.55 7.61
Fuel Notes
Prices include tax
ACI Jet - Orange County North
UNICOM: 131.1
Phone: (949) 201-2550
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 8/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.93 7.67 7.87
Fuel Notes
Prices include tax
ACI Jet - Orange County South
UNICOM: 122.95
Phone: (949) 201-2560
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 8/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.93 7.67 7.87
Fuel Notes
Prices include tax

KSNA Aircraft Service & Maintenance

Promote Listing
Global Tech Instruments Inc.
Phone: (714) 375-1811
Fax: (714) 375-1812
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Aero Teknik Inc.
Phone: (714) 914-3172
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Leading Edge Avionics
Phone: (714) 955-6151
Fax: (714) 955-6156
No Rating Available
0 Reviews (Read | Sign In To Write)

KSNA Other Aviation Services

Promote Listing
Fixed and Rotor Aircraft Support
Phone: (949) 702-0032
Fax: (949) 215-5011
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Airborne Overnight
Phone: (714) 794-2376
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 126.0
(714) 338-2340
ASOS (714) 338-2330

Common

CTAF 126.8
WHEN ATCT CLSD ACTVT MALSR RY 20R & PAPI RYS 02L & 20R - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 118.0
Clearance Delivery 121.85
Secondary

Ground

JOHN WAYNE GROUND 120.8
0615-2300
JOHN WAYNE GROUND 132.25
0615-2300, Secondary, DO NOT PUBLISH ON APCH PLATES.

Tower

JOHN WAYNE TOWER 119.9
0615-2300 - RWY 02R/20L
JOHN WAYNE TOWER 126.8
Initial Contact, 0615-2300 - RWY 02L/20R
JOHN WAYNE TOWER 128.35
0615-2300, Secondary

Arrival

DSNEE STAR 134.0
EMMLN STAR 127.0
KAYOH STAR 133.85
OHSEA STAR 127.4
ROOBY STAR 134.0
RUKKI STAR 127.4
TANDY STAR 127.4

Approach

SOCAL APPROACH 121.3

Departure

ANAHEIM DP 125.35
RWY 20R HECTOR OR LAKE HUGHES TRANSITIONS
ANAHEIM DP 133.85
RWY 02L, 02R, HECTOR, LAKE HUGHES TRANSITION
ANAHEIM DP 133.85
RWY 2L/R, HECTOR, LAKE HUGHES TRANSITION
CHANNEL DP 128.1
FINZZ DP 128.1
HAWWC DP 125.35
HHERO DP 128.1
HOBOW DP 133.85
MIKAA DP 133.85
MUSEL DP 128.1
PIGGN DP 128.1
RWY 20R
PIGGN DP 133.85
RWY 02L
SOCAL DEPARTURE 128.1
SOCAL DEPARTURE 132.7
STAYY DP 128.1

Other

CLASS C 121.3
315-045 SNA, REFERENCE IS TO SNA ARPT.
CLASS C 124.1
045-130 SNA, REFERENCE IS TO SNA ARPT.
CLASS C 125.35
190-315 SLI
CLASS C 127.2
190-315 SNA ABV 3000 FT, REFERENCE IS TO SNA ARPT.
CLASS C 128.1
130-190 SNA, REFERENCE IS TO SNA ARPT.
CLASS C 132.7
045-130 SNA, REFERENCE IS TO SNA ARPT.

Terminal Area Forecast

KSNA
Sun, 8/23 4:20 AM PDT
Sun, 8/23 5:00 AM PDT - Mon, 8/24 5:00 AM PDT
IFR
Temporary 5:00 AM PDT - 8:00 AM PDT
Mist
Broken 700'
6sm
Calm
VFR
5:00 AM PDT - 11:00 AM PDT
Sky Clear
6sm
VRB° 4kts
VFR
11:00 AM PDT - 9:00 PM PDT
Sky Clear
6sm
220° 9kts
VFR
9:00 PM PDT - 5:00 AM PDT
Few 15,000'
6sm
VRB° 4kts
TAF KSNA 231120Z 2312/2412 VRB04KT P6SM SKC
   TEMPO 2312/2315 6SM BR BKN007
   FM231800 22009KT P6SM SKC
   FM240400 VRB04KT P6SM FEW150
KSNA
EffectiveExpiresCategoryNOTAM
Domestic
8/29/26
1000Z
8/29/26
1200Z
!SNA 08/045 SNA COM GND COM OUTLET 122.4 U/S 2608291000-2608291200
8/25/26
0530Z
8/29/26
1330Z
!SNA 08/035 SNA TWY A MIDFIELD RUNUP PAD, TWY A BTN ACI SOUTH RAMP AND TWY H, TWY D BTN APCH END RWY 02L AND TWY A, TWY E BTN RWY 02L/20R AND TWY A, TWY H BTN APCH END RWY 02R AND TWY A CLSD DLY 0530-1330 2608250530-2608291330
8/24/26
0630Z
8/29/26
1315Z
!SNA 08/041 SNA AD AP CLSD DLY 0630-1315 2608240630-2608291315
8/23/26
1500Z
8/23/26
2330Z
!SNA 08/043 SNA OBST CRANE (ASN UNKNOWN) 334029N1175228W (.3NM W SNA) 213FT (165FT AGL) FLAGGED AND LGTD 2608231500-2608232330
8/22/26
0640Z
11/20/26
2359Z
!SNA 08/044 SNA OBST TOWER LGT (ASN 2021-AWP-16919-OE) 333759N1175526W (3.7NM SW SNA) 152FT (62FT AGL) U/S 2608220640-2611202359
8/22/26
0630Z
8/22/26
1315Z
!SNA 08/040 SNA AD AP CLSD 2608220630-2608221315
8/20/26
1307Z
8/31/26
2300Z
!SNA 08/039 SNA TWY A MIDFIELD RUNUP PAD HLDG PSN MARKINGS FOR TWY H NOT STD 2608201307-2608312300
8/20/26
1306Z
8/31/26
2300Z
!SNA 08/038 SNA TWY H EDGE MARKINGS BTN APCH END RWY 02R AND TWY A MIDFIELD RUNUP PAD NOT STD 2608201306-2608312300
8/19/26
1331Z
9/2/26
1315Z
!SNA 08/036 SNA TWY E SFC MARKINGS BTN RWY 02L/20R AND TWY A OBSC 2608191331-2609021315
8/19/26
0530Z
8/23/26
1330Z
!SNA 08/034 SNA TWY A MIDFIELD RUNUP PAD, TWY A BTN ACI SOUTH RAMP AND TWY H, TWY D BTN APCH END RWY 02L AND TWY A, TWY E BTN RWY 02L/20R AND TWY A, TWY H BTN APCH END RWY 02R AND TWY A CLSD DLY 0530-1330 2608190530-2608231330
8/18/26
1656Z
!SNA 08/032 SNA COM REMOTE TRANS/REC 127.4 U/S 2608181656-2609162359EST
8/18/26
1648Z
Runway!SNA 08/031 SNA RWY 02L PAPI U/S 2608181648-2608262359EST
8/11/26
1238Z
8/30/26
2300Z
Runway!SNA 08/018 SNA RWY 02L TDZ MARKINGS AT RWY AIMING POINT MARKING NOT STD 2608111238-2608302300
8/7/26
1027Z
8/31/26
2300Z
!SNA 08/012 SNA TWY H EDGE MARKINGS BTN RWY 02L/20R AND APCH END RWY 02R NOT STD 2608071027-2608312300
8/7/26
1025Z
8/31/26
2300Z
!SNA 08/011 SNA TWY A BTN TWY J AND TWY H WIP STEEL PLATES CONCRETE REPAIR 2608071025-2608312300
8/6/26
1834Z
12/18/26
1415Z
Runway!SNA 08/010 SNA RWY 02L/20R CL MARKINGS OBSC 2608061834-2612181415
7/23/26
1600Z
1/1/28
1415Z
!SNA 07/046 SNA APRON CLAY LACY RAMP CLSD TO ACFT WINGSPAN MORE THAN 49FT EXC 24HR PPR 714-888-8000 FEES APPLY 2607231600-2801011415
6/25/26
1600Z
11/13/27
0001Z
!SNA 06/040 SNA OBST CRANE (ASN 2026-AWP-864-NRA) 334036N1175218W (0.2NM WNW SNA) 105FT (52FT AGL) FLAGGED AND LGTD 2606251600-2711130001
6/15/26
1309Z
9/30/26
1315Z
!SNA 06/020 SNA APRON ACI NORTH RAMP, ACI SOUTH RAMP CLSD TO TRANSIENT AND GA FEE MAY APPLY WITHOUT 24HR PPR 2606151309-2609301315
6/7/26
1354Z
8/31/26
1315Z
!SNA 06/010 SNA TWY A BTN ACI NORTH RAMP AND EXECUTIVE HANGARS RAMP WIP STEEL PLATES EAST EDGE 2606071354-2608311315
4/7/26
1605Z
9/30/26
1315Z
!SNA 04/018 SNA TWY A SHOULDER MARKINGS BTN TWY E AND TWY A MIDFIELD RUNUP PAD WEST SIDE NOT STD 2604071605-2609301315
4/7/26
1415Z
9/30/26
1415Z
!SNA 03/074 SNA TWY A BTN TWY E AND ACI NORTH RAMP WIP CONST ADJ WEST SHOULDER LGTD AND BARRICADED 2604071415-2609301415
3/31/26
2225Z
9/30/26
1415Z
!SNA 03/072 SNA TWY E BTN RWY 02L/20R AND TWY A, TWY D BTN APCH END RWY 02L AND TWY A, TWY A BTN ACI SOUTH RAMP AND TWY H CLSD TO ACFT WINGSPAN MORE THAN 118FT 2603312225-2609301415
1/13/26
0530Z
1/15/28
1415Z
!SNA 01/017 SNA OBST RIG (ASN 2025-AWP-1800-NRA) 334022N1175152W (0.3NM SE SNA) 125FT (78FT AGL) LGTD 2601130530-2801151415
FDC
8/24/26
1530Z
!FDC 6/7227 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
ANAHEIM TWO DEPARTURE...
HECTOR TRANSITION,LAKE HUGHES TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PDZ VORTAC OUT OF SERVICE. 2608241530-2608311401EST
8/22/26
1500Z
!FDC 6/7068 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
ANAHEIM TWO DEPARTURE...
TAKEOFF RUNWAYS 02L,02R (VENTURA TRANSITION) NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
VENTURA TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LAX VORTAC OUT OF SERVICE. 2608221500-2608282100EST
8/22/26
1500Z
8/28/26
2100Z
!FDC 6/7063 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
CHANNEL THREE DEPARTURE...
IRVINE FIVE DEPARTURE...
GORMAN TRANSITION, SHAFTER TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LAX VORTAC OUT OF SERVICE. 2608221500-2608282100EST
8/7/26
1347Z
10/14/26
1347Z
!FDC 6/2832 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
EL TORO FIVE DEPARTURE...
IMPERIAL TRANSITION,THERMAL TRANSITION: DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
JLI VORTAC OUT OF SERVICE. 2608071347-2610141347EST
5/27/26
1936Z
!FDC 6/3389 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
ANAHEIM TWO DEPARTURE...
LAKE HUGHES TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LHS VORTAC OUT OF SERVICE. 2605271936-2701061936EST
10/17/25
1503Z
!FDC 5/2522 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
EL TORO FIVE DEPARTURE...
IMPERIAL TRANSITION,THERMAL TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
ELB VOR R-095 RESTRICTED. 2510171503-2710171502EST
Yes
ALL
ORANGE COUNTY
3160 AIRWAY AVENUE
COSTA MESA, CA 92626
Phone: 949-252-5171
CHARLENE V. REYNOLDS
3160 AIRWAY AVE
COSTA MESA, CA 92626
Phone: 949-252-5171
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
SNA
--
WHEN ATCT CLSD ACTVT MALSR RY 20R & PAPI RYS 02L & 20R - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 02L/20R

5700 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

70,000lbs
200,000lbs
300,000lbs
--
  Runway 02L Runway 20R
True Heading 28°208°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 40' 04"N 33° 40' 54"N
Longitude 117° 52' 26"W 117° 51' 54"W
Elevation 56' 41'
Threshold Crossing Height 75 ft. AGL 68 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 02R/20L

2886 ft. x 75 ft.
ASPH
Good
GRVD
MED
120/F/B/X/T
25,000lbs
60,000lbs
--
--
  Runway 02R Runway 20L
True Heading 28°208°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 40' 26"N 33° 40' 52"N
Longitude 117° 52' 05"W 117° 51' 49"W
Elevation 52' 40'
Threshold Crossing Height -- 26 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 20X

0 ft. x 0 ft.





--
--
--
--
  Runway 20X Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11MAINTAIN AT OR ABOVE 300 FT AGL UNTIL ESTABLISHED ON FINAL .
A110-14FBO GENERAL AVIATION APRONS LIMITED TO MAX GWT OF 100,000 LBS (DUAL GEAR) AND WITH WINGSPANS LESS THAN 100 FT. GENERAL AVIATION AIRCRAFT PROHIBITED FROM USING ANY PORTION OF THE AIR CARRIER COMMERCIAL RAMP.
A110-15NOISE ABATEMENT PROCEDURES IN EFFECT CTC ARPT NOISE OFFICE (949) 252-5185.
A110-16RWY 02L/20R TPA 1000 FT AGL SMALL ACFT; 1500 FT AGL TURBINE ACFT OVER 12500 LBS; RWY 02R/20L TPA 800 FT AGL SMALL SGL ENG ACFT; 1000 FT AGL TWIN ENG ACFT.
A110-18FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-20ACFT LDG RWY 20L, USE CTN FOR JET BLAST FROM ACFT HLDG BTN RWY 20L AND RWY 20R AT TWY L AND CTN WAKE TURB FROM JET ACFT LDG RWY 20R.
A110-21VFR ACFT: TO AVOID OVERFLIGHT OF RWY 20R, RWY 20L ARRS FLY FINAL AT 15 DEG ANGLE TO RWY; RWY 20L DEPS TURN 15 DEGS LEFT AT DEP END OF RWY. TO AVOID OVERFLIGHT OF RWY 02L, RWY 02R DEPS TURN 15 DEGS RIGHT AT DEP END OF RWY.
A110-22CTC GND CTL PRIOR TO PUSHBACK ON TWY A AND TWY B.
A110-3WHEN ATCT CLSD NO LCL TRNG OR TOUCH & GO OPNS.
A110-4BE ALERT TO BIRDS ON AND IN VICINITY OF ARPT.
A110-6TWY C GWT LMTD 60000 LBS.
A14RON MCCLELLAN, MGR, AIRSIDE OPNS 949-252-5247.
A24OVERNIGHT TIE-DOWN FEE.
A30-02R/20LRWY 02R/20L NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. RWY 02R/20L CLSD WHEN ATCT CLSD.
A30-20XRY 20X CREATED TO SUPPORT OJW LDA ASSOCIATED WITH SNA ILS RY 20R.
A39-02L/20RPCR VALUE: 602/F/A/X/T
A81-APTWHEN ATCT CLSD ACTVT MALSR RY 20R & PAPI RYS 02L & 20R - CTAF.
JOHN WAYNE/ORANGE COUNTY (ICAO: KSNA, IATA: SNA) is a public airport located in SANTA ANA, CA, US.
