KSPH
ICAO KSPHLocal SPH
SPRINGHILL
PublicPUB

3 miles E of SPRINGHILL, LA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 59' 01"N 93° 24' 33"W
Elevation
218' MSL
Pattern Alt
1218' MSL
Mag Variation
1°E
Declination
2°E
Fuel
None Listed
FSS
DE RIDDER (DRI)
Sectional
MEMPHIS
ARTCC
FORT WORTH (ZFW)
Data Effective
6/11/26-7/9/26
KAGO (18nm) VFR
7:55 PM CDT
Clear
10sm
81°F
72°F
29.93"Hg
Calm
A01
METAR KAGO 260055Z AUTO 00000KT 10SM CLR 27/22 A2993 RMK A01
+ Add Your Business

KSPH FBOs

Promote Listing
Springhill Airport
UNICOM: 122.8
Phone: (318) 539-4568
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
MIRL RWY 18/36 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.
UNICOM 122.8

Approach

SHREVEPORT APPROACH 123.75

Departure

SHREVEPORT DEPARTURE 123.75

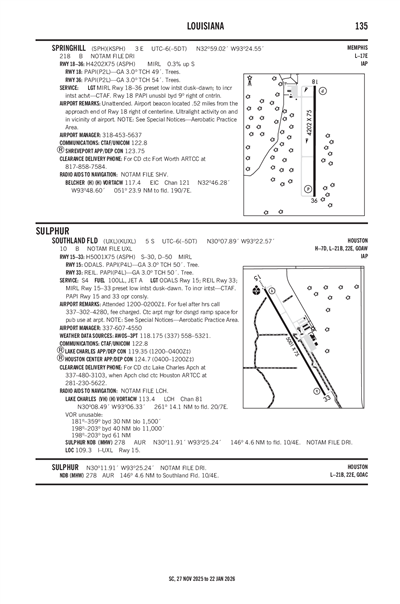

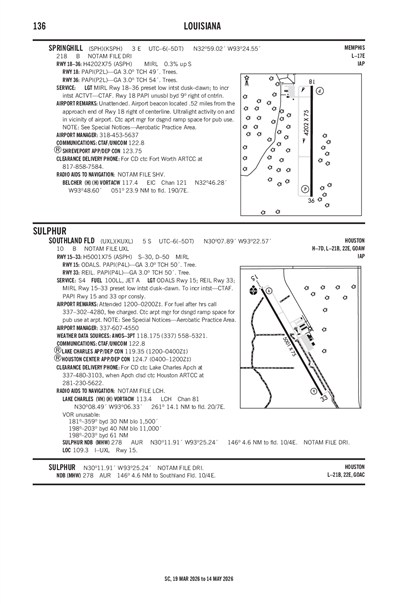

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBAD (32nm)
Thu, 6/25 2:45 PM CDT
Thu, 6/25 3:00 PM CDT - Fri, 6/26 9:00 PM CDT
VFR
3:00 PM CDT - 6:00 AM CDT
Sky Clear
6sm
29.88"Hg
200° 8kts
MVFR
Becoming 6:00 AM CDT - 9:00 AM CDT
Overcast 1,500'
6sm
29.97"Hg
170° 9kts
MVFR
Becoming 9:00 AM CDT - 2:00 PM CDT
Broken 2,000'
6sm
29.97"Hg
180° 14kts
Gusts 20kts
VFR
Becoming 2:00 PM CDT - 8:00 PM CDT
Scattered 4,500'
6sm
29.91"Hg
200° 15kts
Gusts 25kts
VFR
Becoming 8:00 PM CDT - 9:00 PM CDT
Few 5,000'
6sm
29.91"Hg
180° 8kts
TAF KBAD 251945Z 2520/2702 20008KT 9999 SKC QNH2988INS WND 17004KT AFT 2601
   BECMG 2611/2612 17009KT 9999 OVC015 QNH2996INS
   BECMG 2614/2615 18014G20KT 9999 BKN020 QNH2997INS
   BECMG 2619/2620 20015G25KT 9999 SCT045 QNH2991INS
   BECMG 2701/2702 18008KT 9999 FEW050 QNH2991INS TX34/2521Z TN23/2612Z
KSPH
EffectiveExpiresCategoryNOTAM
Domestic
6/25/26
1159Z
9/24/26
0400Z
!DRI 06/492 SPH OBST TOWER LGT (ASR 1021010) 325156.00N0932933.90W (8.3NM SSW SPH) 649.3FT (420.3FT AGL) U/S 2606251159-2609240400
6/24/26
0232Z
7/9/26
0132Z
!DRI 06/462 SPH OBST TOWER LGT (ASR 1240938) 331329.20N0933717.60W (17.9NM NW SPH) 522.3FT (262.1FT AGL) U/S 2606240232-2607090132
6/24/26
0203Z
7/9/26
0103Z
!DRI 06/458 SPH OBST TOWER LGT (ASR 1243346) 325731.40N0933754.40W (11.4NM W SPH) 756.9FT (350.1FT AGL) U/S 2606240203-2607090103
6/22/26
0217Z
7/7/26
0117Z
!DRI 06/411 SPH OBST TOWER LGT (ASR 1240940) 330943.40N0932707.50W (10.9NM N SPH) 576.8FT (307.7FT AGL) U/S 2606220217-2607070117
3/5/26
1322Z
Runway!DRI 03/063 SPH RWY 36 PAPI UNUSABLE 2603051322-2609072111EST
FDC
2/2/26
1318Z
!FDC 6/9434 SPH IAP SPRINGHILL, SPRINGHILL, LA.
RNAV (GPS) RWY 18, ORIG...
CIRCLING CAT C VISIBILITY 1 3/4.
2602021318-2609141318EST
No
UNATNDD
CITY OF SPRINGHILL
MAYOR'S OFFICE, P.O. BOX 398
SPRINGHILL, LA 71075
Phone: 318-539-5681
MOLLY FOWLER
P.O BOX 398
SPRINGHILL, LA 71075
Phone: 318-453-5637
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
DRI
--
MIRL RWY 18/36 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.
N/A
AIRPORT BEACON LOCATED .52 MILES FROM THE APPROACH END RWY 18 RIGHT OF CENTERLINE
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 18/36

4202 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 59' 22"N 32° 58' 41"N
Longitude 93° 24' 33"W 93° 24' 33"W
Elevation 205' 218'
Threshold Crossing Height 49 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-2ULTRALIGHT ACTIVITY ON AND IN VICINITY OF AIRPORT
A110-3CTC APRT MGR FOR DSGND RAMP SPACE FOR PUB USE.
A43-18PAPI UNUSBL BYD 9 DEGS RIGHT OF CNTRLN.
A80AIRPORT BEACON LOCATED .52 MILES FROM THE APPROACH END RWY 18 RIGHT OF CENTERLINE
A81-APTMIRL RWY 18/36 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.
SPRINGHILL (ICAO: KSPH, IATA: SPH) is a public airport located in SPRINGHILL, LA, US.
