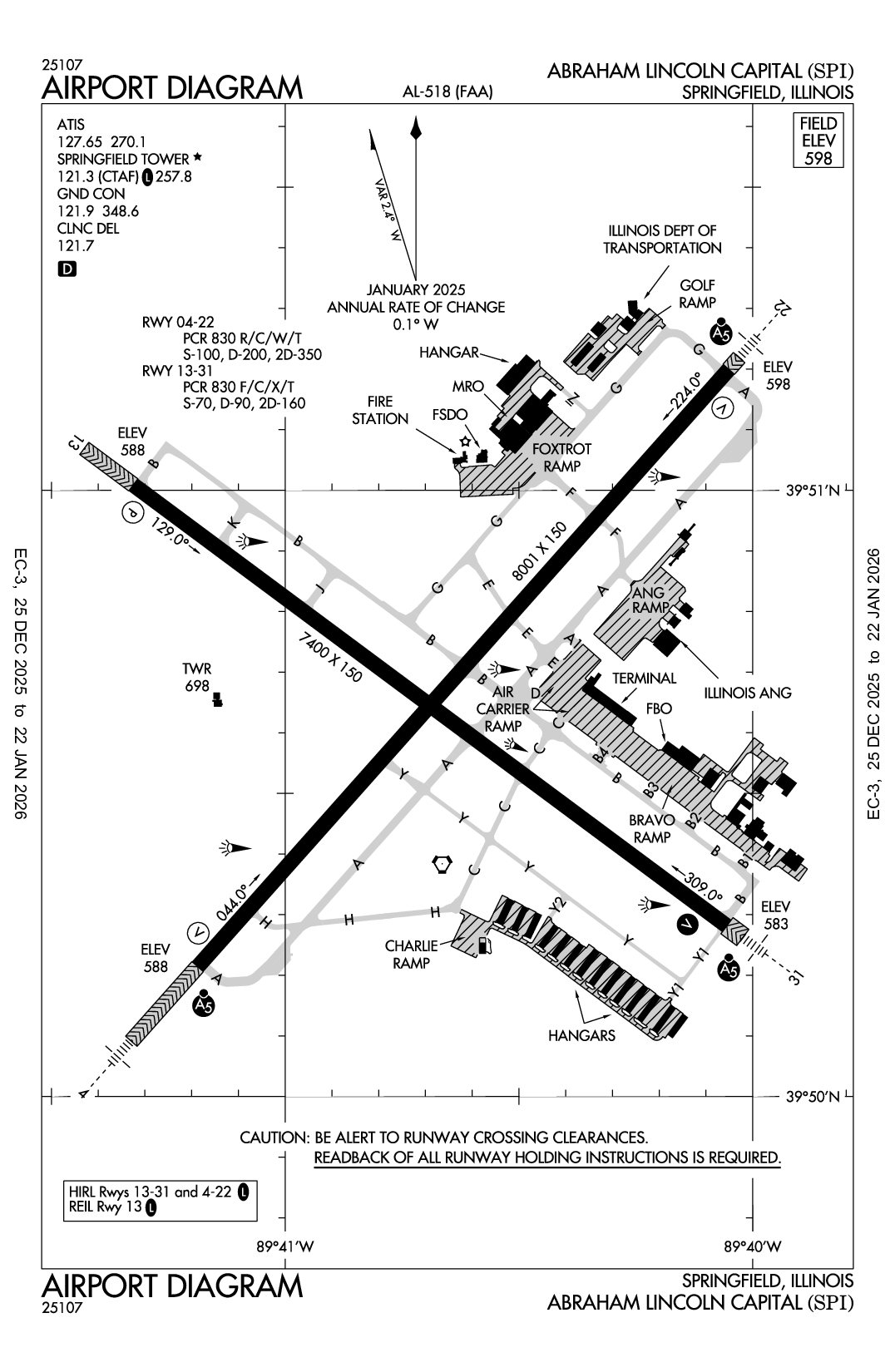

ABRAHAM LINCOLN CAPITAL - Airport Diagram

KSPI

ABRAHAM LINCOLN CAPITAL

PublicPUB

3 miles NW of SPRINGFIELD, IL

View on Map

Status

Operational

Coordinates

39° 50' 41"N 89° 40' 39"W

Elevation

598' MSL

Pattern Alt

1598' MSL

Mag Variation

01W

Fuel

JET A, 100LL, JP-8

FSS

SAINT LOUIS (STL)

Sectional

ST LOUIS

ARTCC

KANSAS CITY (ZKC)

Data Effective

11/27/25-12/25/25

KSPI VFR

11:52 PM CST RAW

Few 10,000'

Viz

10sm

Temp

-1°F

Dew

-9°F

Pres

30.55"Hg

Wind

160° 6kts

RMK

AO2 SLP362 T11831228 11183 21222 411611222 56034 $

METAR KSPI 150552Z AUTO 16006KT 10SM FEW100 M18/M23 A3055 RMK AO2 SLP362 T11831228 11183 21222 411611222 56034 $

Add Your Business

KSPI FBOs

Promote Listing

Stellar Aviation of Springfield

UNICOM: 131.42

Phone: (217) 523-5080

0 Reviews (Read | Sign In To Write)

World Fuel

As of 12/9	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.02
Full Serve	6.98	6.19	6.29

Fuel Notes

Prices include tax

KSPI Aircraft Service & Maintenance

Promote Listing

StandardAero

Phone: (217) 541-3358

Fax: (217) 535-3623

0 Reviews (Read | Sign In To Write)

Promote Listing

IDOT Division of Aeronautics

Phone: (217) 558-0879

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.95 CTAF 121.3

ATIS

127.65

Clearance Delivery

CD/P

121.7

Emergency

EMERG

121.5

Ground

GND/P

121.9

Tower

LCL/P

121.3

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

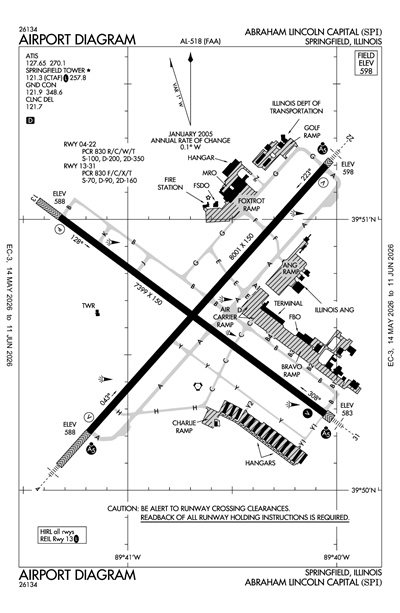

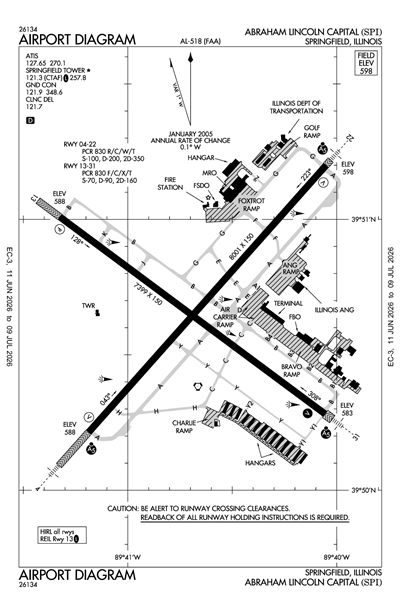

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KSPI

RAW

Reported

Sun, 12/14 11:20 PM CST

Valid

Mon, 12/15 12:00 AM CST - Tue, 12/16 12:00 AM CST

VFR

12:00 AM CST - 6:00 AM CST

Few 12,000'

Viz

6sm

Wind

180° 7kts

VFR

6:00 AM CST - 4:00 PM CST

Few 25,000'

Viz

6sm

Wind

200° 12kts

Gusts 21kts

MVFR

Temporary 7:00 AM CST - 10:00 AM CST

Blowing Snow

No Clouds

Viz

5sm

Wind

Calm

VFR

4:00 PM CST - 12:00 AM CST

Scattered 25,000'

Viz

6sm

Wind

220° 7kts

TAF KSPI 150520Z 1506/1606 18007KT P6SM FEW120
   FM151200 20012G21KT P6SM FEW250
   TEMPO 1513/1516 5SM BLSN
   FM152200 22007KT P6SM SCT250

KSPI

Effective	Expires	Category	NOTAM
Domestic
12/15/25 1630Z	12/15/25 1930Z		!SPI 12/265 SPI NAV ILS RWY 31 GP U/S 2512151630-2512151930
12/14/25 2341Z	12/15/25 2359Z		!SPI 12/351 SPI TWY J, K, Y2, TWY H BTN RWY 04/22 AND TWY A, TWY Y BTN RWY 04/22 AND TWY A CLSD 2512142341-2512152359
12/14/25 2341Z	12/15/25 2341Z		!SPI 12/350 SPI TWY B, B3 FICON PATCHY 1/8IN DRY SN OVER ICE BA POOR OBS AT 2512142341. 2512142341-2512152341
12/14/25 2340Z	12/15/25 2340Z	Runway	!SPI 12/349 SPI RWY 22 FICON 4/4/4 40 PCT COMPACTED SN DEICED LIQUID OBS AT 2512142340. 2512142340-2512152340
12/14/25 2340Z	12/15/25 2340Z	Runway	!SPI 12/348 SPI RWY 31 FICON 5/5/5 30 PCT WET DEICED LIQUID AND DEICED SOLID 12IN SNOWBANKS OBS AT 2512142340. 2512142340-2512152340
12/14/25 2339Z	12/15/25 2339Z		!SPI 12/347 SPI TWY A, A1, B1, B2, B4, C, D, E, F, G, Z, TWY H BTN TWY A AND CHARLIE RAMP, TWY Y BTN TWY A AND TWY Y1 FICON 1/4IN DRY SN OVER ICE BA POOR OBS AT 2512142339. 2512142339-2512152339
12/14/25 2127Z	12/15/25 2127Z		!SPI 12/346 SPI APRON CHARLIE RAMP, FOXTROT RAMP, GOLF RAMP, GOLF RAMP NORTH ACCESS, GOLF RAMP SOUTH ACCESS FICON 1/4IN DRY SN OVER ICE BA POOR OBS AT 2512142126. 2512142127-2512152127
12/14/25 2126Z	12/15/25 2126Z		!SPI 12/345 SPI APRON BRAVO RAMP, AIR CARRIER RAMP FICON 1/2IN DRY SN OVER ICE 4FT SNOWBANKS BA POOR OBS AT 2512142126. 2512142126-2512152126
12/10/25 1728Z	1/13/26 1700Z		!SPI 12/193 SPI OBST TOWER LGT (ASR 1038851) 394742.70N0893856.50W (3.2NM SSE SPI) 856.0FT (265.1FT AGL) U/S 2512101728-2601131700
12/5/25 0329Z			!SPI 12/144 SPI NAV ILS RWY 31 U/S 2512050329-2601082000EST
11/24/25 1106Z	12/24/25 2359Z		!SPI 11/054 SPI OBST TOWER LGT (ASR 1237095) 393802.40N0894849.90W (14.2NM SSW SPI) 966.9FT (344.8FT AGL) U/S 2511241106-2512242359
11/21/25 0001Z	3/20/26 2359Z		!SPI 11/043 SPI OBST TOWER LGT (ASR 1009874) 395216.00N0892452.00W (12.2NM E SPI) 920.9FT (286.1FT AGL) U/S 2511210001-2603202359
11/1/25 1230Z	1/29/26 2300Z		!SPI 10/053 SPI AIRSPACE SEE ZKC 10/457 HIGH SPEED ACFT DLY SR-SS 2511011230-2601292300
10/21/25 1830Z	12/21/25 2359Z		!SPI 10/036 SPI OBST TOWER LGT (ASR 1008934) 394756.80N0892646.10W (11.0NM ESE SPI) 2049.2FT (1449.1FT AGL) U/S 2510211830-2512212359
9/17/25 0819Z			!SPI 09/038 SPI NAV ILS RWY 04 OM U/S 2509170819-2609182111EST
6/30/25 0547Z			!SPI 06/082 SPI NAV ILS RWY 31 OM U/S 2506300547-2606182111EST

ATC Tower

Yes

Attendance

0530-0000

Owner

SPRINGFIELD ARPT AUTH
1200 CAPITAL AIRPORT DR
SPRINGFIELD, IL 62707-8489
Phone: 217-788-1080

Manager

MARK HANNA
CAPITAL AIRPORT
SPRINGFIELD, IL 62707-8419
Phone: 217-788-1080

FSS

SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF

NOTAM

SPI

Light Schedule

Lights

WHEN ATCT CLSD ACTVT HIRL RY 13/31; HIRL RY 04/22; MALSR RYS 04; 22 & 31; VASI RY 31; REIL RY 13 - CTAF. PAPI RY 13 & VASI RYS 04 & 22 OPER CONTINUOUSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

Dimensions

8001 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

100,000lbs

Double Wheel

200,000lbs

Double Tandem

350,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	42°	222°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	39° 50' 13"N	39° 51' 12"N
Longitude	89° 41' 11"W	89° 40' 03"W
Elevation	588'	598'
Threshold Crossing Height	56 ft. AGL	54 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	V4L	V4L
Approach Lights	MALSR	MALSR
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 13/31

Dimensions

7400 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

70,000lbs

Double Wheel

90,000lbs

Double Tandem

160,000lbs

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	127°	307°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	39° 51' 00"N	39° 50' 17"N
Longitude	89° 41' 19"W	89° 40' 03"W
Elevation	588'	583'
Threshold Crossing Height	50 ft. AGL	54 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	V4L
Approach Lights		MALSR
Centerline Lights	No	No
Runway End Identifier Lights	Yes

A110-10	GENERAL AVIATION ACCESS TO & PARKING ON THE ACR RAMP IS PROHIBITED.
A110-14	WX SVC AVBL H24.
A110-16	DURING SNOW REMOVAL OPS EQUIPMENT OPERATORS WILL MONITOR CTAF WHEN THE TWR IS CLSD.
A110-19	DASSP GATEWAY ARPT CALL 217-788-1080.
A110-21	FOR CD IF UNA TO CTC ON FSS FREQ, CTC ST LOUIS APCH AT 314-890-1017.
A110-22	100LL SELF SERVE AVBL 24HRS.
A110-23	(OVERRUN LEN, RWY 22) 150 FT WIDTH.
A110-9	TWY Y1, TWY Y2, AND TWY Y BTN TWY Y1 AND TWY A NOT AVBL FOR AIR CARRIER OPS WITH MORE THAN 9 PAX SEATS.

ABRAHAM LINCOLN CAPITAL (ICAO: KSPI, IATA: SPI) is a public airport located in SPRINGFIELD, IL.
