SPANISH FORK MUNI/WOODHOUSE FLD - Airport Diagram

KSPK

SPANISH FORK MUNI/WOODHOUSE FLD

PublicPUB

2 miles N of SPANISH FORK, UT

View on Map

Status

Operational

Coordinates

40° 08' 42"N 111° 40' 04"W

Elevation

4530' MSL

Pattern Alt

5530' MSL

Mag Variation

11E

Fuel

Jet A, 100LL

FSS

CEDAR CITY (CDC)

Sectional

SALT LAKE CITY

ARTCC

SALT LAKE CITY (ZLC)

Data Effective

4/18/24-5/16/24

KSPK VFR

9:35 AM MDT RAW

Clear

Viz

10sm

Temp

59°F

Dew

43°F

Pres

29.84"Hg

Wind

270° 4kts

RMK

AO2

KSPK 251535Z AUTO 27004KT 10SM CLR 15/06 A2984 RMK AO2

List Your Business

KSPK FBOs, Flight Schools and Ground Support

Promote Listing

Utah Aviation Services

Phone: (801) 798-9888

Other: (801) 380-8238

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 4/24	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	6.26
Full Serve			5.69

KSPK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSPK Hotels

No hotels are listed for this airport.

KSPK Restaurants

No restaurants are listed for this airport.

KSPK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM -- CTAF 122.9

AWOS-3PT

801-804-5801

119.275

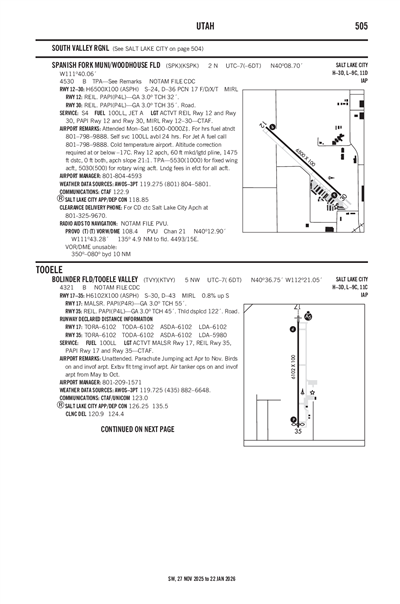

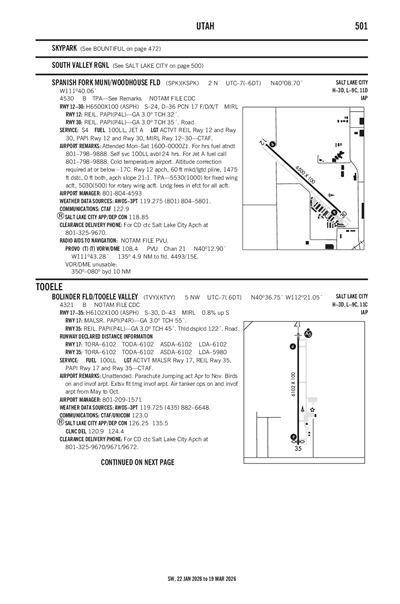

FAA A/FD Pages

FAA A/FD Page

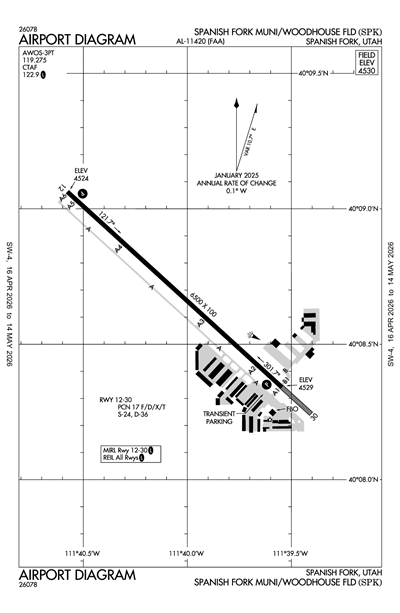

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

SPANISH FORK ONE (OBSTACLE)

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KPVU (5nm)

RAW

Reported

Thu, 4/25 5:29 AM MDT

Valid

Thu, 4/25 6:00 AM MDT - Fri, 4/26 6:00 AM MDT

VFR

6:00 AM MDT - 8:00 AM MDT

Few 10,000'

Viz

6sm

Wind

300° 7kts

VFR

8:00 AM MDT - 12:00 PM MDT

Scattered 10,000'

Viz

6sm

Wind

160° 6kts

VFR

12:00 PM MDT - 5:00 PM MDT

Showers in vicinity

Broken 10,000'

Viz

6sm

Wind

230° 8kts

VFR

5:00 PM MDT - 10:00 PM MDT

Showers in vicinity

Broken 10,000'
Scattered 6,000'

Viz

6sm

Wind

280° 9kts

VFR

10:00 PM MDT - 6:00 AM MDT

Overcast 10,000'
Broken 6,000'

Viz

6sm

Wind

320° 8kts

KPVU 251129Z 2512/2612 30007KT P6SM FEW100
   FM251400 16006KT P6SM SCT100
   FM251800 23008KT P6SM VCSH BKN100
   FM252300 28009KT P6SM VCSH SCT060 BKN100
   FM260400 32008KT P6SM BKN060 OVC100

KSPK

Domestic
4/3/241200Z	!CDC 04/024 SPK AIRSPACE SEE FFU 04/022 UAS DLY 1200-2200 2404031200-2410192200
FDC
1/16/241207Z	!FDC 4/3894 SPK ODP SPANISH FORK MUNI/WOODHOUSE FLD, SPANISH FORK, UT. SPANISH FORK ONE DEPARTURE ... TAKE-OFF MINIMUMS RWY 12: 300-1 WITH A MINIMUM CLIMB OF 455FT PER NM TO 7100. ADD TAKEOFF OBSTACLE NOTE: RWY 12, MULTIPLE CRANES BEGINNING 2425FT FROM DER, 868FT LEFT OF CENTERLINE, UP TO 165FT AGL/ 4743FT MSL (2022-ANM-7339-OE, 2022-ANM-7340-OE, 2022-ANM-7341-OE, 2022-ANM-5009-OE, 2022-ANM-5010-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2401161207-2406251207EST

ATC Tower

Attendance

MON-SAT 0900-1700
FOR AFTR HRS ATTENDANT 801-798-9888.

Owner

SPANISH FORK & SPRINGVILLE
2050 NORTH 300 WEST
SPANISH FORK, UT 84660
Phone: 801-798-5000

Manager

CHRISTIAN DAVIS
2050 NORTH 300 WEST
SPANISH FORK, UT 84660
Phone: 801-804-4593

FSS

CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF

NOTAM

CDC

Light Schedule

Lights

ACTVT REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

# Single Engine

225

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Avionics
Pilot Instruction
Aircraft Rental

Runway 12/30

Dimensions

6500 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

17 /F/D/X/T

Single Wheel

24,000lbs

Double Wheel

36,000lbs

Double Tandem

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	132°	312°
Traffic Pattern
Markings	NPI	NPI
Markings Condition	POOR	POOR
Latitude	40° 09' 04"N	40° 08' 20"N
Longitude	111° 40' 35"W	111° 39' 33"W
Elevation	4,524'	4,529'
Threshold Crossing Height	32 ft. AGL	35 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	DEER & BIRDS ON & INVOF ARPT.
A110-2	NOISE ABATEMENT PROCEDURES IN EFFECT. CALL ARPT MGR 801-798-9888.
A110-3	DEC-FEB EXPECT UP TO 24 HRS AFTER STORM BEFORE RY PLOWING. RESIDUAL SNOW & ICE ON RY AFTER PLOWING. FOR STATUS CALL 801-798-9888/9.
A110-4	FOR CD CTC SALT LAKE CITY APCH AT 801-325-9670.
A110-5	RWY 12/30 RWY MARKINGS FADED.
A110-6	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -21C.
A110-7	RWY 12 APCH, 60 FT MKD/LGTD PLINE, 1475 FT DSTC, 0 FT BOTH, APCH SLOPE 21:1.

SPANISH FORK MUNI/WOODHOUSE FLD (ICAO: KSPK, IATA: SPK) is a public airport located in SPANISH FORK, UT.
