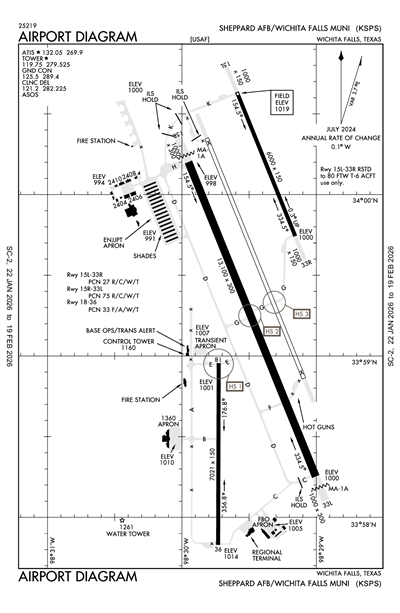

SHEPPARD AFB/WICHITA FALLS MUNI - Airport Diagram

KSPS

ICAO KSPSIATA SPSLocal SPS

SHEPPARD AFB/WICHITA FALLS MUNI

PublicPUB

5 miles N of WICHITA FALLS, TX, US

View on Map

Status

Operational

Coordinates

33° 59' 20"N 98° 29' 31"W

Elevation

1019' MSL

Pattern Alt

2019' MSL

Mag Variation

4°E

Declination

5°E

Fuel

JET A, 100LL

FSS

FORT WORTH (FTW)

Sectional

DALLAS-FT WORTH

ARTCC

FORT WORTH (ZFW)

Data Effective

7/9/26-8/6/26

KSPS VFR

10:52 AM CDT RAW

Clear

Viz

10sm

Temp

93°F

Dew

67°F

Pres

30.01"Hg

Wind

210° 15kts

Gusts 24kts

RMK

AO2 SLP143 T03390194 $

METAR KSPS 261552Z 21015G24KT 10SM CLR 34/19 A3001 RMK AO2 SLP143 T03390194 $

Add Your Business

KSPS FBOs

Promote Listing

Wichita Falls Regional Airport

UNICOM: 122.95

Phone: (940) 855-5460

0 Reviews (Read | Sign In To Write)

World Fuel

As of 7/2	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.20	4.00
Full Serve	5.60	4.49	4.54

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ATIS	132.05
Hours: OPR 1200-0200Z++
ASOS	(940) 208-0073, OBSN AUGMENTED DUR AFLD OPR HR.; ASOS IS FIXED SENSOR LCTD NEAR S END RY 15R-33L; MEASURES CLOUDS UP TO MAX HGT 12,000 FT.

Common

CTAF	119.75
WHEN ATCT CLSD ACTVT MALSR RWY 33L - CTAF.
UNICOM	122.95

Clearance

Clearance Delivery

121.2

Ground

SHEPPARD GROUND	125.5
OPR 1200-0200Z++ MON-FRI; 1800-2300Z++ SUN; CLSD SAT AND HOL, OT USE CTAF.

Tower

SHEPPARD TOWER	119.75
OPR 1200-0200Z++ MON-FRI; 1800-2300Z++ SUN; CLSD SAT AND HOL, OT USE CTAF.

Approach

SHEPPARD APPROACH

118.2

Departure

SHEPPARD DEPARTURE	118.2
SHEPPARD DEPARTURE	120.4

Center

SHEPPARD CENTER	133.5
LOW, APCH/DEP SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 133.5/350.35 (WICHITA FALLS RCAG) WHEN SHEPPARD APCH CLSD.

Flight Service

Flight Service	122.3
(FTW)

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

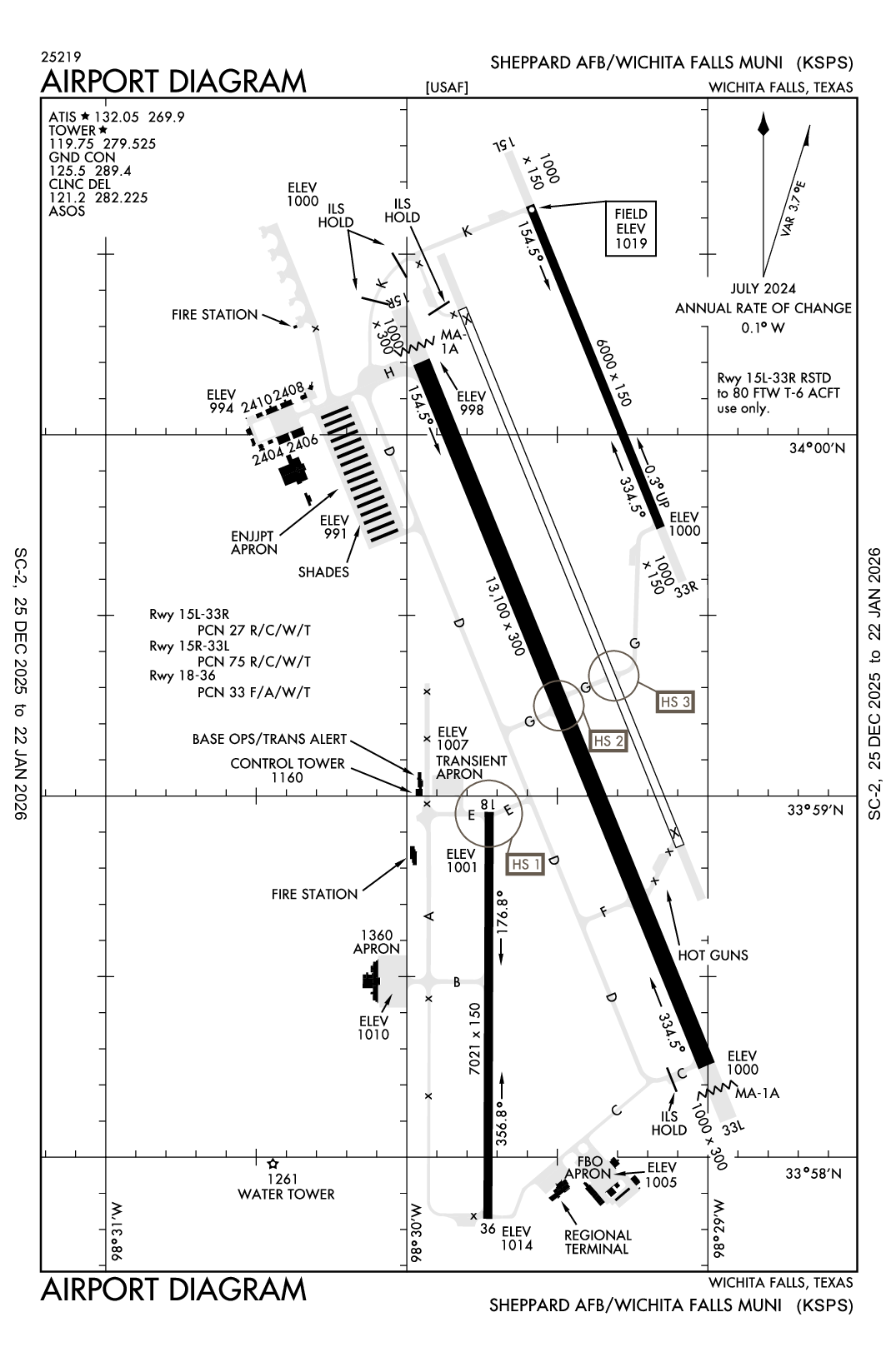

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KSPS

RAW

Reported

Sun, 7/26 6:22 AM CDT

Valid

Sun, 7/26 7:00 AM CDT - Mon, 7/27 7:00 AM CDT

VFR

7:00 AM CDT - 1:00 PM CDT

Few 25,000'

Viz

6sm

Wind

190° 11kts

VFR

1:00 PM CDT - 7:00 PM CDT

Sky Clear

Viz

6sm

Wind

190° 12kts

Gusts 18kts

VFR

7:00 PM CDT - 7:00 AM CDT

Sky Clear

Viz

6sm

Wind

160° 10kts

TAF KSPS 261122Z 2612/2712 19011KT P6SM FEW250
FM261800 19012G18KT P6SM SKC
FM270000 16010KT P6SM SKC

KSPS

Effective	Expires	Category	NOTAM
Domestic
8/1/26 1500Z	8/1/26 1900Z		!SPS 07/065 SPS AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF SPS SFC-3500FT AGL ACFT CS FLC84 2608011500-2608011900
7/28/26 0100Z	7/28/26 0430Z		!SPS 07/064 SPS SVC TWR OPN 2607280100-2607280430
7/27/26 1100Z	7/27/26 1300Z		!SPS 07/063 SPS SVC TWR CLSD MNT CTAF 119.75 2607271100-2607271300
7/27/26 1100Z	8/4/26 1900Z		!SPS 07/042 SPS NAV ILS RWY 33L DME U/S 2607271100-2608041900
7/22/26 2131Z	9/10/26 2359Z	Runway	!SPS 07/058 SPS RWY 15C/33C WIP CONST ADJ 2607222131-2609102359
7/21/26 1743Z	7/30/26 2359Z		!SPS 07/054 SPS NAV DME 112.7, CH74 U/S 2607211743-2607302359
7/6/26 0222Z	11/3/26 0222Z		!SPS 07/011 SPS OBST TOWER LGT (ASR 1062423) 340004.00N0983247.60W (2.8NM WNW SPS) 1230.0FT (190.9FT AGL) U/S 2607060222-2611030222
7/3/26 1720Z	9/3/26 2359Z		!SPS 07/005 SPS OBST TOWER LGT (ASR 1057534) 340228.00N0981456.00W (12.6NM ENE SPS) 1327.1FT (395.0FT AGL) U/S 2607031720-2609032359
7/3/26 1444Z			!SPS 07/004 SPS NAV VORTAC NOT MNT 2607031444-2607312000EST
6/12/26 2337Z	9/12/26 2359Z		!SPS 06/021 SPS NAV ILS RWY 15C U/S 2606122337-2609122359
Military
7/28/26 0100Z	7/28/26 0430Z		M0264/26 NOTAMN Q) ZFW/QGZAH/IV/NBO/A/000/999/3359N09829W005 A) KSPS B) 2607280100 C) 2607280430 E) BASE OPERATIONS OPN
7/27/26 1100Z	7/27/26 1300Z		BASE OPERATIONS CLSD
7/24/26 1258Z	7/27/26 1258Z		V0002/26 NOTAMC V0001/26
7/24/26 0422Z	7/27/26 0422Z		M0263/26 NOTAMC M0262/26 Q) ZFW/QFAXX/IV/NBO/A/000/999/3359N09829W005 A) KSPS B) 2607240422 E) BASE OPS OPN CANCELED
7/24/26 0108Z	7/27/26 0108Z		M0261/26 NOTAMC M0257/26
7/23/26 2247Z	10/11/26 1100Z		MEN AND EQUIPMENT WORKING RWY 15C APPROACH CORRIDOR
7/23/26 0419Z	7/26/26 0419Z		M0259/26 NOTAMC M0258/26
7/13/26 1100Z	10/11/26 1100Z		M0242/26 NOTAMN Q) ZFW/QXXXX/IV/NBO/A/000/999/3359N09829W005 A) KSPS B) 2607131100 C) 2610111100 E) MEN AND EQUIPMENT WORKING RWY 33C APPROACH COORIDOR
7/6/26 1303Z	7/31/26 2359Z	Runway	RWY 33R REIL LGT U/S
6/12/26 2342Z	9/10/26 0100Z		MEN AND EQUIPMENT TRAVERSING NORTH OF RWY 15R APPROACH CORRIDOR
6/12/26 2340Z	9/10/26 0100Z	Runway	M0224/26 NOTAMN Q) ZFW/QXXXX/IV/NBO/A/000/999/3359N09829W005 A) KSPS B) 2606122340 C) 2609100100 E) RWY 15C/33C RESTRICTED LOW APPROACHES AVAILABLE FOR 80 FTW ACFT ONLY

ATC Tower

Yes

Attendance

ALL

Owner

UNITED STATES AIR FORCE.
SHEPPARD AFB
WICHITA FALLS, TX 76311

Manager

JENNY STEVENS
4000 ARMSTRONG DR, STE 8
WICHITA FALLS, TX 76305
Phone: 940-761-4306

FSS

FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF

NOTAM

SPS

Light Schedule

Lights

WHEN ATCT CLSD ACTVT MALSR RWY 33L - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 15C/33C

Dimensions

10003 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

CONC

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

27/F/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15C	Runway 33C
True Heading	158°	338°
Traffic Pattern	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	34° 00' 23"N	33° 58' 51"N
Longitude	98° 29' 50"W	98° 29' 06"W
Elevation	1,003'	989'
Threshold Crossing Height	46 ft. AGL	48 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	ALSF1	ALSF1
Centerline Lights
Runway End Identifier Lights

Runway 15L/33R

Dimensions

6000 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

CONC

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

27/R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15L	Runway 33R
True Heading	158°	338°
Traffic Pattern
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	34° 00' 40"N	33° 59' 45"N
Longitude	98° 29' 36"W	98° 29' 09"W
Elevation	1,019'	1,000'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 15R/33L

Dimensions

13100 ft. x 300 ft.

Surface Type

Surface Cond

CONC

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

75/R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15R	Runway 33L
True Heading	158°	338°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	34° 00' 14"N	33° 58' 13"N
Longitude	98° 29' 58"W	98° 29' 01"W
Elevation	998'	1,000'
Threshold Crossing Height	55 ft. AGL	56 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR	MALSR
Centerline Lights
Runway End Identifier Lights

Runway 18/36

Dimensions

7021 ft. x 150 ft.

Surface Type

Surface Cond

ASPH

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

33/F/A/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	180°	0°
Traffic Pattern	Right	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	33° 58' 57"N	33° 57' 47"N
Longitude	98° 29' 45"W	98° 29' 46"W
Elevation	1,001'	1,014'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights		Yes

A110-10	CAUTION: "MIL ARPT CONDUCTS HI PERFORMANCE JET TRNG IN A HI DENSITY ENVIRONMENT WITHIN 95 NM OF KSPS, 1200-0200Z++ MON-FRI TO FL390, AND WHEN TWR HR EXTN BY NOTAM, OCCASIONALLY SAT AND SUN.
A110-11	(A89) LC CALL TO FSS 855-5574.
A110-12	A-GEAR: MA-1A RWY 15R-33L NOT RAISED, UNLESS 80TH FTW IS FLYING, RQR 30 MIN PN WHEN TWR OPR.
A110-14	MISC: BASE OPS 1200-0200Z++ WKD; 1800-2300Z++ SUN; CLSD SAT AND HOL.
A110-15	DUE TO CLOSE PROXIMITY OF RYS 33L & 33C USE VIGILANCE WITH MONITOR GND TRACK FOR THE HI-TACAN RY 33C APCH.
A110-16	RSTD: SOLO STU N/A.
A110-18	MISC: WX OBSERVATION LTD TO WEST DUE TO RSTD VIEW.
A110-2	TRAN ALERT: OPR 1200-0200Z++ WKD; 1800-2300Z++ SUN, CLSD SAT AND HOL.
A110-22	SERVICE-LGT: RWY 15R-33L PAPI RRP AND ILS RPI NOT COINCIDENTAL.
A110-23	SERVICE-LGT: RWY 15C-33C PAPI GS AND ILS GS NOT COINCIDENTAL.
A110-24	RSTD: ALL TRAN ACFT MUST BE CHOCKED 30 MIN PRIOR TO TRANS ALERT CLOSING; PPR EXPIRES 30 MIN PRIOR TO AFLD CLOSING.ALL TRAN ACFT RQRD TO ARR WITH CREW ORDERS FOR SECURITY FORCES
A110-25	CAUTION: DO NOT CONFUSE PARL TWY WITH RWY 15R-33L.
A110-26	MISC: AETC FTR ACFT EXP REDUCED RY SEPARATION: DAY/VFR, SIMILAR TYPE ACFT 3000 FT, DISSIMILAR TYPE ACFT 6000 FT, NIGHT 6000 FT ALL AETC ACFT. TRAN AETC ACFT NOTIFY TWR ON INITIAL CTC IF REDUCED RY SEPARATION IS NOT DESIRED.
A110-28	MISC: MIL WX ADVSY/WARNING AVBL O/R-METRO.
A110-29	SERVICE - TRAN ALERT: OPR 1130 -0300Z++ WKD; 1800-2300++ SUN; CLSD SAT AND HOL. QUALIFIED WEAPONS/MUNITIONS PERS NOT AVBL TO SAFE FTR TYPE ACFT.
A110-30	JASU: 3(AM32-95) 1(MC-1) 3(AM/32A-86D).
A110-31	FLUID: SP PRESAIR LOX.
A110-32	SERVICE-OIL JOAP RESULTS AVBL 1345-2100Z++ WKD EXC HOL.
A110-35	MISC: CLASS D AIRSPACE EFF 1130-0300Z++ MON-FRI; 1800-2300Z++ SUN; EXC HOL; OT CLASS E.
A110-36	CAUTION: ATC PERS IAW THE COOPERATIVE WX WATCH (CWW) WILL ALERT WX PERS ON ANY UNREPORTED WX COND THAT COULD AFFECT FLT SAFETY.
A110-37	CAUTION: MIL ARPT CONDUCTS HI PER JET TRNG IN A HI DENSITY ENVIRONMENT 1400-0400Z++ MON-FRI AND WHEN TWR HR EXTN BY NOTAM; OCNLY SAT. TRANS MIL ACFT NOT AUZD TO ARR/DEP OUTSIDE OF PUBL HR.
A110-39	MISC: EXPECT NO AF SVC WHILE PRK AT THE RGN ARPT.
A110-4	RSTD: PPR, 24 HR PN RQR, CTC AFLD OPS DSN 736-2180/6474, C940-676-2180/6474.
A110-44	MISC: CTC BASE TAXI DSN 736-1843 C940-676-1843, OR U-DRIVE DSN 736-6813 C940-676-6813 PRIOR TO ARR.
A110-49	SERVICE-FUEL: A++.
A110-51	AFLD OPS FLT/COMMAND POST AT C940-676-2616.
A110-53	FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
A110-54	SERVICE-LGT: RWY 15C SFL OTS UFN.
A110-55	RSTD: RWY 15L/33R FOR 80 FTW T-6 ACFT USE ONLY.
A110-56	SERVICE-LGT: RWY 33C SFL OTS UFN.
A110-57	RSTD: RWY 15C/33C CLSD EXC XNG AT TWY G FOR 80 FTW ACFT. TWY K AND TWY G EAST OF RWY 15R/33L CLSD EXC FOR 80 FTW ACFT. TWY L AND TWY F BTWN RWY 15R/33L AND APCH END RWY 33C CLSD.
A110-58	MISC: FOR INFO ABT THE WICHITA FALLS MUNI ARR PROCS VISIT: WWW.SHEPPARD.AF.MIL/CONTACT/SHARE-THE-AIR.
A110-59	ILS/RADAR: ILS OR LOC/DME - ILS 15C NOT AVBL.
A110-6	DURING PERIODS WHEN CTL TWR IS CLSD EXERCISE CAUTION WHEN TAXIING; THE CIVIL ARPT IS LCTD TO THE S AND THE MIL RAMP IS LCTD TO THE W OF THE RWYS. FLD COND NOTAM (FICON) (RSC/RCR) NOT RPRTD WHEN TWR CLSD.
A110-7	RSTD: TRAN ACFT LTD TO ONE APCH TO A FULL STOP LDG AND MUST TAXI TO PRKG DURG STU TRNG.
A110-8	MIGRATORY BIRD ACTIVITY ON & INVOF ARPT FM OCT-APR.
A14	FBO 940-855-5460.
A30-15C/33C	CLOSED.
A33-15C/33C_SURF	RWY 15C FIRST 2000 FT, LAST 1000 FT CONC, MID ZONE ASPH.
A33-15L/33R_SURF	FIRST & LAST 1000 FT CONC; MID ZONE ASPH.
A49-15R	RAIL OTS UFN.
A81-APT	WHEN ATCT CLSD ACTVT MALSR RWY 33L - CTAF.
E147	TPA: 800 FT AGL LGT ACFT, 800 FT AGL, 1300 FT AGL CONVENTIONAL & JET, RWY 15R/33L 1800 FT AGL OVERHEAD.
E60-15C_MA-1A	BAK 15 (175 FT OVRN).
E60-15R_MA-1A	MA-1A CHAG (145 FT OVRN).
E60-33C_MA-1A	BAK 15 (175 FT OVRN).
E60-33L_MA-1A	MA-1A CHAG (145 FT OVRN).

SHEPPARD AFB/WICHITA FALLS MUNI (ICAO: KSPS, IATA: SPS) is a public airport located in WICHITA FALLS, TX, US.
