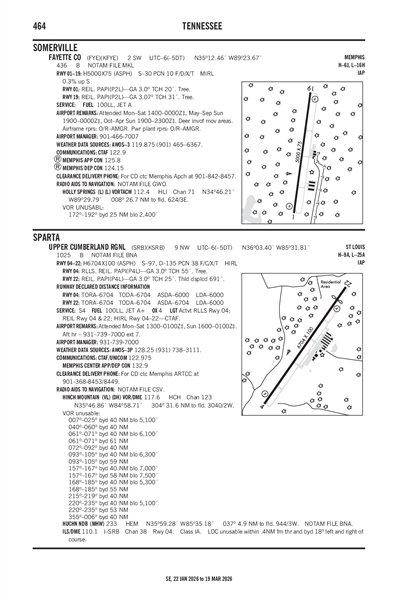

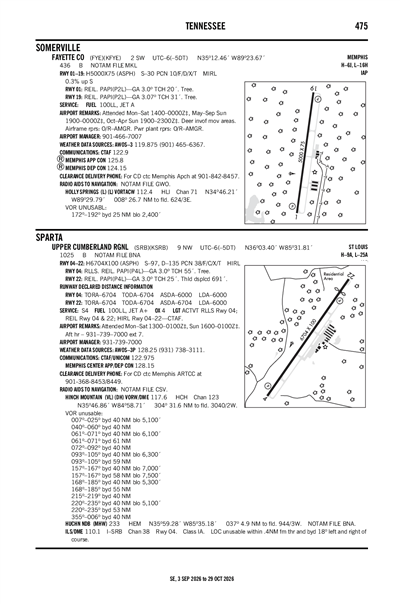

UPPER CUMBERLAND RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSRB
UPPER CUMBERLAND RGNL
PublicPUB

9 miles NW of SPARTA, TN
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 03' 24"N 85° 31' 48"W
1025' MSL
2025' MSL
03W
Jet A+, 100LL
NASHVILLE (BNA)
ST LOUIS
MEMPHIS (ZME)
12/1/22-12/29/22
KSRB VFR
4:55 PM CST
Overcast 7,500'
Scattered 3,600'
Few 3,000'
9sm
57°F
57°F
30.09"Hg
VRB° 5kts
Gusts 11kts
A01 P0005
KSRB 082255Z AUTO VRB05G11KT 9SM FEW030 SCT036 OVC075 14/14 A3009 RMK A01 P0005

KSRB FBOs, Flight Schools and Ground Support

Upper Cumberland Regional Airport
Freq: 122.975
Phone: (931) 739-7000
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/7
100LL Jet A Jet A+ Mogas UL94
Self Serve 5.58
Full Serve 5.88 4.98

KSRB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSRB Hotels

No hotels are listed for this airport.

KSRB Restaurants

No restaurants are listed for this airport.

KSRB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 122.975

AWOS-3

AWOS-3
931-738-3111
128.25

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCSV (23nm)
Thu, 12/8 4:58 PM CST
Thu, 12/8 5:00 PM CST - Fri, 12/9 12:00 PM CST
MVFR
5:00 PM CST - 6:00 PM CST
Rain and Mist
Overcast 4,500'
Scattered 500'
4sm
120° 4kts
LIFR
6:00 PM CST - 12:00 AM CST
Mist and Showers in vicinity
Overcast 400'
4sm
040° 2kts
LIFR
12:00 AM CST - 9:00 AM CST
Fog
Overcast 200'
0.5sm
Calm
LIFR
9:00 AM CST - 12:00 PM CST
Mist
Overcast 300'
2sm
180° 3kts
KCSV 082258Z 0823/0918 12004KT 4SM RA BR SCT005 OVC045
   FM090000 04002KT 4SM BR VCSH OVC004
   FM090600 00000KT 1/2SM FG OVC002
   FM091500 18003KT 2SM BR OVC003
KSRB
Domestic
12/6/221440Z !BNA 12/092 SRB OBST TOWER LGT (ASR 1200853) 360753.40N0852031.00W (10.2NM ENE SRB) 2120.1FT (265.1FT AGL) U/S 2212061440-2303060500
12/5/221728Z !BNA 12/069 SRB OBST TOWER LGT (ASN 2019-ASO-20809-OE) 355536N0852949W (7.9NM SSE SRB) 1167FT (199FT AGL) U/S 2212051728-2301191727
11/28/221636Z !BNA 11/530 SRB NAV ILS RWY 04 NOT MNT 2211281636-2301302000EST
11/28/220630Z !BNA 11/518 SRB OBST TOWER LGT (ASR 1048566) 360834.20N0852800.00W (6.1NM NNE SRB) 1671.9FT (252.0FT AGL) U/S 2211280630-2212130530
11/16/221145Z !BNA 11/329 SRB OBST TOWER LGT (ASR 1216672) 361118.50N0853214.30W (7.9NM N SRB) 1335.0FT (265.1FT AGL) U/S 2211161145-2302140500
11/14/221702Z !BNA 11/294 SRB OBST TOWER LGT (ASR 1048567) 360948.60N0853128.90W (6.4NM NE SRB) 1353.0FT (275.9FT AGL) U/S 2211141702-2212142359
10/31/221625Z !BNA 10/534 SRB NAV HEM NDB U/S 2210311625-2301302000EST
6/15/221223Z !BNA 06/284 SRB NAV ILS RWY 04 LOC U/S 2206151223-2212152111EST
1/19/220501Z !BNA 01/579 SRB AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
10/8/200400Z !BNA 10/121 SRB COM UNICOM FREQ 122.8 CHANGED TO 122.975 2010080400-PERM
10/8/200400Z !BNA 10/120 SRB COM CTAF 122.8 CHANGED TO 122.975 2010080400-PERM
FDC
5/17/221331Z !FDC 2/5202 SRB IAP UPPER CUMBERLAND RGNL, SPARTA, TN.
ILS OR LOC RWY 4, AMDT 1C...
CHART TDZE 1022. S-ILS 04 DA 1245 ALL CATS, S-LOC 04 HAT 398 ALL
CATS AND VISIBILITY CAT D 1 1/8. UTUCE FIX MINIMUMS S-LOC MDA
1380/HAT 358 ALL CATS AND VISIBILITY CAT D 1. DELETE NOTE: *LOC
ONLY. DELETE ASTERISK FROM MINIMUM ALTITUDE AT UTUCE/3.08 DME 1420.
THIS IS ILS OR LOC RWY 4, AMDT 1D. 2205171331-PERM
4/21/221237Z !FDC 2/1006 SRB IAP UPPER CUMBERLAND RGNL, SPARTA, TN.
NDB RWY 4, AMDT 4D...
DISTANCE FAF TO MAP 4.39 NM. TIME/DISTANCE TABLE: 60 KTS, 4:24; 90 KTS, 2:56; 120 KTS, 2:12; 150 KTS, 1:46; 180 KTS, 1:28.
2204211237-2404211237EST
No
MON-SAT 0700-1900
SUN 1000-1900
AFT HR - 931-739-7000 EXT 7.
UPPER CUMBERLAND ARPT AUTH
750 AIRPORT RD
SPARTA, TN 38583
Phone: 931-739-7000
DEAN SELBY
750 AIRPORT RD
SPARTA, TN 38583
Phone: 931-739-7000
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT RLLS RWY 04; REIL RWY 04 & 22; HIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
83
13
5
3
0
0
Major
Major
Low Pressure
None
Air Ambulance
Pilot Instruction

Runway 04/22

6704 ft. x 100 ft.
ASPH
Good

HIGH
38 /F/C/X/T
75,000lbs
110,000lbs
160,000lbs
400,000lbs
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 02' 57"N 36° 03' 51"N
Longitude 85° 32' 12"W 85° 31' 25"W
Elevation 1,014' 1,024'
Threshold Crossing Height 55 ft. AGL 25 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights RLLS
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
UPPER CUMBERLAND RGNL (ICAO: KSRB, IATA: SRB) is a public airport located in SPARTA, TN.
