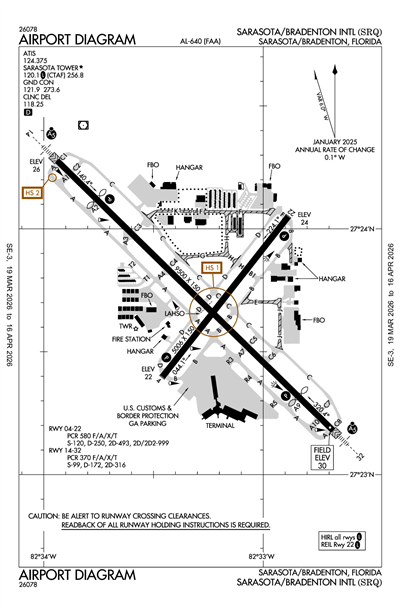

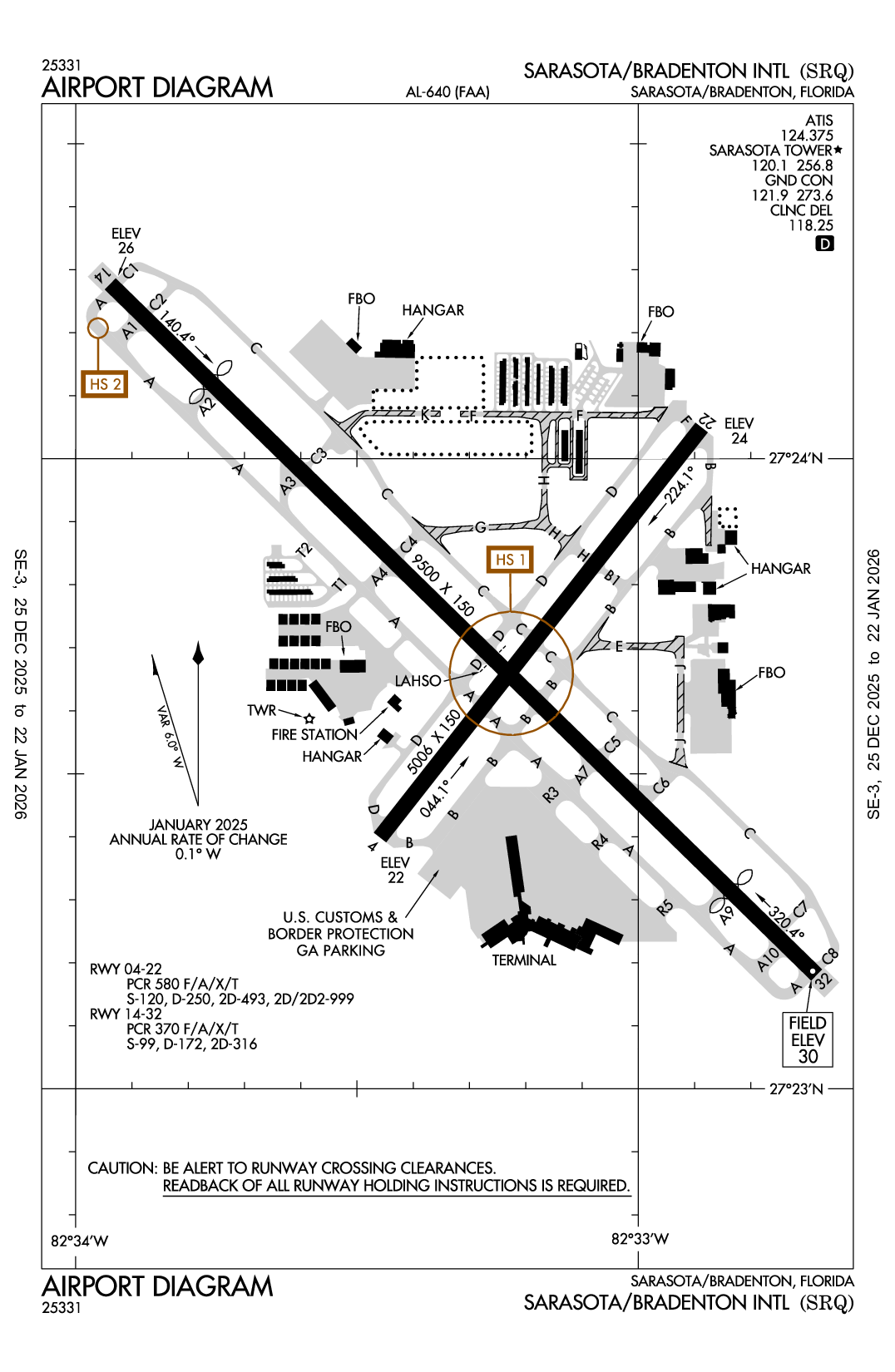

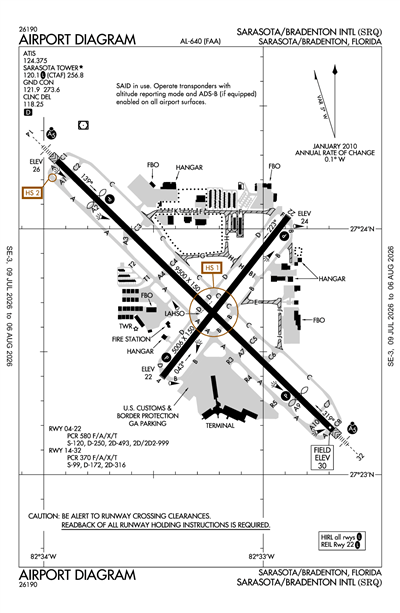

SARASOTA/BRADENTON INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSRQ
SARASOTA/BRADENTON INTL
PublicPUB

3 miles N of SARASOTA/BRADENTON, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
27° 23' 44"N 82° 33' 16"W
30' MSL
1030' MSL
05W
Jet A, Jet A+, 100LL
SAINT PETERSBURG (PIE)
MIAMI
MIAMI (ZMA)
9/8/22-10/6/22
KSRQ VFR
11:53 PM EDT
Clear
10sm
68°F
61°F
30.00"Hg
070° 6kts
AO2 SLP159 T02000161
KSRQ 050353Z AUTO 07006KT 10SM CLR 20/16 A3000 RMK AO2 SLP159 T02000161
List Your Business

KSRQ FBOs, Flight Schools and Ground Support

Promote Listing
Atlantic Aviation North
Freq: 122.95
Phone: (941) 355-8100
Other: (941) 404-8923
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 10/4
 100LL Jet A Jet A+ Mogas UL94
Self Serve 7.42
Full Serve 8.42 8.06
Promote Listing
Atlantic Aviation
Freq: 130.225
Phone: (941) 358-9600
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 10/4
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.71 8.14
Dolphin Aviation
Freq: 122.95
Phone: (941) 355-7715
Other: (941) 355-2902
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 9/12
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.95 7.42
LIFT AIR Cirrus Flight Training
Phone: (941) 351-5340
No Rating Available
0 Reviews (Read | Sign In To Write)

KSRQ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSRQ Hotels

No hotels are listed for this airport.

KSRQ Restaurants

No restaurants are listed for this airport.

KSRQ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.1

ATIS

ATIS
 124.375

ASOS

ASOS
941-355-8482
 124.375

Clearance Delivery

CD/P
 118.25

Ground

GND/P
 121.9

Tower

LCL/P
 120.1

Terminal Area Forecast

KSRQ
Tue, 10/4 7:20 PM EDT
Tue, 10/4 8:00 PM EDT - Wed, 10/5 8:00 PM EDT
VFR
8:00 PM EDT - 11:00 PM EDT
Scattered 25,000'
Scattered 5,000'
> 6sm
020° 8kts
VFR
11:00 PM EDT - 1:00 PM EDT
Scattered 25,000'
> 6sm
050° 5kts
VFR
1:00 PM EDT - 8:00 PM EDT
Few 25,000'
> 6sm
350° 7kts
KSRQ 042320Z 0500/0524 02008KT P6SM SCT050 SCT250
   FM050300 05005KT P6SM SCT250
   FM051700 35007KT P6SM FEW250
KSRQ
Domestic
9/29/222010Z !SRQ 09/129 SRQ OBST TOWER LGT (ASR 1029600) 272114.00N0822305.00W (9.4NM ESE SRQ) 304.5FT (263.5FT AGL) U/S 2209292010-2210312359
9/29/222009Z !SRQ 09/128 SRQ OBST TOWER LGT (ASR 1029599) 272121.00N0822305.00W (9.3NM ESE SRQ) 304.5FT (263.5FT AGL) U/S 2209292009-2210312359
9/29/221210Z !SRQ 09/126 SRQ OBST TOWER LGT (ASR 1019025) 271708.50N0823012.30W (7.0NM SSE SRQ) 334.0FT (308.1FT AGL) U/S 2209291210-2212280400
9/29/221033Z !SRQ 09/125 SRQ OBST TOWER LGT (ASR 1232924) 272857.50N0822211.90W (11.3NM ENE SRQ) 303.8FT (248.0FT AGL) U/S 2209291033-2210140933
9/28/222125Z !SRQ 09/122 SRQ OBST TOWER LGT (ASR 1206413) 272009.40N0822818.80W (5.6NM SE SRQ) 385.8FT (355.0FT AGL) U/S 2209282125-2212270400
9/28/221900Z !SRQ 09/115 SRQ OBST TOWER LGT (ASR 1022225) 272829.00N0823121.90W (5.1NM NNE SRQ) 508.9FT (499.0FT AGL) U/S 2209281900-2212270400
9/27/222319Z !SRQ 09/113 SRQ OBST TOWER LGT (ASN 2018-ASO-17993-OE) 271717N0822131W (12.1NM ESE SRQ) 390FT (350FT AGL) U/S 2209272319-2210122319
9/26/222117Z !SRQ 09/105 SRQ OBST TOWER LGT (ASR 1229652) 272002.80N0822510.90W (8.0NM ESE SRQ) 500.0FT (464.9FT AGL) U/S 2209262117-2211120400
9/26/221626Z !SRQ 09/099 SRQ OBST TOWER LGT (ASR 1211445) 271631.10N0822853.30W (8.0NM SSE SRQ) 314.0FT (279.9FT AGL) U/S 2209261626-2210262359
9/22/221454Z !SRQ 09/090 SRQ OBST TOWER LGT (ASR 1239266) 272831.10N0823146.30W (5.0NM NNE SRQ) 313.3FT (298.6FT AGL) U/S 2209221454-2309222359
9/20/222145Z !SRQ 09/088 SRQ OBST TOWER LGT (ASR 1010642) 272824.10N0821452.30W (17.3NM ENE SRQ) 376.0FT (298.9FT AGL) U/S 2209202145-2212190400
9/11/220333Z !SRQ 09/040 SRQ OBST TOWER LGT (ASR 1038785) 272750.00N0823532.00W (4.5NM NNW SRQ) 351.4FT (326.4FT AGL) U/S 2209110333-2210110333
9/7/221200Z !SRQ 09/016 SRQ APRON AIR CARRIER RAMP E 300FT CLSD 2209071200-2212312000
9/7/221200Z !SRQ 09/015 SRQ TWY R5 CLSD CONST 2209071200-2212312000
9/6/221100Z !SRQ 08/115 SRQ OBST CRANE (ASN 2022-ASO-20572-OE) 272342N0823237W (0.6NM E SRQ) 199FT (182FT AGL) FLAGGED DLY 1100-2300 2209061100-2211062300
8/31/222300Z !SRQ 08/112 SRQ TWY C4 INFO SIGN FOR TWY C NOT STD 2208312300-2212312300
8/5/220142Z !SRQ 08/018 SRQ OBST TOWER LGT (ASR 1029601) 272116.00N0822303.00W (9.4NM ESE SRQ) 304.5FT (263.5FT AGL) U/S 2208050142-2210312359
7/31/221826Z !SRQ 07/123 SRQ OBST TOWER LGT (ASR 1029598) 272119.00N0822307.00W (9.3NM ESE SRQ) 304.5FT (263.5FT AGL) U/S 2207311826-2210312359
1/19/220501Z !SRQ 01/047 SRQ AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
9/29/220929Z !FDC 2/5614 SRQ IAP SARASOTA/BRADENTON INTL, SARASOTA/BRADENTON, FL.
ILS OR LOC RWY 14, AMDT 6D...
ILS OR LOC RWY 32, AMDT 8D...
VOR RWY 14, AMDT 18D...
ALTERNATE MINIMUMS NA,
SRQ VOR/DME UNMONITORED. 2209290929-2210280929EST
9/11/221714Z !FDC 2/5722 SRQ IAP SARASOTA/BRADENTON INTL, SARASOTA/BRADENTON, FL.
VOR RWY 14, AMDT 18D...
CHANGE MISSED APPROCH HOLDING DME NAVAID AT MURDO FROM PIE 40.00 DME TO SRQ 13.58 DME.
2209111714-2309111714EST
9/6/221108Z !FDC 2/1824 SRQ IAP SARASOTA/BRADENTON INTL, SARASOTA/BRADENTON, FL.
ILS OR LOC RWY 14, AMDT 6D...
ILS OR LOC RWY 32, AMDT 8D...
RNAV (GPS) RWY 14, AMDT 3D...
RNAV (GPS) RWY 32, AMDT 3D...
RNAV (GPS) RWY 4, AMDT 2E...
CIRCLING MDA CAT A/B 560/HAA 530, CAT D 660/HAA 630. TEMPORARY CRANE 203FT MSL 1.05 NM NORTHEAST OF RWY 22 (2022-ASO-16731-OE). TEMPORARY CRANES 303FT MSL BEGINNING 3.59 NM FROM RWY 04 (2022-ASO-688, 689-OE). TEMPORARY CRANE 199FT MSL 2558FT SOUTHEAST OF RWY 22 (2022-ASO-20572-OE).
2209061108-2211211108EST
9/6/221108Z !FDC 2/1823 SRQ IAP SARASOTA/BRADENTON INTL, SARASOTA/BRADENTON, FL.
VOR RWY 14, AMDT 18D...
CIRCLING MDA CAT A/B 560/HAA 530, CAT D 660/HAA 630. JELSU FIX MINIMUMS: CIRCLING MDA CAT A/B 560/HAA 530, CAT D 660/HAA 630. TEMPORARY CRANE 203FT MSL 1.05 NM NORTHEAST OF RWY 22 (2022-ASO-16731-OE). TEMPORARY CRANES 303FT MSL BEGINNING 3.59 NM FROM RWY 04 (2022-ASO-688, 689-OE). TEMPORARY CRANE 199FT MSL 2558FT SOUTHEAST OF RWY 22 (2022-ASO-20572-OE).
2209061108-2211211108EST
9/6/221108Z !FDC 2/1822 SRQ IAP SARASOTA/BRADENTON INTL, SARASOTA/BRADENTON, FL.
RNAV (GPS) RWY 22, AMDT 2D...
LNAV/VNAV DA 556/HAT 532 ALL CATS, VISIBILITY ALL CATS 1 1/2. LNAV MDA 520/HAT 496 ALL CATS. CIRCLING MDA CAT A/B 560/HAA 530, CAT D 660/HAA 630. TEMPORARY CRANE 203FT MSL 1.05 NM NORTHEAST OF RWY 22 (2022-ASO-16731-OE). TEMPORARY CRANES 303FT MSL BEGINNING 3.59 NM FROM RWY 04 (2022-ASO-688, 689-OE). TEMPORARY CRANE 199FT MSL 2558FT SOUTHEAST OF RWY 22 (2022-ASO-20572-OE).
2209061108-2211211108EST
4/26/221358Z !FDC 2/3544 SRQ SID SARASOTA/BRADENTON INTL, SARASOTA/BRADENTON, FL.
SRKUS FOUR DEPARTURE (RNAV)...
DEPARTURE ROUTE DESCRIPTION: TAKEOFF RWY 14: CLIMB HEADING 139 TO 540, CONTINUE CLIMB ON HEADING 139 OR AS ASSIGNED BY ATC FOR VECTORS TO KIZIZ, THEN ON TRACK 313 TO SRKUS, THENCE...
ALL OTHER DATA REMAINS AS PUBLISHED. 2204261358-2404261358EST
Yes
ALL
SARASOTA MANATEE ARPT AUTHORITY
6000 AIRPORT CIRCLE
SARASOTA, FL 34243-2105
Phone: (941) 359-2770
FREDERICK J. PICCOLO
6000 AIRPORT CIRCLE
SARASOTA, FL 34243-2105
Phone: 941-359-5200
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
SRQ
--
WHEN ATCT CLSD ACTVT MALSR RWY 14 & 32; REIL RWY 22; PAPI RWY 04, 22, 14 & 32; HIRL RWY 04/22 & 14/32 - CTAF.
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
224
30
67
11
0
1
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

5006 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
53 /F/A/W/T
120,000lbs
219,000lbs
404,000lbs
--
  Runway 04 Runway 22
True Heading 38°218°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 27° 23' 24"N 27° 24' 03"N
Longitude 82° 33' 28"W 82° 32' 53"W
Elevation 22' 24'
Threshold Crossing Height 46 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

9500 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
47 /F/A/X/T
118,000lbs
196,000lbs
358,000lbs
--
  Runway 14 Runway 32
True Heading 134°314°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 27° 24' 17"N 27° 23' 11"N
Longitude 82° 33' 56"W 82° 32' 41"W
Elevation 26' 30'
Threshold Crossing Height 52 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights
A110-1TWY F LTD TO 70000 LBS GWT.
A110-10FLD CONDS UNMON 0100-0530.
A110-12NO INTL FLT DVRSNS ACPTD UNLESS EMERG.
A110-13FOR CD IF UNA TO CTC ON FSS FREQ, CTC TAMPA APCH AT 813-878-2528.
A110-14ACFT RUN-UPS PROHIBITED AT TRML GATES.
A110-15US CUST GA ACFT AT WEST END OF TRML RAMP.
A110-2STRICT NOISE ABATEMENT PROC IN EFCT FOR DEP JET ACFT.
A110-3BIRDS ON & INVOF ARPT.
A110-5MISC: CLASS C ASP EFF 700-0100 ++; OT CLASS G. CLASS E 700 FT AGL & ABV.
A110-6TRML RAMP IS UNCTLD. DO NOT CALL FOR PUSH/POWER BACK. ADZ GC WHEN READY TO TAXI.
A110-7WHEN TWR CLSD HOLD AT ILS HOLD PSN SIGNS ABEAM RWY 14 & RWY 32 THR DURG ALL WX CONDS. APCH TO RWY 14 & RWY 32 CSDRD CLEAR WHEN ACFT ARE BYD RWY 14 & RWY 32 THR BASE UPON LDG DRCTN.
A110-8DIVD ACR ACFT ADZD TO USE TRML RAMP.
A110-9PPR FOR HIGH SPEED TAXI TEST - ARPT OPS 941-359-2770 EXT 4300.
SARASOTA/BRADENTON INTL (ICAO: KSRQ, IATA: SRQ) is a public airport located in SARASOTA/BRADENTON, FL.
