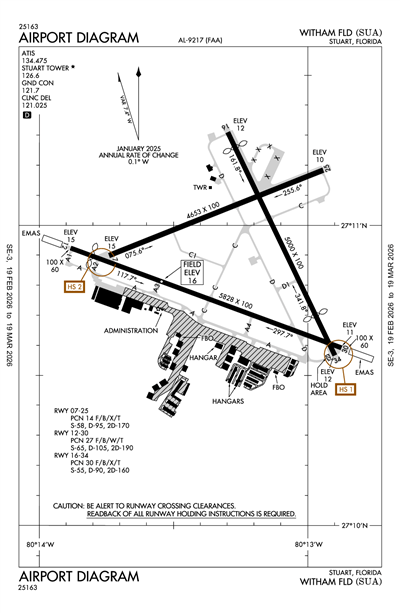

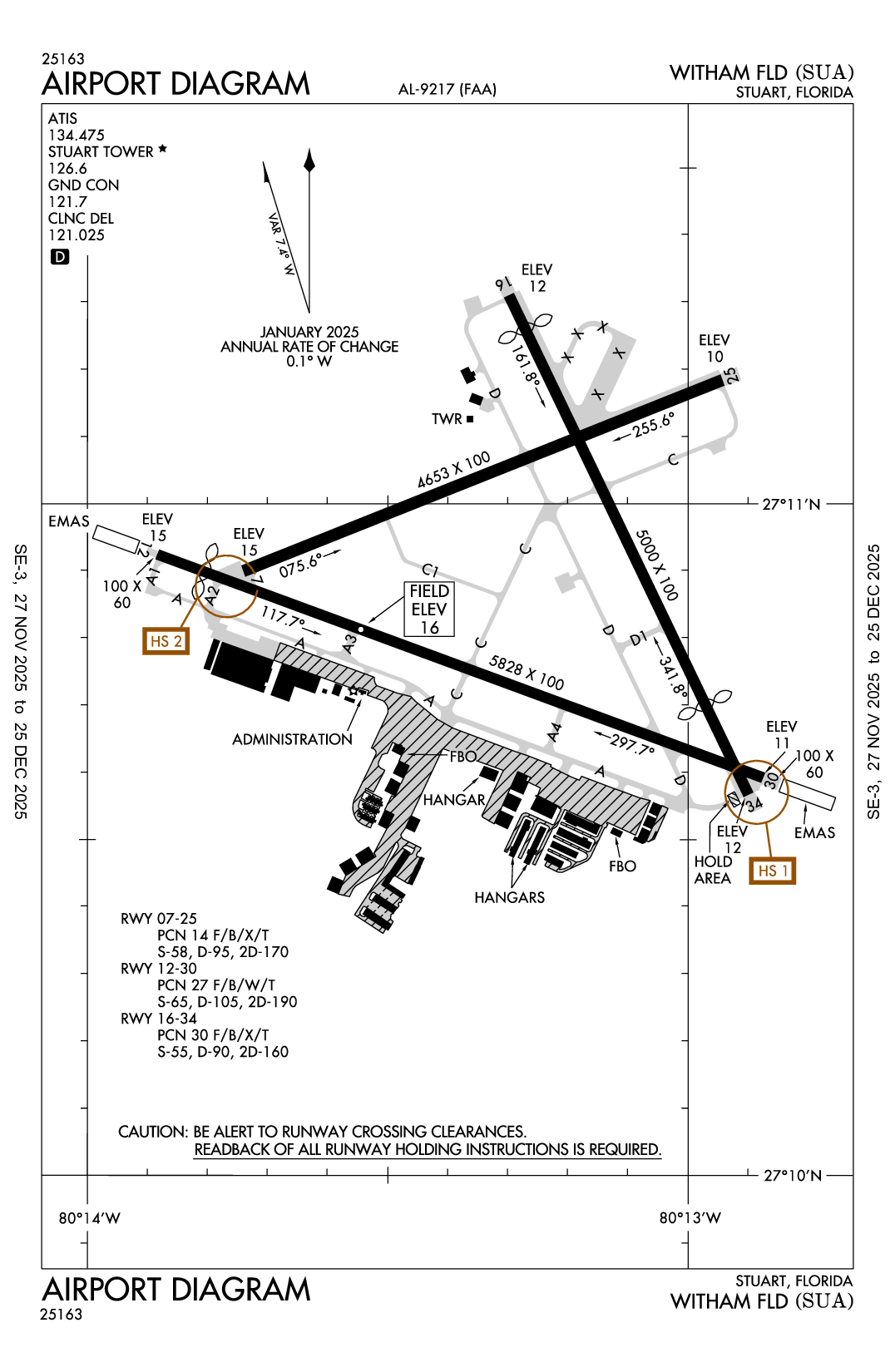

WITHAM FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSUA
ICAO KSUAIATA SUALocal SUA
WITHAM FLD
PublicPUB

1 miles SE of STUART, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 10' 54"N 80° 13' 17"W
Elevation
16' MSL
Pattern Alt
1016' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A, 100LL
FSS
MIAMI (MIA)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
10/29/26-11/26/26
KSUA VFR
8:48 AM EST
Broken 4,800'
Few 1,200'
7sm
72°F
66°F
29.80"Hg
310° 4kts
METAR KSUA 131348Z 31004KT 7SM FEW012 BKN048 22/19 A2980
+ Add Your Business

KSUA FBOs

Promote Listing
APP Jet Center
UNICOM: 130.85
Phone: (772) 781-4720
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 11/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.99 8.99 9.14
Fuel Notes
Prices include tax
No premixed fuel, no self service fuel.
Fuel Hours
0600 - 2200
Promote Listing
Atlantic Aviation
UNICOM: 131.675
Phone: (772) 288-6700
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 11/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.49 10.27
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 134.475
AWOS-3 134.475
(772) 692-7399

Common

CTAF 126.6
AFTER 2200 ACTVT REIL RWY 12 & 30; MIRL RWY 07/25 & 12/30- CTAF.

Clearance

Clearance Delivery 121.025

Ground

STUART GROUND 121.7
0700-2200

Tower

STUART TOWER 126.6
0700-2200

Arrival

TTYLR STAR 125.2
VUUDU STAR 127.35

Approach

PALM BEACH APPROACH 132.8
SOUTH

Departure

BRNGR DP 123.625
PALM BEACH DEPARTURE 132.8
SOUTH
SNDLR DP 123.625

Emergency

Emergency 121.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KSUA
Fri, 11/13 6:35 AM EST
Fri, 11/13 7:00 AM EST - Sat, 11/14 7:00 AM EST
VFR
7:00 AM EST - 10:00 AM EST
Broken 25,000'
Scattered 8,000'
Scattered 2,000'
6sm
320° 6kts
VFR
10:00 AM EST - 7:00 AM EST
Broken 25,000'
Scattered 12,000'
Scattered 3,500'
6sm
310° 8kts
TAF KSUA 131135Z 1312/1412 32006KT P6SM SCT020 SCT080 BKN250
   FM131500 31008KT P6SM SCT035 SCT120 BKN250 AMD NOT SKED
KSUA
EffectiveExpiresCategoryNOTAM
Domestic
11/15/26
1600Z
11/15/26
2230Z
!MIA 11/160 SUA AD AP CLSD EXC AIRSHOW ACFT 2611151600-2611152230
11/14/26
1600Z
11/14/26
2230Z
!MIA 11/159 SUA AD AP CLSD EXC AIRSHOW ACFT 2611141600-2611142230
11/13/26
2359Z
11/14/26
0200Z
!MIA 11/192 SUA AIRSPACE NUMEROUS UAS WI AN AREA DEFINED AS .1NM RADIUS OF 271053N0801320W (SUA) SFC-400FT AGL 2611132359-2611140200
11/13/26
1600Z
11/14/26
0100Z
!MIA 11/158 SUA AD AP CLSD EXC AIRSHOW ACFT 2611131600-2611140100
11/13/26
1600Z
11/15/26
2300Z
!MIA 11/155 SUA AIRSPACE SEE FDC 6/6283 ZMA 91.145 AIRSHOW 2611131600-2611152300
11/7/26
0100Z
11/18/26
2200Z
Runway!MIA 11/100 SUA RWY 07/25 CLSD 2611070100-2611182200
11/7/26
0100Z
11/18/26
2200Z
Runway!MIA 11/099 SUA RWY 16/34 CLSD 2611070100-2611182200
11/4/26
2229Z
11/28/26
0500Z
!MIA 11/110 SUA TWY A WIP SFC PAVING ADJ SOUTH SHOULDER BETWEEN TWY A2 AND 750FT SOUTHEAST OF TWY A2 LGTD AND BARRICADED 2611042229-2611280500
11/3/26
1325Z
2/1/27
1325Z
!MIA 11/061 SUA OBST TOWER LGT (ASR 1057355) 271235.80N0802005.90W (6.3NM WNW SUA) 224.1FT (203.1FT AGL) U/S 2611031325-2702011325
10/31/26
1355Z
11/30/26
2359Z
Runway!MIA 10/506 SUA RWY 12 RWY END ID LGT U/S 2610311355-2611302359
10/31/26
1353Z
11/30/26
2359Z
!MIA 10/505 SUA SVC PCL ALL U/S 2610311353-2611302359
10/10/26
0635Z
2/7/27
0635Z
!MIA 10/142 SUA OBST TOWER LGT (ASR 1018573) 270132.00N0801041.90W (9.5NM SSE SUA) 1038.1FT (1022.0FT AGL) U/S 2610100635-2702070635
10/9/26
1132Z
1/7/27
0400Z
!MIA 10/123 SUA OBST TOWER LGT (ASR 1030234) 270151.40N0801508.50W (9.2NM S SUA) 540.0FT (521.0FT AGL) U/S 2610091132-2701070400
8/19/26
1118Z
11/18/26
0400Z
!MIA 08/280 SUA OBST TOWER LGT (ASR 1058005) 271639.40N0802131.30W (9.2NM NW SUA) 232.0FT (211.0FT AGL) U/S 2608191118-2611180400
Yes
0600-2200
MARTIN COUNTY
2401 SE MONTEREY RD
STUART, FL 34996
Phone: 772-221-2374
ANDREW MCBEAN
2011 SOUTHEAST AIRPORT ROAD
STUART, FL 34996
Phone: 772-221-1458
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
AFTER 2200 ACTVT REIL RWY 12 & 30; MIRL RWY 07/25 & 12/30- CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

4653 ft. x 100 ft.
ASPH
Fair
GRVD
MED
14/F/B/X/T
58,000lbs
95,000lbs
170,000lbs
--
  Runway 07 Runway 25
True Heading 68°248°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 27° 10' 54"N 27° 11' 11"N
Longitude 80° 13' 44"W 80° 12' 57"W
Elevation 15' 10'
Threshold Crossing Height 42 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5828 ft. x 100 ft.
ASPH
Good
GRVD
MED
27/F/B/W/T
65,000lbs
105,000lbs
190,000lbs
--
  Runway 12 Runway 30
True Heading 110°290°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 27° 10' 56"N 27° 10' 36"N
Longitude 80° 13' 53"W 80° 12' 53"W
Elevation 15' 11'
Threshold Crossing Height 35 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16/34

5000 ft. x 100 ft.
ASPH
Good
GRVD

30/F/B/X/T
55,000lbs
90,000lbs
160,000lbs
--
  Runway 16 Runway 34
True Heading 154°334°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 27° 11' 19"N 27° 10' 34"N
Longitude 80° 13' 18"W 80° 12' 54"W
Elevation 12' 12'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10ACFT WITH WING SPANS EXCEEDING 79 FT ARE PROHIBITED FROM OPERATING ON TWY 'A' BETWEEN TWY 'C' AND APCH END RY 12 WHEN ACFT WITH WING SPAN EXCEEDING 79 FT IS ON APCH TO, LNDG, OR TAKING OFF RY 12/30.
A110-11BIRDS ON & INVOF ARPT.
A110-12PAPI RESTRICTED TO 7.5 NM WEST OF RWY 25 DUE TO 1548' MSL TOWERS WITHIN 10 DEG OF EXT CNTLN.
A110-13WHEN ATCT CLSD, FOR CD CTC PALM BEACH APCH AT 561-684-9047.
A110-5NOISE SENSITIVE AREAS ALL QUADRANTS. NOISE ABATEMENT PROCEDURES IN EFFECT CALL AMGR 772-221-2374.
A110-6TOUCH & GO OPNS PERMITTED MON-SAT (EXCP NEW YEARS, CHRISTMAS & THANKSGIVING) 0900 UNTIL 2 HRS PAST SS AND ARE LIMITED TO 3 OPNS PER PILOT PER DAY.
A110-7STOP & GO OPNS AND INTXN TKOFS STRONGLY DISCOURAGED AT ALL TIMES.
A110-8STAGE 1 & 2 JET OPNS STRONGLY DISCOURAGED 2300-0800.
A110-9PPR FOR ACFT EXCEEDING RY WT CPTY.
A30-12/30ARRESTING GEAR/SYSTEM: ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 502 FT IN LENGTH BY 109 FT IN WIDTH AT THE DEPARTURE END OF RWY 12. ARRESTING GEAR/SYSTEM: ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 413 FT IN LENGTH BY 109 FT IN WIDTH AT THE DEPARTURE END OF RWY 30.
A57-12RWY 12 APCH SLP 34:1 TO DSPLCD THLD.
A57-16RWY 16 APCH SLP 30:1 TO DSPLCD THLD.
A57-30RWY 30 APCH SLP 34:1 TO AER.
A57-34RWY 34 APCH RATIO 35:1 TO DSPLCD THLD.
A58-34RWY 34 HAS 22 FT TREES AND 8 FT FENCE 200 FT FROM THE RWY END AND 150 FT LEFT.
A81-APTAFTER 2200 ACTVT REIL RWY 12 & 30; MIRL RWY 07/25 & 12/30- CTAF.
E111EXISTED PRIOR TO 1959.
WITHAM FLD (ICAO: KSUA, IATA: SUA) is a public airport located in STUART, FL, US.
