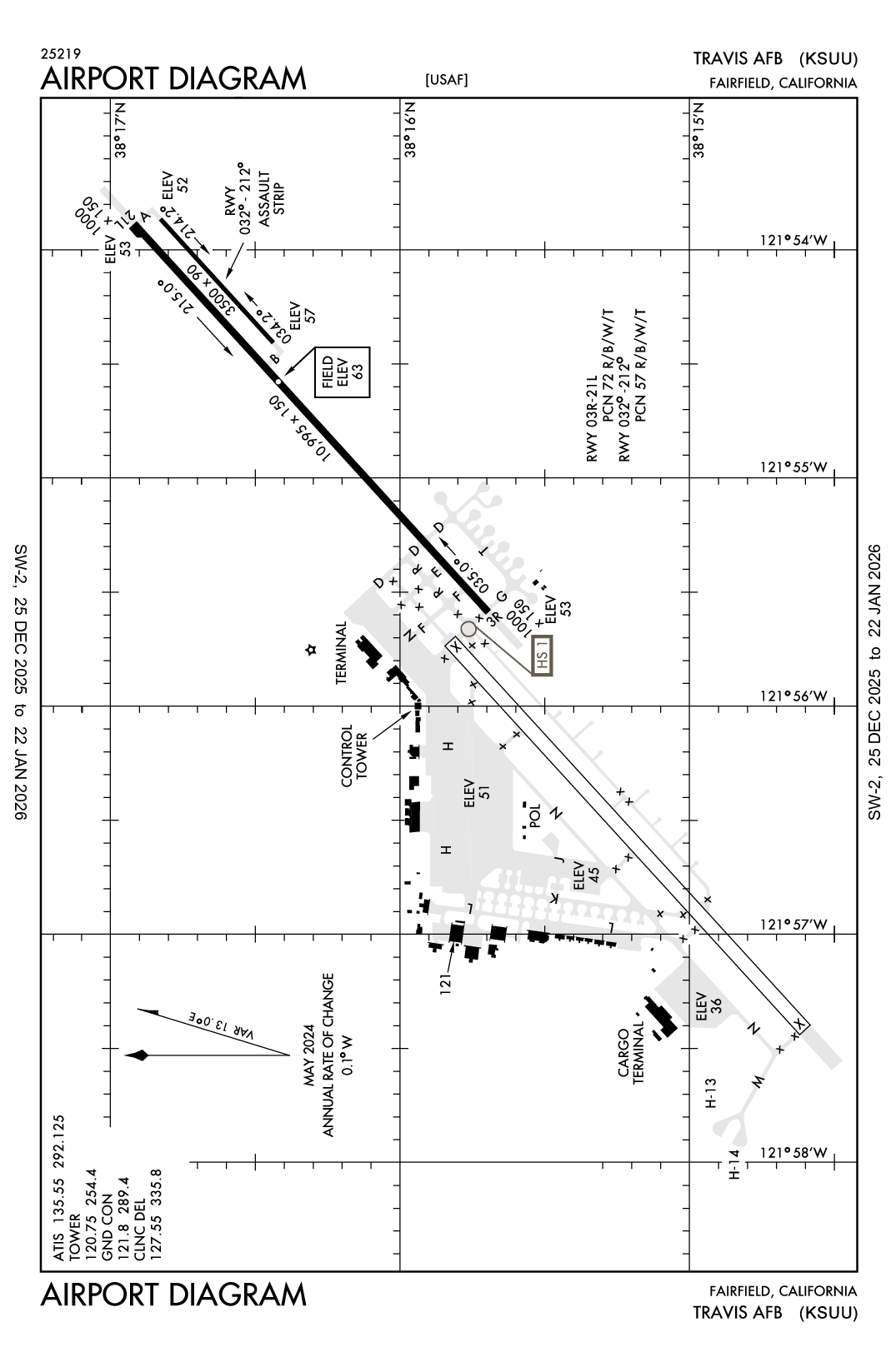

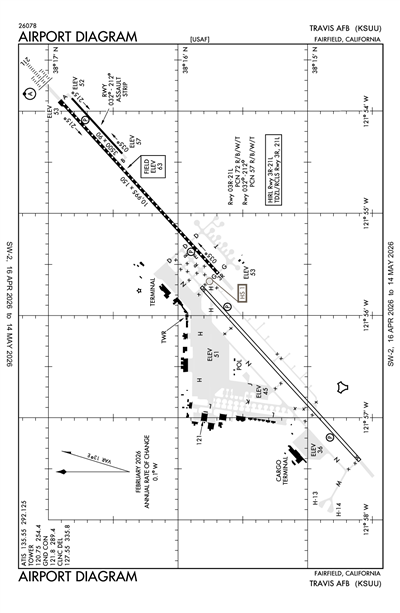

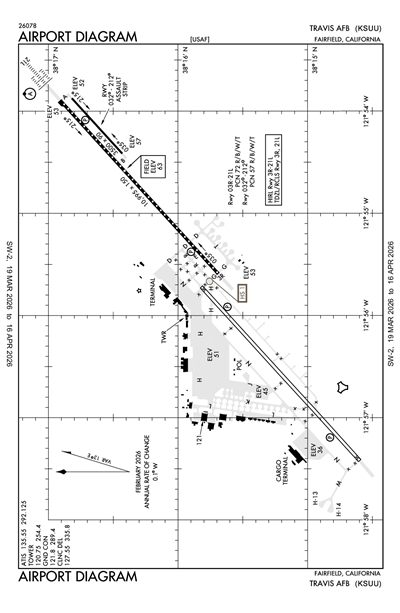

TRAVIS AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSUU
ICAO KSUUIATA SUULocal SUU
TRAVIS AFB
PrivatePVT

3 miles E of FAIRFIELD, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 15' 52"N 121° 55' 27"W
Elevation
63' MSL
Pattern Alt
1063' MSL
Mag Variation
13°E
Declination
13°E
Fuel
JET A+, CILI
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
4/16/26-5/14/26
KSUU VFR
8:55 PM PDT
Overcast 3,800'
10sm
55°F
46°F
29.79"Hg
240° 13kts
AO2 SLP094 T01280075 $
METAR KSUU 260355Z AUTO 24013KT 10SM OVC038 13/08 A2979 RMK AO2 SLP094 T01280075 $
+ Add Your Business

KSUU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 135.55

Clearance

Clearance Delivery 127.55

Ground

TRAVIS GROUND 121.8

Tower

TRAVIS TOWER 120.75

Arrival

BMBER STAR 119.9
SOUTH
BMBER STAR 124.8
BMBER STAR 126.6
NORTH
PALISADES STAR 123.7

Approach

TRAVIS APPROACH 119.9
SOUTH
TRAVIS APPROACH 126.6
NORTH
TRAVIS APPROACH 128.4
Secondary
TRAVIS APPROACH 139.9
Secondary

Departure

TRAVIS DEPARTURE 119.9
TRAVIS DEPARTURE 126.6
Secondary

Emergency

Emergency 121.5

Military

COMD POST 141.9
COMD POST VHF FREQ UNSVC.

Terminal Area Forecast

KSUU
Sat, 4/25 8:00 PM PDT
Sat, 4/25 8:00 PM PDT - Mon, 4/27 2:00 AM PDT
VFR
8:00 PM PDT - 2:00 AM PDT
Overcast 4,000'
Scattered 2,000'
6sm
29.79"Hg
230° 10kts
Gusts 15kts
MVFR
Becoming 2:00 AM PDT - 9:00 AM PDT
Broken 1,000'
Scattered 800'
6sm
29.79"Hg
210° 9kts
IFR
Temporary 3:00 AM PDT - 8:00 AM PDT
Mist
Broken 700'
4.97sm
Calm
VFR
Becoming 9:00 AM PDT - 11:00 PM PDT
Broken 18,000'
Scattered 3,000'
Few 2,000'
6sm
29.85"Hg
230° 10kts
Gusts 20kts
MVFR
Becoming 11:00 PM PDT - 2:00 AM PDT
Mist
Broken 5,000'
Scattered 1,500'
4.97sm
29.97"Hg
230° 10kts
TAF KSUU 260300Z 2603/2709 23010G15KT 9999 SCT020 OVC040 QNH2978INS
   BECMG 2609/2610 21009KT 9999 SCT008 BKN010 QNH2979INS
   TEMPO 2610/2615 8000 BR BKN007
   BECMG 2616/2617 23010G20KT 9999 FEW020 SCT030 BKN180 QNH2986INS
   BECMG 2706/2707 23010KT 8000 BR SCT015 BKN050 QNH2996INS TX18/2621Z TN11/2607Z
KSUU
EffectiveExpiresCategoryNOTAM
Military
4/27/26
1500Z
4/27/26
1700Z
AerodromeAERODROME OBO. FOD WALK IN PROGRESS. NO ENGINE STARTS, ENGINE RUNS, OR TAXIING IN AREAS AFFECTED BY THE AIR SHOW VENUE. AREAS INCLUDE 200,300,400 RAMPS, AND SPOTS 510, 511, 512, 601, 602, AND 603.
4/24/26
2144Z
4/27/26
2144Z
M0695/26 NOTAMC M0685/26
4/24/26
2143Z
6/30/26
1800Z
AerodromeAERODROME TRAVIS CRASH FIRE RESPONSE CURRENT ARFF AGENT QUANTITY IS 15,000 GALLONS, AND CURRENT PERSONNEL AVAILABILITY IS 23. ARFF COND FOR TRAVIS AFB IS OPTIMUM LEVEL OF SERVICE FOR NFPA, ICAO, AND USAF CATEGORY 7-9 AND REDUCED LEVEL OF SERVICE FOR NFPA, ICAO, AND USAF CATEGORY 10
4/24/26
2139Z
4/27/26
2139Z
M0693/26 NOTAMC M0242/26
4/24/26
2137Z
6/30/26
1800Z
DUE TO FOD CONCERNS: B-747 ACFT WILL TAXI WITH OUTBOARD ENGINES ON IDLE POWER WHEN ENTERING AND EXITING TWY H
4/24/26
2136Z
4/27/26
2136Z
M0691/26 NOTAMC M0199/26
4/24/26
2132Z
6/30/26
1800Z
200 RAMP SPOTS 251 AND 252 ARE NOT AUTHORIZED FOR ENGINE RUNNING OFFLOADS (ERO) AND ENGINE RUNNING CREW CHANGES (ERCC).
4/23/26
2343Z
4/28/26
0300Z
TaxiwayTWY C HAS 30FT WINGTIP CLEARANCE AVAILABLE FOR C5M TYPE AIRCRAFT DUE TO AIRSHOW CORNER MARKER
4/23/26
1500Z
4/27/26
0100Z
AerodromeAERODROME OBO. AIRFIELD RESTRICTED TO AIR SHOW ACTIVITIES ONLY, 1500Z-0100Z (0800L-1800L) DAILY. OUTSIDE OF THESE HOURS, ONLY TACC TASKED MISSIONS AUTHORIZED. SEE KZOA TFR NOTAM FOR AIRSPACE RESTRICTIONS.
4/23/26
0546Z
7/7/26
2359Z
RunwayRWY 03R/21L TWY B DIRECTIONAL SIGNS UNSERVICEABLE.
4/23/26
0543Z
4/26/26
0543Z
M0687/26 NOTAMC M0285/26
4/23/26
0541Z
7/7/26
2359Z
RunwayRWY 03R/21L RDR SIGNS 6/5 SOUTHEAST NOT LGTD.
4/22/26
1859Z
4/27/26
1900Z
500 RAMP SPOTS 510-513 CLSD
4/22/26
1856Z
4/27/26
1900Z
600 RAMP SPOTS 601-604 CLSD
4/22/26
1538Z
4/27/26
1900Z
TaxiwayTWY H CLSD FROM ROW 340 TO TXYLN L
4/22/26
1457Z
4/27/26
1900Z
TaxiwayTWY J CLSD FROM NORTH OF TWY N BETWEEN SPOT 512 AND TXLYN H
4/22/26
1400Z
4/27/26
1900Z
Taxiway!KSUU M0653/26 SUU TWY N BTN TWY C AND TWY G CLSD 2604221400-2604271900
4/22/26
0626Z
7/7/26
2359Z
TaxiwayTWY D SOUTHEAST 21R APPROACH MADATORY SIGN NOT ILLUMINATED.
4/21/26
2304Z
4/27/26
1900Z
TaxiwayTWY K CLSD FROM TXLYN H TO SPOT 603
4/21/26
2255Z
4/27/26
1900Z
TaxiwayTWY H AND TWY L INTERSECTION CLSD
4/21/26
1744Z
4/27/26
2359Z
Obstruction!KSUU M0667/26 SUU OBST RIG 381539N1215609W (.38NM W SUU) UNKNOWN MSL
(13FT AGL) FLAGGED AND LGTD 2604211744-2604272359
4/21/26
1739Z
4/27/26
2359Z
Obstruction!KSUU M0666/26 SUU OBST RIG 381607N1215530W (.34NM NE SUU) UNKNOWN MSL
(13FT AGL) FLAGGED AND LGTD 2604211739-2604272359
4/21/26
1729Z
4/27/26
2359Z
Obstruction!KSUU M0665/26 SUU OBST RIG 381527N1215603W (.44NM SW SUU) UNKNOWN MSL
(13FT AGL) FLAGGED AND LGTD 2604211729-2604272359
4/21/26
1722Z
4/27/26
2359Z
Obstruction!KSUU M0664/26 SUU OBST RIG 381539N1215546W (.15NM S SUU) UNKNOWN MSL
(13FT AGL) FLAGGED AND LGTD 2604211722-2604272359
4/21/26
1451Z
7/18/26
2359Z
M0663/26 NOTAMN
Q) KZOA/QXXXX////000/999/3815N12155W005
A) KSUU
B) 2604211451
C) 2607182359
E) SUU 04/001 SUU RWY RWY 03L/21R DEPARTURES AND ARRIVALS ARE RESTRICTED TO VFR ONLY. AIRCREWS MAY REQUEST IFR CLEARANCE ON DEPARTURE AND MUST CANCEL IFR PRIOR TO ARRIVAL TO RWY 03L/21R. RWY 03L/21R INSTRUMENT APPROACHES, TO INCLUDE CIRCLES TO RWY 03R/21L ARE NOT PERMITTED. 2604211439-2607182359.
4/21/26
1048Z
5/30/26
0700Z
RunwayRWY 21L AMP-3 LZ MID COVERT STROBE LIGHT OTS
4/21/26
1047Z
5/30/26
0700Z
RunwayRWY 21L AMP-3 LZ END OF RWY COVERT STROBE LIGHT OTS
4/21/26
0634Z
4/30/26
2359Z
RunwayRWY 21L APPROACH LIGHTING SYSTEM NOT INSPECTED DUE TO UNSTABLE ACCESS ROAD CONDITIONS.
4/20/26
2300Z
4/27/26
0100Z
200 RAMP 300 RAMP, AND 400 RAMP CLSD TO NON AIR-SHOW AIRCRAFT AND ACTIVITIES. AIRCRAFT STAGING WITHIN AIR SHOW VENUE REQUIRE FOLLOW ME AND/OR MARSHALLERS.
4/20/26
2243Z
4/27/26
1900Z
TaxiwayTWY L NORTH OF TWY N IS RESTRICTED TO TOW ONLY
4/19/26
0505Z
7/7/26
2359Z
RunwayRWY 03R/21L TWY E SOUTH FACING DIRECTIONAL SIGN NOT ILLUMINATED.
4/7/26
0347Z
5/5/26
2359Z
RunwayRWY 032 COVERT LIGHT (NORTHEAST) OTS
3/19/26
0500Z
5/31/26
2359Z
OBSTACLE LGTS ON TOP OF STADIUM LGTS ON THE FOLLOWING SPOTS UNSERVICABLE: 281, 310, 340, 412, 422, 432, BETWEEN 607/608, BETWEEN 608/609, BETWEEN 611/612, BETWEEN/AROUND H13 AND H14 (3 TOTAL), BETWEEN/AROUND 901 AND 902 (5 TOTAL). OBSTACLE LGTS FOR STADIUM LGTS NEXT TO HANGARS UNSERVICEABLE: 808 (EAST EDGE/1 LGT), 810 (EAST EDGE/2 LGTS), 818 (SOUTHEAST CORNER OF BLDG/1 LGT), 837 (EAST EDGE/2 LGTS). OBSTACLE LIGHTS MISSING ON TOP OF THE FOLLOWING HANGERS: 14, 808, 809, 810, 811, 818, 837, AND OBSTACLE LIGHTS ONTOP OF BUILDING 1290, OBSTACLE LGTS ON RWY 21L/03R LOCALIZER
3/17/26
1647Z
5/7/26
2359Z
RunwayRWY 21L SEQUENCED FLASHING LIGHTING SYSTEM AVAILABLE BY REQUEST ONLY DUE TO TECHNICAL LIMITATIONS. MINIMUM 2 HOUR NOTIFICATION REQUIRED.
3/5/26
2259Z
5/1/26
2359Z
BASH PHASE II ALPHA IN EFFECT. AIRCRAFT WILL NOT BE SCHEDULED TO ARRIVE OR DEPART DURING THE BASH PHASE II-APLHA WINDOW (30 MINUTES PRIOR TO 1 HOUR AFTER SUNRISE AND 1 HOUR PRIOR TO 30 MINUTES AFTER SUNSET). EXCEPTIONS: NON-DOD AIRCRAFT, EMERGENCY AIRCRAFT, AND COMMERCIAL CARRIERS NOT CONDUCTING DOD-TASKED MISSIONS, FOREIGN MILITARY, LIFE FLIGHTS, AND VQ-3 OPERATIONS. 1 ARR/DEP AUTHORIZED IF AIRCRAFT IS DELAYED DURING THE SCHEDULED CREW DUTY DAY INTO THE BASH WINDOW WHEN THE REPORTED BIRD CONDITION IS LOW.
3/4/26
1957Z
6/1/26
2358Z
DEGRADATION OF THE ABILITY TO STORE HAZARDOUS CLASS 1.1 AND 1.2 MUNITIONS. OTHER EXPLOSIVE CLASSES ARE NOT IMPACTED. DURING MISSION PLANNING, CONTACT 60 APS CAPABILITY FORECASTING AT DSN: 312-837-4545, COMM: (707) 424-4545. FOR EMERGENCIES, CONTACT ATOC'S DUTY OFFICER AT DSN: 312-837-4551/COMM: (707) 424-4551
2/20/26
2337Z
5/20/26
2337Z
US LOW VOL 2 TRAVIS AFB DIAGRAM INCORRECT, REVIEW NOTAMS AND/OR CONTACT AIRFIELD MANAGEMENT FOR MOST UP TO DATE INFORMATION
2/11/26
0559Z
5/5/26
2359Z
Taxiway!KSUU M0283/26 SUU TWY H LOCATION SIGN SOUTHEAST SIDE NOT LGTD 2602110559-2605052359
2/9/26
1554Z
5/1/26
2359Z
700 RAMP SPOT 718 RESTRICTED TO C17 OR SMALLER WINGSPANS.
Yes
ALL
USAF
TRAVIS AFB
FAIRFIELD, CA 94535
BASE OPERATIONS (USAF)
TRAVIS AFB
FAIRFIELD, CA 94535
Phone: 707-424-2836
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
SUU
--
--
N/A
N/A
No
No
Hangar
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
None

Runway 032/212

3500 ft. x 90 ft.

CONC
NONE

57/R/B/W/T
--
--
--
--
  Runway 032 Runway 212
True Heading 48°228°
Traffic Pattern
Markings
Markings Condition
Latitude 38° 16' 26"N 38° 16' 49"N
Longitude 121° 54' 25"W 121° 53' 52"W
Elevation 57' 52'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 03L/21R

11001 ft. x 300 ft.

PEM
NONE
HIGH
82/R/C/W/T
--
--
--
--
  Runway 03L Runway 21R
True Heading 47°227°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 14' 36"N 38° 15' 49"N
Longitude 121° 57' 25"W 121° 55' 43"W
Elevation 33' 50'
Threshold Crossing Height 75 ft. AGL 75 ft. AGL
Visual Glide Path Angle 2.5° 2.8°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 03R/21L

10995 ft. x 150 ft.

CONC
NONE
HIGH
72/R/B/W/T
--
--
--
--
  Runway 03R Runway 21L
True Heading 47°227°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 15' 41"N 38° 16' 54"N
Longitude 121° 55' 35"W 121° 53' 54"W
Elevation 53' 53'
Threshold Crossing Height 69 ft. AGL 75 ft. AGL
Visual Glide Path Angle 2.5° 2.8°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-14CAUTION: RWY EDGE LGTS FOR BOTH RWYS LCTD MORE THAN 10 FT FROM EDGE OF USABLE RWY SFC.
A110-15CAUTION: EXTV LGT ACFT OPR. POSSIBLE RF INTFC ALL FREQS 9 NM NE OVER VOA TRANS. EXP WIND SHEAR BLW 2000 FT ON APCH TO ALL RWYS. HVY C5 JET TFC IN IMMED VCNTY. HI DENSITY VFR TFC CROS FINAL APCH AND DEP CRS.
A110-16CAUTION: ARR ACFT EXP HVY JET ACFT CROS RWY TO PARL TWY.
A110-20MISC: ALL ACFT CARRYING DV WILL NOTIFY COMD POST NO LATER THAN 24 HR PRIOR WITH ARR TIME AND RQR AT DSN 837-5517 OR C707-424-5517. ACFT WITH DV CODE 7 OR ABV AND ALL INBD PAX/CARGO ACFT MUST CTC COMD POST 30 MIN PRIOR TO LDG AND CONFIRM BLOCK TIME.
A110-21MISC: FIRST 2175 FT RWY 03R AND FIRST 1000 FT RWY 21L CONC; 75 FT KEEL SECTION IS CONC, RMNG WIDTH IS REINFORCED ASPH, 38 FT ON EITHER SIDE OF KEEL. FIRST 1000 FT RWY 21R AND FIRST 2900 FT RWY 03L CONC, MID 7100 FT ASPH.
A110-3RWY-LGTS: RWY 21L SF.
A110-32TFC PAT REVISE TO: RECTANGULAR 1600 FT, OVERHEAD 2100 FT.
A110-33CAUTION: TWY N MAY BE TMPRY CLSD WO NTC S OF 900 RAMP DUE TO C17 COMBAT OFF-LOAD/STAR TRNG.
A110-34RSTD: OUTBOARD ENGS OF 4-ENG ACFT RSTRD TO IDLE PWR ON TWYS A, B, D, H, M, N, & T AND DRG TAXI OPS ON RWY 03R/21L.
A110-35CAUTION: NO C17 COMBAT OFFLOADS AUTHORIZED ON TWY DELTA EAST OF RWY 21L/3R.
A110-36MISC: BACKING OPS PROH ON SPOTS 511 THRU 515. SHOULDERS ARE NON-LOAD SFCS. RWY 21L/03R GROOVED 148 FT ENTIRE RY.
A110-39CAUTION: RWY 03R/21L EDGE LGTS HAVE GAPS OF MORE THAN 400 FT ON THE APCH/DEP END OF THE RWY.
A110-42CAUTION: BA ON RWY 03R/21L MAY BE IMPAIRED DUE TO HVY RUBBER DEPOSITS.
A110-43CSTMS/AG/IMG - DUE TO LTD. CSTMS, PN/COORD RQR FOR ARR OUTSIDE NML WKD HR. FOR NGT, SAT, SUN AND HOL ARR, 1 HR PN RQR. MSN COORD THRU TRAVIS COMD POST AT DSN 837-5517 OR C707-424-5517.
A110-45RWY: RWY 21L/03R GROOVED 148 FT ENTIRE RWY. RWY 21R FIRST 1000 FT CONC NOT GROOVED.
A110-49PPR DSN 837-2836/2837 C707-424-2836/2837.
A110-5JASU - 1(MA-1) 6(MA-1A) 1(MC-1A) 1(MC-2A) 8(A/M32A-86) 1(707 STARTING UNIT).
A110-50MISC: TRAVIS CRASH FIRE RESPONSE STEADY STATE ARFF AGENT QNTY IS 9000 GALLONS, AND STEADY STATE PSNL AVBLTY IS 16. ARFF CONDS FOR TRAVIS AFB ARE REDUCED LEVEL OF SERVICE (RLS) FOR NFPA, ICAO, AND USAF CATS 7-9, AND CRITICAL LEVEL OF SERVICE (CLS) FOR NFPA, ICAO, AND USAF CAT 10.
A110-51MISC: DAVID GRANT MEDICAL CENTER HELIPAD LCTD 3816.12N/12158.12W, ELEV 59 FT. HELIPAD NOT VISIBLE FROM TWR. HELIPAD EQUIPPED WITH PILOT CTL LGT (VHF 120.75) LDG/DEP WILL BE AT YOUR OWN RISK.
A110-54MISC: 900 RAMP B747 AND C5 ACFT ON SPOT 902 WILL OFFSET 5 FT NW OF EXISTING TAXI LINE DUE TO WINGTIP CLNC.
A110-60MISC: CTC AFLD MGMT FOR CUR BIRD WATCH COND. SEE AP1 FOR FURTHER INFO.
A110-64CAUTION: POTENTIAL FOR UAS OPS IN VCNTY OF TRAVIS AFB.
A110-65MISC: AIRCREW AND PAX TRNSPN LTD TO INITIAL PICKUP, FINAL DROP-OFF, AND MSN PLANNING AT BASE OPS. ALL OTR GND TRNSPN REQS WILL BE MET BASED ON MSN PRIORITY. FAILURE TO COMPLY MAY RESULT IN LOSS OF TRNSPN SUPPORT.
A110-67MISC: TWY A SFC PAINT INCOR; SHOULD READ 21L.
A110-68AMC SKEDD MSN (EXC FOR CIV DOD CONTR, DV, AND MEDEVAC MSN) DO NOT RQR PPR. ALL OTHER TSNT ACFT RQR PPR. TSNT ACFT REQ PPR CTC AFLD MGMT AT DSN 837-2836, C707-424-2836 OR 60OSS.OSAA.AMOPS@US.AF.MIL. ACFT WITH PPR CARRYING DV, AIR EVAC, AND SPL AIR MSN MUST CTC AFLD MGMT ON PTD FOR NOTIFICATION AND TRKG PURPOSES.
A110-7OIL - O-128-133-148-156.
A110-71RSTD: AIRCREW SHOULD REQ 15 MIN EARLY ENG START FOR RQRD BACK TAXI OPS. ANTICIPATE BACK TAXI ON RWY 03R-21L WITH POTENTIAL USE OF LZ FOR TAXIING WHEN DEP RWY 21L.
A110-72RSTD: 180 DEG TURN RSTD TO END OF RWY/THLD AREAS.
A110-73CAUTION: EMERG ACFT LDG RWY 03R EXP POSS DLA RESP EXCEEDING 1 MIN FOR INITIAL RESP AND 30 SEC FLW-ON RQMNTS FOR FIRE SUPPRESSION SVC.
A110-74MISC: NO CLASSIFIED MTRL STORAGE AVBL AT AM OPS. ALL TSNT CLASSIFIED MUST BE STORED IN TRAVIS AFB COMMAND POST.
A110-75RSTD: RWY 03L-21R CLSD. ALL AIR OPS PROHIBITED INCL APCH, LOW APCH, AND CIRCLING OR SIDESTEP REQ.
A110-8TRAN ALERT - SVC 24 HR DLY. EXP EXTV SVC DELAY WKEND AND HOL. TRAN ACFT, EXC AMC MSN, CTC COMD POST NOT LATER THAN 15 MIN OUT FOR SVC REQ. FLEET SVC AVBL.
A110-9REMARKS: HVY CONCENTRATION OF BLACKBIRDS, GULLS, AND OTR MIGRATORY BIRDS IN THE APCH AND DEP RTES AND ALG INFIELD AREAS FROM 1 OCT-30 NOV AND FROM 1 FEB-30 APR (PHASE II).
TRAVIS AFB (ICAO: KSUU, IATA: SUU) is a private airport located in FAIRFIELD, CA, US.
