iFlightPlanner



...

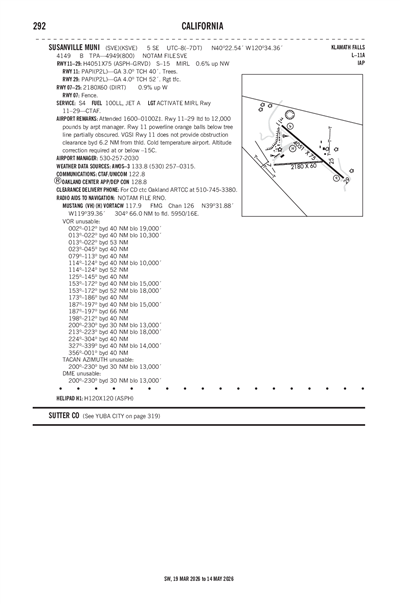

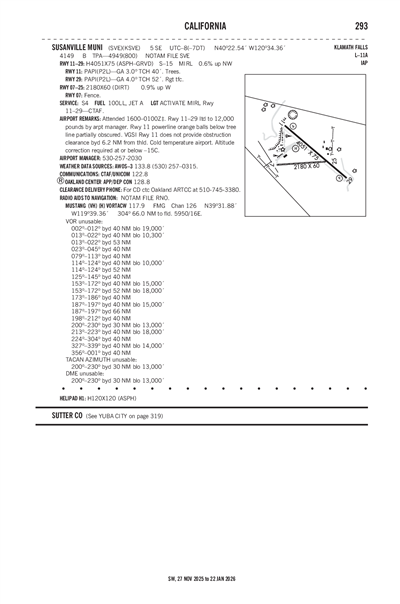

SUSANVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSVE
ICAO KSVEIATA SVELocal SVE
SUSANVILLE MUNI
PublicPUB

5 miles SE of SUSANVILLE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 22' 32"N 120° 34' 22"W
Elevation
4149' MSL
Pattern Alt
4949' MSL
Mag Variation
13°E
Declination
17°E
Fuel
JET A, 100LL
FSS
RENO (RNO)
Sectional
KLAMATH FALLS
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KSVE VFR
9:15 AM PST
Overcast 6,000'
10sm
27°F
23°F
30.27"Hg
Calm
A01 P000
METAR KSVE 221715Z AUTO 00000KT 10SM OVC060 M03/M05 A3027 RMK A01 P000
+ Add Your Business

KSVE FBOs

Promote Listing
Susanville Aviation
UNICOM: 122.8
Phone: (530) 257-2030
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 2/15
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.18 5.38 5.53
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 133.8
(530) 257-0315

Common

CTAF 122.8
ACTVT MIRL RWY 11/29 - CTAF
UNICOM 122.8

Center

OAKLAND CENTER 128.8
LOW, APCH/DEP CTL SVC PRVDD BY OAKLAND ARTCC (ZOA) ON FREQS 128.8/285.5 (RENO RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KRNO (64nm)
Sun, 2/22 9:20 AM PST
Sun, 2/22 10:00 AM PST - Mon, 2/23 10:00 AM PST
VFR
10:00 AM PST - 1:00 PM PST
Few 22,000'
6sm
VRB° 3kts
VFR
1:00 PM PST - 7:00 PM PST
Broken 22,000'
Few 5,000'
6sm
180° 6kts
VFR
7:00 PM PST - 10:00 AM PST
Scattered 22,000'
6sm
VRB° 3kts
TAF KRNO 221720Z 2218/2318 VRB03KT P6SM FEW220 WS020/19045KT
   FM222100 18006KT P6SM FEW050 BKN220
   FM230300 VRB03KT P6SM SCT220
KSVE
No NOTAM Available
No
0800-1700
CITY OF SUSANVILLE
66 N. LASSEN ST.
SUSANVILLE, CA 96130
Phone: 530-257-1050
STEVE DATAMA
471-920 JOHNSTONVILLE ROAD #10
SUSANVILLE, CA 96130
Phone: 530-257-2030
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
SVE
--
ACTVT MIRL RWY 11/29 - CTAF
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 07/25

2180 ft. x 60 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 89°269°
Traffic Pattern Left
Markings NONE NONE
Markings Condition
Latitude 40° 22' 28"N 40° 22' 29"N
Longitude 120° 34' 42"W 120° 34' 13"W
Elevation 4,149' 4,130'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 11/29

4051 ft. x 75 ft.
ASPH
Good
GRVD
MED

15,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 129°309°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 22' 47"N 40° 22' 22"N
Longitude 120° 34' 39"W 120° 33' 58"W
Elevation 4,147' 4,122'
Threshold Crossing Height 40 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

120 ft. x 120 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition FAIR
Latitude 40° 22' 36"N N/A
Longitude 120° 34' 32"W N/A
Elevation 4,150' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
A110-3COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -15C.
A14SVE@FRONTIERNET.NET
A35-11/29LTD TO 12000 LBS BY AMGR.
A43-11DOES NOT PROVIDE OBSTRUCTION CLEARANCE BYD 6.2 NM FROM THR.
A53-11POWERLINE ORANGE BALLS BELOW TREE LINE PARTIALLY OBSCURED
A81-APTACTVT MIRL RWY 11/29 - CTAF
SUSANVILLE MUNI (ICAO: KSVE, IATA: SVE) is a public airport located in SUSANVILLE, CA, US.
