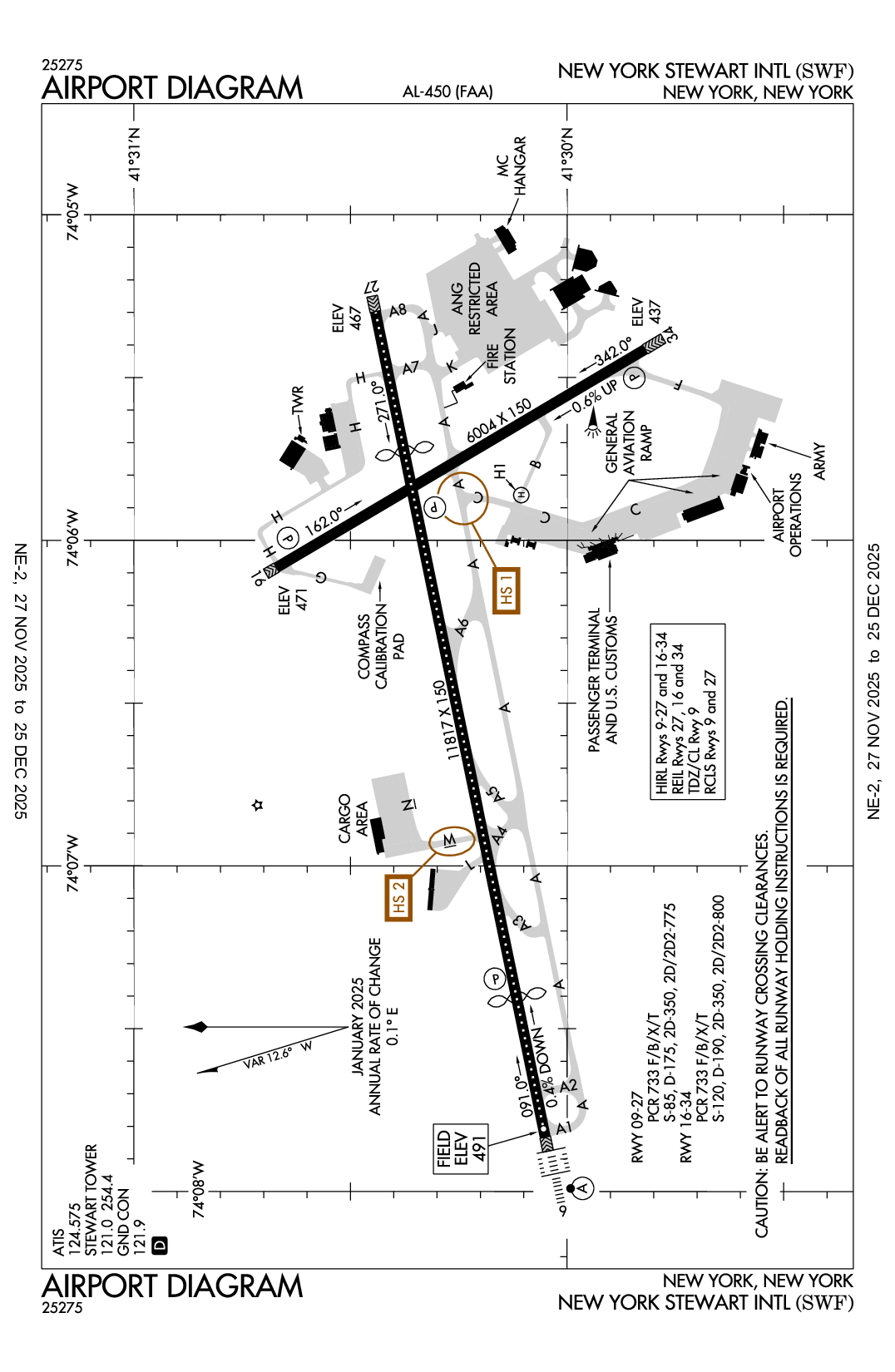

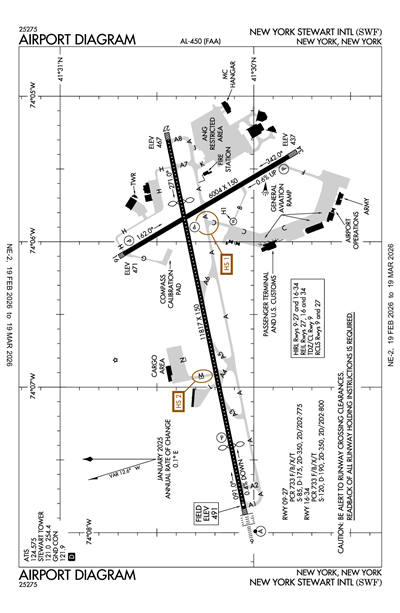

NEW YORK STEWART INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSWF
NEW YORK STEWART INTL
PublicPUB

44 miles N of NEW YORK, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 30' 15"N 74° 06' 17"W
491' MSL
1200' MSL
13W
JET A, 100LL
NEW YORK (ISP)
NEW YORK
NEW YORK (ZNY)
1/22/26-2/19/26
KSWF VFR
3:45 AM EST
Sky Clear
10sm
7°F
0°F
29.94"Hg
050° 7kts
METAR KSWF 010845Z 05007KT 10SM SKC M14/M18 A2994
+ Add Your Business

KSWF FBOs

Promote Listing
Signature Aviation
UNICOM: 122.95
Phone: (845) 567-2601
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 1/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.64 7.21
Fuel Notes
Prices include tax
Promote Listing
Atlantic Aviation
UNICOM: 129.75
Phone: (845) 567-9800
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 1/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.39
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.575
(845) 567-9311

Common

UNICOM 122.95

Ground

STEWART GROUND 121.9

Tower

STEWART TOWER 121.0

Arrival

TRESA STAR 132.75

Approach

NEW YORK APPROACH 132.75

Departure

NEW YORK DEPARTURE 132.75

Operations

Operations 38.2
Operations 126.2

Emergency

Emergency 121.5

Military

ARMY OPS 49.75
ARMY OPS
COMD POST 139.7
105AW

Terminal Area Forecast

KSWF
Sun, 2/1 3:32 AM EST
Sun, 2/1 4:00 AM EST - Mon, 2/2 7:00 AM EST
VFR
4:00 AM EST - 5:00 AM EST
Broken 25,000'
6sm
030° 9kts
VFR
5:00 AM EST - 10:00 AM EST
Broken 25,000'
6sm
010° 12kts
VFR
10:00 AM EST - 7:00 PM EST
Overcast 25,000'
6sm
360° 14kts
Gusts 21kts
VFR
7:00 PM EST - 12:00 AM EST
Broken 25,000'
6sm
330° 12kts
VFR
12:00 AM EST - 7:00 AM EST
Scattered 25,000'
6sm
310° 7kts
TAF KSWF 010832Z 0109/0212 03009KT P6SM BKN250
   FM011000 01012KT P6SM BKN250
   FM011500 36014G21KT P6SM OVC250
   FM020000 33012KT P6SM BKN250
   FM020500 31007KT P6SM SCT250 AMD NOT SKED
KSWF
EffectiveExpiresCategoryNOTAM
Domestic
2/1/26
0426Z
2/3/26
1500Z
!SWF 02/010 SWF TWY B, F CLSD 2602010426-2602031500
2/1/26
0425Z
2/1/26
1245Z
!SWF 02/009 SWF TWY A ELEVATED RWY GUARD LGT FOR RWY 16/34 WEST SIDE OBSC 2602010425-2602011245
2/1/26
0425Z
2/1/26
1245Z
Runway!SWF 02/008 SWF RWY 27 HLDG PSN SIGN AT TWY A6 LEFT SIDE OBSC 2602010425-2602011245
2/1/26
0424Z
2/1/26
1245Z
!SWF 02/007 SWF TWY ALL SIGNS OBSC 2602010424-2602011245
2/1/26
0424Z
2/1/26
1250Z
Runway!SWF 02/006 SWF RWY 09 RTHL OBSC 2602010424-2602011250
2/1/26
0423Z
2/2/26
0423Z
!SWF 02/005 SWF TWY C, G, H FICON COMPACTED SN OBS AT 2602010423. 2602010423-2602020423
2/1/26
0423Z
2/2/26
0423Z
!SWF 02/004 SWF TWY A2, A4, A5 FICON PATCHY ICE AND COMPACTED SN OBS AT 2602010423. 2602010423-2602020423
2/1/26
0422Z
2/2/26
0422Z
!SWF 02/003 SWF TWY A, A1, A3, A6, A7, A8 FICON PATCHY ICE AND PATCHY COMPACTED SN OBS AT 2602010422. 2602010422-2602020422
2/1/26
0422Z
2/1/26
1235Z
!SWF 02/002 SWF TWY C BTN ATLANTIC AVIATION APN AND TWY F CLSD 2602010422-2602011235
2/1/26
0418Z
2/2/26
2000Z
Runway!SWF 02/001 SWF RWY 27 PAPI U/S 2602010418-2602022000
1/31/26
1703Z
2/3/26
1500Z
!SWF 01/611 SWF TWY H CLSD EXC VEHICLE ESCORT 2601311703-2602031500
1/31/26
1257Z
2/1/26
1257Z
!SWF 01/608 SWF TWY H 2FT SNOWBANKS ADJ SOUTH SIDE 2601311257-2602011257
1/31/26
1207Z
2/3/26
2300Z
Runway!SWF 01/599 SWF RWY 16/34 CLSD EXC XNG 2601311207-2602032300
1/30/26
2116Z
2/3/26
2130Z
!SWF 01/595 SWF TWY A2, A3, A4, A5, A6, A7, A8 12IN SNOWBANKS ADJ 2601302116-2602032130
1/29/26
0537Z
2/5/26
2359Z
Runway!SWF 01/551 SWF RWY 09 RENL U/S 2601290537-2602052359
1/28/26
2130Z
2/11/26
2300Z
!SWF 01/534 SWF OBST RIG (ASN 2025-AEA-4229-NRA) 413004N0740559W (0.3NM SE SWF) 608FT (150FT AGL) FLAGGED AND LGTD 2601282130-2602112300
1/28/26
1704Z
1/28/27
2359Z
!SWF 01/531 SWF TWY L CLSD EXC VEHICAL ESCORT 2601281704-2701282359
1/28/26
0719Z
2/5/26
2359Z
Runway!SWF 01/518 SWF RWY 27 SIGNS OBSC 2601280719-2602052359
1/28/26
0707Z
2/5/26
2359Z
!SWF 01/517 SWF TWY ALL SFC MARKINGS OBSC 2601280707-2602052359
1/27/26
2222Z
2/3/26
1700Z
!SWF 01/516 SWF TWY N 2FT SNOWBANKS ADJ SOUTH SIDE 2601272222-2602031700
1/27/26
2221Z
2/3/26
1700Z
!SWF 01/515 SWF TWY M 2FT SNOWBANKS ADJ 2601272221-2602031700
1/27/26
2006Z
2/6/26
2359Z
!SWF 01/510 SWF NAV ILS RWY 09 CAT II/III NA 2601272006-2602062359
1/25/26
1345Z
4/26/26
0500Z
!SWF 01/328 SWF OBST TOWER LGT (ASR 1014196) 413304.80N0740501.00W (3.0NM NNE SWF) 799.9FT (155.8FT AGL) U/S 2601251345-2604260500
1/14/26
1417Z
7/1/26
0400Z
Runway!SWF 01/122 SWF RWY 09 PAPI U/S 2601141417-2607010400
1/6/26
1257Z
!SWF 01/075 SWF NAV ILS RWY 27 DME NOT MNT 2601061257-2604072359EST
12/18/25
1450Z
5/15/26
2359Z
!SWF 12/319 SWF TWY L LEAD ON SFC MARKING FOR RWY 09 NOT STD 2512181450-2605152359
12/18/25
1449Z
5/15/26
2359Z
!SWF 12/318 SWF TWY L LEAD OFF SFC MARKING FOR RWY 09 NOT STD 2512181449-2605152359
11/8/25
2219Z
2/7/26
0500Z
!SWF 11/054 SWF OBST TOWER LGT (ASR 1255710) 413042.90N0740648.80W (0.6NM NW SWF) 648.0FT (125.0FT AGL) U/S 2511082219-2602070500
10/30/25
1517Z
10/30/26
2300Z
!SWF 10/108 SWF OBST TOWER (ASN 2021-AEA-2271-NRA) 413043N0740649W (0.6NM NW SWF) 648FT (125FT AGL) NOT LGTD 2510301517-2610302300
10/9/25
1739Z
4/7/26
2359Z
!SWF 10/019 SWF NAV ILS RWY 09 NEELY OM UNUSABLE 2510091739-2604072359
6/16/25
1514Z
Runway!SWF 06/077 SWF RWY 09 SEQUENCED FLG LGT U/S 2506161514-PERM
6/11/25
2040Z
6/11/26
2359Z
!SWF 06/043 SWF OBST BLDG (ASN UNKNOWN) 413020N0740502W (1.12NM ESE SWF)
UNKNOWN (120FT AGL) NOT LGTD 2506112040-2606112359
FDC
1/26/26
1529Z
!FDC 6/6882 SWF IAP NEW YORK STEWART INTL, NEW YORK, NY.
ILS OR LOC RWY 27, AMDT 1D...
ILS OR LOC RWY 9, AMDT 13D...
S-ILS CAT D NA.
2601261529-2609071529EST
2/6/25
1438Z
!FDC 5/0665 SWF SID NEW YORK STEWART INTL, NEW YORK, NY.
STEWART NINE DEPARTURE...
TAKE-OFF MINIMUMS: RWY 34, 300-1 OR PROCEDURE NA. PERM OBS TREE (36-023132) 2473FT FROM DER, 911FT RIGHT OF CENTERLINE, 84FT AGL/629FT MSL.
2502061438-2702061438EST
2/6/25
1438Z
!FDC 5/0664 SWF ODP NEW YORK STEWART INTL, NEW YORK, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6B...
TAKE-OFF MINIMUMS: RWY 34, 300-1 OR PROCEDURE NA. PERM OBS TREE (36-023132) 2473FT FROM DER, 911FT RIGHT OF CENTERLINE, 84FT AGL/629FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2502061438-2702061438EST
Yes
ALL
PORT AUTHORITY OF NY & NJ
1180 FIRST ST
NEW WINDSOR, NY 12553
Phone: 845-838-8200
OMAR ASTACIO
1180 FIRST ST
NEW WINDSOR, NY 12553
Phone: 845-838-8200
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
SWF
--
--
N/A
Yes - Lighted
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09/27

11817 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

85,000lbs
175,000lbs
350,000lbs
775,000lbs
  Runway 09 Runway 27
True Heading 78°258°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 30' 03"N 41° 30' 27"N
Longitude 74° 07' 50"W 74° 05' 18"W
Elevation 491' 467'
Threshold Crossing Height 65 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 16/34

6004 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
190,000lbs
350,000lbs
800,000lbs
  Runway 16 Runway 34
True Heading 149°329°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 41° 30' 40"N 41° 29' 49"N
Longitude 74° 06' 05"W 74° 05' 25"W
Elevation 471' 437'
Threshold Crossing Height 53 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

40 ft. x 40 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 41° 30' 06"N N/A
Longitude 74° 05' 52"W N/A
Elevation 453' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11LEASEE PANYNJ; . PROPERTY OWNED BY NYSDOT 1220 WASHINGTON AVE. ALBANY, NY 12226. TELEPHONE 518-457-2822.
A110-1AVOID ORANGE COUNTY ARPT LCTD 7 NM WNW DURG VFR APCHS.
A110-12NOISE ABATEMENT PROCEDURES IN EFFECT CTC AMGR 845-838-8200.
A110-13RGT TFC ON RWYS 16 & 27 MAY BE USED FOR NOISE ABATEMENT.
A110-14USER FEE CHARGED TO ALL INTL FLIGHTS.
A110-15COMPASS CALIBRATION PAD LCTD ON THE TWY G RUNUP APRON.
A110-18TWYS B & H RESTRICTED TO ACFT WITH WINGSPAN GTR THAN 118 FT.
A110-19TWY C RSTRD TO ACFT WITH WINGSPAN GTR THAN 125 FT BTN TRML BLDG & BLDG 118.
A110-21ACFT WITH WINGSPAN 172 FT OR MORE RQR VEHICLE ESCORT FOR ALL TWY C OPNS S OF TRML APN. CTC ARPT OPNS 845-838-8237.
A110-22MILITARY: ARMY OPS 1300-2100Z++ WEEKDAYS EXC HOL, O845-567-1209, OT CTC FBO. 24 HR PPR ONLY FOR PARKING ARMY RAMP. NO SVC AVAIL THROUGH ARMY RAMP, CTC FBO. 48 HR PPR ALL OPERATIONS ON WEST POINT MILITARY RESERVATION, CTC 2ND AVN DET OPSO, O845-567-1209, C845-372-3349.
A110-23MILITARY: ALL MIL ACFT OPR, BASH PHASE II PERIOD (1 APR-30 MAY & 1 AUG-30 NOV) BIRD WATCH COND SEVERE (TKOF AND LDGS PROH UNLESS GREATER EMERG AND/OR IMMED OPERATIONAL NECESSITY EXISTS. LCL AND TACTICAL TRNG PROH) MODERATE (MULTIPLE APCHS PROH A DEPARTURE AND FULL STOP ALLOWED IF RTE AVOIDS BIRDS ACT.)
A110-24MILITARY: AFLD MGR DOES NOT ISSUE OR STORE COMSEC FOR TRAN CREWS. TMPRY STOR OF CLASSIFIED MATERIALS UP TO SECRET AT COMD POST.
A110-26TWY C BTN TWY B & TWY F NOT VISIBLE FM TWR.
A110-29TWY L CLSD EXC 20 MIN PPR. TWY L APRON FOLLOW ME VEHICLE REQUIRED. CTC ARPT OPNS 845-838-8237.
A110-3BIRDS & DEER ON & INVOF ARPT.
A110-30FUEL: A++ AVBL.
A110-31MILITARY: ADVSY FOR TRAN AIRCREW - NSTD WHITE VEH PARKING BOXES AND C-17 WING-TIP GUIDE LINES PAINTED ON ANG RAMP.
A110-32MILITARY: COMD POST OPR 1000-0400++, DSN 636-2286.
A110-33ALL SFCS. WORK IN PROGRESS GRASS CUTTING CONDUCTED APR-OCT.
A110-34TXL C NOT VSB TO TWR FOR ACFT PUSHBACK FM PAX TRML; CTC GND FREQ FOR PUSHBACK ONTO TXL C.
A110-4NO JET TRNG 2300 TO 0700 DLY.
A110-5HUDSON VALLEY RGNL LCTD 3.3 NM SW IGN VORTAC; DO NOT MISTAKE FOR STEWART INTL.
A110-7EXTSV GLDR ACT 8 MI E OF HUO VORTAC IN A 5-MI RADIUS.
A24LNDG FEE PER 1000 LBS. CERTIFICATED MAX TOG.
A30-H1HELIPAD LCTD INTXN TWYS B & C EAST OF TWY C.
A39-09/27PCR VALUE: 733/F/B/X/T
A39-16/34PCR VALUE: 733/F/B/X/T
A42-16_MARKMILITARY ASSAULT LANDING ZONE & BASIC MKGS WITH AIMING POINTS.
A42-34_MARKMILITARY ASSAULT LANDING ZONE & BASIC MKGS WITH AIMING POINTS.
A43-16PAPI UNUSBL BYD 5 DEGS LEFT OF CNTRLN.
A49-09RWY 09 ALSF-2 U/S.
A57-09APCH SLP 50:1 TO DTHR.
A57-27APCH SLP 46:1 TO DTHR.
A58-16+3 FT GND 140 FT FM RWY END 240 FT L.
E147TPA: 709 FT AGL HEL, 1009 FT AGL RECIPROCATING ENG, 2009 FT AGL TURBOPROP/JET.
NEW YORK STEWART INTL (ICAO: KSWF, IATA: SWF) is a public airport located in NEW YORK, NY, US.
