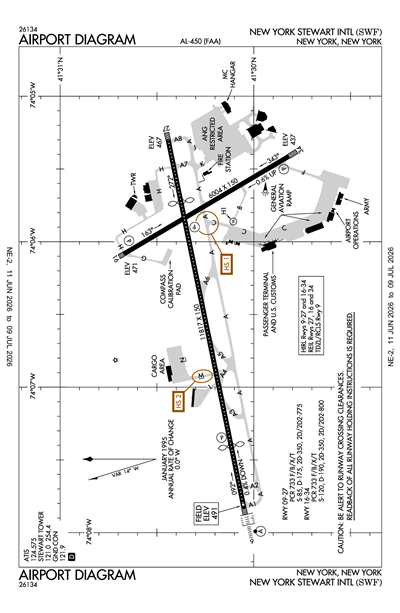

NEW YORK STEWART INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSWF
ICAO KSWFIATA SWFLocal SWF
NEW YORK STEWART INTL
PublicPUB

44 miles N of NEW YORK, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 30' 15"N 74° 06' 17"W
Elevation
491' MSL
Pattern Alt
1200' MSL
Mag Variation
13°W
Declination
14°W
Fuel
JET A, 100LL
FSS
NEW YORK (ISP)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
8/6/26-9/3/26
KSWF VFR
5:45 PM EDT
Overcast 6,500'
7sm
70°F
70°F
29.92"Hg
240° 10kts
TSE@30
METAR KSWF 102145Z 24010KT 7SM OVC065 21/21 A2992 RMK TSE@30
+ Add Your Business

KSWF FBOs

Promote Listing
Atlantic Aviation
UNICOM: 129.75
Phone: (845) 567-9800
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 7/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.21
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 122.95
Phone: (845) 567-2601
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 8/9
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.64 8.92
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.575
(845) 567-9311
AWOS-3PT

Common

UNICOM 122.95

Ground

STEWART GROUND 121.9

Tower

STEWART TOWER 121.0

Arrival

TRESA STAR 132.75

Approach

NEW YORK APPROACH 132.75

Departure

NEW YORK DEPARTURE 132.75

Operations

Operations 38.2
Operations 126.2

Emergency

Emergency 121.5

Military

ARMY OPS 49.75
ARMY OPS
COMD POST 139.7
105AW

Terminal Area Forecast

KSWF
Mon, 8/10 4:38 PM EDT
Mon, 8/10 5:00 PM EDT - Tue, 8/11 8:00 PM EDT
MVFR
Temporary 5:00 PM EDT - 7:00 PM EDT
Thunderstorm and Rain
Broken 5,000'
3sm
Calm
VFR
5:00 PM EDT - 7:00 PM EDT
Broken 25,000'
Scattered 5,000'
6sm
240° 7kts
VFR
7:00 PM EDT - 10:00 PM EDT
Showers in vicinity
Broken 4,000'
6sm
VRB° 5kts
VFR
10:00 PM EDT - 10:00 AM EDT
Broken 25,000'
Broken 5,000'
6sm
VRB° 4kts
VFR
10:00 AM EDT - 8:00 PM EDT
Scattered 15,000'
Few 5,000'
6sm
310° 6kts
TAF KSWF 102038Z 1021/1124 24007KT P6SM SCT050 BKN250
   TEMPO 1021/1023 3SM TSRA BKN050CB
   FM102300 VRB05KT P6SM VCSH BKN040
   FM110200 VRB04KT P6SM BKN050 BKN250
   FM111400 31006KT P6SM FEW050 SCT150 AMD NOT SKED
KSWF
EffectiveExpiresCategoryNOTAM
Domestic
8/14/26
1300Z
8/14/26
1500Z
!SWF 08/076 SWF TWY L CLSD 2608141300-2608141500
8/14/26
1300Z
8/14/26
1500Z
Runway!SWF 08/075 SWF RWY 09/27 CLSD EXC 30MIN PPR 2608141300-2608141500
8/13/26
1130Z
8/13/26
1800Z
!SWF 08/074 SWF TWY G CLSD 2608131130-2608131800
8/13/26
1130Z
8/13/26
1800Z
Runway!SWF 08/073 SWF RWY 16/34 CLSD 2608131130-2608131800
8/12/26
1300Z
8/12/26
1500Z
!SWF 08/072 SWF TWY L CLSD 2608121300-2608121500
8/12/26
1300Z
8/12/26
1500Z
Runway!SWF 08/071 SWF RWY 09/27 CLSD EXC 30MIN PPR 2608121300-2608121500
8/11/26
1600Z
8/11/26
1800Z
!SWF 08/070 SWF TWY L CLSD 2608111600-2608111800
8/11/26
1600Z
8/11/26
1800Z
Runway!SWF 08/069 SWF RWY 09/27 CLSD EXC 30MIN PPR 2608111600-2608111800
8/11/26
1300Z
8/11/26
1500Z
!SWF 08/068 SWF TWY L CLSD 2608111300-2608111500
8/11/26
1300Z
8/11/26
1500Z
Runway!SWF 08/067 SWF RWY 09/27 CLSD EXC 30MIN PPR 2608111300-2608111500
8/10/26
2050Z
8/11/26
2050Z
!SWF 08/082 SWF APRON ALL FICON WET OBS AT 2608102050. 2608102050-2608112050
8/10/26
2049Z
8/11/26
2049Z
!SWF 08/081 SWF TWY ALL FICON WET OBS AT 2608102049. 2608102049-2608112049
8/10/26
2049Z
8/11/26
2049Z
Runway!SWF 08/080 SWF RWY 34 FICON 5/5/5 100 PCT WET OBS AT 2608102049. 2608102049-2608112049
8/10/26
2048Z
8/11/26
2048Z
Runway!SWF 08/079 SWF RWY 27 FICON 5/5/5 100 PCT WET OBS AT 2608102048. 2608102048-2608112048
8/10/26
1800Z
8/10/26
2300Z
!ISP 08/095 IGN AIRSPACE PJE WI AN AREA DEFINED AS 3NM RADIUS OF 412334N0735725W (8.5NM SE SWF) SFC-13000FT 2608101800-2608102300
8/10/26
1620Z
8/10/26
1830Z
!SWF 08/078 SWF TWY G WIP GRASS CUTTING 2608101620-2608101830
8/9/26
2253Z
9/9/26
2000Z
!SWF 08/077 SWF TWY A SFC PAINTED HLDG PSN SIGNS FOR RWY 16/34 EAST SIDE NOT STD 2608092253-2609092000
8/5/26
1553Z
11/3/26
1653Z
!SWF 08/032 SWF OBST TOWER LGT (ASR 1255710) 413042.90N0740648.80W (0.6NM NW SWF) 648.0FT (125.0FT AGL) U/S 2608051553-2611031653
8/2/26
2333Z
8/28/26
0100Z
!SWF 08/001 SWF TWY A4 HLDG PSN SIGN LGT U/S 2608022333-2608280100
7/21/26
2100Z
10/21/26
0400Z
!ISP 07/182 CMK AIRSPACE UAS WI AN AREA DEFINED AS .2NM RADIUS OF 412945.90N0733707.90W(7.7NM SE N69) SFC-400FT AGL DLY 2100-0400 2607212100-2610210400
7/14/26
1618Z
!SWF 07/099 SWF NAV ILS RWY 27 DME NOT MNT 2607141618-2608212359EST
7/13/26
0134Z
8/12/26
2300Z
!SWF 07/095 SWF OBST TOWER LGT (ASN 2022-AEA-2706-OE) 413248N0740803W (2.9NM NNW SWF) 629FT (153FT AGL) U/S 2607130134-2608122300
7/11/26
1000Z
9/1/26
2300Z
!MIV 07/117 SAX AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF 405640N0743313W (9.5NM SE 12N) SFC-400FT AGL MON-FRI 1000-2300 2607111000-2609012300
7/9/26
0517Z
8/31/26
2359Z
!SWF 07/075 SWF TWY G HLDG PSN SIGN FOR RWY 16 LGT U/S 2607090517-2608312359
1/28/26
1704Z
1/28/27
2359Z
!SWF 01/531 SWF TWY L CLSD EXC VEHICAL ESCORT 2601281704-2701282359
10/30/25
1517Z
10/30/26
2300Z
!SWF 10/108 SWF OBST TOWER (ASN 2021-AEA-2271-NRA) 413043N0740649W (0.6NM NW SWF) 648FT (125FT AGL) NOT LGTD 2510301517-2610302300
6/16/25
1514Z
Runway!SWF 06/077 SWF RWY 09 SEQUENCED FLG LGT U/S 2506161514-PERM
FDC
7/22/26
1501Z
!FDC 6/7725 SWF ODP NEW YORK STEWART INTL, NEW YORK, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6B...
TAKE-OFF MINIMUMS RWY 16, STANDARD WITH MINIMUM CLIMB OF 255 FT/NM TO 2200, OR 1500-3 FOR VCOA.
TAKE-OFF MINIMUMS RWY 34, 300-1 OR PROCEDURE NA. PERM OBS TREE (36-023132) 2473FT FROM DER, 911FT RIGHT OF CENTERLINE, 84FT AGL/629FT MSL. ALL OTHER DATA REMAINS AS PUBLISHED.
2607221501-2807241501EST
2/6/25
1438Z
!FDC 5/0665 SWF SID NEW YORK STEWART INTL, NEW YORK, NY.
STEWART NINE DEPARTURE...
TAKE-OFF MINIMUMS: RWY 34, 300-1 OR PROCEDURE NA. PERM OBS TREE (36-023132) 2473FT FROM DER, 911FT RIGHT OF CENTERLINE, 84FT AGL/629FT MSL.
2502061438-2702061438EST
Military
6/8/26
1844Z
9/1/26
2000Z
Apron!KSWF M0007/26 SWF APRON AIR NTL GUARD RESTRICTED AREA APN WORK IN PROGRESS CONST OBST LGT INOP ON FUEL TANK 852FT LONG 838FT LAT FROM RWY 27 2606081844-2609012000
Yes
ALL
PORT AUTHORITY OF NY & NJ
1180 FIRST ST
NEW WINDSOR, NY 12553
Phone: 845-838-8200
OMAR ASTACIO
1180 FIRST ST
NEW WINDSOR, NY 12553
Phone: 845-838-8200
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
SWF
--
--
N/A
Yes - Lighted
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09/27

11817 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

85,000lbs
175,000lbs
350,000lbs
775,000lbs
  Runway 09 Runway 27
True Heading 78°258°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 30' 03"N 41° 30' 27"N
Longitude 74° 07' 50"W 74° 05' 18"W
Elevation 491' 467'
Threshold Crossing Height 65 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 16/34

6004 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
190,000lbs
350,000lbs
800,000lbs
  Runway 16 Runway 34
True Heading 149°329°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 41° 30' 40"N 41° 29' 49"N
Longitude 74° 06' 05"W 74° 05' 25"W
Elevation 471' 437'
Threshold Crossing Height 53 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

40 ft. x 40 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 41° 30' 06"N N/A
Longitude 74° 05' 52"W N/A
Elevation 453' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11LEASEE PANYNJ; . PROPERTY OWNED BY NYSDOT 1220 WASHINGTON AVE. ALBANY, NY 12226. TELEPHONE 518-457-2822.
A110-1AVOID ORANGE COUNTY ARPT LCTD 7 NM WNW DURG VFR APCHS.
A110-12NOISE ABATEMENT PROCEDURES IN EFFECT CTC AMGR 845-838-8200.
A110-13RGT TFC ON RWYS 16 & 27 MAY BE USED FOR NOISE ABATEMENT.
A110-14USER FEE CHARGED TO ALL INTL FLIGHTS.
A110-15COMPASS CALIBRATION PAD LCTD ON THE TWY G RUNUP APRON.
A110-18TWYS B & H RESTRICTED TO ACFT WITH WINGSPAN GTR THAN 118 FT.
A110-19TWY C RSTRD TO ACFT WITH WINGSPAN GTR THAN 125 FT BTN TRML BLDG & BLDG 118.
A110-21ACFT WITH WINGSPAN 172 FT OR MORE RQR VEHICLE ESCORT FOR ALL TWY C OPNS S OF TRML APN. CTC ARPT OPNS 845-838-8237.
A110-22MILITARY: ARMY OPS 1300-2100Z++ WEEKDAYS EXC HOL, O845-567-1209, OT CTC FBO. 24 HR PPR ONLY FOR PARKING ARMY RAMP. NO SVC AVAIL THROUGH ARMY RAMP, CTC FBO. 48 HR PPR ALL OPERATIONS ON WEST POINT MILITARY RESERVATION, CTC 2ND AVN DET OPSO, O845-567-1209, C845-372-3349.
A110-23MILITARY: ALL MIL ACFT OPR, BASH PHASE II PERIOD (1 APR-30 MAY & 1 AUG-30 NOV) BIRD WATCH COND SEVERE (TKOF AND LDGS PROH UNLESS GREATER EMERG AND/OR IMMED OPERATIONAL NECESSITY EXISTS. LCL AND TACTICAL TRNG PROH) MODERATE (MULTIPLE APCHS PROH A DEPARTURE AND FULL STOP ALLOWED IF RTE AVOIDS BIRDS ACT.)
A110-24MILITARY: AFLD MGR DOES NOT ISSUE OR STORE COMSEC FOR TRAN CREWS. TMPRY STOR OF CLASSIFIED MATERIALS UP TO SECRET AT COMD POST.
A110-26TWY C BTN TWY B & TWY F NOT VISIBLE FM TWR.
A110-29TWY L CLSD EXC 20 MIN PPR. TWY L APRON FOLLOW ME VEHICLE REQUIRED. CTC ARPT OPNS 845-838-8237.
A110-3BIRDS & DEER ON & INVOF ARPT.
A110-30FUEL: A++ AVBL.
A110-31MILITARY: ADVSY FOR TRAN AIRCREW - NSTD WHITE VEH PARKING BOXES AND C-17 WING-TIP GUIDE LINES PAINTED ON ANG RAMP.
A110-32MILITARY: COMD POST OPR 1000-0400++, DSN 636-2286.
A110-33ALL SFCS. WORK IN PROGRESS GRASS CUTTING CONDUCTED APR-OCT.
A110-34TXL C NOT VSB TO TWR FOR ACFT PUSHBACK FM PAX TRML; CTC GND FREQ FOR PUSHBACK ONTO TXL C.
A110-4NO JET TRNG 2300 TO 0700 DLY.
A110-5HUDSON VALLEY RGNL LCTD 3.3 NM SW IGN VORTAC; DO NOT MISTAKE FOR STEWART INTL.
A110-7EXTSV GLDR ACT 8 MI E OF HUO VORTAC IN A 5-MI RADIUS.
A24LNDG FEE PER 1000 LBS. CERTIFICATED MAX TOG.
A30-H1HELIPAD LCTD INTXN TWYS B & C EAST OF TWY C.
A39-09/27PCR VALUE: 733/F/B/X/T
A39-16/34PCR VALUE: 733/F/B/X/T
A42-16_MARKMILITARY ASSAULT LANDING ZONE & BASIC MKGS WITH AIMING POINTS.
A42-34_MARKMILITARY ASSAULT LANDING ZONE & BASIC MKGS WITH AIMING POINTS.
A43-16PAPI UNUSBL BYD 5 DEGS LEFT OF CNTRLN.
A49-09ALSF-2 SFL U/S.
A57-09APCH SLP 50:1 TO DTHR.
A57-27APCH SLP 46:1 TO DTHR.
A58-16+3 FT GND 140 FT FM RWY END 240 FT L.
E147TPA: 709 FT AGL HEL, 1009 FT AGL RECIPROCATING ENG, 2009 FT AGL TURBOPROP/JET.
NEW YORK STEWART INTL (ICAO: KSWF, IATA: SWF) is a public airport located in NEW YORK, NY, US.
