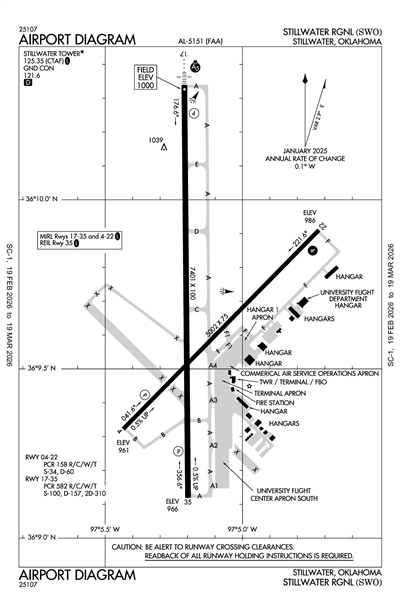

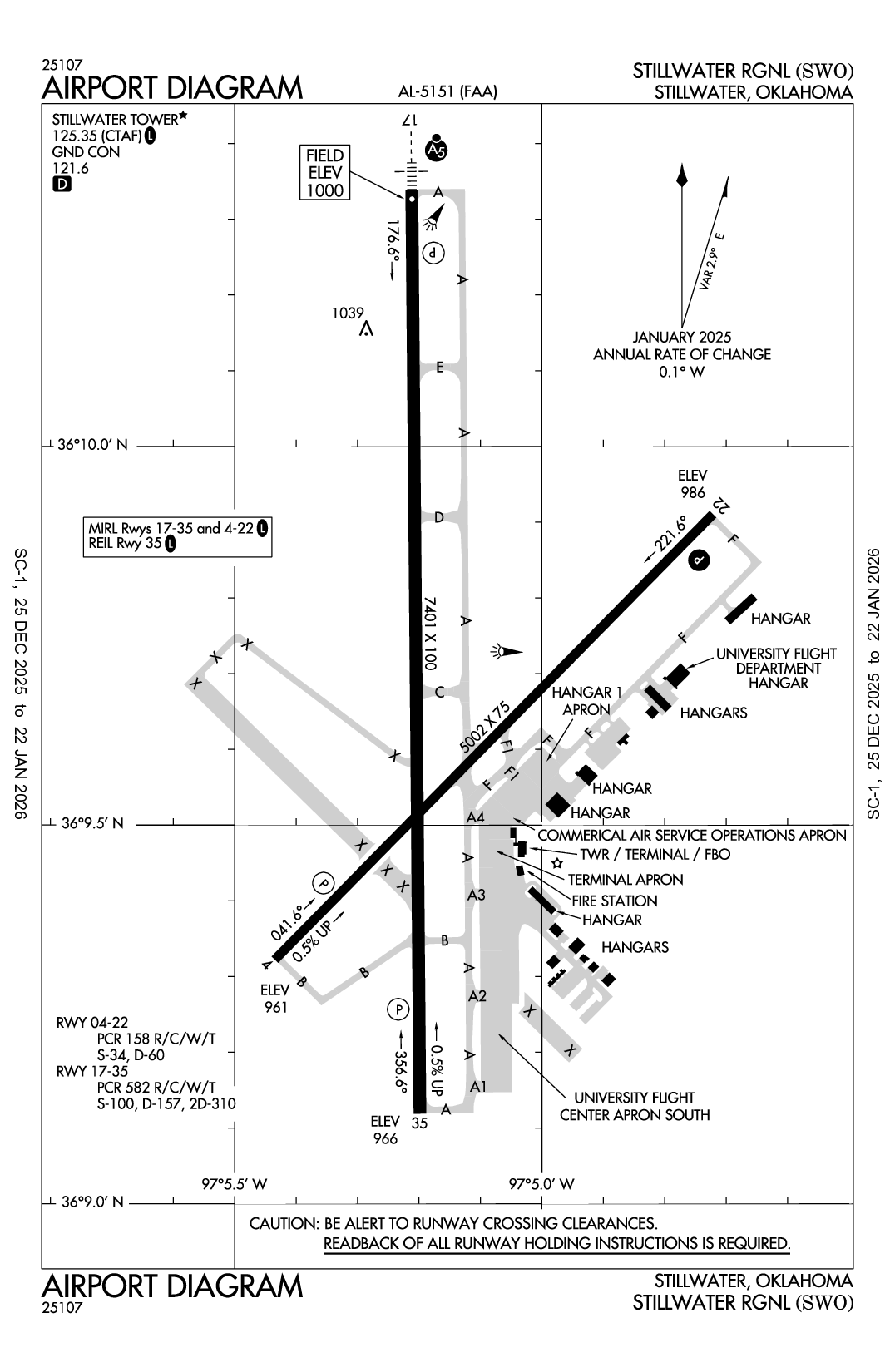

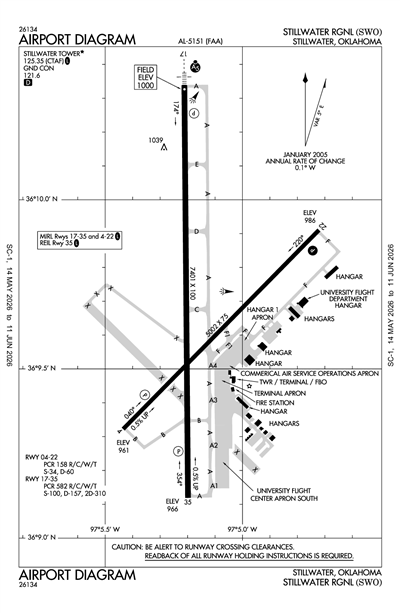

STILLWATER RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSWO
ICAO KSWOIATA SWOLocal SWO
STILLWATER RGNL
PublicPUB

3 miles NW of STILLWATER, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 09' 41"N 97° 05' 09"W
Elevation
1000' MSL
Pattern Alt
1800' MSL
Mag Variation
3°E
Declination
5°E
Fuel
JET A, 100LL
FSS
MC ALESTER (MLC)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
8/6/26-9/3/26
KSWO VFR
8:53 AM CDT
Clear
10sm
75°F
68°F
30.08"Hg
070° 6kts
AO2 SLP172 T02390200 $
METAR KSWO 231353Z 07006KT 10SM CLR 24/20 A3008 RMK AO2 SLP172 T02390200 $
+ Add Your Business

KSWO FBOs

Promote Listing
Stillwater Flight Center
UNICOM: 122.95
Phone: (405) 624-5463
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 7/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.30 6.56
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.725
(405) 743-8150

Common

CTAF 125.35
ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 22; MIRL RWY 04/22 & 17/35 - CTAF. MIRL RWY 17/35 PRESET LOW INTST; INCR INTST - CTAF.
UNICOM 122.95
FOR GA TSNT PRKG ON HANGAR 1 RAMP CTC FBO ON UNICOM OR FONE 405-624-5463.

Ground

STILLWATER GROUND 121.6
0800-2200

Tower

STILLWATER TOWER 125.35
0800-2200

Center

KANSAS CITY CENTER 127.8
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 127.8/319.1 (PONCA CITY RCAG).

Flight Service

Flight Service 122.3
(MLC)

Terminal Area Forecast

KSWO
Sun, 8/23 6:20 AM CDT
Sun, 8/23 7:00 AM CDT - Mon, 8/24 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Broken 25,000'
6sm
070° 6kts
VFR
10:00 AM CDT - 8:00 PM CDT
Scattered 25,000'
Scattered 15,000'
6sm
120° 12kts
VFR
8:00 PM CDT - 7:00 AM CDT
Broken 25,000'
Scattered 10,000'
6sm
080° 9kts
MVFR
1:00 AM CDT - 5:00 AM CDT
Thunderstorm and Rain
Broken 10,000'
Broken 6,000'
4sm
Calm
TAF KSWO 231120Z 2312/2412 07006KT P6SM BKN250
   FM231500 12012KT P6SM SCT150 SCT250
   FM240100 08009KT P6SM SCT100 BKN250
   PROB30 2406/2410 4SM TSRA BKN060CB BKN100
KSWO
EffectiveExpiresCategoryNOTAM
Domestic
8/23/26
1139Z
8/23/26
1140Z
!SWO 08/035 SWO AD AP WINDCONE PRI U/S 2608231139-2608231140
8/23/26
0030Z
8/23/26
1300Z
Runway!SWO 08/034 SWO RWY 04/22 CLSD 2608230030-2608231300
8/22/26
1808Z
8/26/26
1700Z
Runway!SWO 08/033 SWO RWY 04/22 REDL U/S 2608221808-2608261700
8/22/26
1702Z
9/6/26
2359Z
!SWO 08/032 SWO OBST TOWER LGT (ASN 2023-ASW-4933-OE) 361304N0970331W (3.6NM NNE SWO) 1269FT (265FT AGL) U/S 2608221702-2609062359
8/22/26
1400Z
8/29/26
1400Z
!SWO 08/031 SWO AD AP WINDCONE PRIMARY U/S 2608221400-2608291400
8/22/26
1138Z
12/20/26
1138Z
!SWO 08/028 SWO OBST TOWER LGT (ASR 1011820) 355915.40N0970101.50W (10.9NM SSE SWO) 1355.6FT (411.7FT AGL) U/S 2608221138-2612201138
8/22/26
0942Z
8/23/26
0942Z
!SWO 08/027 SWO APRON ALL FICON WET OBS AT 2608220942. 2608220942-2608230942
8/20/26
0155Z
9/4/26
0055Z
!SWO 08/023 SWO OBST TOWER LGT (ASR 1055839) 361629.00N0970256.00W (7.0NM NNE SWO) 1322.2FT (345.1FT AGL) U/S 2608200155-2609040055
8/11/26
1727Z
!SWO 08/012 SWO NAV ILS RWY 17 OM U/S 2608111727-2609142000EST
8/11/26
1719Z
2/11/27
2000Z
!SWO 08/011 SWO COM REMOTE COM OUTLET 122.3 U/S 2608111719-2702112000
8/10/26
0308Z
12/8/26
0308Z
!SWO 08/009 SWO OBST TOWER LGT (ASR 1010981) 360721.00N0965843.00W (5.7NM ESE SWO) 1462.6FT (497.7FT AGL) U/S 2608100308-2612080308
8/8/26
0318Z
9/22/26
0317Z
!SWO 08/007 SWO OBST TOWER LGT (ASR 1015926) 361259.80N0970310.20W (3.7NM NNE SWO) 1414.4FT (348.1FT AGL) U/S 2608080318-2609220317
7/29/26
0433Z
11/26/26
0433Z
!SWO 07/028 SWO OBST TOWER LGT (ASR 1010224) 360630.40N0971147.10W (6.2NM WSW SWO) 2063.0FT (1033.1FT AGL) U/S 2607290433-2611260433
7/15/26
2319Z
9/15/26
2359Z
!SWO 07/016 SWO OBST TOWER LGT (ASR 1237699) 361648.00N0970402.00W (7.2NM NE SWO) 1266.7FT (259.8FT AGL) U/S 2607152319-2609152359
6/1/26
1635Z
9/29/26
1635Z
!SWO 06/002 SWO OBST TOWER LGT (ASR 1062858) 360700.90N0971757.00W (10.7NM WSW SWO) 1298.9FT (209.0FT AGL) U/S 2606011635-2609291635
5/13/26
1125Z
5/13/27
0126Z
!SWO 05/016 SWO AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF 361340.70N0972130.40W (10.2NM SSW F22) SFC-300FT AGL DLY SR-SS 2605131125-2705130126
FDC
6/17/26
1839Z
!FDC 6/9032 SWO IAP STILLWATER RGNL, STILLWATER, OK.
VOR/DME RWY 35, AMDT 1B...
MISSED APPROACH: CLIMB TO 2700 DIRECT SWO VOR/DME AND HOLD.
2606171839-2806171839EST
6/17/26
1839Z
!FDC 6/9031 SWO IAP STILLWATER RGNL, STILLWATER, OK.
VOR RWY 17, AMDT 14A...
MISSED APPROACH: CLIMBING RIGHT TURN TO 2700 DIRECT SWO VOR/DME AND HOLD.
2606171839-2806171839EST
4/21/26
2010Z
!FDC 6/4924 SWO IAP STILLWATER RGNL, STILLWATER, OK. VOR RWY 17, AMDT 14A... S-17 CAT C VISIBILITY 7/8. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PNC ALTIMETER SETTING AND INCREASE ALL MDAS 80 FEET AND S-17 VISIBILITY CAT C 1/8 SM AND CIRCLING VISIBILITY CAT D 1/2 SM. CHANGE VDP NA NOTE TO READ: VDP NA WHEN USING PNC ALTIMETER SETTING. CHANGE HELICOPTER VISIBILITY REDUCTION NOTE TO READ: RWY 17 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. CHANGE FOR INOPERATIVE MALSR NOTE TO READ: FOR INOPERATIVE ALS, INCREASE S-17 CATS A/B VISIBILITY TO 1 SM AND S-17 CAT D TO 1 3/8 SM. THIS IS VOR RWY 17, AMDT 14B. 2604212010-PERM
Yes
0800-2200
AFT HR FUEL - 405-377-5326.
CITY OF STILLWATER
723 SOUTH LEWIS
STILLWATER, OK 74074
Phone: 405-372-0025
KELLIE REED
3304 N AIRPORT INDUSTRIAL ACCESS RD
STILLWATER, OK 74075
Phone: 405-533-8425
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
SWO
--
ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 22; MIRL RWY 04/22 & 17/35 - CTAF. MIRL RWY 17/35 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

5002 ft. x 75 ft.
ASPH
Good
NONE
MED

34,000lbs
60,000lbs
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 36° 09' 19"N 36° 09' 55"N
Longitude 97° 05' 26"W 97° 04' 43"W
Elevation 961' 986'
Threshold Crossing Height 35 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

7401 ft. x 100 ft.
CONC
Good
GRVD
MED

100,000lbs
157,000lbs
310,000lbs
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 10' 20"N 36° 09' 07"N
Longitude 97° 05' 13"W 97° 05' 12"W
Elevation 1,000' 966'
Threshold Crossing Height 50 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-10STUDENT OPS & BIRDS ON & INVOF ARPT.
A110-11ALL RAMPS UNCONTROLLED.
A110-12AFT HRS FUEL AVBL WITH PPR; CTC 405-624-5463.
A110-13FOR GA TSNT PRKG ON HANGAR 1 RAMP CTC FBO ON UNICOM OR FONE 405-624-5463.
A110-14OPNS ABV PCR VALUE BY PPR.
A110-6ARFF INDEX B MAINTAINED; ARFF INDEX C PPR.
A110-7PTN OF TWY F NORTH OF T-HNGR 2 NOT VSBL FROM ATCT.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
A17-M1AFT HR FUEL - 405-377-5326.
A2624 HRS PPR FOR UNSKED ACFT OPS WITH MORE THAN 9 PAX CALL AMGR 405-533-2222.
A35-17/35STRENGTHS BASED ON RESTRICTED OPS.
A39-04/22PCR VALUE: 158/R/C/W/T
A39-17/35PCR VALUE: 582/R/C/W/T
A43-04UNUSBL BYD 9 DEGS RIGHT OF CNTRLN.
A43-17UNUSBL BYD 9 DEGS LEFT & RIGHT OF CNTRLN.
A43-35UNUSBL BYD 9 DEGS LEFT & 8 DEGS RIGHT OF CNTRLN.
A81-APTACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 22; MIRL RWY 04/22 & 17/35 - CTAF. MIRL RWY 17/35 PRESET LOW INTST; INCR INTST - CTAF.
E111PRE DATES THE ACT.
E147TPA LGT ACFT 800 FT AGL, TURBO PROPS/JETS 1500 FT AGL.
STILLWATER RGNL (ICAO: KSWO, IATA: SWO) is a public airport located in STILLWATER, OK, US.
