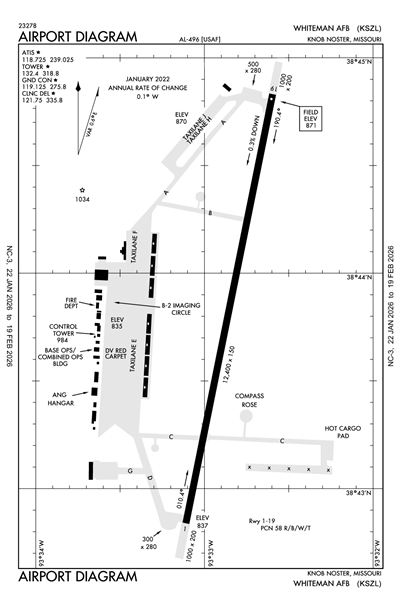

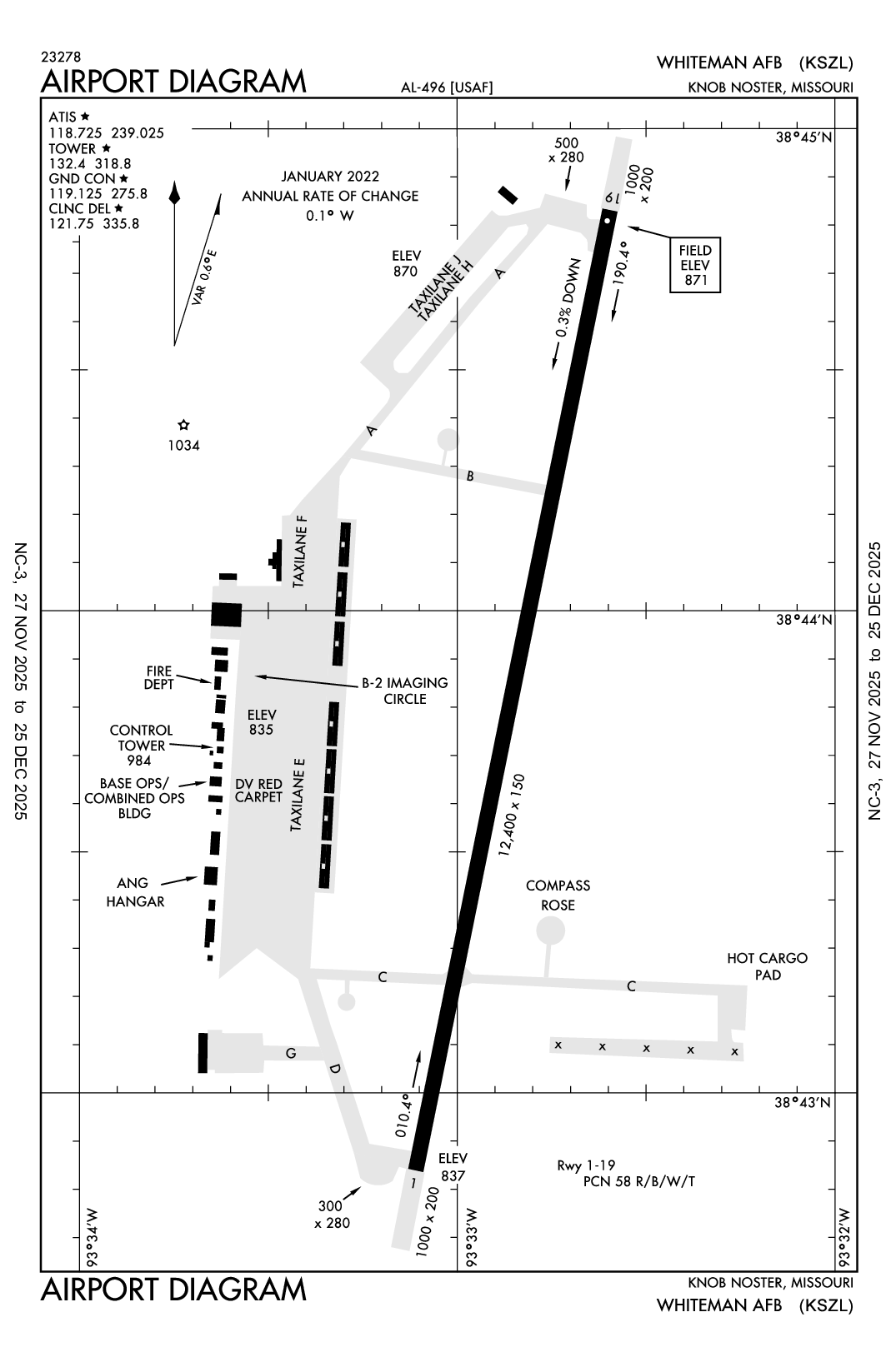

WHITEMAN AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSZL
ICAO KSZLIATA SZLLocal SZL
WHITEMAN AFB
PrivatePVT

2 miles S of KNOB NOSTER, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 43' 49"N 93° 32' 52"W
Elevation
871' MSL
Pattern Alt
1871' MSL
Mag Variation
1°E
Declination
1°E
Fuel
None Listed
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
5/14/26-6/11/26
KSZL VFR
8:55 PM CDT
Clear
10sm
69°F
46°F
29.84"Hg
120° 4kts
AO2A SLP102 T02030076 $
METAR KSZL 150155Z 12004KT 10SM CLR 20/08 A2984 RMK AO2A SLP102 T02030076 $
+ Add Your Business

KSZL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 118.725
Hours: OPR 24 HR FM MON 1300 THRU FRI 0500Z++; SAT-SUN 1400-2300Z++; CLSD HOL. SEE NOTAMS FOR MOST UP TO DATE OPR HR.

Clearance

Clearance Delivery 121.75

Ground

WHITEMAN GROUND 119.125
24, CLSD HOL.

Tower

WHITEMAN TOWER 132.4
24, CLSD HOL.

Approach

WHITEMAN APPROACH 127.45

Departure

WHITEMAN DEPARTURE 125.925

Center

WHITEMAN CENTER 135.575
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 135.575/323.15 (KNOB NOSTER RCAG) WHEN APCH CTL CLSD.

Emergency

Emergency 121.5

Military

ARNG OPS 41.0
ARNG OPS 49.65
ARNG OPS 139.0

Terminal Area Forecast

KSZL
Thu, 5/14 10:00 PM CDT
Thu, 5/14 10:00 PM CDT - Sat, 5/16 4:00 AM CDT
VFR
10:00 PM CDT - 11:00 PM CDT
Broken 18,000'
Broken 8,000'
6sm
29.82"Hg
170° 12kts
VFR
Becoming 11:00 PM CDT - 2:00 AM CDT
Broken 7,000'
6sm
29.79"Hg
160° 12kts
MVFR
Temporary 12:00 AM CDT - 2:00 AM CDT
Light Showers and Rain
No Clouds
3.73sm
Calm
VFR
Becoming 2:00 AM CDT - 8:00 AM CDT
Few 6,000'
6sm
29.79"Hg
170° 12kts
VFR
Becoming 8:00 AM CDT - 4:00 AM CDT
Few 20,000'
6sm
29.73"Hg
200° 10kts
Gusts 20kts
TAF KSZL 150300Z 1503/1609 17012KT 9999 BKN080 BKN180 621307 QNH2982INS
   BECMG 1504/1505 16012KT 9999 BKN070 WS020/18042KT 621309 QNH2979INS
   TEMPO 1505/1507 6000 -SHRA
   BECMG 1507/1508 17012KT 9999 NSW FEW060 WS020/20042KT QNH2979INS
   BECMG 1513/1514 20010G20KT 9999 FEW200 QNH2972INS TX31/1521Z TN18/1511Z
KSZL
EffectiveExpiresCategoryNOTAM
Military
5/14/26
2047Z
5/17/26
2047Z
M0752/26 NOTAMC M0747/26
5/14/26
1814Z
5/17/26
1814Z
M0750/26 NOTAMC M0631/26
5/14/26
1814Z
7/31/26
2359Z
ZULU TRANSITION CLOSED.
5/14/26
1650Z
5/17/26
1650Z
M0749/26 NOTAMC M0748/26
5/14/26
0800Z
5/15/26
1600Z
UNLIT WATER TOWER LOCATED AT N 38 43 14.9167 W 93 34 14.3566
5/14/26
0800Z
5/15/26
1600Z
CRATE ERECTED AT N 38 43 14.9167 W 93 34 14.3566, MAX HEIGHT 225 FEET AGL/1096 FEET MSL
5/14/26
0132Z
5/17/26
0132Z
M0746/26 NOTAMC M0743/26
5/14/26
0115Z
5/17/26
0115Z
M0745/26 NOTAMC M0744/26
5/13/26
2101Z
5/16/26
2101Z
M0742/26 NOTAMC M0739/26
5/13/26
1635Z
5/16/26
1635Z
M0741/26 NOTAMC M0740/26
5/12/26
1922Z
5/15/26
1922Z
M0737/26 NOTAMC M0736/26
5/11/26
1817Z
5/14/26
1817Z
M0733/26 NOTAMC M0732/26
5/11/26
1145Z
7/21/26
2359Z
USE CAUTION: 164 FT TOWER BEING CONSTRUCTED 1.42 MILES EAST OF RUNWAY 19/01 AT LAT/LONG 38-44-20.81N/93-31-07.56W.
5/11/26
1115Z
5/21/26
2359Z
MULTIPLE LOW-PROFILE BARRICADES UNLIT ON THE ZULU TRANSITION AND THE TLN ECHO TO TLN FOXTROT TRANSITION.
5/11/26
1114Z
5/21/26
2359Z
TXL ECHO TO TXL FOXTROT TRANSITION CLOSED.
5/1/26
1947Z
7/21/26
2359Z
USE CAUTION: NON-WEIGHT BEARING 1/4 INCH STEEL PLATES LOCATED 53 FT FROM TLN ECHOS CENTERLINE. LOCATED ON THE SHOULDERS ABEAM DOCKS 10, 12, AND 13.
4/29/26
1132Z
5/31/26
2359Z
MULTIPLE LOW-PROFILE BARRICADES UNLIT ON TXL FOXTROT
4/29/26
1130Z
7/27/26
2359Z
USE CAUTION: ALL TAXIWAY MARKINGS CHIPPED AND FADED.
4/29/26
1128Z
7/27/26
2359Z
ONE OBSTACLE LIGHT ON NORTH GLIDESLOPE UNSERVICEABLE
4/29/26
1121Z
7/27/26
2359Z
AIRFIELD MANAGEMENT PILOT TO DISPATCH UHF 372.2 OUT OF SERVICE. CONTACT TOWER ON 318.8/132.4 FOR ANY REQUESTS.
4/24/26
1142Z
6/27/26
2359Z
USE CAUTION: EQUIPMENT STAGED EAST OF TXL F ABEAM NOVEMBER & PAPA ROWS. EQUIPMENT IS NOT LIGHTED OR MARKED FOR NIGHT OPERATIONS. EQUIPMENT TYPE: 2 EXCAVATORS & 2 WATER TRUCKS. MAX HEIGHT OF EQUIPMENT :10FT.
4/24/26
1140Z
6/27/26
2359Z
EQUIPMENT ON TAXILANE FOXTROT ABEAM NOVEMBER AND PAPA ROW. MEN WORKING DAILY MONDAY THROUGH FRIDAY FROM 0700L TO 1700L.
4/8/26
1417Z
6/8/26
2359Z
SZL SVC ASR APPROACHES ONLY AVAILABLE BETWEEN 0800L TO 1700L MONDAY THROUGH FRIDAY.
4/1/26
0241Z
6/29/26
2359Z
AIRCRAFT RESCUE AND FIRE FIGHTING (ARFF) CAPABILITIES AT PERMANENT CRITICAL LEVEL OF SERVICE FOR NFPA 403 CATEGORY 9 (E-4, KC-10, VC-25 (747)) AND CATEGORY 10 (C-5) AIRCRAFT.
3/31/26
1029Z
6/26/26
2359Z
INTERIOR/EXTERIOR FIRE SUPPRESSION CAPABILITY IS DOWNGRADED TO REDUCED LEVEL OF SERVICE FOR CATEGORY 8 AIRCRAFT AND LARGER. DURING REDUCED LEVEL OF SERVICE, AVAILABLE WATER IS EQUAL TO OR GREATER THAN Q1 + Q2 GALLONAGE FOR THE AIRCRAFT. ARFF RESPONSE OBJECTIVES ARE EXPECTED TO BE ACCOMPLISHED FOR INITIAL CONTROL OF THE POOLFIRE AND FULL EXTINGUISHMENT OF THE POOL FIRE. AIRCREW RESCUE IS EXPECTED TO BE PERFORMED; HOWEVER INTERIOR FIREFIGHTING MAY BE LIMITED DEPENDING ON THE AMOUNT OF WATER AVAILABLE. OBJECTIVES ARE EXPECTED TO BE PERFORMED BASED ON INCIDENT PRIORITIES. AVAILABE GALLONAGE 7500.
3/30/26
2318Z
6/27/26
1809Z
LOW PROFILE BARRICADES LOCATED ON TAXILANE FOXTROT ABEAM NOVEMBER AND PAPA ROW.
3/30/26
1814Z
6/27/26
1809Z
TAXILANE ECHO RESTRICTED TO AIRCRAFT WITH WINGSPAN OF 218 FEET OR LESS SOUTH OF DOCK 14.
3/30/26
1810Z
6/27/26
1809Z
TXL FOXTROT ABEAM NOVEMBER AND PAPA ROW CLOSED.
3/26/26
0207Z
5/29/26
2359Z
MULTIPLE OBSTUCTION LIGHTS ON AFLD UNSERVICEABLE. OBSTACLE LIGHTS ON BUILDING 52 & BUILDING 91 UNSERVICEABLE. OBSTACLE LIGHT ON COMMUNICATIONS TOWER IS WHITE, NOT RED. OBSTACLE LIGHT ON TOP OF BALLPARK LIGHT POLE ADJACENT TO BUILDING 4 UNSERVICEABLE. FUEL TANK 3 OBSTACLE LIGHTS ON COORDINATE 38.7306239,-93.5530942 AND FUEL TANK 4 OBSTACLE LIGHTS ON COORDINATE 38.7302267,-93.55311 UNSERVICEABLE.
Yes
ALL
USAF
WHITEMAN AFB
SEDALIA, MO 65301
BASE COMMANDER
WHITEMAN AFB
SEDALIA, MO 65301
Phone: 660-687-6185
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Cargo Handling

Runway 01/19

12400 ft. x 150 ft.
CONC
Good
NONE
HIGH
58/R/B/W/T
--
--
--
--
  Runway 01 Runway 19
True Heading 11°191°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 42' 49"N 38° 44' 49"N
Longitude 93° 33' 07"W 93° 32' 37"W
Elevation 837' 870'
Threshold Crossing Height 51 ft. AGL 45 ft. AGL
Visual Glide Path Angle 2.86° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-23RWY LOAD CAPACITY: TRT585
A110-25JASU: 2(A/M32A-86D) 1(AM32-95)
A110-26FUEL: A, A++, A++100.
A110-27FLUID: LPOX
A110-28OIL: SOAP
A110-29TRAN ALERT: OPR 1400-0400Z++ MON-THU; 1400-0300Z++ FRI; 1400-2300Z++ WKEND, CLSD HOL. LTD DE-ICING OF TRAN ACFT AVBL. FLEET SVC NOT AVBL.
A110-31RSTD: PPR FOR ALL TRAN ACFT, RQR APVL FR AFLD MGMT, DSN 975-3101 C660-687-3101, 48 HR PRIOR. ISSUED PPR VAILD 1 HR PRIOR/AFTER ETA. LATE/EARLY ARR/DEP MUST BE RE-COORD. B52 OPS RQR COORD WITH AFLD MGMT. PPR FOR ALL TRAN ACFT, RQR APVL FR AFLD MGMT, DSN 975-3101 C660-687-3101, 48 HR PRIOR. ISSUED PPR VAILD 1 HR PRIOR/AFTER ETA. LATE/EARLY ARR/DEP MUST BE RE-COORD. B52 OPS RQR COORD WITH AFLD MGMT. B52 RWY ACCESS LTD TO TWY D. NO OVFT WEAPONS STOR AREA LCTD ESE OF RWY AND CITY OF KNOB NOSTER LCTD 1.5 NM NNW OF FLD.
A110-32RSTD: ACFT WITH VIP CTC AFLD MGMT 30 MIN PRIOR TO LDG. CTC TWR 10 MIN PRIOR TO LDG.
A110-33CAUTION: 112 FT AGL TWR 4000 FT DIRECTLY WEST ABEAM RWY O1 THLD. POSSIBLE ILLUSION OF BEING HI ON FINAL DUR NGT VFR APCH TO RWY 01.
A110-34CAUTION: LCL ACFT FLY 300 KT IN OVERHEAD PAT. BIRD WATCH COND CHG RAPIDLY. BIRD AIRCRAFT STRIKE HAZARD (BASH) DISPERSAL METHODS USED INCL PYROTECHNICS AND PROPANE CANNON. CTC ATIS, TWR OR PTD FOR CURRENT BIRD HAZ INFO.
A110-35TFC PAT: COPTER 1400 FT; RECTANGULAR 1900 FT; OVERHEAD 2400 FT.
A110-38MISC: AFLD MGMT DSN 975-3101, C660-687-3101, FAX 660-687-2343.
A110-39ARNG: OPR 1300-2100Z++ MON; 1300-0400Z++ TUE-THURS; 1300-2100Z++ FRI; CLSD WKEND AND HOL. SEE NOTAMS FOR MOST UP TO DATE OPR HR, DSN 975-5768.
A110-41TRAN ALERT: TRANSIENT SVC AVBL FOR F16 ACFT, EXCEPT THE SENSOR CHIP INSPECTION UNAVBL.
A110-42MISC: WX OBS VIS RESTRICTIONS: DIRECT VIEW OF THE RY IS BLOCKED BY THE B-2 MAINT DOCKS. VIS IS FURTHER RESTRICTED BY BLDG 33 N ON W SIDE OF FLT LINE.
A110-43CAUTION: PHASE I REPRESENTS NORMAL BIRD ACTIVITY OUTSIDE MIGRATORY SEASON. PHASE II REPRESENTS HEAVY BIRD ACTIVITY; NORMALLY ASSOCIATED WITH MIGRATORY SEASON. THE PHASE II TIMEFRAME AT WHITEMAN IS FM 1 APR - 30 MAY (SPRING MIGTRATION) & 15 SEP - 30 NOV (FALL MIGRATION).
A110-4420 FT POLE 185 FT SOUTH OF TWY 'C' EAST.
A110-45MISC: DUR NOTAM SNOW REMOVAL OPR OR FCST WX EVENTS CTC AFLD MGMT DSN 975-3101 C660-687-3101 FOR MOST CURRENT AFLD STATUS.
A110-46MISC: WHEN AFLD CLSD RSC/RCR UNAVBL.
A110-48WHEN APP/DEP CLSD CTC GND.
A110-49MISC: ARFF CAPABILITIES AT PERM REDUCED LVL OF SVC FOR NFPA 403 CAT 9 (E-4, KC-10, VC-25 (747)) & CAT 10 (C-5) ACFT.
A110-51WX SVC AVBL H24 EXC DUR APVD HOL DSN 975-3062, C660-687-3062. H24 SBY AVBL DUR APVD HOL AND CLOSURE. WX OPS AIRCREWS CAN RCV WX BRFG FR OPS DESK DSN 975-3062, C660-687-3062. AFLD WX MNT BY AN/FMQ-19 ASOS AND AUGMENTED BY HUMAN OBSERVER ONLY DUR INDCD HR OF OPR.
A110-52RSTD: PPRS WILL NOT BE GIVEN MORE THAN 7 DAYS PRIOR.
A110-53CAUTION: FUEL TANKS BTN HANGER 6 AND HANGER 7 DO NOT HAVE OBSTRUCTION LIGHTS
A110-54EXTRMLY LTD DE-ICG CPBLTYS. COORD DE-ICG REQ THRU TSNT MAINT. DE-ICG TRUCK BOOM UNA TO RCH C-5 OR C-17 TAIL. C-5 AND C-17 AIRCREWS MUST BRING DE-ICG TAIL ADAPTER TO BE ABLE TO DE-ICE TAIL OF ACFT.
A110-55PMSV UNAVBL. ACFT IN NEED OF WX SUPPORT CTC 509 OSS/OSW VIA FONE PATCH 975-3061, C660-687-3061, OR 509 BW/CP 975-3778, C660-687-3778.
A110-56NO CNTRLN MRK ON COMPASS ROSE/ALTN HAZ CARGO PAD.
A110-57TACAN GCP TWY C E OF RWY UNUSE.
A110-58CAUTION - OBSTRUCTION LIGHT OUT OF SERVICE ON THE FOLLOWING FACILITIES: BUILDING 117, HARDSTAND 3 BALLPARK LIGHT FIXTURE, BUILDING 52, BUILDING 91, BALLPARK LIGHT FIXTURES ABEAM HANGAR 91, BUILDING 1155, BUILDING 1162, BUILDING 1163 AND THE A-10 SUNSHADES. OBSTRUCTION LIGHT ON COMMUNICATIONS TOWER IS WHITE AND NOT RED.
A30-01/19ADDL WT BRG CPTY: ST175 TDT800
A43-01RSTRD 5 DEGS LEFT OR RIGHT OF RWY CNTRLN.
E147TPA RECTANGULAR 1900 FT, COPTER 1400 FT, OVERHEAD 2400 FT.
WHITEMAN AFB (ICAO: KSZL, IATA: SZL) is a private airport located in KNOB NOSTER, MO, US.
