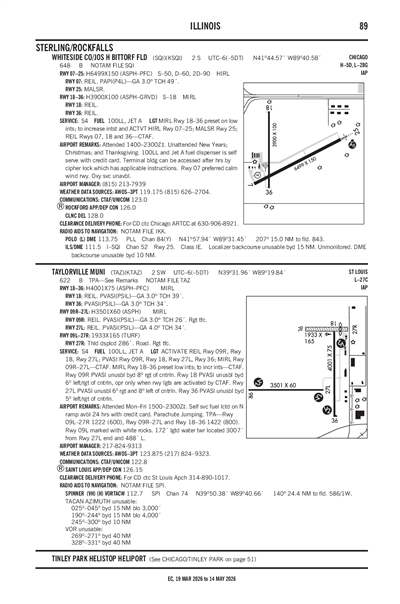

TAYLORVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTAZ
ICAO KTAZLocal TAZ
TAYLORVILLE MUNI
PublicPUB

2 miles SW of TAYLORVILLE, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 31' 57"N 89° 19' 51"W
Elevation
622' MSL
Pattern Alt
1622' MSL
Mag Variation
3°W
Declination
0°
Fuel
JET A, 100LL
FSS
SAINT LOUIS (STL)
Sectional
ST LOUIS
ARTCC
KANSAS CITY (ZKC)
Data Effective
4/16/26-5/14/26
KTAZ VFR
3:58 AM CDT
Clear
10sm
48°F
46°F
29.87"Hg
360° 3kts
AO2
METAR KTAZ 250858Z AUTO 36003KT 10SM CLR 09/08 A2987 RMK AO2
+ Add Your Business

KTAZ FBOs

Promote Listing
Taylorville Municipal Airport
UNICOM: 122.8
Phone: (217) 824-9313
Other: (217) 824-2101
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.00 4.25
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 123.875
(217) 824-9323

Common

CTAF 122.8
ACVT REIL RWY 09R, 18 & 27L; PVASI RWY 09R, 18, 27L & 36; MIRL RWY 09R/27L - CTAF. MIRL RWY 18/36 PRE-SET LOW INTST TO INCR INTST - CTAF.
UNICOM 122.8

Approach

SAINT LOUIS APPROACH 126.15

Departure

SAINT LOUIS DEPARTURE 126.15

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSPI (25nm)
Sat, 4/25 12:20 AM CDT
Sat, 4/25 1:00 AM CDT - Sun, 4/26 1:00 AM CDT
VFR
1:00 AM CDT - 11:00 AM CDT
Scattered 25,000'
6sm
350° 6kts
VFR
11:00 AM CDT - 1:00 AM CDT
Few 25,000'
6sm
070° 7kts
TAF KSPI 250520Z 2506/2606 35006KT P6SM SCT250
   FM251600 07007KT P6SM FEW250
KTAZ
EffectiveExpiresCategoryNOTAM
Domestic
4/22/26
1108Z
6/6/26
1108Z
!TAZ 04/006 TAZ OBST TOWER LGT (ASN 2021-AGL-36082-OE) 392802N0893603W (13.1NM WSW TAZ) 1036FT (394FT AGL) U/S 2604221108-2606061108
3/28/26
0513Z
5/12/26
0603Z
!TAZ 03/005 TAZ OBST WIND TURBINE LGT (ASN 2023-WTE-5843-OE) 391754N0892153W (14.2NM S TAZ) 934FT (267FT AGL) U/S 2603280513-2605120603
1/30/26
0001Z
4/30/26
2359Z
!TAZ 01/006 TAZ AIRSPACE SEE ZKC 01/350 HIGH SPEED ACFT DLY SR-SS 2601300001-2604302359
12/5/25
1916Z
Runway!TAZ 12/022 TAZ RWY 36 PULSATING VASI U/S 2512051916-2604282111EST
12/5/25
1914Z
Runway!TAZ 12/021 TAZ RWY 18 RWY END ID LGT U/S 2512051914-2604282111EST
FDC
4/24/26
1742Z
!FDC 6/5631 TAZ IAP TAYLORVILLE MUNI, TAYLORVILLE, IL. RNAV (GPS) RWY 18, ORIG-C... LNAV CAT C VISIBILITY 1 3/8. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SPI ALTIMETER SETTING AND INCREASE ALL MDAS 80 FEET AND LNAV VISIBILITY CAT C 1/8 SM AND CIRCLING VISIBILITY CAT C 1/4 SM. CHART NOTE: VDP NA WHEN USING SPI ALTIMETER SETTING. THIS IS RNAV (GPS) RWY 18, ORIG-D. 2604241742-PERM
4/24/26
1742Z
!FDC 6/5630 TAZ IAP TAYLORVILLE MUNI, TAYLORVILLE, IL. RNAV (GPS) RWY 36, ORIG-B... DELETE NOTE WHEN VGSI INOP, CIRCLING RWY 18 NA AT NIGHT. DELETE NOTE LNAV MDA MINIMUMS NA AT NIGHT. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SPI ALTIMETER SETTING AND INCREASE ALL MDAS 80 FEET AND LNAV VISIBILITY CAT C 1/4 SM AND CIRCLING VISIBILITY CAT C 1/4 SM. CHART VDP AT 1.39 NM TO RW36. CHART NOTE: VDP NA WHEN USING SPI ALTIMETER SETTING. CHANGE RWY 36 HELICOPTER VISIBILITY REDUCTION NOTE TO READ: RWY 36 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. THIS IS RNAV (GPS) RWY 36, ORIG-C. 2604241742-PERM
2/5/26
1117Z
!FDC 6/0528 TAZ IAP TAYLORVILLE MUNI, TAYLORVILLE, IL.
RNAV (GPS) RWY 18, ORIG-B...
DELETE NOTE: DME/DME RNP 0.3-NA.
PBN REQUIREMENTS NOTE: RNP APCH - GPS.
CHART NOTE: CIRCLING NA TO RWYS 9L AND 27R.
DELETE NOTE: VISIBILITY REDUCTION BY HELICOPTERS NA.
34:1 IS CLEAR.
CHART VDP AT 1.33 NM TO RW18.
THIS IS RNAV (GPS) RWY 18, ORIG-C. 2602051117-PERM
No
MON-FRI 0900-1700
CITY OF TAYLORVILLE
CITY HALL-115 N. MAIN
TAYLORVILLE, IL 62568
Phone: 217-824-2101
ANDY GOODALL
1501 S. SPRESSER
TAYLORVILLE, IL 62568
Phone: 217-824-9313
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
TAZ
--
ACVT REIL RWY 09R, 18 & 27L; PVASI RWY 09R, 18, 27L & 36; MIRL RWY 09R/27L - CTAF. MIRL RWY 18/36 PRE-SET LOW INTST TO INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 09L/27R

1933 ft. x 165 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09L Runway 27R
True Heading 90°270°
Traffic Pattern Left Right
Markings NONE NONE
Markings Condition
Latitude 39° 32' 17"N 39° 32' 17"N
Longitude 89° 19' 56"W 89° 19' 31"W
Elevation 617' 613'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 09R/27L

3501 ft. x 60 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 09R Runway 27L
True Heading 90°270°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 39° 31' 47"N 39° 31' 47"N
Longitude 89° 20' 30"W 89° 19' 45"W
Elevation 616' 616'
Threshold Crossing Height 26 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

4001 ft. x 75 ft.
ASPH
Fair
PFC
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 32' 16"N 39° 31' 37"N
Longitude 89° 19' 39"W 89° 19' 38"W
Elevation 616' 620'
Threshold Crossing Height 39 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-2172 FT LGTD WATER TWR LCT 3007 FT FM RWY 27L END 488 FT L.
A110-5FOR CD CTC ST LOUIS APCH 314-890-1017.
A42-09L_MARKMKD WITH WHITE ROCKS.
A43-09RUNUSBL BYD 8 DEG RIGHT OF CNTRLN.
A43-18UNUSBL BYD 6 DEG LEFT & RIGHT OF CNTRLN. OPR ONLY WHEN RWY LGT ARE ACT BY CTAF.
A43-27LUNUSBL 6 DEG RIGHT & 8 DEG LEFT OF CNTRLN.
A43-36UNUSBL BYD 5 DEG LEFT & RIGHT OF CNTRLN.
A57-27RAPCH RATIO TO DSPLCD THLD 21:1 WHEN CONSIDERING 28 FT BLDG 592 FT 96 FT L OF CNTRLN.
A70-100LLSELF SVC FUEL LCTD ON N RAMP AVBL H24 WITH CREDIT CARD.
A81-APTACVT REIL RWY 09R, 18 & 27L; PVASI RWY 09R, 18, 27L & 36; MIRL RWY 09R/27L - CTAF. MIRL RWY 18/36 PRE-SET LOW INTST TO INCR INTST - CTAF.
E147TPA: RWY 09L/27R 600 FT AGL; RWY 09R/27L & RWY 18/36 800 FT AGL.
TAYLORVILLE MUNI (ICAO: KTAZ, IATA: TAZ) is a public airport located in TAYLORVILLE, IL, US.
