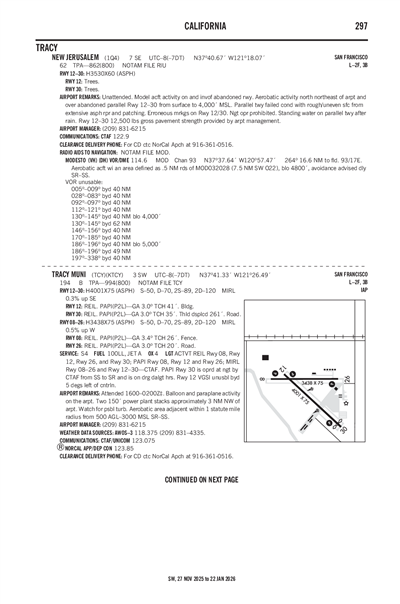

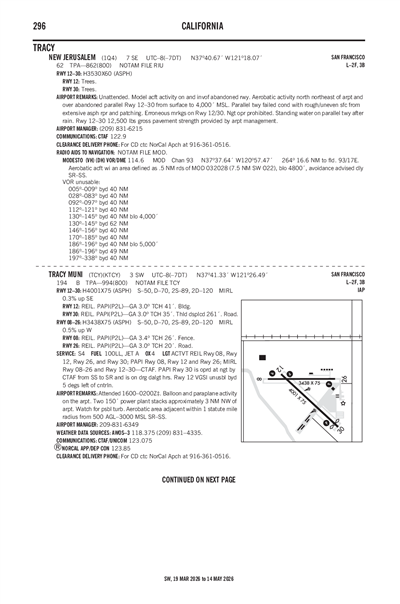

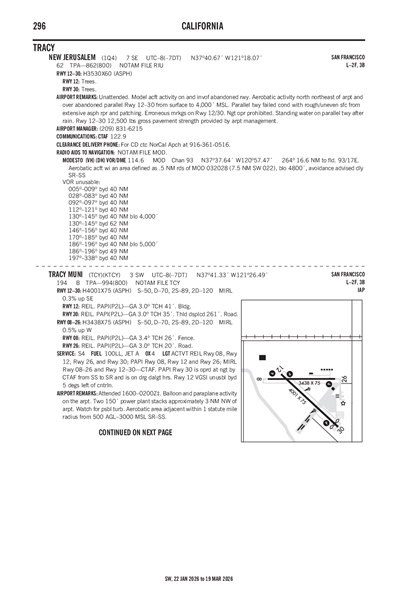

TRACY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTCY
ICAO KTCYLocal TCY
TRACY MUNI
PublicPUB

3 miles SW of TRACY, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 41' 20"N 121° 26' 30"W
Elevation
194' MSL
Pattern Alt
994' MSL
Mag Variation
13°E
Declination
15°E
Fuel
JET A, 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
3/19/26-4/16/26
KTCY VFR
5:25 PM PDT
Clear
10sm
82°F
52°F
29.90"Hg
270° 10kts
Gusts 15kts
A01
METAR KTCY 090025Z AUTO 27010G15KT 10SM CLR 28/11 A2990 RMK A01
+ Add Your Business

KTCY FBOs

Promote Listing
Tracy Municipal Airport
UNICOM: 123.075
Phone: (209) 831-6215
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/8
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.78 6.50
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.375
(209) 831-4335

Common

CTAF 123.075
ACTVT REIL RWY 08, 26, 12, & 30; PAPI RWY 08, 12 & 26; MIRL RWY 08/26 & 12/30 - CTAF. PAPI RWY 30 IS OPRD AT NGT BY CTAF FROM SS TO SR AND IS ON DRG DALGT HRS.
UNICOM 123.075

Approach

NORCAL APPROACH 123.85

Departure

NORCAL DEPARTURE 123.85

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KSCK (16nm)
Wed, 4/8 4:45 PM PDT
Wed, 4/8 5:00 PM PDT - Thu, 4/9 5:00 PM PDT
VFR
5:00 PM PDT - 2:00 AM PDT
Scattered 25,000'
6sm
300° 12kts
VFR
2:00 AM PDT - 12:00 PM PDT
Overcast 25,000'
6sm
310° 5kts
VFR
12:00 PM PDT - 5:00 PM PDT
Broken 10,000'
6sm
260° 6kts
TAF KSCK 082345Z 0900/0924 30012KT P6SM SCT250
   FM090900 31005KT P6SM OVC250
   FM091900 26006KT P6SM BKN100
KTCY
EffectiveExpiresCategoryNOTAM
Domestic
4/9/26
1700Z
4/9/26
2359Z
!TCY 04/002 TCY AIRSPACE AEROBATIC ACFT WI AN AREA DEFINED AS 2NM RADIUS OF 374106N1212541W (1.2NM ESE TCY) SFC-4500FT 2604091700-2604092359
3/12/26
0513Z
4/26/26
0501Z
!TCY 03/004 TCY OBST TOWER LGT (ASR UNKNOWN) 374330.07N1212418.11W (2.8NM NE TCY) 175FT (75FT AGL) U/S 2603120513-2604260501
2/16/26
1454Z
2/17/27
0145Z
!TCY 02/002 TCY AIRSPACE SEE MOD 02/013 PJE DLY SR-SS 2602161454-2702170145
12/9/25
1913Z
Runway!TCY 12/003 TCY RWY 26 PAPI U/S 2512091913-2605052111EST
12/9/25
1911Z
Runway!TCY 12/002 TCY RWY 12 PAPI U/S 2512091911-2605052111EST
FDC
6/27/25
1829Z
!FDC 5/0028 TCY IAP TRACY MUNI, TRACY, CA.
RNAV (GPS) RWY 12, AMDT 2B...
LNAV MDA 540/HAT 347 ALL CATS.
2506271829-2707061828EST
8/2/23
1650Z
!FDC 3/6940 TCY IAP TRACY MUNI, TRACY, CA.
RNAV (GPS) RWY 26, AMDT 1C...
LNAV/VNAV DA 504/HAT 318 ALL CATS. LNAV MDA 640/HAT454 ALL CATS. CIRCLING CAT A MDA 640/HAA 447.
2308021650-2608021650EST
No
0800-1800
CITY OF TRACY
333 CIVIC CENTER PLAZA
TRACY, CA 95376
Phone: (209) 831-6200
DAVID MURPHY
520 N. TRACY BLVD
TRACY, CA 95376
Phone: 209-831-6349
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
TCY
--
ACTVT REIL RWY 08, 26, 12, & 30; PAPI RWY 08, 12 & 26; MIRL RWY 08/26 & 12/30 - CTAF. PAPI RWY 30 IS OPRD AT NGT BY CTAF FROM SS TO SR AND IS ON DRG DALGT HRS.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Pilot Instruction
Aircraft Rental

Runway 08/26

3438 ft. x 75 ft.
ASPH
Good
NONE
MED

50,000lbs
70,000lbs
120,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 41' 26"N 37° 41' 26"N
Longitude 121° 26' 54"W 121° 26' 11"W
Elevation 190' 173'
Threshold Crossing Height 26 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3.4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 12/30

4001 ft. x 75 ft.
ASPH
Good
NONE
MED

50,000lbs
70,000lbs
120,000lbs
--
  Runway 12 Runway 30
True Heading 132°312°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 41' 28"N 37° 41' 02"N
Longitude 121° 26' 46"W 121° 26' 09"W
Elevation 181' 194'
Threshold Crossing Height 41 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1BALLOON AND PARAPLANE ACTIVITY ON THE AIRPORT.
A110-3AEROBATIC AREA ADJ/WI 1 SMR FROM 500 AGL - 3000 MSL SR-SS.
A110-5TWO 150 FT PWR PLANT STACKS APPROX 3 NM NW OF ARPT. WATCH FOR PSBL TURB.
A110-6FOR CD CTC NORCAL APCH AT 916-361-0516.
A43-12UNUSBL BYD 5 DEGS LEFT OF CNTRLN.
A81-APTACTVT REIL RWY 08, 26, 12, & 30; PAPI RWY 08, 12 & 26; MIRL RWY 08/26 & 12/30 - CTAF. PAPI RWY 30 IS OPRD AT NGT BY CTAF FROM SS TO SR AND IS ON DRG DALGT HRS.
TRACY MUNI (ICAO: KTCY, IATA: TCY) is a public airport located in TRACY, CA, US.
