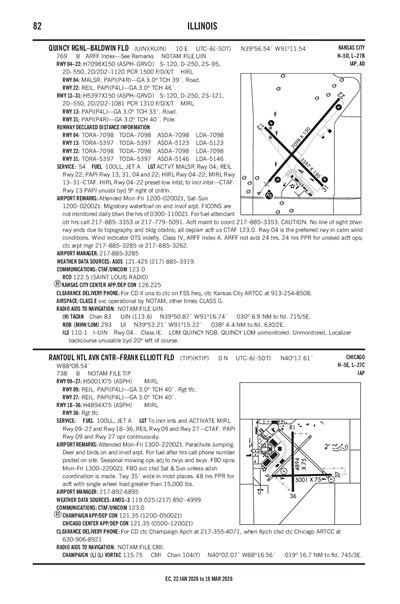

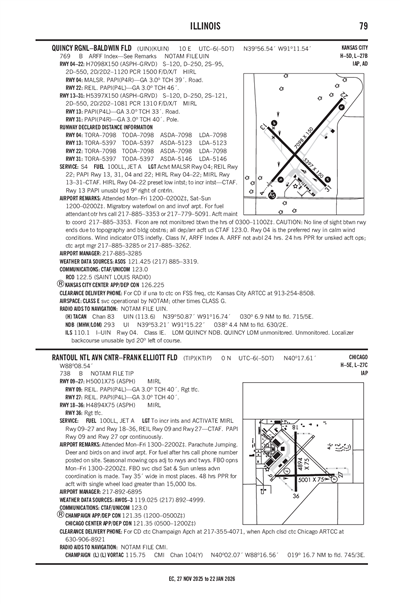

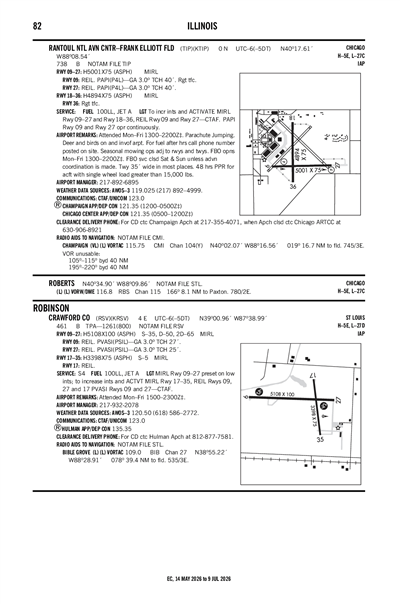

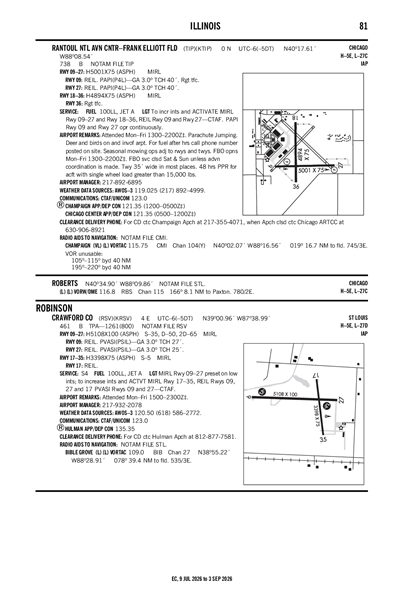

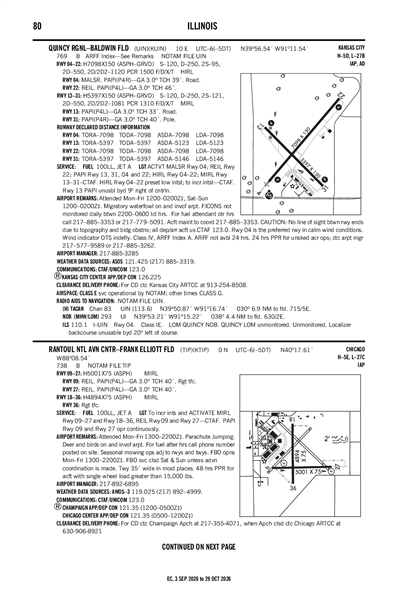

RANTOUL NTL AVN CNTR-FRANK ELLIOTT FLD - Airport Diagram

KTIP

ICAO KTIPLocal TIP

RANTOUL NTL AVN CNTR-FRANK ELLIOTT FLD

PublicPUB

0 miles N of RANTOUL, IL, US

View on Map

Status

Operational

Coordinates

40° 17' 37"N 88° 08' 33"W

Elevation

738' MSL

Pattern Alt

1738' MSL

Mag Variation

4°W

Declination

1°W

Fuel

JET A, 100LL

FSS

SAINT LOUIS (STL)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

10/29/26-11/26/26

KTIP VFR

6:15 AM CST RAW

Scattered 2,500'

Viz

7sm

Temp

37°F

Dew

37°F

Pres

29.84"Hg

Wind

310° 6kts

RMK

AO2 T00270026 TSNO

METAR KTIP 121215Z AUTO 31006KT 7SM SCT025 03/03 A2984 RMK AO2 T00270026 TSNO

Add Your Business

KTIP FBOs

Promote Listing

SummerSkyz

UNICOM: 123.0

Phone: (217) 239-6224

0 Reviews (Read | Sign In To Write)

Promote Listing

Rantoul National Aviation Center

UNICOM: 123.0

Phone: (217) 892-6895

Other: (217) 649-4558

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 11/4	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.89		6.69

Fuel Notes

Prices include tax
JET-A is premixed with Prist (FSII).

Fuel Hours

FBO is typically staffed from 0900-1600, M-F. For other hours, please call ahead (217-649-4558) to make arrangements.
Self serve is not available.

Volume Discounts

None

Your Information

Business

Weather and Advisory

AWOS-3	119.025
(217) 892-4999

Common

CTAF	123.0
TO INCR INTST & ACTVT MIRL RYS 09/27 & 18/36, REILS RYS 09/27 - CTAF. PAPI RY 09 & 27 OPR CONTINUOUSLY.
UNICOM	123.0

Approach

CHAMPAIGN APPROACH

121.35

Departure

CHAMPAIGN DEPARTURE

121.35

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCMI (17nm)

RAW

Reported

Thu, 11/12 5:20 AM CST

Valid

Thu, 11/12 6:00 AM CST - Fri, 11/13 6:00 AM CST

VFR

6:00 AM CST - 9:00 AM CST

Scattered 7,000'

Viz

6sm

Wind

330° 10kts

MVFR

9:00 AM CST - 1:00 PM CST

Showers in vicinity

Broken 2,500'

Viz

6sm

Wind

340° 13kts

Gusts 23kts

VFR

1:00 PM CST - 6:00 PM CST

Broken 3,500'
Scattered 2,500'

Viz

6sm

Wind

340° 15kts

Gusts 25kts

VFR

6:00 PM CST - 12:00 AM CST

Broken 5,000'

Viz

6sm

Wind

330° 14kts

VFR

12:00 AM CST - 6:00 AM CST

Showers in vicinity

Broken 3,500'
Scattered 2,500'

Viz

6sm

Wind

330° 14kts

TAF KCMI 121120Z 1212/1312 33010KT P6SM SCT070
   FM121500 34013G23KT P6SM VCSH BKN025
   FM121900 34015G25KT P6SM SCT025 BKN035
   FM130000 33014KT P6SM BKN050
   FM130600 33014KT P6SM VCSH SCT025 BKN035

KTIP

Effective	Expires	NOTAM
Domestic
11/2/26 2101Z	12/2/26 2101Z	!TIP 11/001 TIP OBST TOWER LGT (ASR 1261378) 401841.10N0882410.80W (12NM W TIP) 995FT (257FT AGL) U/S 2611022101-2612022101
10/22/26 0129Z	12/6/26 0228Z	!TIP 10/003 TIP OBST TOWER LGT (ASR 1032642) 401934.60N0880914.00W (2NM N TIP) 967FT (227FT AGL) U/S 2610220129-2612060228
9/28/26 1901Z		!TIP 09/008 TIP SVC AUTOMATED WX BCST SYSTEM 119.025 U/S 2609281901-2611272359EST
9/1/26 1159Z	11/30/26 1259Z	!TIP 09/001 TIP OBST TOWER LGT (ASR 1230138) 402121.90N0880819.90W (3.8NM NE TIP) 1009.8FT (232.0FT AGL) U/S 2609011159-2611301259

ATC Tower

Attendance

MON-FRI 0700-1600

Owner

VILLAGE OF RANTOUL
333 S TANNER ST PO BOX 38
RANTOUL, IL 61866
Phone: 217-892-6800

Manager

BOB COVERDILL
333 S TANNER ST PO BOX 38
RANTOUL, IL 61866
Phone: 217-892-6895

FSS

SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF

NOTAM

TIP

Light Schedule

Lights

TO INCR INTST & ACTVT MIRL RYS 09/27 & 18/36, REILS RYS 09/27 - CTAF. PAPI RY 09 & 27 OPR CONTINUOUSLY.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Yes

Landing Fee

Parking

Hangar

Int'l Operations

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Crop Dusting
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

Dimensions

5001 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	90°	270°
Traffic Pattern	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	40° 17' 31"N	40° 17' 31"N
Longitude	88° 08' 60"W	88° 07' 55"W
Elevation	735'	729'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 18/36

Dimensions

4894 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	180°	360°
Traffic Pattern		Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	40° 18' 07"N	40° 17' 18"N
Longitude	88° 08' 38"W	88° 08' 38"W
Elevation	737'	733'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-2	FBO OPNS MON-FRI 0700-1600. FBO SVC CLSD SAT+SUN UNLESS ADVN COORDINATION IS MADE.
A110-3	DEER & BIRDS ON AND INVOF ARPT. SEASONAL MOWING OPS ADJ TO RYS & TWYS.
A110-4	TWY 35 FT WIDE IN MOST PLACES. 48 HRS PPR FOR ACFT WITH SINGLE WHEEL LOAD GREATER THAN 15,000 LBS.
A110-5	FOR CD CTC CHAMPAIGN APCH AT 217-355-4071, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921
A70-100LL	FOR FUEL AFTER HRS CALL PHONE NUMBER POSTED ON SITE.
A81-APT	TO INCR INTST & ACTVT MIRL RYS 09/27 & 18/36, REILS RYS 09/27 - CTAF. PAPI RY 09 & 27 OPR CONTINUOUSLY.

RANTOUL NTL AVN CNTR-FRANK ELLIOTT FLD (ICAO: KTIP, IATA: TIP) is a public airport located in RANTOUL, IL, US.
