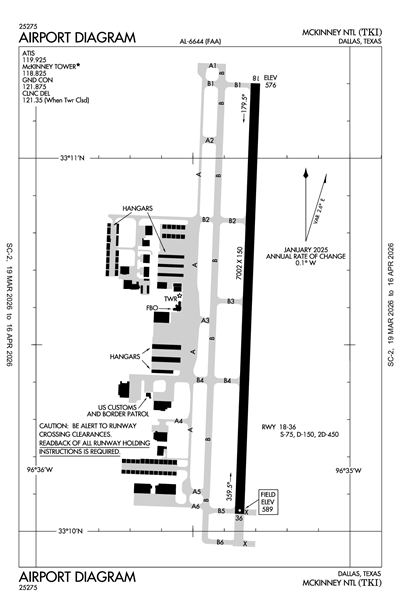

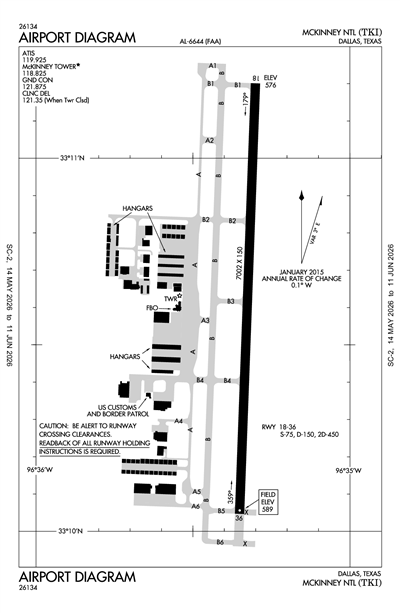

MCKINNEY NTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTKI
ICAO KTKIIATA TKILocal TKI
MCKINNEY NTL
PublicPUB

32 miles N of DALLAS, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 10' 37"N 96° 35' 20"W
Elevation
589' MSL
Pattern Alt
1589' MSL
Mag Variation
3°E
Declination
3°E
Fuel
JET A-1+, 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
9/3/26-10/1/26
KTKI VFR
1:53 PM CDT
Clear
10sm
96°F
75°F
29.90"Hg
150° 11kts
Gusts 17kts
AO2 SLP115 T03560239
METAR KTKI 121853Z 15011G17KT 10SM CLR 36/24 A2990 RMK AO2 SLP115 T03560239
+ Add Your Business

KTKI FBOs

KTKI Aircraft Service & Maintenance

Promote Listing
Select Avionics
Phone: (214) 491-1600
Fax: (214) 491-1601
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Cirrus Aircraft
Phone: (469) 215-4452
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
iFly EFB by Adventure Pilot
Phone: (214) 585-0444
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.925
ASOS (972) 548-8525, ASOS BROADCAST OVER ATIS 119.925 MHZ

Common

CTAF 118.825
WHEN ATCT CLSD ACTVT MALSR RWY 18; PAPI RWY 18 & 36; HIRL RWY 18/36 - CTAF. MALS RWY 36 OPR CONSLY.
UNICOM 122.95

Clearance

Clearance Delivery 121.35
WHEN TWR CLSD

Ground

MC KINNEY GROUND 121.875
0600-2200

Tower

MC KINNEY TOWER 118.825
0600-2200

Arrival

EESAT STAR 125.025
EESAT STAR 125.275
FINGR STAR 124.3
FINGR STAR 125.275
GREGS STAR 118.1
HERBZ STAR 118.1
JFRYE STAR 118.1
LOADS STAR 125.025
LOADS STAR 125.275
SLANT STAR 125.025
SLANT STAR 125.275
SWVAY STAR 135.975
YEAGR STAR 125.2

Approach

LONE STAR APPROACH 124.3

Departure

BOTCH DP 124.3
DALLAS AREA DP 124.3
GARLAND DP 124.3
JOE POOL DP 124.3
LONE STAR DEPARTURE 124.3
NANDR RNAV DP 124.3

Terminal Area Forecast

KDAL (24nm)
Sat, 9/12 12:20 PM CDT
Sat, 9/12 1:00 PM CDT - Sun, 9/13 1:00 PM CDT
VFR
1:00 PM CDT - 1:00 PM CDT
Sky Clear
6sm
160° 10kts
TAF KDAL 121720Z 1218/1318 16010KT P6SM SKC
KTKI
EffectiveExpiresCategoryNOTAM
Domestic
9/16/26
0300Z
9/16/26
1100Z
Runway!TKI 09/015 TKI RWY 18/36 CLSD TO ACFT WINGSPAN MORE THAN 79FT 2609160300-2609161100
9/15/26
0300Z
9/15/26
1200Z
Runway!TKI 09/014 TKI RWY 18/36 CLSD 2609150300-2609151200
9/11/26
1209Z
11/10/26
2359Z
Runway!TKI 09/021 TKI RWY 18 LEAD OFF CL MARKINGS LEFT SIDE NOT STD 2609111209-2611102359
9/11/26
1207Z
11/10/26
2359Z
Runway!TKI 09/020 TKI RWY 36 LEAD OFF CL MARKINGS RIGHT SIDE NOT STD 2609111207-2611102359
9/8/26
1714Z
10/1/26
2359Z
Runway!TKI 09/012 TKI RWY 18 RTHL NOT STD 2609081714-2610012359
9/2/26
1145Z
12/31/26
1145Z
!TKI 09/005 TKI OBST TOWER LGT (ASR 1047140) 330350.40N0963503.00W (6.8NM S TKI) 1049.2FT (474.1FT AGL) U/S 2609021145-2612311145
9/1/26
1957Z
9/30/26
2359Z
!TKI 09/003 TKI TWY A EDGE LGT U/S 2609011957-2609302359
9/1/26
1300Z
!TKI 08/055 TKI TWY B1 COMMISSIONED 2609011300-PERM
8/27/26
1821Z
Runway!TKI 08/050 TKI RWY 18 ALS U/S 2608271821-2609301500EST
8/24/26
2211Z
9/30/26
2359Z
!TKI 08/044 TKI OBST TOWER LGT (ASR 1046352) 331434.00N0963230.00W (4.6NM NNE TKI) 1044.0FT (375.0FT AGL) U/S 2608242211-2609302359
8/24/26
2211Z
9/30/26
2359Z
!TKI 08/043 TKI OBST TOWER LGT (ASR 1046351) 331429.00N0963223.00W (4.6NM NNE TKI) 1042.0FT (375.0FT AGL) U/S 2608242211-2609302359
8/24/26
2210Z
9/30/26
2359Z
!TKI 08/042 TKI OBST TOWER LGT (ASR 1046350) 331428.00N0963230.00W (4.5NM NNE TKI) 1042.0FT (375.0FT AGL) U/S 2608242210-2609302359
8/24/26
2209Z
9/30/26
2359Z
!TKI 08/041 TKI OBST TOWER LGT (ASR 1046349) 331441.00N0963223.00W (4.7NM NNE TKI) 1045.9FT (375.0FT AGL) U/S 2608242209-2609302359
8/24/26
2208Z
9/30/26
2359Z
!TKI 08/040 TKI OBST TOWER LGT (ASR 1046348) 331438.00N0963235.00W (4.6NM NNE TKI) 1043.0FT (375.0FT AGL) U/S 2608242208-2609302359
7/21/26
2212Z
10/21/26
1700Z
Runway!TKI 07/027 TKI RWY 36 THR DISPLACED 500FT. DECLARED DIST: TORA 7502FT TODA 7502FT ASDA 7502FT LDA 7002FT. 2607212212-2610211700
7/21/26
2212Z
10/21/26
1700Z
Runway!TKI 07/026 TKI RWY 18 THR DISPLACED 500FT. DECLARED DIST: TORA 7502FT TODA 7502FT ASDA 8002FT LDA 7502FT. 2607212212-2610211700
FDC
7/10/26
1643Z
2/19/27
1643Z
!FDC 6/4745 TKI SID MCKINNEY NTL, DALLAS, TX.
WORTH ONE DEPARTURE...
ABILENE TRANSITION, CORONA TRANSITION, LUBBOCK TRANSITION, TEXICO TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2607101643-2702191643EST
7/10/26
1643Z
!FDC 6/4743 TKI SID MCKINNEY NTL, DALLAS, TX.
KINGDOM FIVE DEPARTURE...
LUBBOCK TRANSITION, MILLSAP TRANSITION, WICHITA FALLS TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2607101643-2702191643EST
7/6/26
1453Z
!FDC 6/3061 TKI ODP MCKINNEY NTL, DALLAS, TX. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A... TAKEOFF MINIMUMS RWY 36: PROCEDURE NA. ALL OTHER DATA REMAINS AS PUBLISHED. 2607061453-2707061453EST
6/1/26
1609Z
!FDC 6/4600 TKI SID MCKINNEY NTL, DALLAS, TX. WORTH ONE DEPARTURE... CORONA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, CNX VORTAC OUT OF SERVICE. 2606011609-2701111609EST
5/27/26
1930Z
!FDC 6/3387 TKI SID MCKINNEY NTL, DALLAS, TX.
DALLAS FOUR DEPARTURE...
GARLAND SIX DEPARTURE...
JOE POOL EIGHT DEPARTURE...
KINGDOM FIVE DEPARTURE...
KUSSO THREE DEPARTURE (RNAV)...
NANDR FOUR DEPARTURE (RNAV)...
TEXOMA FIVE DEPARTURE...
WORTH ONE DEPARTURE...
TAKEOFF MINIMUMS RWY 36: PROCEDURE NA. ALL OTHER DATA REMAINS AS PUBLISHED. 2605271930-2805271930EST
5/18/26
1526Z
!FDC 6/1153 TKI IAP MCKINNEY NTL, DALLAS, TX.
RNAV (GPS) RWY 18, AMDT 2C...
LPV DA NA.
LNAV VIS 1 ALL CATS.
2605181526-2612281526EST
5/18/26
1526Z
!FDC 6/1152 TKI IAP MCKINNEY NTL, DALLAS, TX. ILS OR LOC RWY 18, AMDT 6A... S-ILS 18 DA NA. S-LOC 18 VIS 1 ALL CATS. 2605181526-2612281526EST
4/1/26
1750Z
!FDC 6/7055 TKI ODP MCKINNEY NTL, DALLAS, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A...
TAKEOFF MINIMUMS RWY 18 NA. ALL OTHER DATA REMAINS AS PUBLISHED. 2604011750-2611112355EST
Yes
0600-2200
CITY OF MC KINNEY
PO BOX 517
MC KINNEY, TX 75070
Phone: 972-562-4214
KEN CARLEY
PO BOX 517
MC KINNEY, TX 75070
Phone: 972-547-3401
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
TKI
--
WHEN ATCT CLSD ACTVT MALSR RWY 18; PAPI RWY 18 & 36; HIRL RWY 18/36 - CTAF. MALS RWY 36 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Air Ambulance
Charter Service
Pilot Instruction

Runway 18/36

7002 ft. x 150 ft.
CONC
Good
NONE
HIGH

75,000lbs
150,000lbs
450,000lbs
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 33° 11' 12"N 33° 10' 03"N
Longitude 96° 35' 18"W 96° 35' 21"W
Elevation 576' 589'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALS
Centerline Lights
Runway End Identifier Lights
A110-3BIRD ACTIVITY INVOF ARPT.
A110-5ARPT ADMIN. 972-562-4053
A110-6NO TGLS BTWN 0600-0700 AND 2100-2200.
A110-7NOISE SENSITIVE AREAS S OF ARPT. PILOTS ARE REQD TO USE NBAA STD NOISE PROCS. RWY 18 DEP VFR ACFT REQ DEP TURN HDG 135 DEGS WITH ATC APVL.
A110-ARPT OPNS-PHONE_NOBSQUIRE@FLYTKI.COM
A31-18/36ACTUAL RWY LENGTH DOES NOT MATCH PUBLISHED VALUE. 500 FT EXTENSION ON SOUTH END MKD AS DSPLCD THLD.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 18; PAPI RWY 18 & 36; HIRL RWY 18/36 - CTAF. MALS RWY 36 OPR CONSLY.
MCKINNEY NTL (ICAO: KTKI, IATA: TKI) is a public airport located in DALLAS, TX, US.
