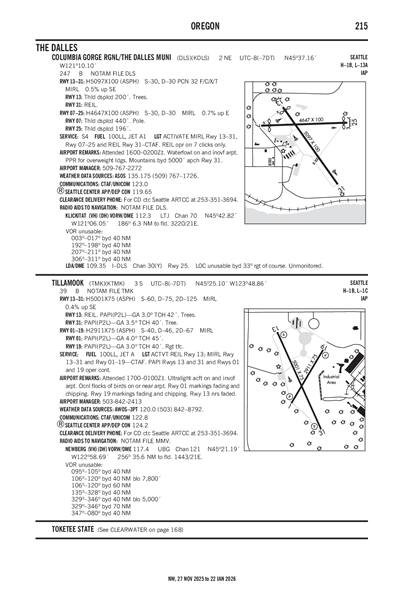

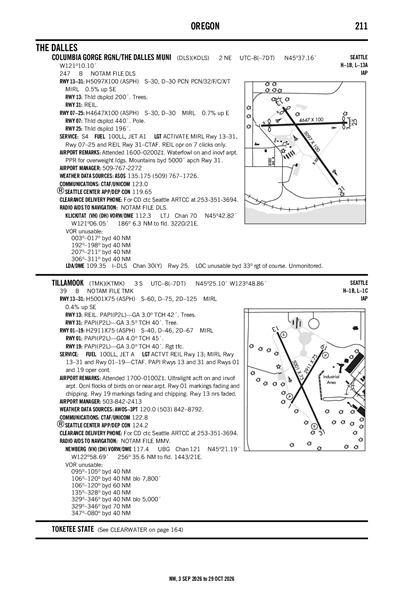

TILLAMOOK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTMK
ICAO KTMKIATA OTKLocal TMK
TILLAMOOK
PublicPUB

3 miles S of TILLAMOOK, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 25' 06"N 123° 48' 52"W
Elevation
39' MSL
Pattern Alt
1039' MSL
Mag Variation
15°E
Declination
20°E
Fuel
JET A, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
9/3/26-10/1/26
KTMK MVFR
12:55 PM PDT
Light Rain and Mist
Broken 2,700'
Scattered 1,900'
Few 1,500'
3sm
59°F
59°F
29.91"Hg
260° 6kts
AO2
METAR KTMK 121955Z AUTO 26006KT 3SM -RA BR FEW015 SCT019 BKN027 15/15 A2991 RMK AO2
+ Add Your Business

KTMK FBOs

Promote Listing
Tillamook Airport
UNICOM: 122.8
Phone: (503) 842-7152
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 9/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.00 6.85
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 120.0
(503) 842-8792

Common

CTAF 122.8
ACTVT REIL RWY 13; MIRL RWY 13/31 AND RWY 01/19- CTAF. PAPI RWYS 13 & 31 AND RWYS 01 & 19 OPER CONT.
UNICOM 122.8

Center

SEATTLE CENTER 124.2
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON FREQS 124.2/317.6 (SCAPPOOSE RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KHIO (37nm)
Sat, 9/12 10:30 AM PDT
Sat, 9/12 11:00 AM PDT - Sun, 9/13 11:00 AM PDT
VFR
11:00 AM PDT - 6:00 PM PDT
Broken 5,000'
6sm
VRB° 4kts
VFR
6:00 PM PDT - 11:00 PM PDT
Light Showers and Rain
Overcast 5,000'
6sm
240° 5kts
VFR
11:00 PM PDT - 8:00 AM PDT
Showers in vicinity
Broken 4,000'
6sm
180° 2kts
MVFR
8:00 AM PDT - 11:00 AM PDT
Light Showers and Rain
Overcast 3,000'
6sm
200° 6kts
TAF KHIO 121730Z 1218/1318 VRB04KT P6SM BKN050
   FM130100 24005KT P6SM -SHRA OVC050
   FM130600 18002KT P6SM VCSH BKN040
   FM131500 20006KT P6SM -SHRA OVC030
KTMK
No NOTAM Available
No
0900-1700
PORT OF TILLAMOOK BAY
4000 BLIMP BLVD
TILLAMOOK, OR 97141
Phone: (503) 842-7152
JAMES PEAK
4000 BLIMP BLVD
TILLAMOOK, OR 97141
Phone: 503-842-2413
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
TMK
--
ACTVT REIL RWY 13; MIRL RWY 13/31 AND RWY 01/19- CTAF. PAPI RWYS 13 & 31 AND RWYS 01 & 19 OPER CONT.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling
Charter Service

Runway 01/19

2911 ft. x 75 ft.
ASPH
Good
NONE
MED

40,000lbs
46,000lbs
67,000lbs
--
  Runway 01 Runway 19
True Heading 30°210°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 45° 24' 55"N 45° 25' 19"N
Longitude 123° 48' 59"W 123° 48' 38"W
Elevation 29' 36'
Threshold Crossing Height 45 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

5001 ft. x 75 ft.
ASPH
Good
NONE
MED

60,000lbs
75,000lbs
125,000lbs
--
  Runway 13 Runway 31
True Heading 155°335°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 45° 25' 27"N 45° 24' 42"N
Longitude 123° 49' 08"W 123° 48' 39"W
Elevation 20' 39'
Threshold Crossing Height 42 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1OCNL FLOCKS OF BIRDS ON OR NEAR ARPT.
A110-3(E94) SAWRS
A110-5ULTRALIGHT ACFT ON AND INVOF ARPT.
A110-6FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A16ALTERNATE NUMBER: 503-812-6192
A42-01_MARKMARKINGS FADING AND CHIPPING.
A42-13_CONDNRS FADED.
A42-19_MARKMARKINGS FADING AND CHIPPING.
A81-APTACTVT REIL RWY 13; MIRL RWY 13/31 AND RWY 01/19- CTAF. PAPI RWYS 13 & 31 AND RWYS 01 & 19 OPER CONT.
E111ESTABD PRIOR TO 1959.
TILLAMOOK (ICAO: KTMK, IATA: TMK) is a public airport located in TILLAMOOK, OR, US.
