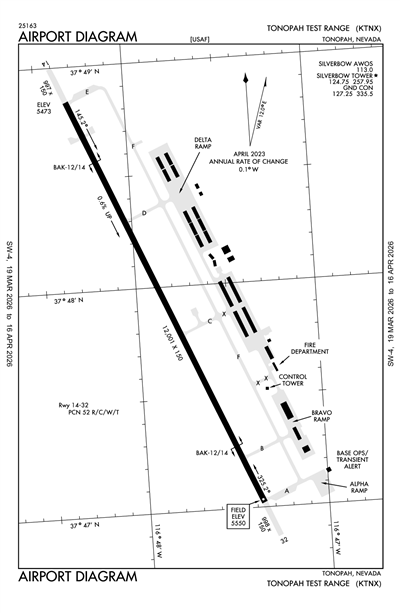

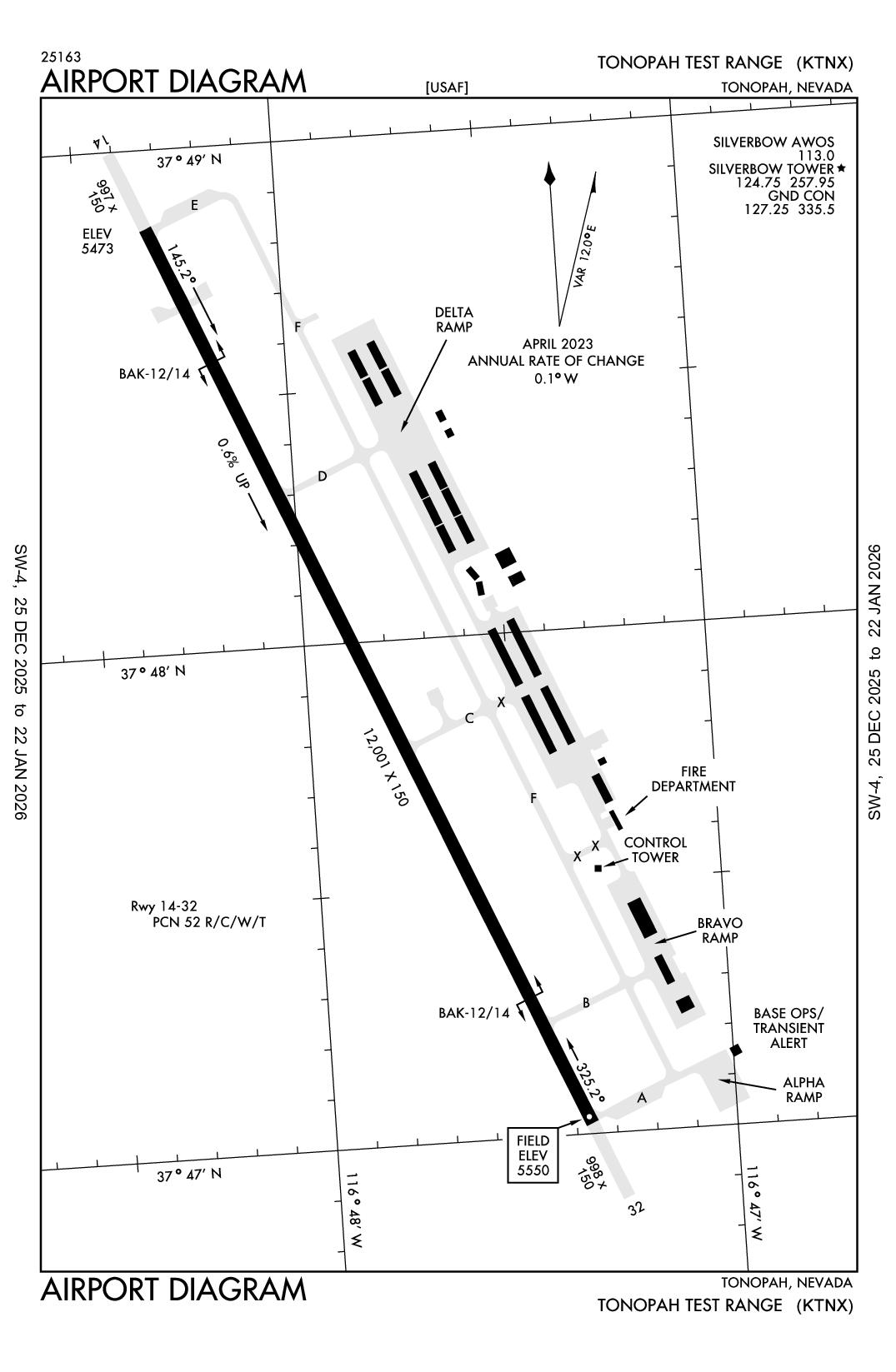

TONOPAH TEST RANGE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTNX
ICAO KTNXIATA XSDLocal TNX
TONOPAH TEST RANGE
PrivatePVT

27 miles SE of TONOPAH, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 47' 56"N 116° 46' 51"W
Elevation
5550' MSL
Pattern Alt
6550' MSL
Mag Variation
12°E
Declination
16°E
Fuel
JET A+, CILI
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
4/16/26-5/14/26
KTPH (21nm) MVFR
3:56 AM PDT
Light Rain
Overcast 2,100'
Few 1,500'
10sm
40°F
36°F
29.63"Hg
310° 9kts
AO2 SLP000 P0007 T00440022
METAR KTPH 261056Z AUTO 31009KT 10SM -RA FEW015 OVC021 04/02 A2963 RMK AO2 SLP000 P0007 T00440022
+ Add Your Business

KTNX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

Pilot-To-Dispatcher (PTD) 119.45

Ground

SILVERBOW GROUND 127.25
OPR H24 FM 1300Z++ MON THRU 0305Z++ FRI, CLSD WKEND AND HOL; OTR TIMES BY NOTAM.

Tower

SILVERBOW TOWER 124.75
OPR H24 FM 1300Z++ MON THRU 0305Z++ FRI, CLSD WKEND AND HOL; OTR TIMES BY NOTAM.

Terminal Area Forecast

KTPH (21nm)
Sun, 4/26 4:20 AM PDT
Sun, 4/26 5:00 AM PDT - Mon, 4/27 5:00 AM PDT
MVFR
5:00 AM PDT - 12:00 PM PDT
Light Rain
Overcast 4,000'
Broken 2,100'
Scattered 1,500'
6sm
330° 9kts
VFR
12:00 PM PDT - 5:00 PM PDT
Thunderstorm in vicinity
Broken 4,000'
Scattered 2,100'
Few 1,500'
6sm
310° 14kts
Gusts 23kts
VFR
5:00 PM PDT - 2:00 AM PDT
Showers in vicinity
Broken 4,000'
Scattered 2,100'
Few 1,500'
6sm
340° 7kts
VFR
2:00 AM PDT - 5:00 AM PDT
Broken 10,000'
Scattered 4,000'
Few 1,200'
6sm
350° 8kts
TAF KTPH 261120Z 2612/2712 33009KT 6SM -RA SCT015 BKN021 OVC040
   FM261900 31014G23KT P6SM VCTS FEW015 SCT021 BKN040CB
   FM270000 34007KT P6SM VCSH FEW015 SCT021 BKN040
   FM270900 35008KT P6SM FEW012 SCT040 BKN100
KTNX
EffectiveExpiresCategoryNOTAM
Military
4/24/26
1719Z
4/30/26
1100Z
Taxiway!KTNX M0119/26 TNX TWY F CLSD BETWEEN TWY D AND TWY E DAILY 0500 - 1100Z (2200L - 0400L). 2604241719-2604301100
4/24/26
1718Z
4/27/26
1718Z
M0118/26 NOTAMC M0115/26
4/24/26
1701Z
5/29/26
2359Z
OBST 35' ANTENNA LOCATED ON DELTA RAMP NORTH, FAR WEST SIDE OF HANGARS. TAXIING AIRCRAFT RESTRICTED TO WINGSPAN OF 45' OR LESS, USE CAUTION.
4/24/26
1624Z
5/29/26
2359Z
OBST 70' ANTENNA LOCATED AT SOUTH END OF BRAVO RAMP.
4/2/26
1650Z
5/29/26
2359Z
TOWER UNMANNED MONDAY 1005Z TO 1200Z, 0030Z TO 1045Z, TUESDAY THROUGH FRIDAY MORNING, 0245Z TO 1045Z, UNLESS COORDINATED AT LEAST 7 DAYS IN ADVANCE, AIRFIELD MANAGEMENT, FIRE DEPT, AND TRANSIENT ALERT SERVICES ARE AVAILABLE FOR EMERGENCY AIRCRAFT ONLY. BROADCAST ON SILVERBOW TOWER FREQ 124.75 WITH EMERGENCY INFORMATION.
3/13/26
1605Z
5/29/26
2359Z
RunwayRWY 14/32 HAS BEEN RE-DESIGNATED TO RWY 15/33. ALL PILOTS ARE ADVISED TO USE UPDATED RWY NUMBERS EFFECTIVE IMMEDIATELY. EXISTING INSTRUMENT PROCEDURES FOR RWY 14/32 REMAIN VALID.
12/19/25
1106Z
12/31/26
2359Z
Aerodrome!KTNX V0101/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC/DME RWY 32 ADD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 5810. 2512191106-2612312359
12/19/25
1105Z
12/31/26
2359Z
Aerodrome!KTNX V0100/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC/DME RWY 14 ADD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 5718. 2512191105-2612312359
11/24/25
1404Z
12/31/26
2359Z
Aerodrome!KTNX V0088/25 TNX AERODROME STANDARD INSTRUMENT DEPARTURE (SID) COMPLETELY WITHDRAWN TUMBE 1 (RNAV) DEPARTURE 2511241404-2612312359
11/3/25
1545Z
5/31/26
2359Z
Aerodrome!KTNX V0087/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED VOR/DME Z RWY 32 PROCEDURE NAME TO VOR/DME Z RWY 33 2511031545-2605312359
11/3/25
1544Z
5/31/26
2359Z
Aerodrome!KTNX V0086/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED VOR/DME Z RWY 14 PROCEDURE NAME TO VOR/DME Z RWY 15 2511031544-2605312359
11/3/25
1542Z
5/31/26
2359Z
Aerodrome!KTNX V0085/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED VOR/DME OR TACAN RWY 32 PROCEDURE NAME TO VOR/DME OR TACAN RWY 33 2511031542-2605312359
11/3/25
1539Z
5/31/26
2359Z
Aerodrome!KTNX V0084/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED VOR/DME OR TACAN RWY 14 PROCEDURE NAME TO VOR/DME OR TACAN RWY 15 2511031539-2605312359
11/3/25
1538Z
5/31/26
2359Z
Aerodrome!KTNX V0083/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 32 PROCEDURE NAME TO RNAV (GPS) RWY 33 2511031538-2605312359
11/3/25
1537Z
5/31/26
2359Z
Aerodrome!KTNX V0082/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 14 PROCEDURE NAME TO RNAV (GPS) RWY 15. 2511031537-2605312359
11/3/25
1535Z
5/31/26
2359Z
Aerodrome!KTNX V0081/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC/DME RWY 32 PROCEDURE NAME TO ILS OR LOC/DME RWY 33 2511031535-2605312359
11/3/25
1534Z
5/31/26
2359Z
Aerodrome!KTNX V0080/25 TNX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC/DME RWY 14 PROCEDURE NAME TO ILS OR LOC/DME RWY 15. 2511031534-2605312359
Yes
ALL
1300Z++ MON - 0305Z++ FRI; CLSD WKEND & HOL; OTR TIMES BY NOTAM.
US AIR FORCE
HQ AIR COMBAT COMMAND
LANGLEY AFB, VA 23665
Phone: 804-764-3120
VERNON GABBARD JR
SANDIA LAB PO BOX 871
TONOPAH, NV 89049
Phone: 702-295-8313
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
ACTVT ALSF-1 RWY 15 & 33; PAPI RWY 15 & 33; HIRL RWY 15/33 - 257.95. ALSF-1 RWY 15 & 33 HI INTST ONLY.
N/A
Yes
Yes
No
None
No
None
None
None
None
None

Runway 15/33

12001 ft. x 150 ft.

CONC
NONE
HIGH
52/R/C/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 157°337°
Traffic Pattern Left
Markings
Markings Condition
Latitude 37° 48' 51"N 37° 47' 01"N
Longitude 116° 47' 20"W 116° 46' 22"W
Elevation 5,473' 5,550'
Threshold Crossing Height 51 ft. AGL 39 ft. AGL
Visual Glide Path Angle 2.75° 2.75°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights
Runway End Identifier Lights
A110-1RSTRD: AFLD LCTD WITHIN R4809; CTC 98 RANGE WING/XPR D348-5537/C702-653-5537; 72 HR PPR - AFLD OPS D384-5937/C702-653-5937.
A110-11MISC: NO CLASSIFIED MTRL STORAGE.
A110-13CTN: HI PER MIL OPS R4809A.
A110-15BASH MIGRATORY BIRD ACT OCT- MAR PHASE II.
A110-16RSTRD: DOWNWARD THRUST JET BLAST RSTD FM FULL PWR FIRST 500 FT RWY 15 & 33.
A110-17MISC: AD VER TKOF/LDG NA.
A110-18PPR - COORD THRU POC/SPONSOR.
A110-19WX BRIEF AFT OPS HRS - 25 OWS DAVIS MONTHAN AFB D228-6598/6599/C520-228-6598/6599.
A110-20RSTD: DELTA RAMP SFC MARKING NSTD.
A110-21RSTD: ALL TRAN ACFT MUST OBTAIN PPR PRIOR TO ARR. ACFT MUST ADHERE TO PPR ARR BLOCK +/- 30 MIN OF SKED LDG.
A110-5JASU-3 (AM32A-60A).
A110-7FLUID-DE-ICE.
A110-8OIL- O-148.
A110-9TRAN ALERT: 1300-0300Z++ WKDAY; CLSD WKEND & HOL; FLEET SVC & MAINT UNAVBL.
A17-D11300Z++ MON - 0305Z++ FRI; CLSD WKEND & HOL; OTR TIMES BY NOTAM.
A81-APTACTVT ALSF-1 RWY 15 & 33; PAPI RWY 15 & 33; HIRL RWY 15/33 - 257.95. ALSF-1 RWY 15 & 33 HI INTST ONLY.
E147RECTANGULAR 7000 FT MSL 1500 FT AGL; OVHD 7500 FT MSL 2000 FT AGL.
E60-15_BAK-12BBAK-14 BAK-12B(B) (1500 FT).
E60-33_BAK-12BBAK-14 BAK-12B(B) (1600 FT).
TONOPAH TEST RANGE (ICAO: KTNX, IATA: TNX) is a private airport located in TONOPAH, NV, US.
