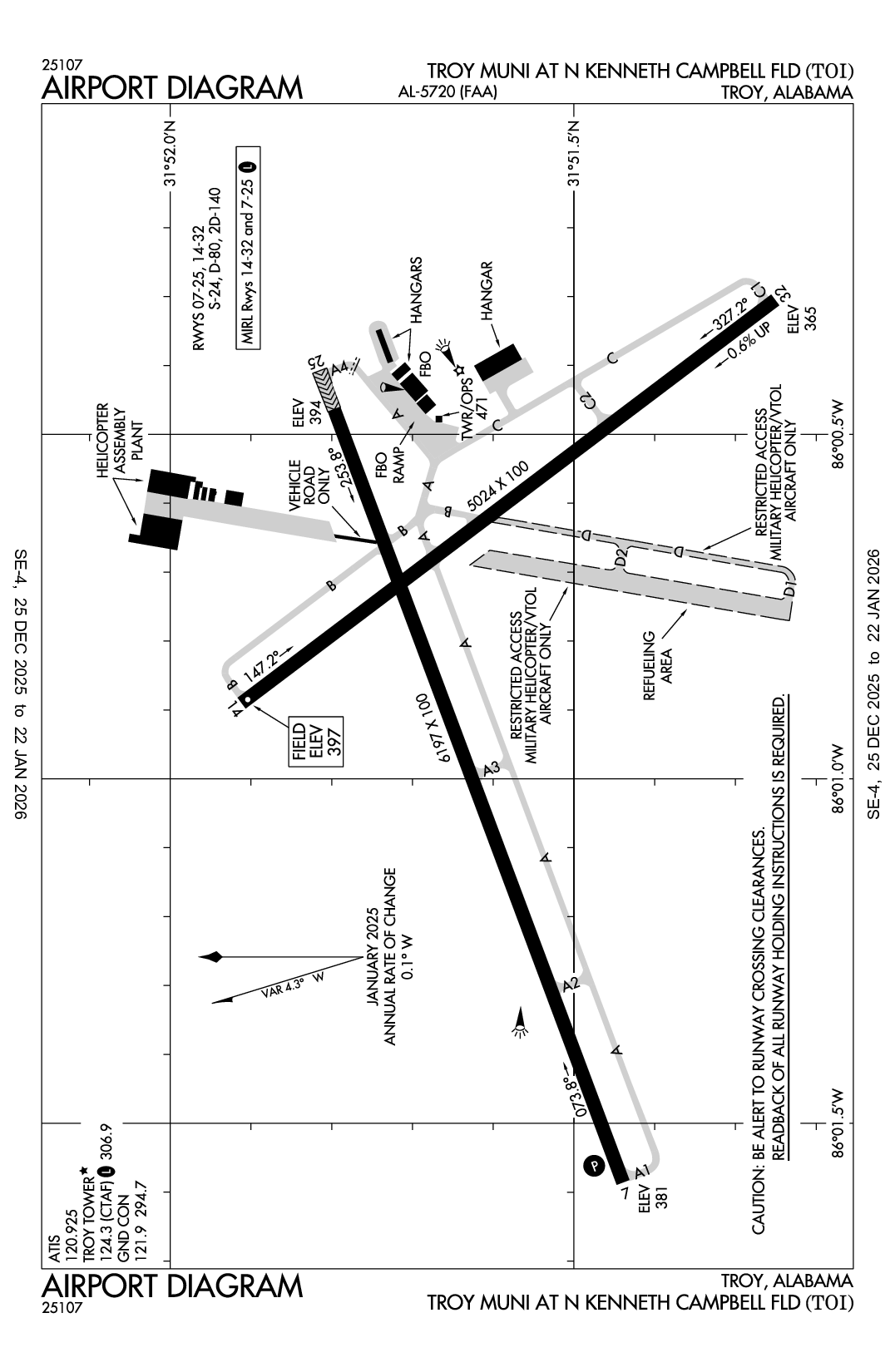

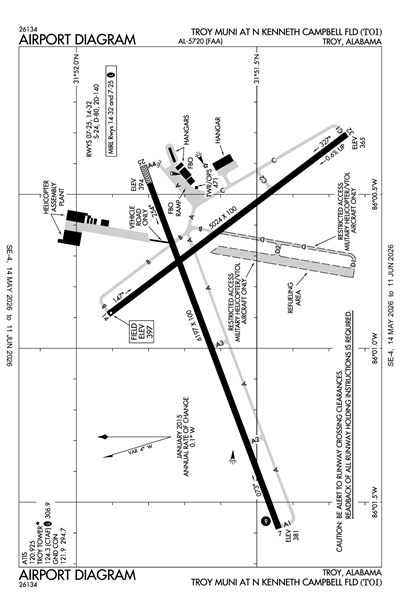

TROY MUNI AT N KENNETH CAMPBELL FLD - Airport Diagram

KTOI

TROY MUNI AT N KENNETH CAMPBELL FLD

PublicPUB

4 miles NW of TROY, AL

View on Map

Status

Operational

Coordinates

31° 51' 36"N 86° 00' 50"W

Elevation

397' MSL

Pattern Alt

1397' MSL

Mag Variation

04W

Fuel

JET A (FSII), 100LL

FSS

ANNISTON (ANB)

Sectional

NEW ORLEANS

ARTCC

ATLANTA (ZTL)

Data Effective

11/27/25-12/25/25

KTOI VFR

8:53 AM CST RAW

Clear

Viz

10sm

Temp

37°F

Dew

24°F

Pres

30.35"Hg

Wind

Calm

RMK

AO2 SLP279 T00281044 51016

METAR KTOI 161453Z AUTO 00000KT 10SM CLR 03/M04 A3035 RMK AO2 SLP279 T00281044 51016

Add Your Business

KTOI FBOs

Promote Listing

Pike Aviation

UNICOM: 122.8

Phone: (334) 566-3470

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 11/24	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	5.61		5.25

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 124.3

ATIS

120.925

Emergency

EMERG

121.5

Ground

GND/P

121.9

Tower

LCL/P

124.3

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KMGM (33nm)

RAW

Reported

Tue, 12/16 5:20 AM CST

Valid

Tue, 12/16 6:00 AM CST - Wed, 12/17 6:00 AM CST

VFR

6:00 AM CST - 6:00 AM CST

Sky Clear

Viz

6sm

Wind

VRB° 3kts

TAF KMGM 161120Z 1612/1712 VRB03KT P6SM SKC

KTOI

Effective	Expires	NOTAM
Domestic
10/29/25 1800Z	12/31/25 2359Z	!TOI 10/011 TOI COM SEE ZTL 10/704 CAIRNS APP FREQ U/S 2510291800-2512312359
3/25/24 1618Z		!TOI 03/014 TOI NAV NDB DECOMMISSIONED 2403251618-PERM
FDC
5/22/25 1246Z		!FDC 5/4218 TOI IAP TROY MUNI AT N KENNETH CAMPBELL FLD, TROY, AL. ILS OR LOC RWY 7, AMDT 11B... S-LOC 7: RADAR OR DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. MISSED APPROACH: CLIMB TO 1300 THEN CLIMBING RIGHT TURN TO 2600 ON HEADING 280 AND ON MGM VORTAC R-168 TO MAKEY INT/I-TOI 12.76 DME/RADAR AND HOLD. DISREGARD NOTE: ADF REQUIRED, TOI NDB OUT OF SERVICE. 2505221246-2705221242EST

ATC Tower

Yes

Attendance

0800-1700
PPR FOR NIGHT CANCELLED

Owner

CITY OF TROY
PO BOX 549
TROY, AL 36081
Phone: 334-566-0177

Manager

TRENT CRAWFORD
301 CAMPBELL FIELD ROAD
TROY, AL 36079
Phone: 334-566-3470

FSS

ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF

NOTAM

TOI

Light Schedule

Lights

ACTVT PAPI RWY 07; MIRL RWY 07/25, 14/32 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Charter Service
Pilot Instruction

Runway 07/25

Dimensions

6197 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

24,000lbs

Double Wheel

80,000lbs

Double Tandem

140,000lbs

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	69°	250°
Traffic Pattern	Left	Left
Markings	NPI	PIR
Markings Condition	GOOD	GOOD
Latitude	31° 51' 26"N	31° 51' 48"N
Longitude	86° 01' 35"W	86° 00' 28"W
Elevation	381'	394'
Threshold Crossing Height	44 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4L	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32
