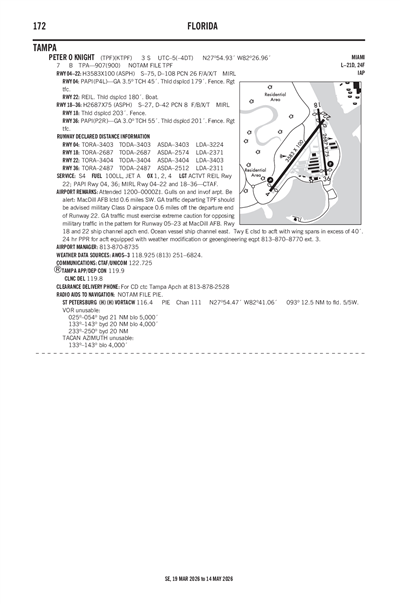

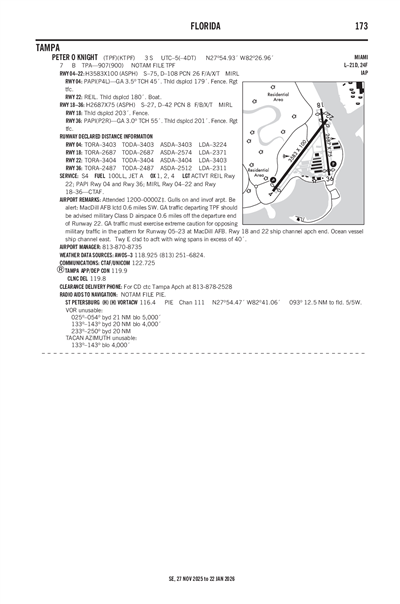

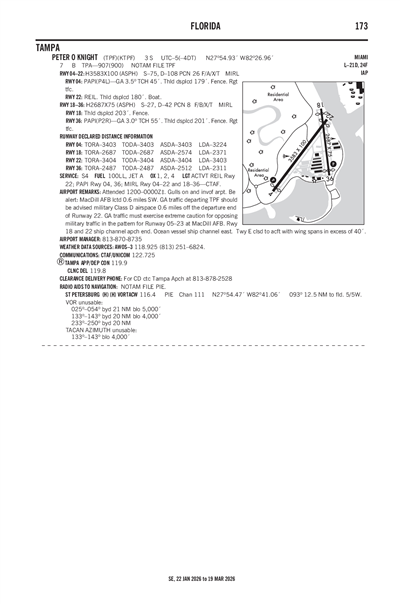

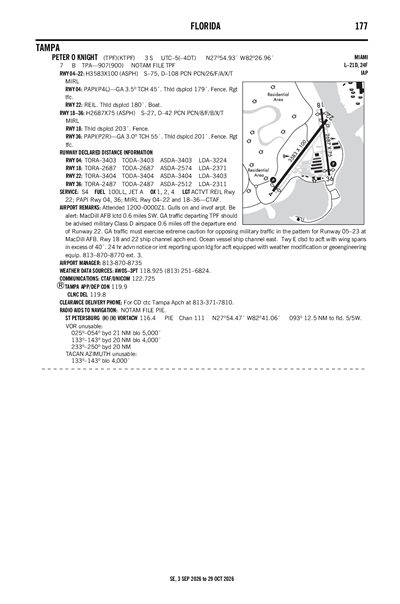

PETER O KNIGHT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTPF
ICAO KTPFIATA TPFLocal TPF
PETER O KNIGHT
PublicPUB

3 miles S of TAMPA, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 54' 56"N 82° 26' 58"W
Elevation
7' MSL
Pattern Alt
907' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
5/14/26-6/11/26
KTPF VFR
2:15 AM EDT
Clear
10sm
75°F
72°F
30.08"Hg
090° 5kts
AO2 T02400224 $
METAR KTPF 200615Z AUTO 09005KT 10SM CLR 24/22 A3008 RMK AO2 T02400224 $
+ Add Your Business

KTPF FBOs

Atlas Aviation
UNICOM: 122.725
Phone: (813) 251-1752
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.02 7.94 7.94
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.925
(813) 251-6824

Common

CTAF 122.725
ACTVT REIL RWY 22; PAPI RWY 04, 36; MIRL RWY 04/22 AND 18/36 - CTAF.
UNICOM 122.725

Clearance

Clearance Delivery 119.8
IFR

Approach

TAMPA APPROACH 119.9

Departure

TAMPA DEPARTURE 119.9

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KMCF (5nm)
Tue, 5/19 9:00 PM EDT
Tue, 5/19 9:00 PM EDT - Thu, 5/21 3:00 AM EDT
VFR
Becoming 9:00 PM EDT - 7:00 AM EDT
Scattered 4,000'
6sm
30.09"Hg
VRB° 6kts
VFR
9:00 PM EDT - 3:00 AM EDT
Broken 4,000'
Scattered 3,000'
6sm
30.06"Hg
VRB° 6kts
VFR
Becoming 7:00 AM EDT - 3:00 PM EDT
Scattered 4,000'
6sm
30.03"Hg
080° 9kts
VFR
Becoming 3:00 PM EDT - 8:00 PM EDT
Thunderstorm in vicinity
Broken 6,000'
Scattered 4,000'
6sm
30.00"Hg
050° 9kts
MVFR
Temporary 5:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain
Broken 6,000'
Broken 3,000'
3.73sm
VRB° 10kts
Gusts 15kts
VFR
Becoming 8:00 PM EDT - 3:00 AM EDT
Few 4,000'
6sm
30.03"Hg
VRB° 6kts
TAF KMCF 200100Z 2001/2107 VRB06KT 9999 SCT030 BKN040 QNH3006INS
   BECMG 2001/2002 VRB06KT 9999 SCT040 QNH3008INS
   BECMG 2011/2012 08009KT 9999 SCT040 QNH3003INS
   BECMG 2019/2020 05009KT 9999 VCTS SCT040 BKN060CB QNH3001INS
   TEMPO 2021/2024 VRB10G15KT 6000 -TSRA BKN030CB BKN060
   BECMG 2100/2101 VRB06KT 9999 NSW FEW040 QNH3003INS TX36/2019Z TN24/2009Z
KTPF
EffectiveExpiresCategoryNOTAM
Domestic
5/21/26
1600Z
5/21/26
1800Z
Runway!TPF 05/022 TPF RWY 04/22 CLSD 2605211600-2605211800
5/21/26
1230Z
5/21/26
1500Z
Runway!TPF 05/021 TPF RWY 04/22 CLSD 2605211230-2605211500
5/20/26
1730Z
5/20/26
1930Z
Runway!TPF 05/020 TPF RWY 04/22 CLSD 2605201730-2605201930
5/20/26
1230Z
5/20/26
1430Z
Runway!TPF 05/019 TPF RWY 04/22 CLSD 2605201230-2605201430
5/19/26
0524Z
6/3/26
0424Z
!TPF 05/024 TPF OBST TOWER LGT (ASR 1230614) 275141.60N0823159.40W (5.6NM SW TPF) 185.0FT (178.8FT AGL) U/S 2605190524-2606030424
5/15/26
2048Z
9/12/26
2048Z
!TPF 05/023 TPF OBST TOWER LGT (ASR 1057473) 274910.80N0821538.00W (11.4NM ESE TPF) 1668.0FT (1592.8FT AGL) U/S 2605152048-2609122048
5/14/26
2143Z
5/25/26
2000Z
!TPF 05/016 TPF TWY G BTN APCH END RWY 36 AND HANGAR 6800FT CLSD 2605142143-2605252000
5/14/26
2140Z
5/25/26
2000Z
Runway!TPF 05/015 TPF RWY 18/36 CLSD 2605142140-2605252000
5/12/26
1704Z
7/15/26
2359Z
!TPF 05/012 TPF OBST TOWER LGT (ASR 1028292) 275033.00N0821544.00W (10.8NM ESE TPF) 1648.0FT (1572.8FT AGL) U/S 2605121704-2607152359
5/8/26
1546Z
10/1/26
2200Z
Runway!TPF 05/005 TPF RWY 22 RWY END ID LGT U/S 2605081546-2610012200
4/27/26
1938Z
10/1/26
1800Z
Runway!TPF 04/019 TPF RWY 22 HLDG PSN SIGN AT TWY A4 RIGHT SIDE MISSING 2604271938-2610011800
4/8/26
1100Z
5/26/26
2000Z
!TPF 04/008 TPF OBST CRANE (ASN 2026-ASO-5273-OE) 275454N0822713W (0.2NM W TPF) 61FT (55FT AGL) FLAGGED 2604081100-2605262000
2/9/26
1130Z
7/20/27
2200Z
!TPF 02/001 TPF OBST CRANE (ASN UNKNOWN) 275519N0822615W (.7NM NE TPF)
200FT (190FT AGL) FLAGGED AND LGTD DLY 1130-2200 2602091130-2707202200
1/15/26
0543Z
Runway!TPF 01/016 TPF RWY 04 PAPI U/S 2601150543-2606242000EST
12/31/25
0930Z
!TPF 12/013 TPF COM REMOTE TRANS/REC 119.8 U/S 2512310930-2606262000EST
12/29/25
1200Z
11/2/26
1700Z
!TPF 12/007 TPF OBST CRANE (ASN 2025-ASO-24801-OE) 275434N0822705W (0.4NM SSW TPF) 104FT (100FT AGL) FLAGGED 2512291200-2611021700
9/30/25
2300Z
12/29/28
2300Z
!TPF 09/025 TPF OBST CRANE (ASN 2023-ASO-31135-OE) 275645N0822743W (1.9NM NNW TPF) 595FT (583FT AGL) FLAGGED AND LGTD 2509302300-2812292300
FDC
11/19/24
2127Z
!FDC 4/6304 TPF IAP PETER O KNIGHT, TAMPA, FL.
RNAV (GPS) RWY 36, AMDT 2E...
VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.00/TCH 55.2).
2411192127-2611192127EST
No
0700-1900
HILLSBOROUGH COUNTY AVIATION AUTH
PO BOX 22287
TAMPA, FL 33622
Phone: 813-870-8711
BRETT FAY
PO BOX 22287
TAMPA, FL 33606
Phone: 813-870-8735
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
TPF
--
ACTVT REIL RWY 22; PAPI RWY 04, 36; MIRL RWY 04/22 AND 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
High & Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

3583 ft. x 100 ft.
ASPH
Excellent
NONE
MED
26/F/A/X/T
75,000lbs
108,000lbs
--
--
  Runway 04 Runway 22
True Heading 37°217°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 54' 39"N 27° 55' 08"N
Longitude 82° 27' 15"W 82° 26' 51"W
Elevation 7' 6'
Threshold Crossing Height 45 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

2687 ft. x 75 ft.
ASPH
Fair
NONE
MED
8/F/B/X/T
27,000lbs
42,000lbs
--
--
  Runway 18 Runway 36
True Heading 173°353°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 27° 55' 12"N 27° 54' 45"N
Longitude 82° 26' 53"W 82° 26' 50"W
Elevation 6' 6'
Threshold Crossing Height -- 55 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11JOHN TILIACOS
A110-2OCEAN VESSEL SHIP CHANNEL EAST.
A110-3GULLS ON AND INVOF ARPT.
A110-4TWY E CLSD TO ACFT WITH WING SPANS IN EXCESS OF 40 FT.
A110-5BE ALERT: MACDILL AFB LCTD 0.6 MILES SW.
A110-7FOR CD CTC TAMPA APCH AT 813-878-2528
A110-8BE ALERT: GA TRAFFIC DEPARTING TPF SHOULD BE ADVISED MILITARY CLASS D AIRSPACE 0.6 MILES OFF THE DEPARTURE END OF RUNWAY 22. GA TRAFFIC MUST EXERCISE EXTREME CAUTION FOR OPPOSING MILITARY TRAFFIC IN THE PATTERN FOR RUNWAY 5-23 AT MACDILL AFB
A110-924 HR ADVN NOTICE OR IMT REPORTING UPON LDG FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQUIP. 813-870-8770 EXT. 3
A13813-251-1752
A30A-18SHIP CHANNEL RWY 18 APCH/DEP END.
A30A-22SHIP CHANNEL RWY 22 APCH/DEP END.
A57-04RWY 04 APCH RATIO 26:1 TO THE DTHR.
A57-18APCH RATIO 20:1 TO DTHR.
A57-22RWY 22 APCH RATIO 26:1 TO THE DTHR.
A57-36APCH RATIO 25:1 TO DTHR.
A58-046 FT FENCE 200 FT FM RWY END 222 FT R.
A58-18RWY 18 HAS 6 FT FENCE AND 15 FT ROAD 200 FT FM RWY END 93 FT RIGHT.
A58-36RWY 36 HAS 5 FT FENCE AND 15 FT ROAD 200 FT FM RWY END 150 FT L.
A81-APTACTVT REIL RWY 22; PAPI RWY 04, 36; MIRL RWY 04/22 AND 18/36 - CTAF.
PETER O KNIGHT (ICAO: KTPF, IATA: TPF) is a public airport located in TAMPA, FL, US.
