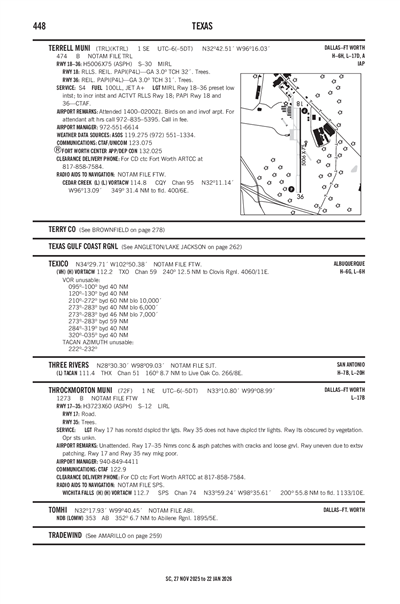

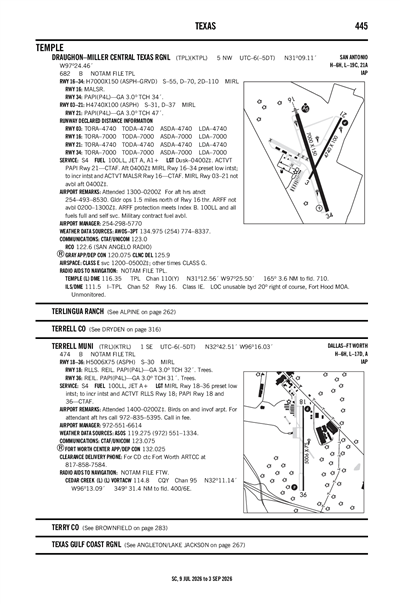

TERRELL MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTRL
ICAO KTRLIATA TRLLocal TRL
TERRELL MUNI
PublicPUB

1 miles SE of TERRELL, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 42' 31"N 96° 16' 02"W
Elevation
474' MSL
Pattern Alt
1474' MSL
Mag Variation
2°E
Declination
4°E
Fuel
JET A (FSII), 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
5/14/26-6/11/26
KTRL VFR
8:53 PM CDT
Few 2,000'
10sm
77°F
71°F
29.95"Hg
140° 6kts
AO2 SLP136 T02500217 PNO $
METAR KTRL 050153Z AUTO 14006KT 10SM FEW020 25/22 A2995 RMK AO2 SLP136 T02500217 PNO $
+ Add Your Business

KTRL FBOs

Promote Listing
Apex Aero Center
UNICOM: 123.075
Phone: (972) 767-8944
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/3
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.72 6.30
Fuel Notes
Jet-A PRIST is pre-mixed
Fuel Hours
Everyday 7am-7pm.
Volume Discounts
Ask team about Volume Discounts
CAA Preferred

KTRL Flight Schools & Aircraft Rental

Promote Listing
Terrell Aviation
UNICOM: 123.075
Phone: (972) 524-1601
Other: (972) 563-2552
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 119.275
(972) 551-1334

Common

CTAF 123.075
MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST & ACTVT RLLS RWY 18, PAPI RWYS 18 & 36 - CTAF.
UNICOM 123.075

Center

FORT WORTH CENTER 132.025
LOW, APCH/DEP SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 132.025/317.75 (CUMBY RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDAL (30nm)
Thu, 6/4 6:28 PM CDT
Thu, 6/4 7:00 PM CDT - Fri, 6/5 7:00 PM CDT
VFR
7:00 PM CDT - 8:00 PM CDT
Thunderstorm in vicinity
Scattered 9,000'
Few 4,000'
6sm
140° 9kts
VFR
8:00 PM CDT - 3:00 AM CDT
Scattered 9,000'
Few 4,000'
6sm
150° 9kts
MVFR
3:00 AM CDT - 11:00 AM CDT
Overcast 1,200'
6sm
160° 10kts
IFR
Temporary 7:00 AM CDT - 10:00 AM CDT
Broken 700'
N/A
Calm
MVFR
11:00 AM CDT - 2:00 PM CDT
Broken 2,500'
6sm
160° 8kts
VFR
2:00 PM CDT - 7:00 PM CDT
Broken 5,000'
Scattered 2,500'
6sm
170° 9kts
TAF KDAL 042328Z 0500/0524 14009KT P6SM VCTS FEW040 SCT090CB
   FM050100 15009KT P6SM FEW040 SCT090
   FM050800 16010KT P6SM OVC012
   TEMPO 0512/0515 BKN007
   FM051600 16008KT P6SM BKN025
   FM051900 17009KT P6SM SCT025 BKN050
KTRL
EffectiveExpiresCategoryNOTAM
Domestic
5/15/26
1807Z
7/6/26
1100Z
Runway!TRL 05/009 TRL RWY 36 PAPI U/S 2605151807-2607061100
5/12/26
1420Z
8/3/26
2359Z
!TRL 05/006 TRL OBST TOWER LGT (ASR 1271566) 323328.90N0961742.60W (9.1NM S TRL) 862.9FT (460.0FT AGL) U/S 2605121420-2608032359
4/12/26
1318Z
6/12/26
2359Z
!TRL 04/005 TRL OBST TOWER LGT (ASR 1053781) 323513.00N0961736.00W (7.4NM S TRL) 854.0FT (439.0FT AGL) U/S 2604121318-2606122359
4/12/26
0423Z
8/15/26
2359Z
!TRL 04/004 TRL OBST TOWER LGT (ASR 1053594) 324443.00N0961816.00W (2.9NM NW TRL) 731.6FT (242.8FT AGL) U/S 2604120423-2608152359
2/17/26
1303Z
Runway!TRL 02/002 TRL RWY 18 RWY END ID LGT U/S 2602171303-2608172111EST
FDC
7/12/25
1724Z
!FDC 5/7453 TRL IAP TERRELL MUNI, TERRELL, TX.
RNAV (GPS) RWY 36, ORIG-C...
LNAV MDA 840/HAT 368 ALL CATS.
2507121724-2707121724EST
No
0800-2000
FOR ATTENDANT AFT HRS CALL 972-835-5395. CALL IN FEE.
CITY OF TERRELL
201 EAST NASH
TERRELL, TX 75160
Phone: 972-551-6600
CHRIS SNAPP, P. E.
400 INDUSTRIAL BLVD.
TERRELL, TX 75160
Phone: 972-551-6614
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
TRL
--
MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST & ACTVT RLLS RWY 18, PAPI RWYS 18 & 36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

5006 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 42' 55"N 32° 42' 06"N
Longitude 96° 16' 02"W 96° 16' 01"W
Elevation 474' 456'
Threshold Crossing Height 32 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights RLLS
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2BIRDS ON AND INVOF ARPT.
A110-3FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A13EXT 2137
A14CITY ENGINEER/AMGR.
A17-M1FOR ATTENDANT AFT HRS CALL 972-835-5395. CALL IN FEE.
A81-APTMIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST & ACTVT RLLS RWY 18, PAPI RWYS 18 & 36 - CTAF.
TERRELL MUNI (ICAO: KTRL, IATA: TRL) is a public airport located in TERRELL, TX, US.
