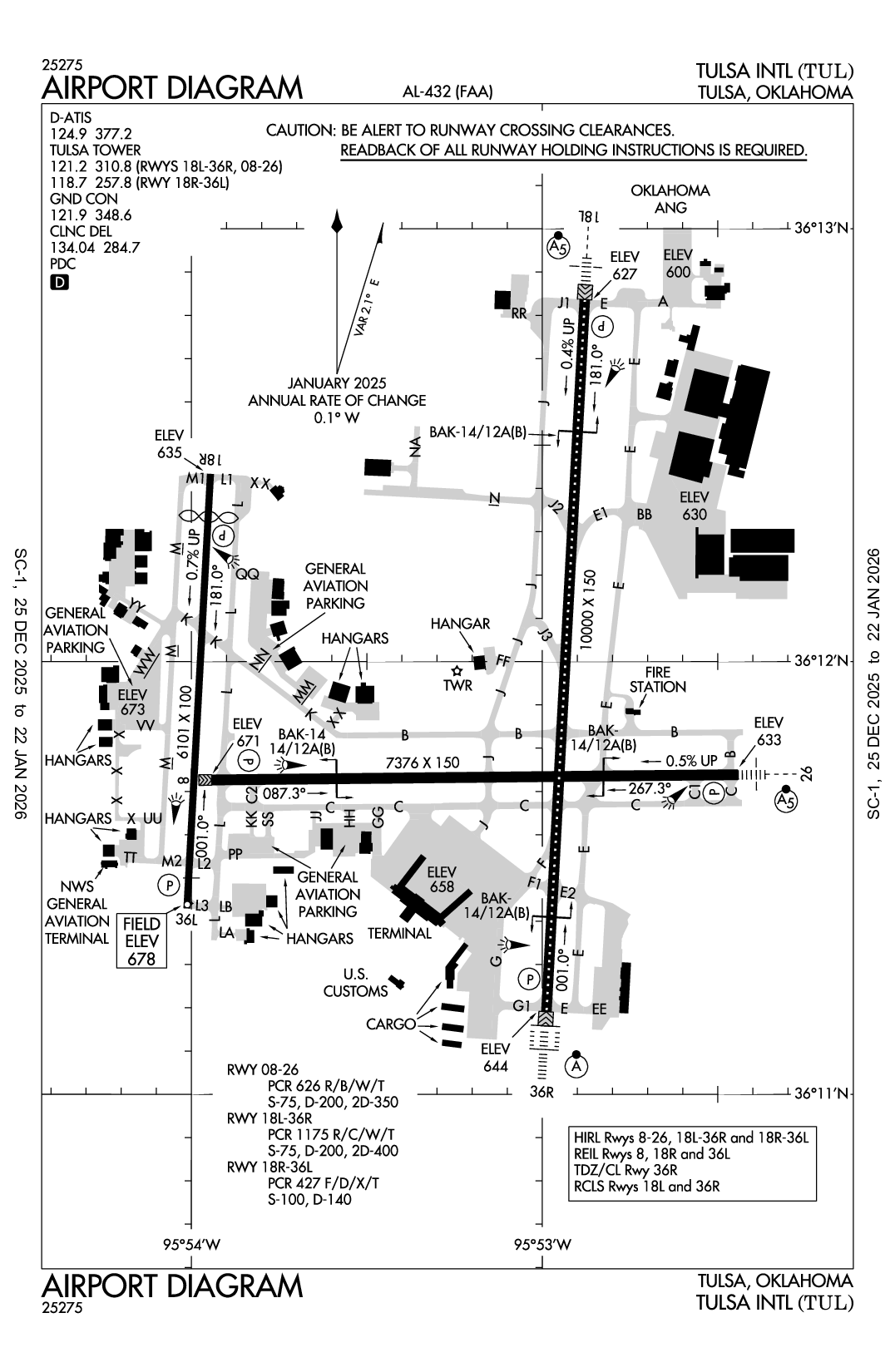

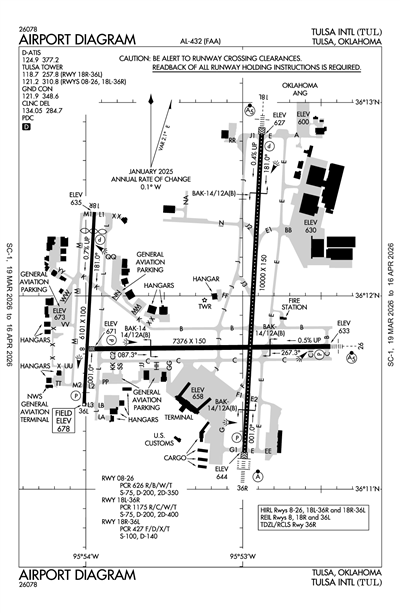

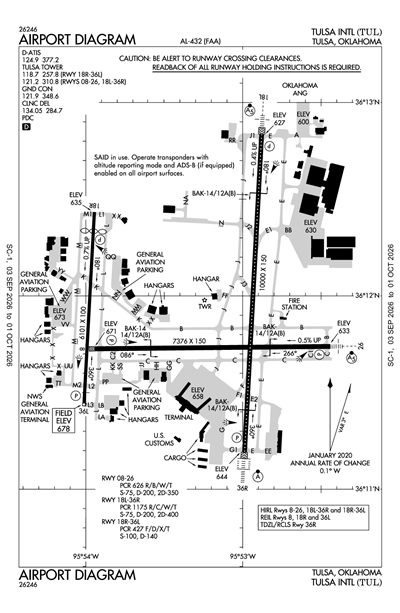

TULSA INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTUL
TULSA INTL
PublicPUB

5 miles NE of TULSA, OK
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 11' 54"N 95° 53' 17"W
678' MSL
1678' MSL
03E
JET A, 100LL
MC ALESTER (MLC)
KANSAS CITY
KANSAS CITY (ZKC)
11/28/24-12/26/24
KTUL VFR
6:53 AM CST
Shallow Fog
Clear
6sm
28°F
26°F
30.40"Hg
Calm
AO2 SLP297 T10221033
KTUL 021253Z 00000KT 6SM MIFG CLR M02/M03 A3040 RMK AO2 SLP297 T10221033

KTUL FBOs

Atlantic Aviation
UNICOM: 130.1
Phone: (918) 836-6592
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 11/16
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.59 6.63
Fuel Notes
Prices include tax
United States Aviation
UNICOM: 122.95
Phone: (918) 836-7345
Other: (251) 233-3786
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 11/26
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.23 5.55
Fuel Notes
Prices include tax
Sparks Aviation Center
UNICOM: 122.95
Phone: (918) 835-2048
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 11/25
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.75 5.08
Fuel Notes
Prices include tax

KTUL Aircraft Service & Maintenance

Intercontinental Jet Service Corp.
Phone: (918) 834-8888
Fax: (918) 834-1751
No Rating Available
0 Reviews (Read | Sign In To Write)
Tulsa Avionics Services Inc.
Phone: (918) 838-8711
Fax: (918) 835-2282
No Rating Available
0 Reviews (Read | Sign In To Write)
Liberty Partners Inc.
Phone: (918) 756-6474
Fax: (866) 786-0501
No Rating Available
0 Reviews (Read | Sign In To Write)
Autopilots Central Inc.
Phone: (918) 836-6418
Fax: (918) 832-0136
No Rating Available
0 Reviews (Read | Sign In To Write)

KTUL Flight Schools & Aircraft Rental

Spartan College of Aeronautics
Phone: (918) 831-5328
Fax: (918) 831-5272
Other: (800) 331-1204
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
918-831-6718
124.9

Approach/Departure

APCH/P DEP/P
355-174
119.1
APCH/P DEP/P IC
175-354
124.0

Clearance Delivery

CD PRE TAXI CLNC
134.05

Emergency

EMERG
121.5

Ground

GND/P
121.9

Tower

LCL/P
RWY 18R/36L
118.7
LCL/P
RWY 08/26, 18L/36R
121.2

Other

CLASS C
355-174
119.1
CLASS C
175-354
124.0
FINAL
355-174
119.85
FINAL
175-354
132.1
NG OPS
FM
46.9
TULSA DP
124.0
VINTA STAR
119.1

Terminal Area Forecast

KTUL
Mon, 12/2 5:21 AM CST
Mon, 12/2 6:00 AM CST - Tue, 12/3 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Sky Clear
6sm
VRB° 4kts
VFR
10:00 AM CST - 6:00 PM CST
Scattered 5,000'
6sm
360° 10kts
Gusts 17kts
VFR
6:00 PM CST - 6:00 AM CST
Sky Clear
6sm
020° 7kts
KTUL 021121Z 0212/0312 VRB04KT P6SM SKC
   FM021600 36010G17KT P6SM SCT050
   FM030000 02007KT P6SM SKC
KTUL
Domestic
12/3/241500Z !TUL 11/072 TUL SVC MBST/WS DETECTION SYSTEM NOT AVBL 2412031500-2412031900
11/29/241758Z !TUL 11/074 TUL SVC MBST/WS DETECTION SYSTEM NOT AVBL 2411291758-2412062000EST
11/28/240610Z !TUL 11/073 TUL OBST TOWER LGT (ASR 1218990) 360844.00N0955852.00W (5.5NM SW TUL) 998.0FT (319.9FT AGL) U/S 2411280610-2412130510
10/16/241559Z !TUL 10/022 TUL OBST CRANE (ASN UNKNOWN) 361205N0955330W (.50NM N TUL)
766FT (120FT AGL) FLAGGED 2410161559-2502282300
10/1/241650Z !TUL 09/145 TUL AIRSPACE UAS WI AN AREA DEFINED AS
360646.60N0955955.70W (4.4NM NNW RVS) TO 360645.90N0955830.60W
(4.4NM N RVS) TO 360801.50N0955826.80W (5.7NM N RVS) TO
360759.60N0955954.20W (5.6NM N RVS) TO POINT OF ORIGIN SFC-400FT AGL
2410011650-2412301735
FDC
12/2/241500Z !FDC 4/9235 TUL IAP TULSA INTL, TULSA, OK.
VOR Y OR TACAN Y RWY 26, AMDT 24F...
VOR/DME RWY 8, AMDT 4B...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OKM VOR/DME OUT OF SERVICE. 2412021500-2412091500EST
10/22/241843Z !FDC 4/2376 TUL IAP U.S. DOD TULSA INTL, TULSA, OK.
HI - VOR Z OR TACAN Z RWY 26, AMDT 3B...
ILS OR LOC RWY 18L, AMDT 16A...
ILS OR LOC RWY 18R, AMDT 9...
ILS OR LOC RWY 36R, AMDT 29H...
VOR Y OR TACAN Y RWY 26, AMDT 24F...
VOR/DME RWY 8, AMDT 4B...
ILS RWY 36R (SA CAT I), AMDT 29H...
ILS RWY 36R (CAT II), AMDT 29H....
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TUL VORTAC UNMONITORED. 2410221843-2503121843EST
10/21/241700Z !FDC 4/1585 TUL IAP TULSA INTL, TULSA, OK.
ILS OR LOC RWY 18L, AMDT 16A...
ILS OR LOC RWY 18R, AMDT 9...
RADAR-1, AMDT 19...
RNAV (GPS) RWY 18L, AMDT 2...
RNAV (GPS) RWY 18R, AMDT 2A...
RNAV (GPS) RWY 26, AMDT 3D...
RNAV (GPS) RWY 36L, AMDT 2...
RNAV (GPS) RWY 8, AMDT 2B...
VOR Y OR TACAN Y RWY 26, AMDT 24F...
VOR/DME RWY 8, AMDT 4B...
CIRCLING CAT A/B MDA 1200/HAA 522.
TEMPORARY CRANE, 836 MSL, 3158FT SOUTH OF KTUL AIRPORT (2024-ASW-3338-NRA).
2410211700-2503151332EST
10/21/241700Z !FDC 4/1584 TUL IAP TULSA INTL, TULSA, OK.
ILS OR LOC RWY 36R, AMDT 29H...
S-ILS 36R DA 946/HAT 296 ALL CATS. VIS RVR 2200 ALL CATS.
YEPUT FIX MINIMUMS (DME REQUIRED):
CIRCLING CATS A/B MDA 1200/HAA 522.
FOR INOP ALS, INCREASE S-ILS 36R VISIBILITY TO RVR 4500 ALL CATS. REST OF INOP NOTES UNCHANGED.
TEMPORARY CRANE, 836 MSL, 1801FT NW OF RWY 36R (2024-ASW-3338-NRA).
2410211700-2503151332EST
10/21/241700Z !FDC 4/1583 TUL IAP TULSA INTL, TULSA, OK.
ILS RWY 36R (SA CAT I), AMDT 29H ...
ILS RWY 36R (CAT II), AMDT 29H ...
PROCEDURE NA.
TEMPORARY CRANE, 836 MSL, 1801FT NW OF RWY 36R (2024-ASW-3338-NRA) 2410211700-2503151332EST
10/21/241700Z !FDC 4/1582 TUL IAP TULSA INTL, TULSA, OK.
RNAV (GPS) RWY 36R, AMDT 1C...
LPV DA 947/HAT 297 ALL CATS. VIS RVR 2200 ALL CATS.
LNAV MDA 1140/HAT 490 ALL CATS.
CIRCLING CAT A/B MDA 1200/HAA 522.
VDP 1.39 NM TO RW36R.
FOR INOP ALSF-2, INCREASE LPV ALL CATS VISIBILITY TO RVR 4500 REST OF INOP NOTE UNCHANGED.
TEMPORARY CRANE, 836 MSL, 1801FT NW OF RWY 36R (2024-ASW-3338-NRA).
2410211700-2503151332EST
9/4/241401Z !FDC 4/9796 TUL IAP TULSA INTL, TULSA, OK.
RNAV (GPS) RWY 8, AMDT 2B...
PROCEDURE NA.
TOWER, 2303 MSL, 9.67 NM WEST OF RWY 08 (40-000184).
2409041401-2609041401EST
Yes
ALL
CITY OF TULSA
TULSA ARPT AUTH. BOX 581838
TULSA, OK 74158
Phone: 918-838-5000
ALEXIS HIGGINS
PO BOX 581838
TULSA, OK 74158
Phone: 918-838-5000
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
TUL
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

7376 ft. x 150 ft.
CONC
Fair
GRVD
HIGH

75,000lbs
200,000lbs
350,000lbs
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 11' 44"N 36° 11' 44"N
Longitude 95° 53' 57"W 95° 52' 27"W
Elevation 671' 633'
Threshold Crossing Height 52 ft. AGL 57 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 18L/36R

10000 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

75,000lbs
200,000lbs
400,000lbs
--
  Runway 18L Runway 36R
True Heading 183°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 12' 50"N 36° 11' 11"N
Longitude 95° 52' 53"W 95° 52' 59"W
Elevation 627' 644'
Threshold Crossing Height 56 ft. AGL 52 ft. AGL
Visual Glide Path Angle 2.75°
Visual Slope Indicator P4L P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18R/36L

6101 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

100,000lbs
140,000lbs
--
--
  Runway 18R Runway 36L
True Heading 183°
Traffic Pattern Right Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 36° 12' 26"N 36° 11' 26"N
Longitude 95° 53' 57"W 95° 54' 01"W
Elevation 635' 677'
Threshold Crossing Height 42 ft. AGL 45 ft. AGL
Visual Glide Path Angle 2.75°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3CTN: 4000 FT BLACKTOP TRACK 1.5 NM E RWY 26; DO NOT MISTAKE FOR RWY.
A110-41TXLS LA, LB, NN & QQ NOT VSB FM ATCT.
A110-43BIRDS ON & INVOF ARPT.
A110-44APVD ACFT RUN UP AREA: 2300-0600 N END TWY J ACFT ORIENTATION N & S. 24 HR APCH END RWY 26 ACFT ORIENTATION E & W. 0600-2300 N END TWY L ACFT ORIENTATION N & S.
A110-45TWY L SOUTH OF TWY L3 NOT VSB TO ATCT.
A110-46TXL LB NOT VSB TO ATCT.
A110-5WT RSTRD AREAS: TWY JJ S-35; TWY M2 S-81/D-140/DT-186; TWY HH S-55/D-60; TWY L NORTH OF RWY 08/26 S-93/D-140/DT 209; TWY L BTN TWY C & TWY L2 S-120/D-250/DT 372; TWY L2 S-70/D-100/DT-166.
A110-7NOISE ABATEMENT ALL RWYS: CLIMB TO 3000 FT ASAP AFT TKOF.
TULSA INTL (ICAO: KTUL, IATA: TUL) is a public airport located in TULSA, OK.
