BOLINDER FLD/TOOELE VALLEY - Airport Diagram

KTVY

ICAO KTVYLocal TVY

BOLINDER FLD/TOOELE VALLEY

PublicPUB

5 miles NW of TOOELE, UT, US

View on Map

Status

Operational

Coordinates

40° 36' 45"N 112° 21' 03"W

Elevation

4321' MSL

Pattern Alt

5321' MSL

Mag Variation

11°E

Declination

13°E

Fuel

100LL

FSS

CEDAR CITY (CDC)

Sectional

SALT LAKE CITY

ARTCC

SALT LAKE CITY (ZLC)

Data Effective

6/11/26-7/9/26

KTVY VFR

1:35 PM MDT RAW

Clear

Viz

8sm

Temp

97°F

Dew

36°F

Pres

29.95"Hg

Wind

030° 11kts

Gusts 15kts

RMK

AO2

METAR KTVY 241935Z AUTO 03011G15KT 8SM CLR 36/02 A2995 RMK AO2

Add Your Business

KTVY FBOs

Promote Listing

Tooele Valley Airport

UNICOM: 123.0

Phone: (801) 575-2401

0 Reviews (Read | Sign In To Write)

World Fuel

As of 6/10	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.90
Full Serve

Fuel Notes

Prices include tax
Call ahead for availability and pricing of fuel.

Your Information

Business

Weather and Advisory

AWOS-3PT	119.725
(435) 882-6648

Common

CTAF	123.0
ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 17 & 35 - CTAF.
UNICOM	123.0

Clearance

Clearance Delivery	120.9
VFR
Clearance Delivery	124.4
IFR

Approach

SALT LAKE CITY APPROACH	126.25
SALT LAKE CITY APPROACH	135.5
Initial Contact

Departure

SALT LAKE CITY DEPARTURE	126.25
SALT LAKE CITY DEPARTURE	135.5
Initial Contact

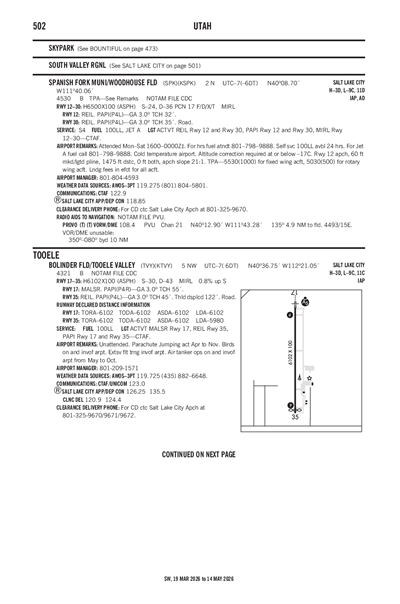

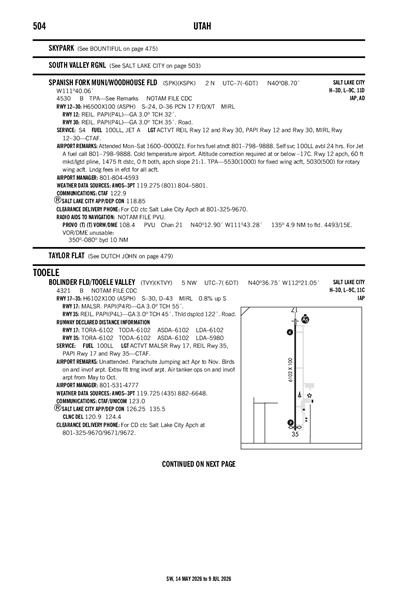

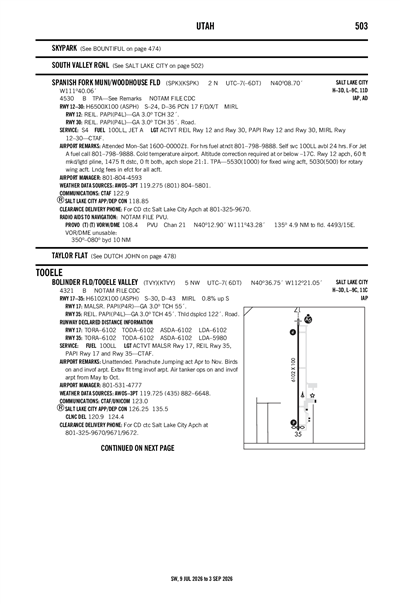

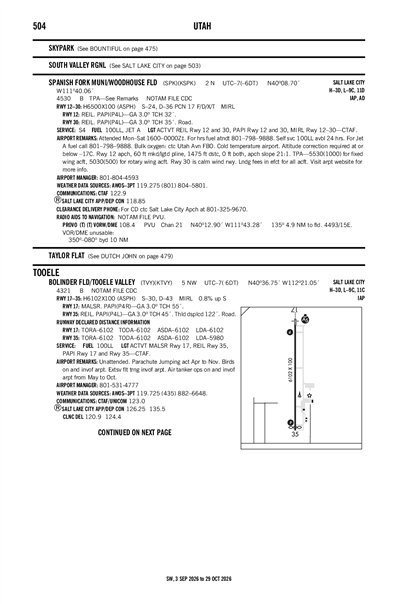

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Departure Procedures

STACO TWO (RNAV)

Instrument Approach

Terminal Area Forecast

KSLC (20nm)

RAW

Reported

Wed, 6/24 1:43 PM MDT

Valid

Wed, 6/24 2:00 PM MDT - Thu, 6/25 6:00 PM MDT

VFR

2:00 PM MDT - 2:30 PM MDT

Few 15,000'
Few 11,000'

Viz

6sm

Wind

170° 8kts

VFR

2:30 PM MDT - 9:00 PM MDT

Broken 15,000'
Scattered 10,000'

Viz

6sm

Wind

300° 9kts

VFR

4:00 PM MDT - 9:00 PM MDT

Light Thunderstorm and Rain

Broken 8,000'

Viz

6sm

Wind

220° 20kts

Gusts 35kts

VFR

9:00 PM MDT - 9:00 AM MDT

Broken 12,000'

Viz

6sm

Wind

150° 10kts

VFR

9:00 AM MDT - 2:00 PM MDT

Few 12,000'

Viz

6sm

Wind

180° 12kts

Gusts 18kts

VFR

2:00 PM MDT - 6:00 PM MDT

Scattered 12,000'

Viz

6sm

Wind

300° 10kts

VFR

2:00 PM MDT - 6:00 PM MDT

Light Thunderstorm and Rain

Broken 7,000'

Viz

6sm

Wind

VRB° 15kts

Gusts 30kts

TAF KSLC 241943Z 2420/2524 17008KT P6SM FEW110 FEW150
   FM242030 30009KT P6SM SCT100 BKN150
   PROB30 2422/2503 22020G35KT 6SM -TSRA BKN080CB
   FM250300 15010KT P6SM BKN120
   FM251500 18012G18KT P6SM FEW120
   FM252000 30010KT P6SM SCT120
   PROB30 2520/2524 VRB15G30KT 6SM -TSRA BKN070CB

KTVY

Effective	Expires	NOTAM
Domestic
6/12/26 1545Z		!CDC 06/131 TVY NAV ILS RWY 17 NOT MNT 2606121545-2607132000EST
6/1/26 0537Z	7/16/26 0604Z	!CDC 06/001 TVY OBST POWER LINE LGT (ASN 2012-ANM-443-OE) 403108N1121510W (7.2NM SE TVY) 6310FT (155FT AGL) U/S 2606010537-2607160604
5/31/26 0515Z	7/15/26 0604Z	!CDC 05/332 TVY OBST POWER LINE LGT (ASN 2012-ANM-448-OE) 403008N1121712W (7.3NM SSE TVY) 5814FT (185FT AGL) U/S 2605310515-2607150604
5/22/26 1400Z	8/23/26 0330Z	!CDC 05/237 TVY AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF TVY SFC-17900FT DLY 1400-0330 2605221400-2608230330

ATC Tower

Attendance

UNATTENDED

Owner

SALT LAKE CITY DEPT OF AIRPORTS
PO BOX 145550
SALT LAKE CITY, UT 84114
Phone: 801-575-2401

Manager

KEVIN THORNOCK
PO BOX 145550
SALT LAKE CITY, UT 84114
Phone: 801-531-4777

FSS

CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF

NOTAM

CDC

Light Schedule

Lights

ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 17 & 35 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Parachute Jump Activity

Runway 17/35

Dimensions

6102 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

43,000lbs

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	179°	359°
Traffic Pattern	Left	Left
Markings	PIR	BSC
Markings Condition	GOOD	GOOD
Latitude	40° 37' 15"N	40° 36' 15"N
Longitude	112° 21' 03"W	112° 21' 02"W
Elevation	4,273'	4,321'
Threshold Crossing Height	55 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights	MALSR
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

A110-1	EXTSV FLT TRNG INVOF ARPT.
A110-2	FOR CD CTC SALT LAKE CITY APCH AT 801-325-9670/9671/9672.
A110-3	BIRDS ON & INVOF ARPT.
A110-4	BLM AIR TANKER OPS ON & INVOF ARPT FROM MAY TO OCT.
A76-PAJA	SKYDIVING ACT APR TO NOV.
A81-APT	ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 17 & 35 - CTAF.

BOLINDER FLD/TOOELE VALLEY (ICAO: KTVY, IATA: TVY) is a public airport located in TOOELE, UT, US.
