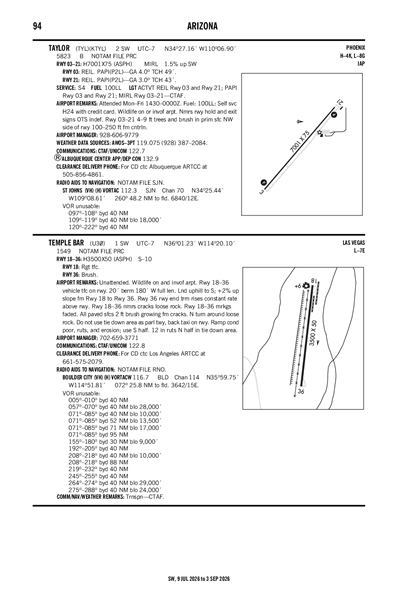

TAYLOR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTYL
ICAO KTYLIATA TYZLocal TYL
TAYLOR
PublicPUB

2 miles SW of TAYLOR, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 27' 10"N 110° 06' 54"W
Elevation
5823' MSL
Pattern Alt
6823' MSL
Mag Variation
9°E
Declination
9°E
Fuel
100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
9/3/26-10/1/26
KTYL VFR
1:15 PM MST
No Clouds
10sm
81°F
55°F
30.24"Hg
280° 3kts
AO2 LTG DSNT SE AND W
METAR KTYL 122015Z AUTO 28003KT 10SM 27/13 A3024 RMK AO2 LTG DSNT SE AND W
+ Add Your Business

KTYL FBOs

Promote Listing
Ray's Aircraft Services
UNICOM: 122.7
Phone: (928) 606-9779
Other: (928) 536-7366
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 8/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.60
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.075
(928) 387-2084

Common

CTAF 122.7
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
UNICOM 122.7

Center

ALBUQUERQUE CENTER 132.9
LOW/HIGH, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 132.9/239.05 (ZUNI RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KINW (46nm)
Sat, 9/12 10:20 AM MST
Sat, 9/12 11:00 AM MST - Sun, 9/13 11:00 AM MST
VFR
11:00 AM MST - 2:00 PM MST
Scattered 10,000'
6sm
VRB° 6kts
VFR
2:00 PM MST - 8:00 PM MST
Broken 10,000'
6sm
220° 10kts
VFR
Temporary 3:00 PM MST - 7:00 PM MST
Light Thunderstorm and Rain
Broken 8,000'
N/A
VRB° 20kts
Gusts 35kts
VFR
8:00 PM MST - 11:00 PM MST
Thunderstorm in vicinity
Scattered 8,000'
6sm
180° 10kts
VFR
11:00 PM MST - 11:00 AM MST
Broken 25,000'
6sm
VRB° 6kts
TAF KINW 121720Z 1218/1318 VRB06KT P6SM SCT100
   FM122100 22010KT P6SM BKN100
   TEMPO 1222/1302 VRB20G35KT -TSRA BKN080CB
   FM130300 18010KT P6SM VCTS SCT080CB
   FM130600 VRB06KT P6SM BKN250
KTYL
EffectiveExpiresCategoryNOTAM
Domestic
8/20/26
1338Z
12/18/26
1338Z
!PRC 08/206 TYL OBST TOWER LGT (ASR 1001738) 342556.00N1103508.00W (23.4NM W TYL) 6815.0FT (252.0FT AGL) U/S 2608201338-2612181338
8/8/26
1635Z
12/8/26
2359Z
!PRC 08/083 TYL SVC AUTOMATED WX BCST SYSTEM UNREL 2608081635-2612082359
FDC
8/12/25
1712Z
!FDC 5/6071 TYL IAP TAYLOR, TAYLOR, AZ.
RNAV (GPS) RWY 21, AMDT 1...
CHANGE CHART NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -26C OR ABOVE 54C.
2508121712-2708121712EST
No
MON-FRI 0730-1700
TOWN OF TAYLOR
BOX 158
TAYLOR, AZ 85939
Phone: 520-536-7366
RAY WEBBER
BOX 158
TAYLOR, AZ 85939
Phone: 928-606-9779
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 03/21

7001 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 03 Runway 21
True Heading 42°222°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 34° 26' 44"N 34° 27' 36"N
Longitude 110° 07' 22"W 110° 06' 26"W
Elevation 5,823' 5,720'
Threshold Crossing Height 49 ft. AGL 43 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-6WILDLIFE ON OR INVOF ARPT.
A110-7NMRS RWY HOLD & EXIT SIGNS OTS INDEF.
A110-8FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A14GUS LUNDBERG 928-536-7366.
A30-03/214-9 FT TREES & BRUSH IN PRIM SFC NW SIDE OF RWY 100-250 FT FM CNTRLN.
A70-100LLSELF SVC H24 WITH CREDIT CARD.
A81-APTACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
TAYLOR (ICAO: KTYL, IATA: TYL) is a public airport located in TAYLOR, AZ, US.
