iFlightPlanner



...

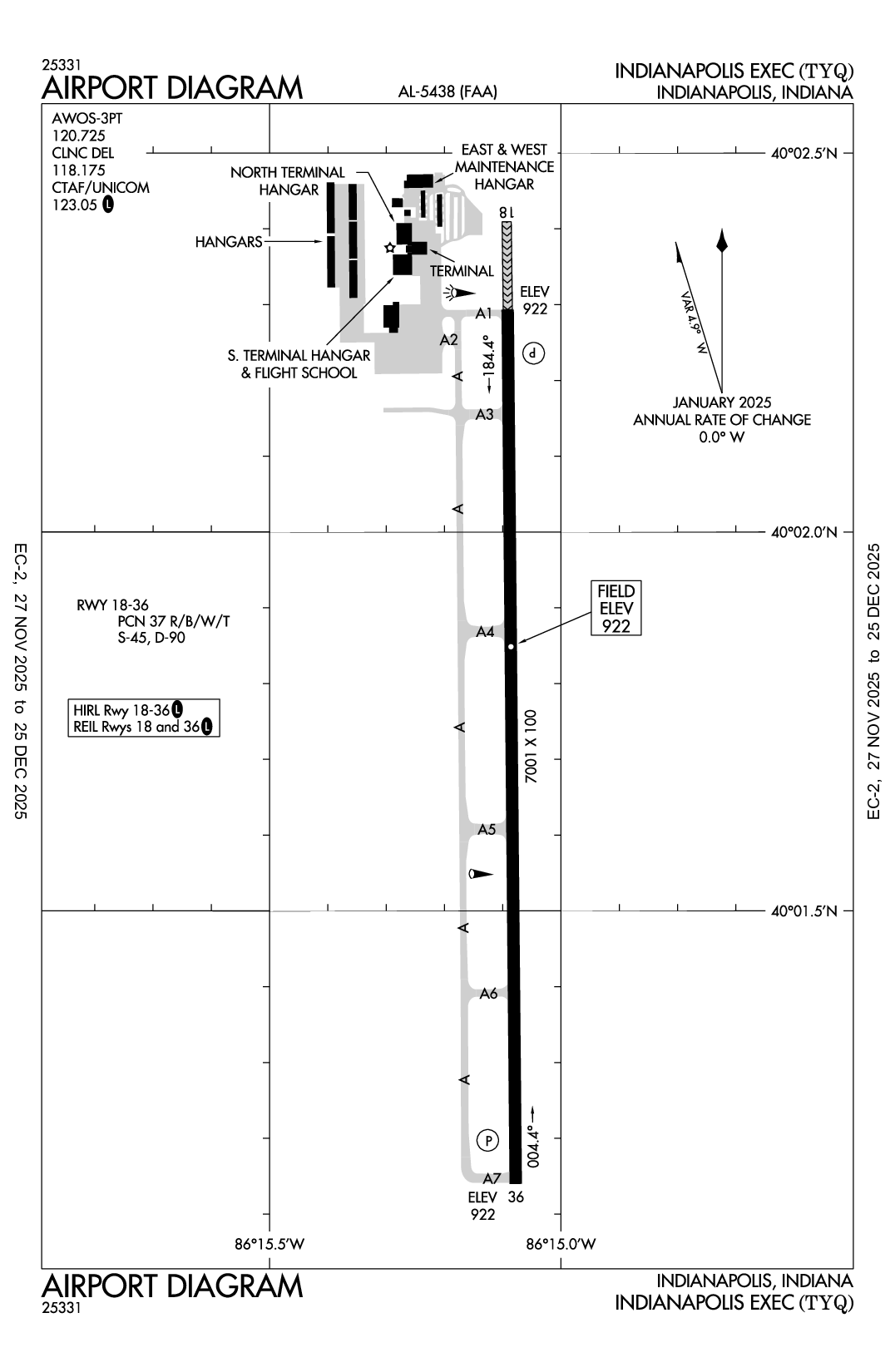

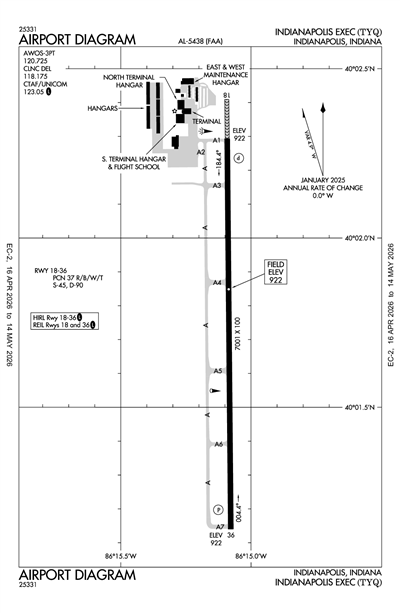

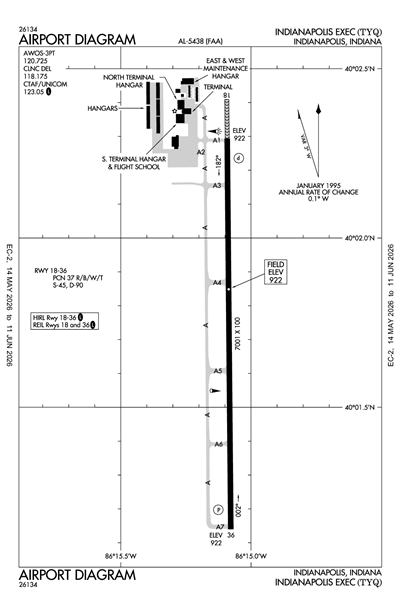

INDIANAPOLIS EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTYQ
ICAO KTYQLocal TYQ
INDIANAPOLIS EXEC
PublicPUB

14 miles NW of INDIANAPOLIS, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 01' 43"N 86° 15' 05"W
Elevation
922' MSL
Pattern Alt
1922' MSL
Mag Variation
5°W
Declination
3°W
Fuel
JET A, JET A (FSII), 100LL
FSS
TERRE HAUTE (HUF)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
3/19/26-4/16/26
KTYQ VFR
10:35 PM EDT
Clear
10sm
65°F
60°F
30.06"Hg
130° 4kts
AO2 LTG DSNT E T01840156
METAR KTYQ 040235Z AUTO 13004KT 10SM CLR 18/16 A3006 RMK AO2 LTG DSNT E T01840156
+ Add Your Business

KTYQ FBOs

Promote Listing
Jet Access
UNICOM: 123.05
Phone: (317) 769-4487
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.50
Full Serve 7.50 8.25 8.25
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 120.725
(317) 769-3154

Common

CTAF 123.05
ACTVT REIL RWY 18 & 36; HIRL RWY 18/36 - CTAF. HIRL RWY 18/36 PRESET MED INTST DUSK - DAWN; INCR INTST- CTAF. PAPI RWY 18 & 36 OPR CONSLY.
UNICOM 123.05

Clearance

Clearance Delivery 118.175

Arrival

RACYR STAR 128.175

Approach

INDIANAPOLIS APPROACH 124.65
ACTIVE RWY 05/23 AT IND
INDIANAPOLIS APPROACH 127.15
ACTIVE RWY 14/32 AT IND

Departure

INDIANAPOLIS DEPARTURE 124.65
ACTIVE RWY 05/23 AT IND
INDIANAPOLIS DEPARTURE 127.15
ACTIVE RWY 14/32 AT IND

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KIND (18nm)
Fri, 4/3 10:14 PM EDT
Fri, 4/3 10:00 PM EDT - Sun, 4/5 2:00 AM EDT
VFR
10:00 PM EDT - 12:00 AM EDT
Broken 20,000'
Scattered 3,500'
6sm
160° 9kts
VFR
12:00 AM EDT - 8:00 AM EDT
Broken 12,000'
Scattered 5,000'
6sm
180° 9kts
VFR
8:00 AM EDT - 7:00 PM EDT
Light Showers and Rain
Broken 3,500'
6sm
210° 13kts
Gusts 24kts
MVFR
10:00 AM EDT - 4:00 PM EDT
Thunderstorm and Rain
Broken 2,500'
3sm
Calm
MVFR
7:00 PM EDT - 11:00 PM EDT
Overcast 4,000'
Broken 2,500'
6sm
270° 14kts
Gusts 23kts
VFR
11:00 PM EDT - 2:00 AM EDT
Broken 5,000'
Scattered 3,000'
6sm
290° 13kts
TAF KIND 040214Z 0402/0506 16009KT P6SM SCT035 BKN200
   FM040400 18009KT P6SM SCT050 BKN120
   FM041200 21013G24KT P6SM -SHRA BKN035
   PROB30 0414/0420 3SM TSRA BKN025CB
   FM042300 27014G23KT P6SM BKN025 OVC040
   FM050300 29013KT P6SM SCT030 BKN050
KTYQ
EffectiveExpiresCategoryNOTAM
Domestic
4/8/26
1330Z
4/8/26
1730Z
!HUF 04/070 TYQ AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF TYQ SFC-3500FT AGL ACFT CS FLC81
2604081330-2604081730
3/13/26
1322Z
5/29/26
2100Z
!HUF 03/303 TYQ APRON WEST RAMP W 60FT CLSD 2603131322-2605292100
3/11/26
2144Z
!HUF 03/252 TYQ NAV ILS RWY 36 GP U/S 2603112144-2604102000EST
11/3/25
1610Z
5/31/26
2100Z
!HUF 11/030 TYQ APRON WEST RAMP WIP ADJ W SIDE 2511031610-2605312100
7/21/25
1200Z
12/1/26
2200Z
!HUF 07/642 TYQ APRON NORTH RAMP WIP CONST ADJ W SIDE 2507211200-2612012200
FDC
4/3/26
1400Z
!FDC 6/7893 TYQ SID INDIANAPOLIS EXEC, INDIANAPOLIS, IN.
HOOSIER FIVE DEPARTURE...
POCKET CITY TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PXV VORTAC OUT OF SERVICE. 2604031400-2605201400EST
3/28/26
0219Z
4/24/26
0219Z
!FDC 6/5266 TYQ SID INDIANAPOLIS EXEC, INDIANAPOLIS, IN.
ROCKY ONE DEPARTURE...
ST. LOUIS TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
STL VOR OUT OF SERVICE. 2603280219-2604240219EST
9/17/25
1955Z
!FDC 5/6241 TYQ IAP INDIANAPOLIS EXEC, INDIANAPOLIS, IN.
RNAV (GPS) RWY 18, AMDT 2...
ADD NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT.
2509171955-2709171955EST
No
0600-2000
SVC AFT HR - 317-769-4487.
HAMILTON COUNTY AIRPORT AUTHORITY
11329 E. STATE RD 32
ZIONSVILLE, IN 46077
Phone: (317) 385-3015
SAM SACHS
11329 E. STATE RD 32
ZIONSVILLE, IN 46077
Phone: 317-385-3015
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT REIL RWY 18 & 36; HIRL RWY 18/36 - CTAF. HIRL RWY 18/36 PRESET MED INTST DUSK - DAWN; INCR INTST- CTAF. PAPI RWY 18 & 36 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
Major
Major
High Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

7001 ft. x 100 ft.
CONC
Excellent
GRVD
HIGH
37/R/B/W/T
45,000lbs
90,000lbs
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 40° 02' 18"N 40° 01' 08"N
Longitude 86° 15' 05"W 86° 15' 05"W
Elevation 922' 922'
Threshold Crossing Height 52 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-10BIRDS ON & INVOF ARPT
A110-4FOR CD CTC INDIANAPOLIS APCH AT 317-227-5743.
A110-5COND NOT MNT 2000-0600.
A110-7REMOTE CTL ACFT ACT 0.1 NM W OF RWY 18/36 SFC-400 FT.
A110-9FUEL & SVC - 130.4
A17-M1SVC AFT HR - 317-769-4487.
A30-18/36RWY 36 CALM/XWIND RWY.
A58-1810 FT CROPS 230 FT E OF RWY CNTRLN.
A70-100LL100LL SELF SVC H24 WITH CREDIT CARD.
A81-APTACTVT REIL RWY 18 & 36; HIRL RWY 18/36 - CTAF. HIRL RWY 18/36 PRESET MED INTST DUSK - DAWN; INCR INTST- CTAF. PAPI RWY 18 & 36 OPR CONSLY.
INDIANAPOLIS EXEC (ICAO: KTYQ, IATA: TYQ) is a public airport located in INDIANAPOLIS, IN, US.
