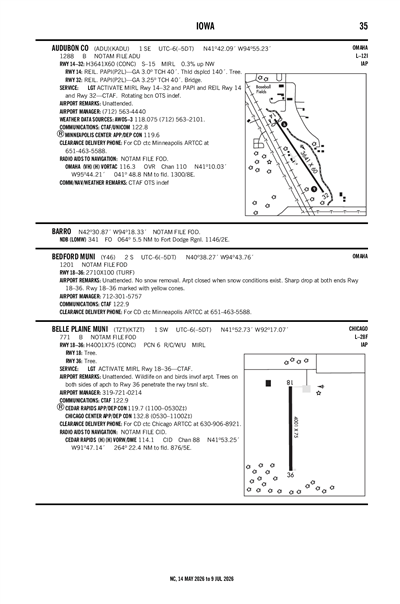

BELLE PLAINE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTZT
ICAO KTZTIATA TZTLocal TZT
BELLE PLAINE MUNI
PublicPUB

1 miles SW of BELLE PLAINE, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 52' 44"N 92° 17' 04"W
Elevation
771' MSL
Pattern Alt
1771' MSL
Mag Variation
1°W
Declination
0°
Fuel
None Listed
FSS
FORT DODGE (FOD)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
4/16/26-5/14/26
KGGI (23nm) VFR
1:55 PM CDT
Clear
10sm
59°F
42°F
29.87"Hg
320° 15kts
Gusts 18kts
AO2 T01480053
METAR KGGI 241855Z AUTO 32015G18KT 10SM CLR 15/05 A2987 RMK AO2 T01480053
+ Add Your Business

KTZT FBOs

Promote Listing
Belle Plaine Municipal Airport
Phone: (319) 350-7136
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RY 18/36 - CTAF.

Approach

CEDAR RAPIDS APPROACH 119.7

Departure

CEDAR RAPIDS DEPARTURE 119.7

Center

CEDAR RAPIDS CENTER 132.8
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQS 132.8/328.4 (CEDAR RAPIDS RCAG) WHEN CEDAR RAPIDS APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCID (25nm)
Fri, 4/24 12:20 PM CDT
Fri, 4/24 1:00 PM CDT - Sat, 4/25 1:00 PM CDT
VFR
1:00 PM CDT - 8:00 PM CDT
Scattered 2,500'
6sm
320° 12kts
Gusts 18kts
VFR
8:00 PM CDT - 7:00 AM CDT
Sky Clear
6sm
020° 5kts
VFR
7:00 AM CDT - 1:00 PM CDT
Sky Clear
6sm
080° 9kts
TAF KCID 241720Z 2418/2518 32012G18KT P6SM SCT025
   FM250100 02005KT P6SM SKC
   FM251200 08009KT P6SM SKC
KTZT
EffectiveExpiresCategoryNOTAM
Domestic
4/24/26
0509Z
8/22/26
0509Z
!FOD 04/166 TZT OBST TOWER LGT (ASR 1052681) 414212.40N0921022.70W (11.6NM SSE TZT) 1281.2FT (369.1FT AGL) U/S 2604240509-2608220509
4/15/26
1741Z
6/15/26
2359Z
!FOD 04/104 TZT OBST TOWER LGT (ASR 1056817) 415857.00N0921758.00W (6.3NM N TZT) 1226.0FT (345.1FT AGL) U/S 2604151741-2606152359
4/6/26
1714Z
6/6/26
2359Z
!FOD 04/031 TZT OBST TOWER LGT (ASR 1228051) 415742.30N0920722.30W (8.8NM NE TZT) 1256.9FT (350.1FT AGL) U/S 2604061714-2606062359
FDC
9/12/25
1729Z
!FDC 5/2879 TZT ODP BELLE PLAINE MUNI, BELLE PLAINE, IA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
ADD TAKEOFF OBSTACLE NOTE: RWY 36, BUILDINGS BEGINNING 385FT FROM DER, 469FT LEFT OF CENTERLINE, UP TO 48FT AGL/822FT MSL. ALL OTHER DATA REMAINS AS PUBLISHED. 2509121729-2709121729EST
No
UNATNDD
CITY OF BELLE PLAINE
8TH AVE & 13TH ST.
BELLE PLAINE, IA 52208
Phone: 319-444-2200
STEPHEN BECK
1207 - 8TH AVENUE
BELLE PLAINE, IA 52208
Phone: 319-310-3918
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
--
ACTVT MIRL RY 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

4001 ft. x 75 ft.
CONC
Good
NONE
MED
6/R/C/W/U
--
--
--
--
  Runway 18 Runway 36
True Heading 177°357°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 53' 03"N 41° 52' 24"N
Longitude 92° 17' 06"W 92° 17' 03"W
Elevation 771' 769'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TREES ON BOTH SIDES OF APCH TO RWY 36 PENETRATE THE RWY TRSNL SFC.
A110-2WILDLIFE ON AND BIRDS INVOF ARPT.
A110-3FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A14CITY ADMINISTRATOR
A81-APTACTVT MIRL RY 18/36 - CTAF.
E111DETERMINATION PENDING.
BELLE PLAINE MUNI (ICAO: KTZT, IATA: TZT) is a public airport located in BELLE PLAINE, IA, US.
