iFlightPlanner



...

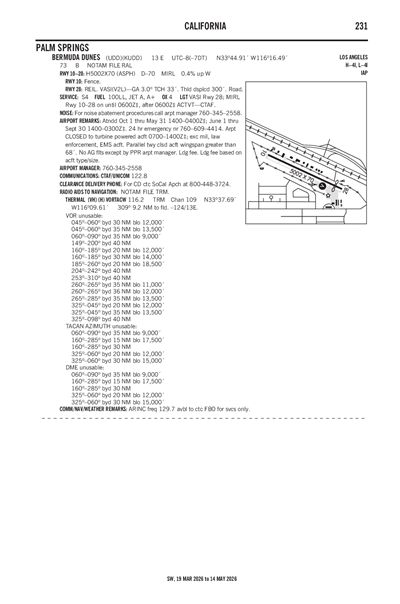

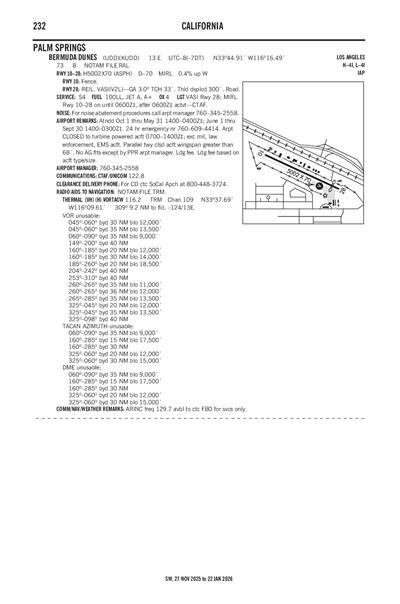

BERMUDA DUNES - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KUDD
ICAO KUDDIATA UDDLocal UDD
BERMUDA DUNES
PublicPUB

13 miles E of PALM SPRINGS, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 44' 54"N 116° 16' 29"W
Elevation
73' MSL
Pattern Alt
1073' MSL
Mag Variation
11°E
Declination
14°E
Fuel
JET A, JET A (FSII), 100LL
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
4/16/26-5/14/26
KPSP (12nm) VFR
5:53 PM PDT
Clear
10sm
85°F
42°F
29.68"Hg
320° 18kts
Gusts 25kts
AO2 PK WND 32029/0041 SLP049 T02940056
METAR KPSP 250053Z 32018G25KT 10SM CLR 29/06 A2968 RMK AO2 PK WND 32029/0041 SLP049 T02940056
+ Add Your Business

KUDD FBOs

Promote Listing
Dunes Air
ASRI: 129.7, UNICOM: 122.8
Phone: (760) 345-2558
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.89 9.47 9.55
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
VASI RWY 28; MIRL RWY 10/28 ON UNTIL 2200; AFTER 2200 ACTVT - CTAF.
UNICOM 122.8

Arrival

CLOWD STAR 126.7
SBONO STAR 126.7
SIZLR STAR 134.0

Approach

SOCAL APPROACH 135.275

Departure

SOCAL DEPARTURE 135.275

FAA A/FD Pages

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KTRM (9nm)
Fri, 4/24 4:40 PM PDT
Fri, 4/24 5:00 PM PDT - Sat, 4/25 5:00 PM PDT
VFR
5:00 PM PDT - 6:00 PM PDT
Scattered 25,000'
6sm
140° 6kts
VFR
6:00 PM PDT - 9:00 PM PDT
Scattered 25,000'
6sm
300° 10kts
Gusts 20kts
VFR
9:00 PM PDT - 5:00 AM PDT
Broken 25,000'
6sm
330° 18kts
Gusts 28kts
VFR
5:00 AM PDT - 12:00 PM PDT
Broken 20,000'
6sm
330° 14kts
VFR
12:00 PM PDT - 4:00 PM PDT
Broken 20,000'
6sm
VRB° 5kts
VFR
4:00 PM PDT - 5:00 PM PDT
Broken 20,000'
6sm
290° 10kts
Gusts 22kts
TAF KTRM 242340Z 2500/2524 14006KT P6SM SCT250
   FM250100 30010G20KT P6SM SCT250
   FM250400 33018G28KT P6SM BKN250
   FM251200 33014KT P6SM BKN200
   FM251900 VRB05KT P6SM BKN200
   FM252300 29010G22KT P6SM BKN200 AMD NOT SKED
KUDD
EffectiveExpiresCategoryNOTAM
Domestic
4/27/26
0430Z
4/27/26
0600Z
!RAL 04/138 UDD AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS .5NM RADIUS OF 334102N1161406W (4.5NM SE UDD) SFC-600FT AGL 2604270430-2604270600
4/26/26
0300Z
4/26/26
0530Z
!RAL 04/124 UDD AIRSPACE UAS WI AN AREA DEFINED AS 0.3NM RADIUS OF 334056.70N1161354W (4.5NM SE UDD) SFC-400FT AGL 2604260300-2604260530
4/26/26
0200Z
4/26/26
0300Z
!RAL 04/125 UDD AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM RADIUS OF 334057N1161354W (4.5NM SE UDD) SFC-400FT AGL 2604260200-2604260300
4/8/26
1436Z
10/1/26
2359Z
!RAL 04/044 UDD COM REMOTE COM OUTLET 126.7 UNREL USE 135.27 2604081436-2610012359
1/1/26
1400Z
12/11/26
2330Z
!RAL 12/154 UDD AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM RADIUS OF
334406.60N1161428.70W (1.9NM ESE UDD) SFC-200FT AGL THU FRI MON TUE
WED 1400-2330 2601011400-2612112330
FDC
9/2/25
1955Z
!FDC 5/6720 UDD IAP BERMUDA DUNES, PALM SPRINGS, CA.
RNAV (GPS) RWY 10, ORIG-D...
LNAV MDA CAT A/B/C 500/HAT 427.
2509021955-2709021955EST
No
SEE RMKS
ATNDD OCT 1 THRU MAY 31 0600- 2000; JUNE 1 THRU SEPT 30 0600-1900.
CPF BDA, LLC
3000 AIRWAY AVE SUITE 200
COSTA MESA, CA 92626
Phone: 949-476-2200
ANN GOODWYN
79880 AVE. 42
BERMUDA DUNES, CA 92203
Phone: 760-345-2558
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
RAL
--
VASI RWY 28; MIRL RWY 10/28 ON UNTIL 2200; AFTER 2200 ACTVT - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10/28

5002 ft. x 70 ft.
ASPH
Good
NONE
MED

--
70,000lbs
--
--
  Runway 10 Runway 28
True Heading 116°296°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 45' 05"N 33° 44' 44"N
Longitude 116° 16' 56"W 116° 16' 03"W
Elevation 73' 51'
Threshold Crossing Height -- 33 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1NO AGRI FLIGHTS EXCP BY PPR ARPT MGR.
A110-10FOR CD CTC SOCAL APCH AT 800-448-3724.
A110-2FOR NOISE ABATEMENT PROCEDURES CALL AMGR (760) 345-2558.
A110-3ARPT CLSD TO TURBINE PWRD ACFT 2300-0600 LCL; EXCP MIL, LAW ENFORCEMENT, EMS ACFT.
A110-5PARL TWY CLSD ACFT WING SPAN GREATER THAN 68 FT.
A110-624 HR EMERG NR 760-609-4414.
A110-7FUEL AVBL 0600-2000.
A110-9ARINC FREQ 129.7 AVBL TO CTC FBO FOR SVCS ONLY
A17-H1ATNDD OCT 1 THRU MAY 31 0600- 2000; JUNE 1 THRU SEPT 30 0600-1900.
A24LNDG FEE BASED ON ACFT TYPE/SIZE.
A57-28APCH RATIO 28:1 TO DSPLCD THR.
A58-10+6' FENCE 125'L.
A58-28+6' FENCE 125'R.
A81-APTVASI RWY 28; MIRL RWY 10/28 ON UNTIL 2200; AFTER 2200 ACTVT - CTAF.
BERMUDA DUNES (ICAO: KUDD, IATA: UDD) is a public airport located in PALM SPRINGS, CA, US.
