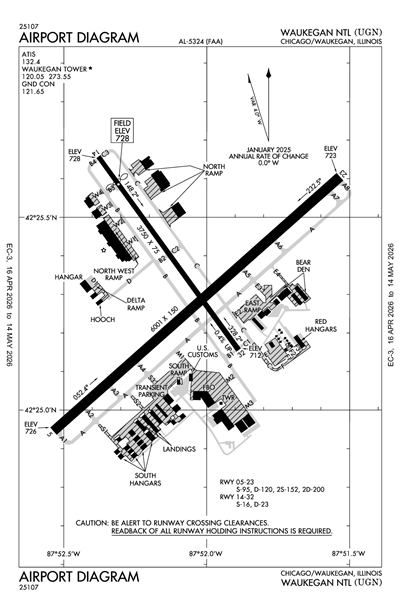

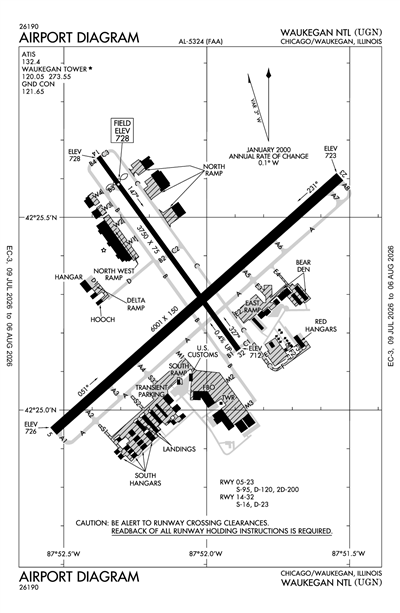

WAUKEGAN NTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KUGN
ICAO KUGNIATA UGNLocal UGN
WAUKEGAN NTL
PublicPUB

35 miles N of CHICAGO/WAUKEGAN, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 25' 20"N 87° 52' 04"W
Elevation
728' MSL
Pattern Alt
1728' MSL
Mag Variation
4°W
Declination
3°W
Fuel
JET A, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
7/9/26-8/6/26
KUGN VFR
7:51 PM CDT
Clear
10sm
84°F
74°F
29.91"Hg
210° 7kts
AO2 SLP114 T02890233
METAR KUGN 180051Z 21007KT 10SM CLR 29/23 A2991 RMK AO2 SLP114 T02890233
+ Add Your Business

KUGN FBOs

Promote Listing
Signature Aviation
UNICOM: 131.85
Phone: (847) 336-9220
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 7/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.90
Full Serve 8.07 8.25
Fuel Notes
Prices include tax

KUGN Other Businesses

Promote Listing
Skill Aviation
Phone: (847) 599-9955
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 132.4
ASOS (847) 782-0876

Common

CTAF 120.05
ATCTVT MALSR RWY 23; REIL RWY 05; HIRL RWY 05/23; MIRL RWY 14/32 TWY LGTS - CTAF. WHEN ATCT CLSD TO INCR INTST & ACTVT - CTAF

Ground

WAUKEGAN GROUND 121.65
0600-2000

Tower

WAUKEGAN TOWER 120.05
0600-2000

Arrival

GOPAC STAR 126.5

Approach

CHICAGO APPROACH 120.55

Departure

CHICAGO DEPARTURE 120.55

Emergency

Emergency 121.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KENW (11nm)
Fri, 7/17 6:40 PM CDT
Fri, 7/17 7:00 PM CDT - Sat, 7/18 7:00 PM CDT
VFR
7:00 PM CDT - 5:00 AM CDT
Few 4,500'
6sm
230° 6kts
VFR
5:00 AM CDT - 11:00 AM CDT
Scattered 7,000'
6sm
250° 9kts
VFR
11:00 AM CDT - 1:00 PM CDT
Scattered 4,000'
6sm
300° 11kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Thunderstorm and Rain
Broken 4,000'
4sm
Calm
MVFR
1:00 PM CDT - 2:00 PM CDT
Thunderstorm and Rain
Broken 4,000'
4sm
Calm
VFR
1:00 PM CDT - 3:00 PM CDT
Scattered 4,000'
6sm
330° 10kts
VFR
3:00 PM CDT - 6:00 PM CDT
Scattered 4,000'
6sm
010° 11kts
VFR
6:00 PM CDT - 7:00 PM CDT
Smoke
Scattered 3,000'
6sm
040° 11kts
TAF KENW 172340Z 1800/1824 23006KT P6SM FEW045
   FM181000 25009KT P6SM SCT070
   FM181600 30011KT P6SM SCT040
   PROB30 1816/1818 4SM TSRA BKN040CB
   FM181800 33010KT P6SM SCT040
   PROB30 1818/1819 4SM TSRA BKN040CB
   FM182000 01011KT P6SM SCT040
   FM182300 04011KT 6SM FU SCT030
KUGN
EffectiveExpiresCategoryNOTAM
Domestic
7/20/26
1300Z
10/24/26
2100Z
!UGN 07/008 UGN TWY D CLSD 2607201300-2610242100
7/16/26
1842Z
7/17/26
1700Z
!UGN 07/007 UGN TWY D EDGE LGT U/S 2607161842-2607171700
7/16/26
1840Z
7/17/26
1700Z
!UGN 07/006 UGN TWY B EDGE LGT U/S 2607161840-2607171700
6/17/26
0100Z
8/10/26
0400Z
!UGN 06/005 UGN AIRSPACE NUMEROUS UAS WI AN AREA DEFINED AS .10NM RADIUS OF 422218N0875605W (4.5NM SW UGN) SFC-500FT AGL DLY 0100-0400 2606170100-2608100400
2/5/26
1247Z
!UGN 02/006 UGN NAV ILS RWY 23 OM U/S 2602051247-2709272111EST
Yes
ALL
WAUKEGAN PORT DISTRICT
2601 PLANE REST DR.
WAUKEGAN, IL 60087
Phone: 847-244-0055
SKIP GOSS
2601 PLANE REST DRIVE
WAUKEGAN, IL 60087
Phone: 847-244-0055
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
UGN
--
ATCTVT MALSR RWY 23; REIL RWY 05; HIRL RWY 05/23; MIRL RWY 14/32 TWY LGTS - CTAF. WHEN ATCT CLSD TO INCR INTST & ACTVT - CTAF
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

6001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

95,000lbs
120,000lbs
200,000lbs
--
  Runway 05 Runway 23
True Heading 48°228°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 24' 57"N 42° 25' 36"N
Longitude 87° 52' 32"W 87° 51' 32"W
Elevation 726' 723'
Threshold Crossing Height 35 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 14/32

3750 ft. x 75 ft.
ASPH
Good
NONE
MED

16,000lbs
23,000lbs
--
--
  Runway 14 Runway 32
True Heading 144°324°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 25' 40"N 42° 25' 10"N
Longitude 87° 52' 23"W 87° 51' 53"W
Elevation 728' 712'
Threshold Crossing Height 30 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator V4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2BIRDS ON & INVOF ARPT.
A110-5FOR CD WHEN ATCT IS CLSD CTC CHICAGO APCH AT 847-289-0926.
A15EMAIL ADDRESS: SGOSS@WAUKEGANPORT.COM
A57-14APCH RATIO IS 26:1 AT DSPLCD THLD.
A70-100LLFUEL IS PRVDD BY A DOD CONTRACT. 100 LL AVBL 24HR WITH CREDIT CARD FM SELF SERVE PUMP ON TSNT RAMP.
A81-APTATCTVT MALSR RWY 23; REIL RWY 05; HIRL RWY 05/23; MIRL RWY 14/32 TWY LGTS - CTAF. WHEN ATCT CLSD TO INCR INTST & ACTVT - CTAF
E80AFOR US CUSTOMS 2 HRS MIN ADVN NOTICE RQRD MON-FRI 11:00 - 19:00 LCL & BY 4PM FRI FOR WKEND ARRS. CTC CBP (224)529-1468.
WAUKEGAN NTL (ICAO: KUGN, IATA: UGN) is a public airport located in CHICAGO/WAUKEGAN, IL, US.
